Variable Valve Timing Solenoid: Diagrams

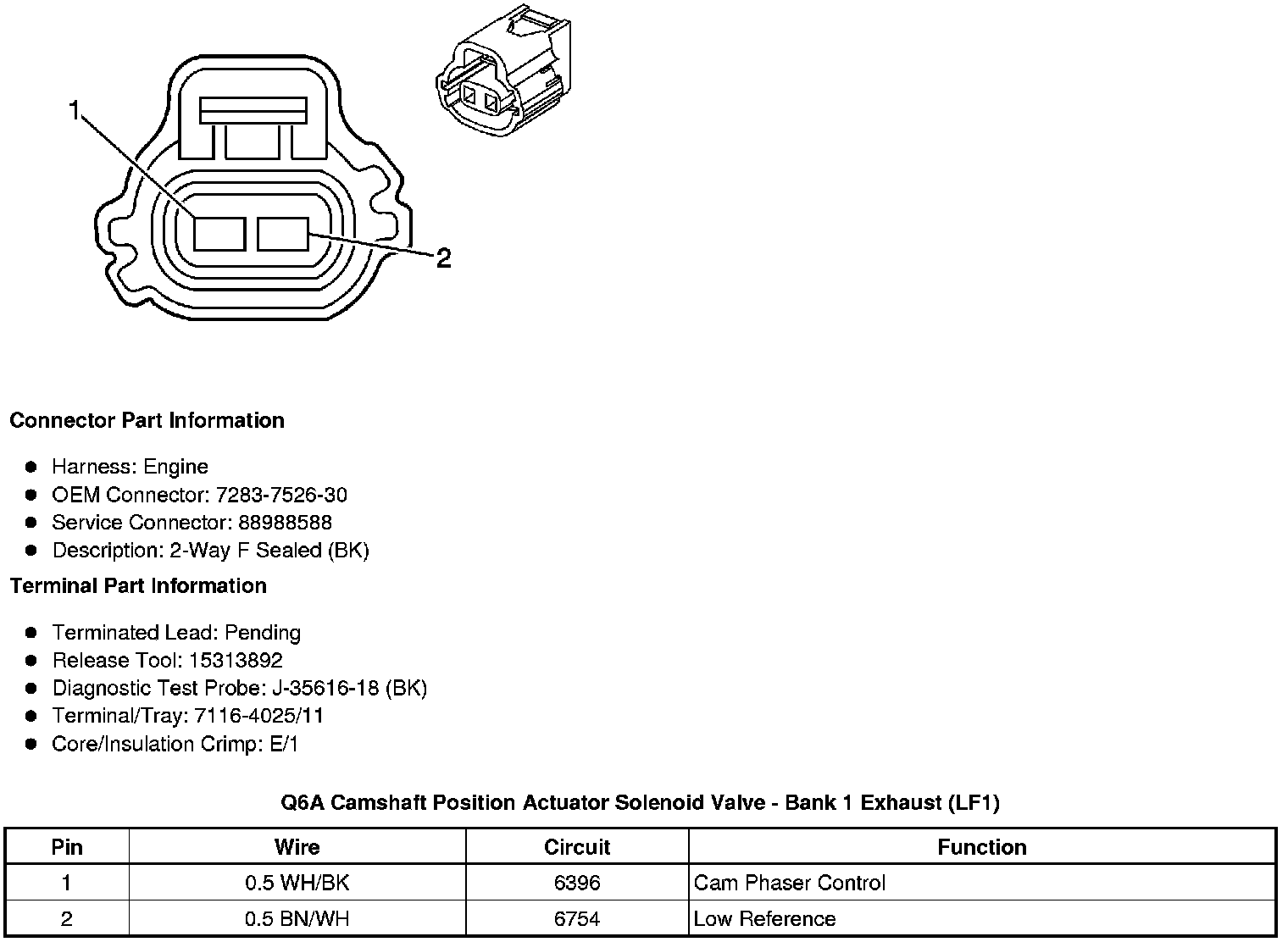

Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust (LF1)

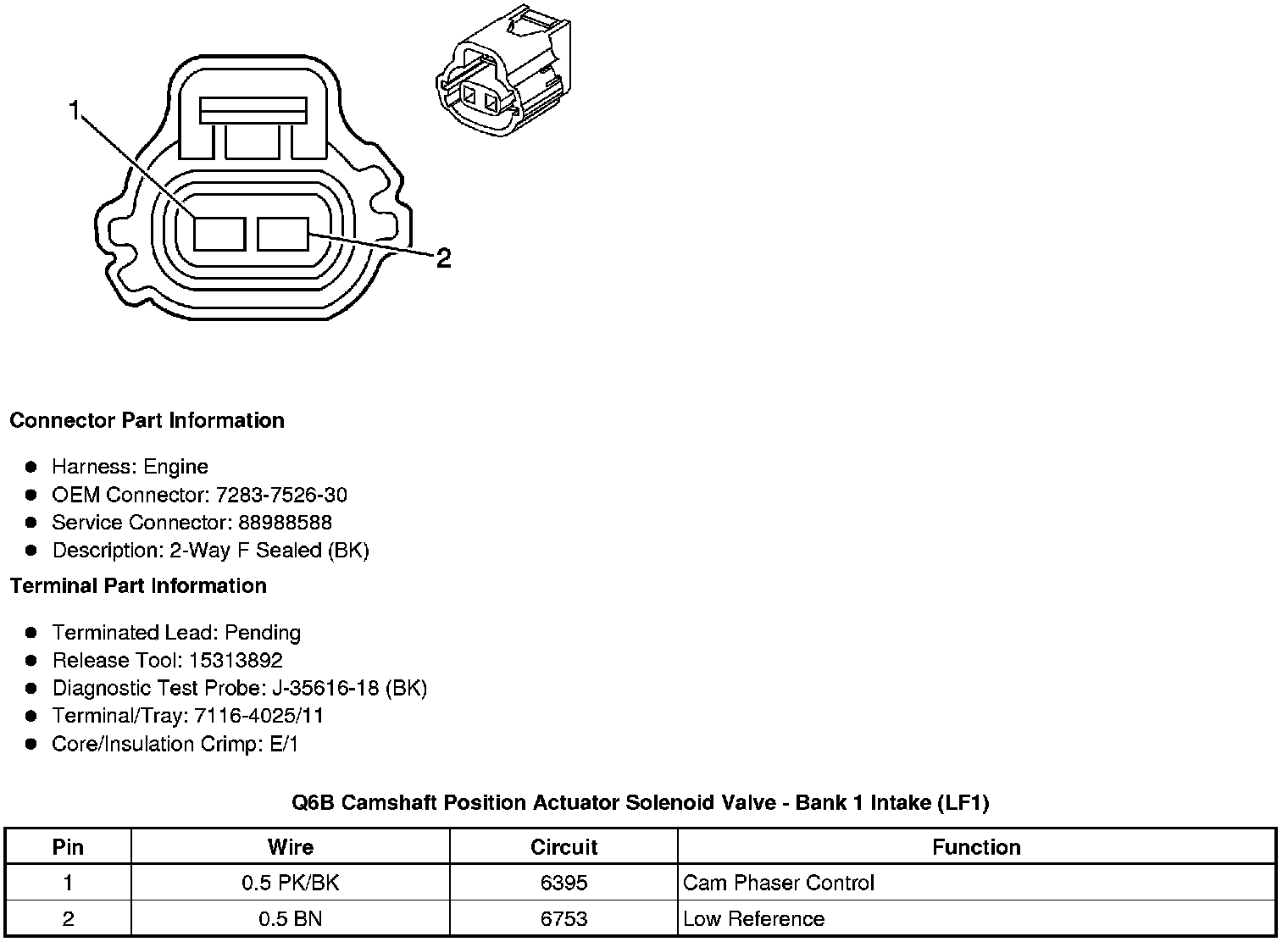

Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake (LF1)





Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (LF1)

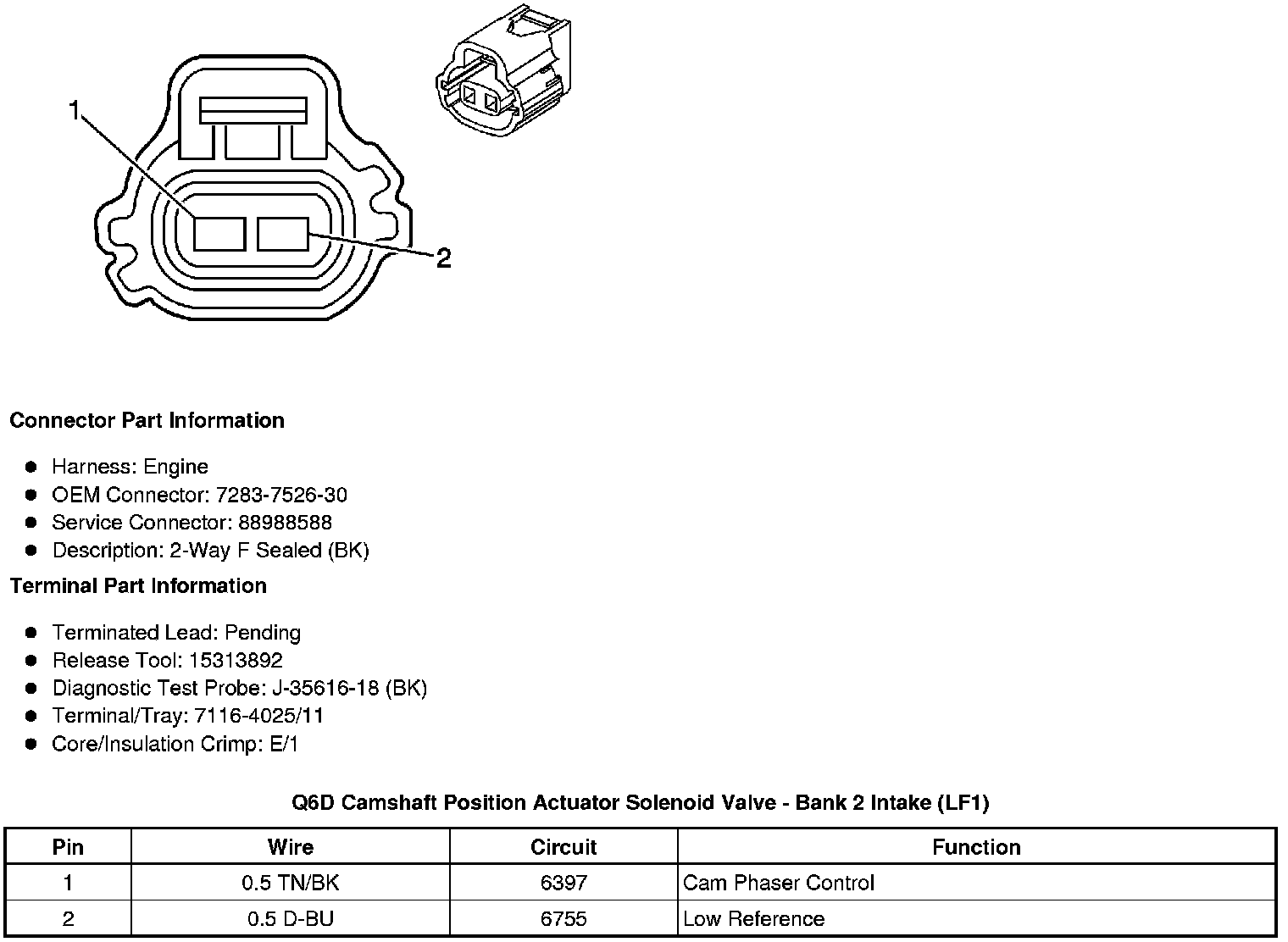

Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake (LF1)





Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LAF)

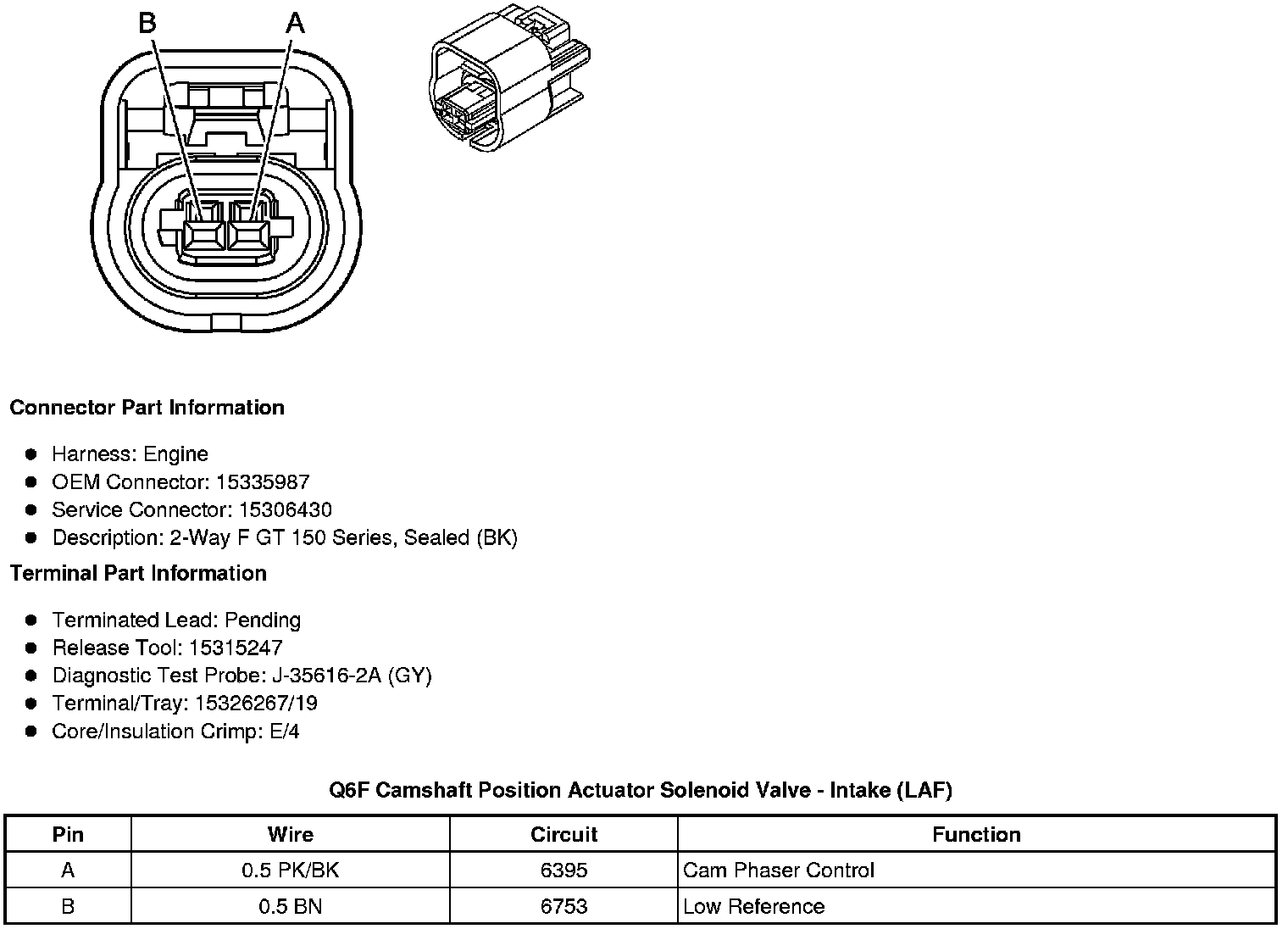

Q6F Camshaft Position Actuator Solenoid Valve - Intake (LAF)
