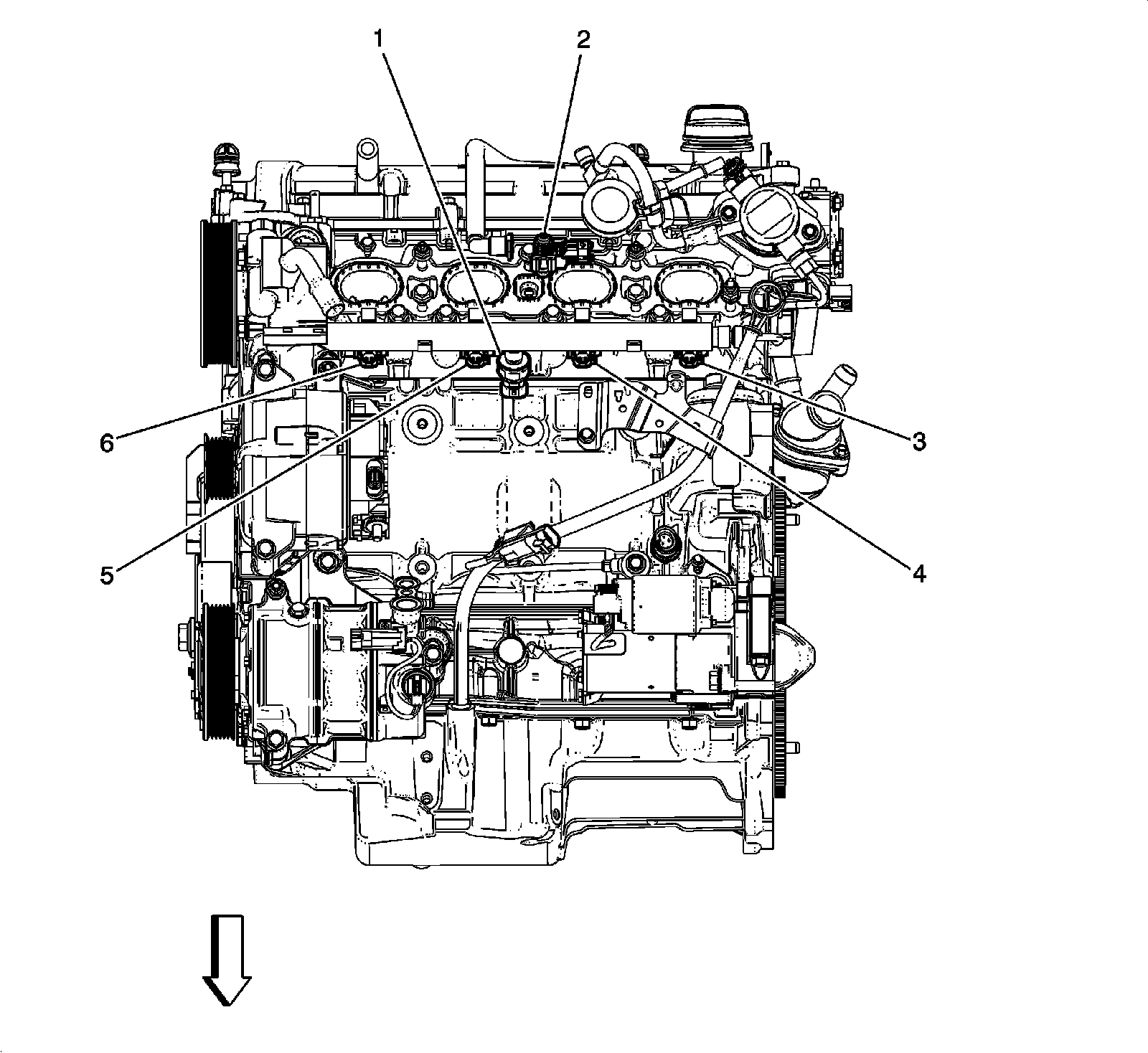

Front Engine Components (LAF 2 of 2)




1 - B47B Fuel Rail Pressure Sensor
2 - B74 Manifold Absolute Pressure Sensor
3 - Q17D Fuel Injector 4
4 - Q17C Fuel Injector 3
5 - B1 A/C Refrigerant Pressure Sensor
6 - Q17B Fuel Injector 2
7 - Q17A Fuel Injector 1

Right Rear of the Engine Components (LF1)




1 - B74 Manifold Absolute Pressure Sensor
2 - T8E Ignition Coil 5
3 - T8C Ignition Coil 3
4 - Q12 Evaporative Emission Purge Solenoid Valve
5 - Q38 Throttle Body
6 - B23B Camshaft Position Sensor - Bank 1 Intake
7 - B23D Camshaft Position Sensor - Bank 2 Intake
8 - Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake
9 - Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust
10 - B23C Camshaft Position Sensor - Bank 2 Exhaust
11 - Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake
12 - Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust
13 - B23A Camshaft Position Sensor - Bank 1 Exhaust
14 - B68A Knock Sensor 1
15 - B26 Crankshaft Position Sensor
16 - T8A Ignition Coil 1
