Disassembled Views




Disassembled Views

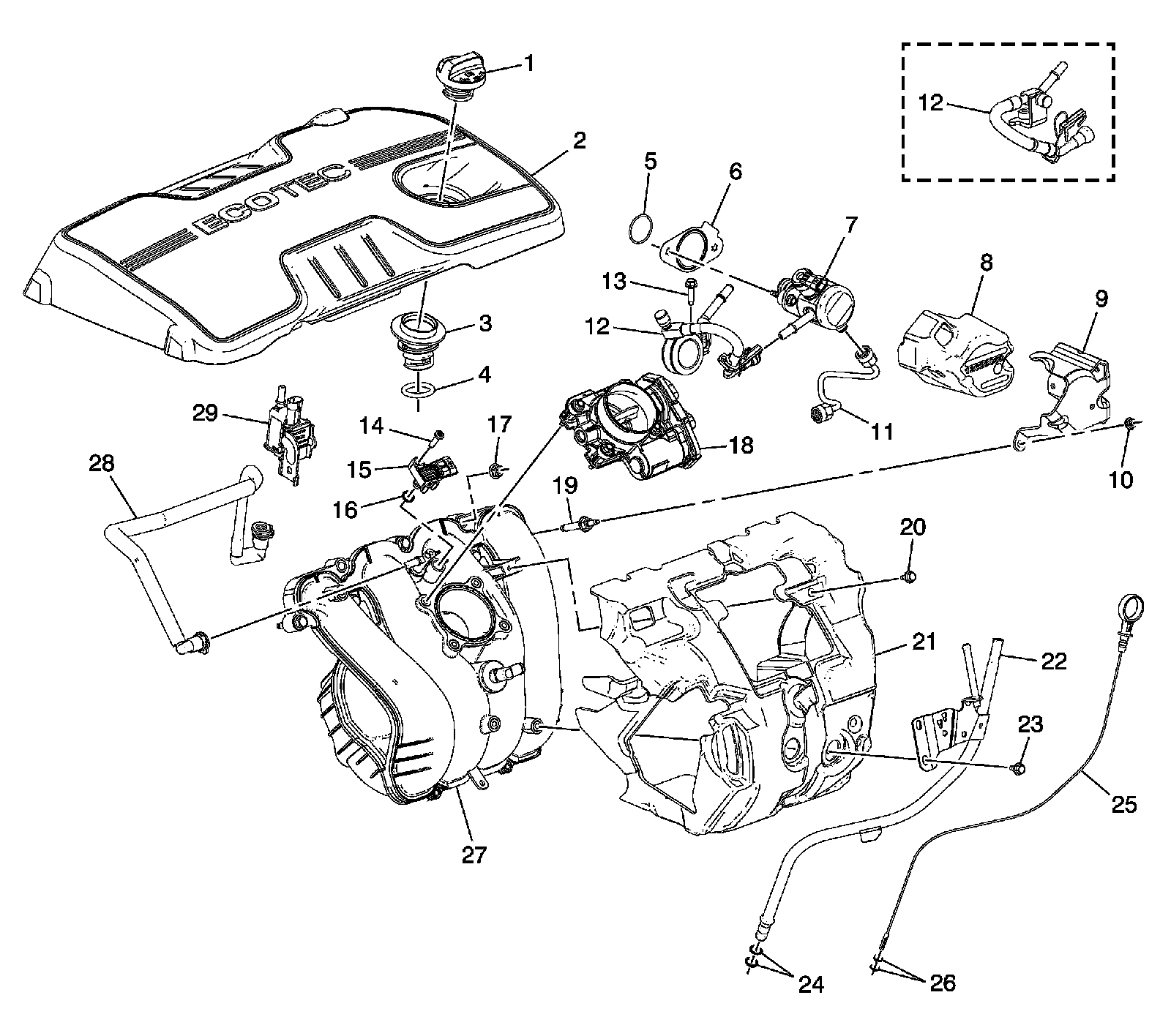

Intake Manifold and Components




1 - Oil Fill Cap
2 - Intake Manifold Cover
3 - Oil Fill Tube Assembly
4 - Oil Fill Cap O-Ring
5 - Fuel Pump Housing Seal
6 - Fuel Pump Gasket
7 - Fuel Pump Assembly
8 - Fuel Pump Insulator
9 - Fuel Pump Cover
10 - Fuel Pump Cover Nut
11 - Fuel Feed Intermediate Pipe
12 - Low Pressure Fuel Pipe Assembly, model dependent
13 - Low Pressure Fuel Pipe Assembly Bolt
14 - Manifold Absolute Pressure (MAP) Sensor Bolt
15 - MAP Sensor
16 - MAP Sensor O-Ring
17 - Intake Manifold Nut
18 - Throttle Body
19 - Intake Manifold Stud
20 - Intake Manifold Insulator Bolt
21 - Intake Manifold Insulator
22 - Oil Indicator Tube
23 - Oil Indicator Tube Bolt
24 - Oil Indicator Tube O-Ring
25 - Oil Indicator
26 - Oil Indicator O-Ring
27 - Intake Manifold
28 - Evaporative (EVAP) Emission Canister Purge Tube Assembly
29 - EVAP Emission Canister Purge Solenoid Valve
