Powertrain Component Views

Powertrain Component Views

Front Engine Components (LAF 1 of 2)




1 - Q38 Throttle Body
2 - G18 High Pressure Fuel Pump
3 - B23F Camshaft Position Sensor - Intake
4 - B37 Engine Oil Pressure Switch
5 - B68 Knock Sensor
6 - B26 Crankshaft Position Sensor
7 - M64 Starter Motor
8 - Q2 A/C Compressor Clutch
9 - G13 Generator

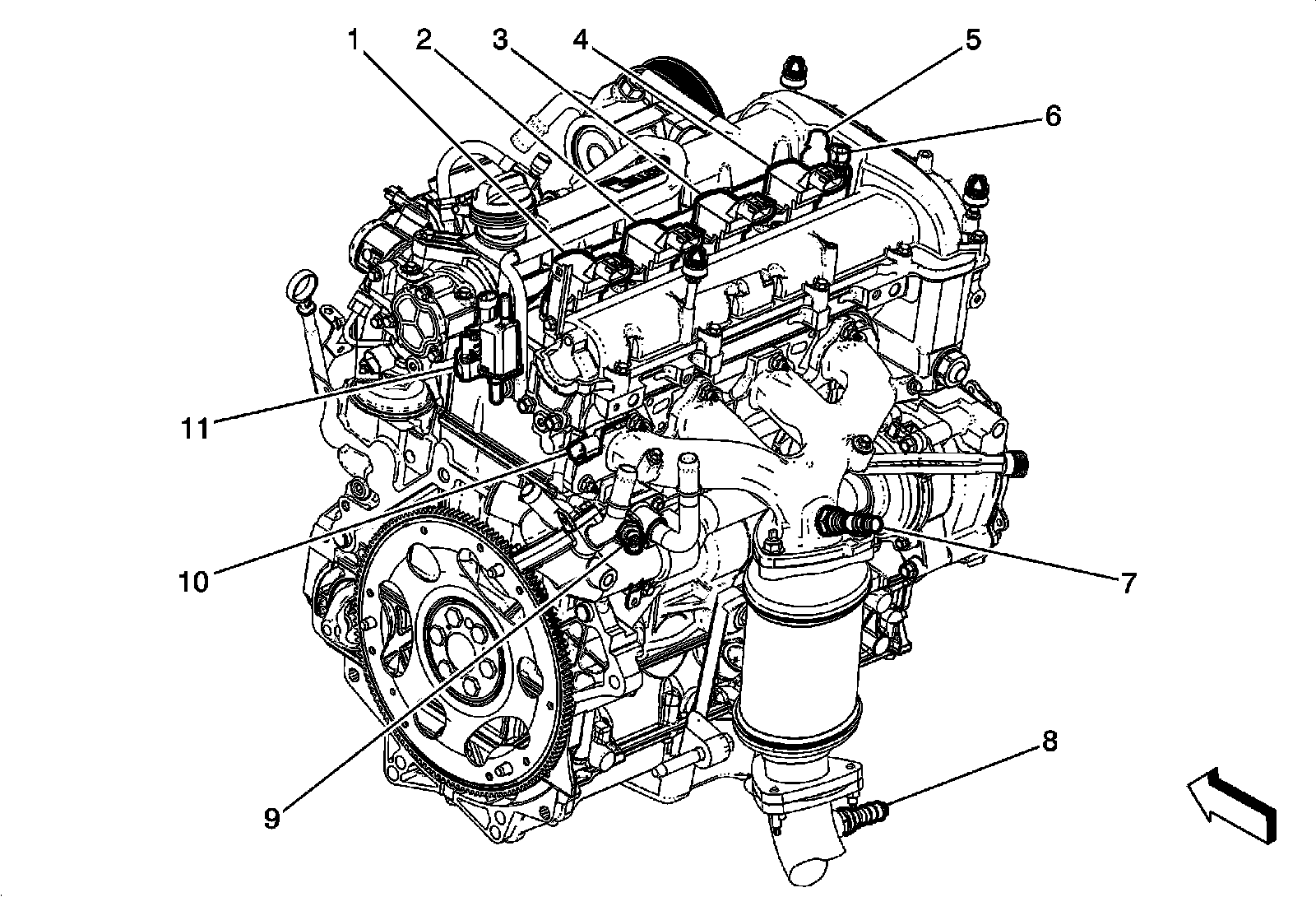

Left Rear Engine Components (LAF)




1 - T8D Ignition Coil 4
2 - T8C Ignition Coil 3
3 - T8B Ignition Coil 2
4 - T8A Ignition Coil 1
5 - Q6F Camshaft Position Actuator Solenoid Valve - Intake
6 - Q6E Camshaft Position Actuator Solenoid Valve - Exhaust
7 - B52A Heated Oxygen Sensor 1
8 - B52B Heated Oxygen Sensor 2
9 - B34 Engine Coolant Temperature Sensor
10 - B23E Camshaft Position Sensor - Exhaust
11 - Q12 Evaporative Emission Purge Solenoid Valve

Right Rear of the Engine Components (LF1)




1 - B74 Manifold Absolute Pressure Sensor
2 - T8E Ignition Coil 5
3 - T8C Ignition Coil 3
4 - Q12 Evaporative Emission Purge Solenoid Valve
5 - Q38 Throttle Body
6 - B23B Camshaft Position Sensor - Bank 1 Intake
7 - B23D Camshaft Position Sensor - Bank 2 Intake
8 - Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake
9 - Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust
10 - B23C Camshaft Position Sensor - Bank 2 Exhaust
11 - Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake
12 - Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust
13 - B23A Camshaft Position Sensor - Bank 1 Exhaust
14 - B68A Knock Sensor 1
15 - B26 Crankshaft Position Sensor
16 - T8A Ignition Coil 1
