Shift Solenoid, A/T

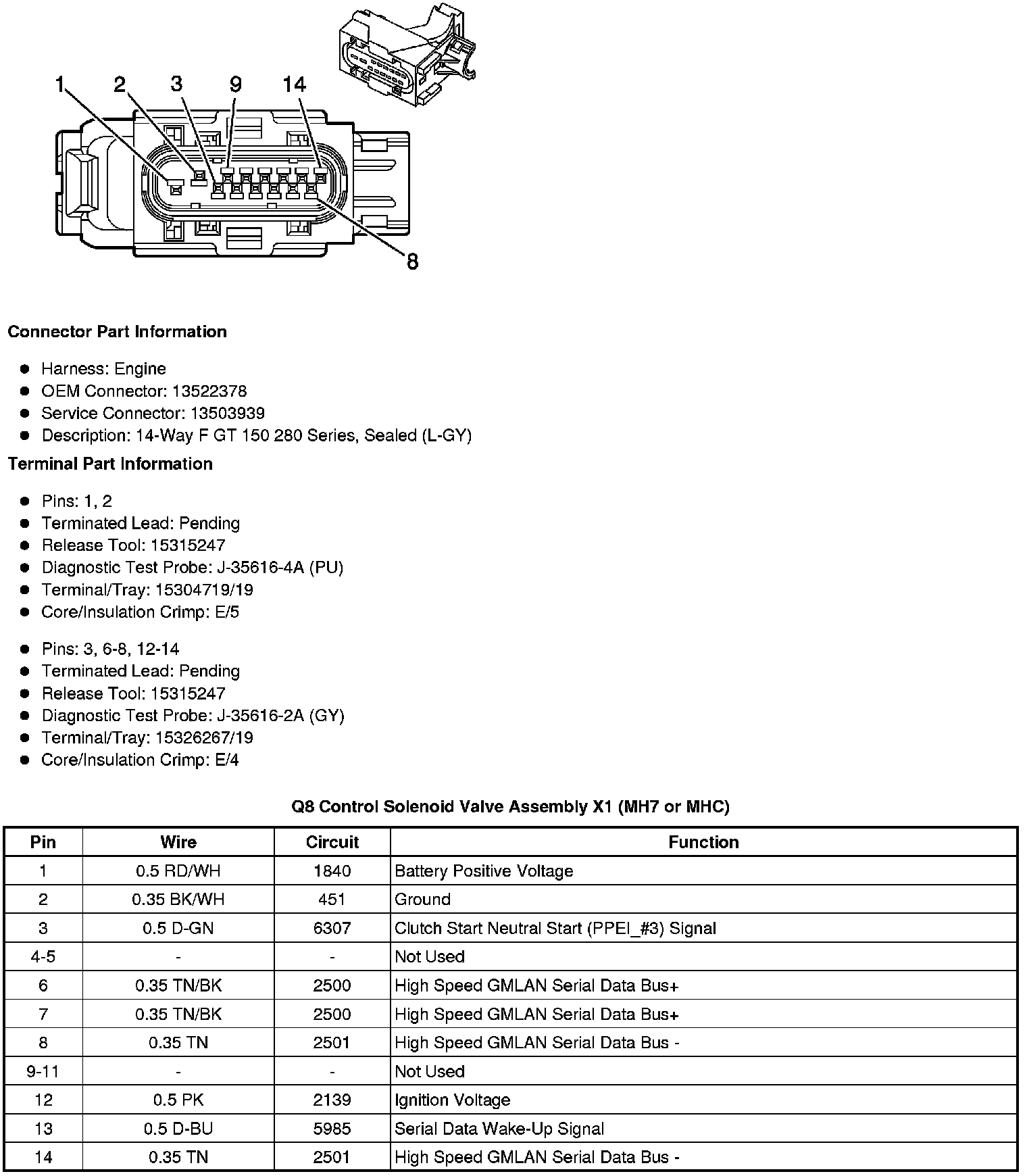

Q8 Control Solenoid Valve Assembly X1 (MH7 or MHC)

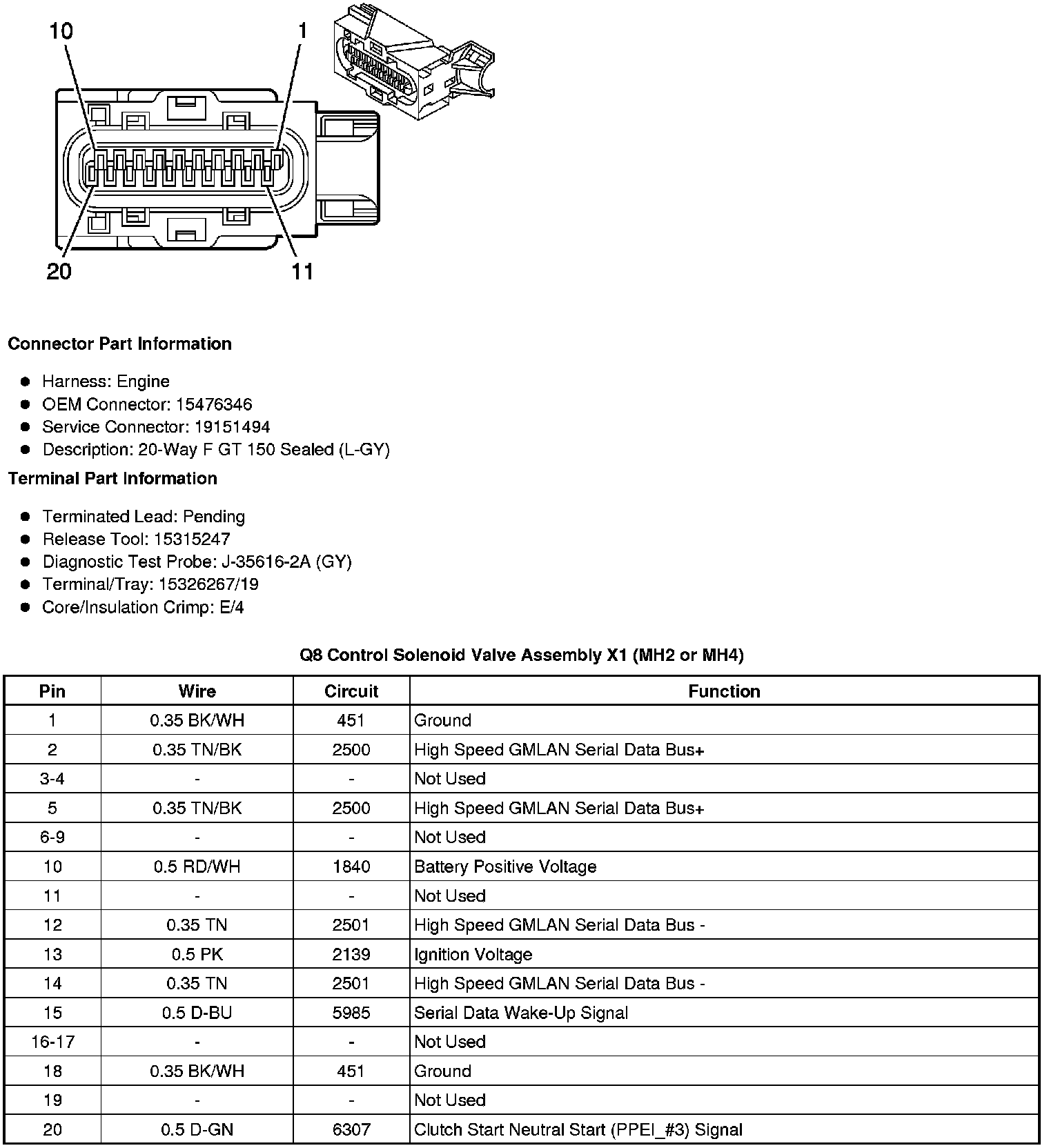

Q8 Control Solenoid Valve Assembly X1 (MH2 or MH4)

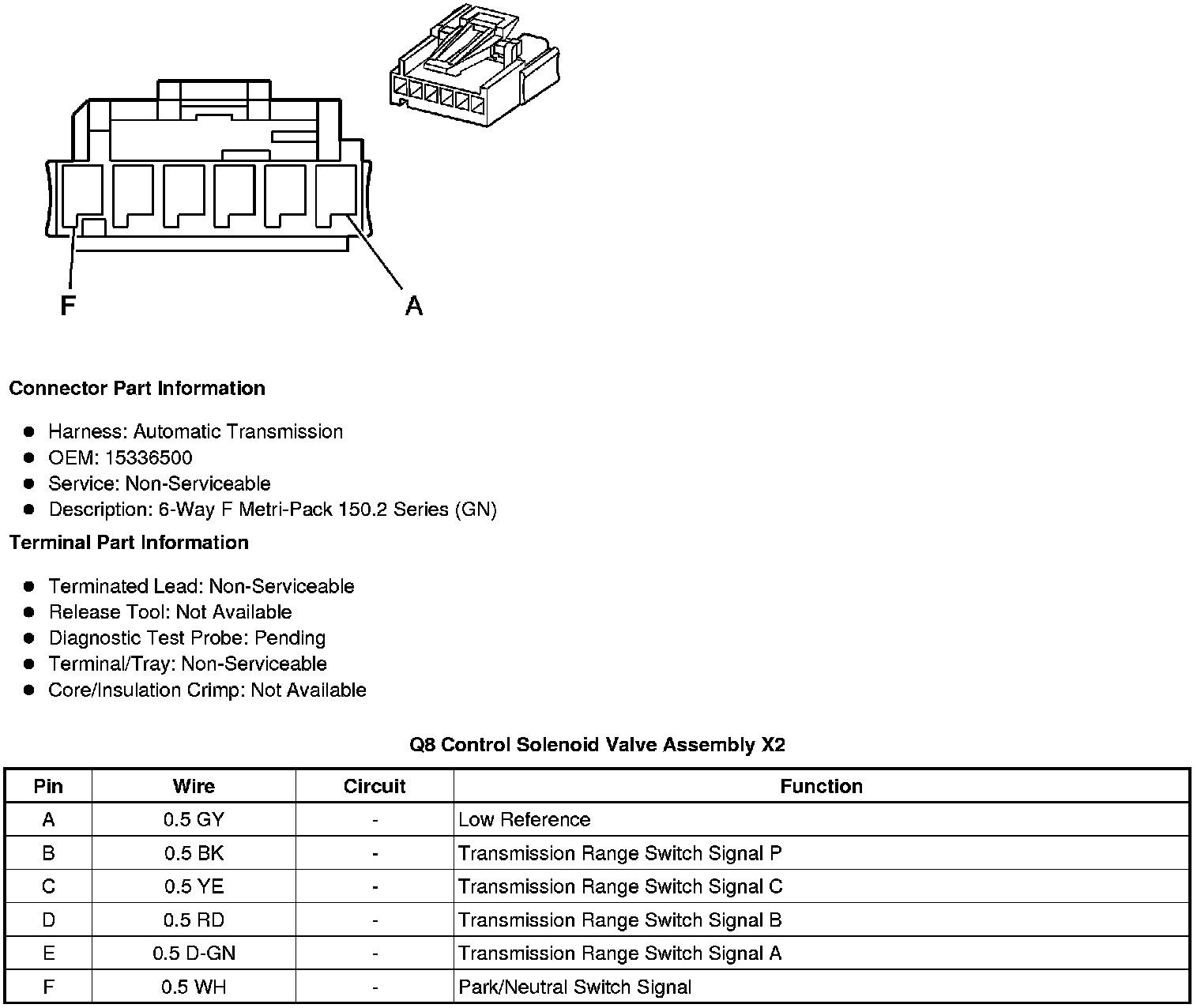

Q8 Control Solenoid Valve Assembly X2





Q8 Control Solenoid Valve Assembly X3





Q8 Control Solenoid Valve Assembly X4
