Impact Sensor

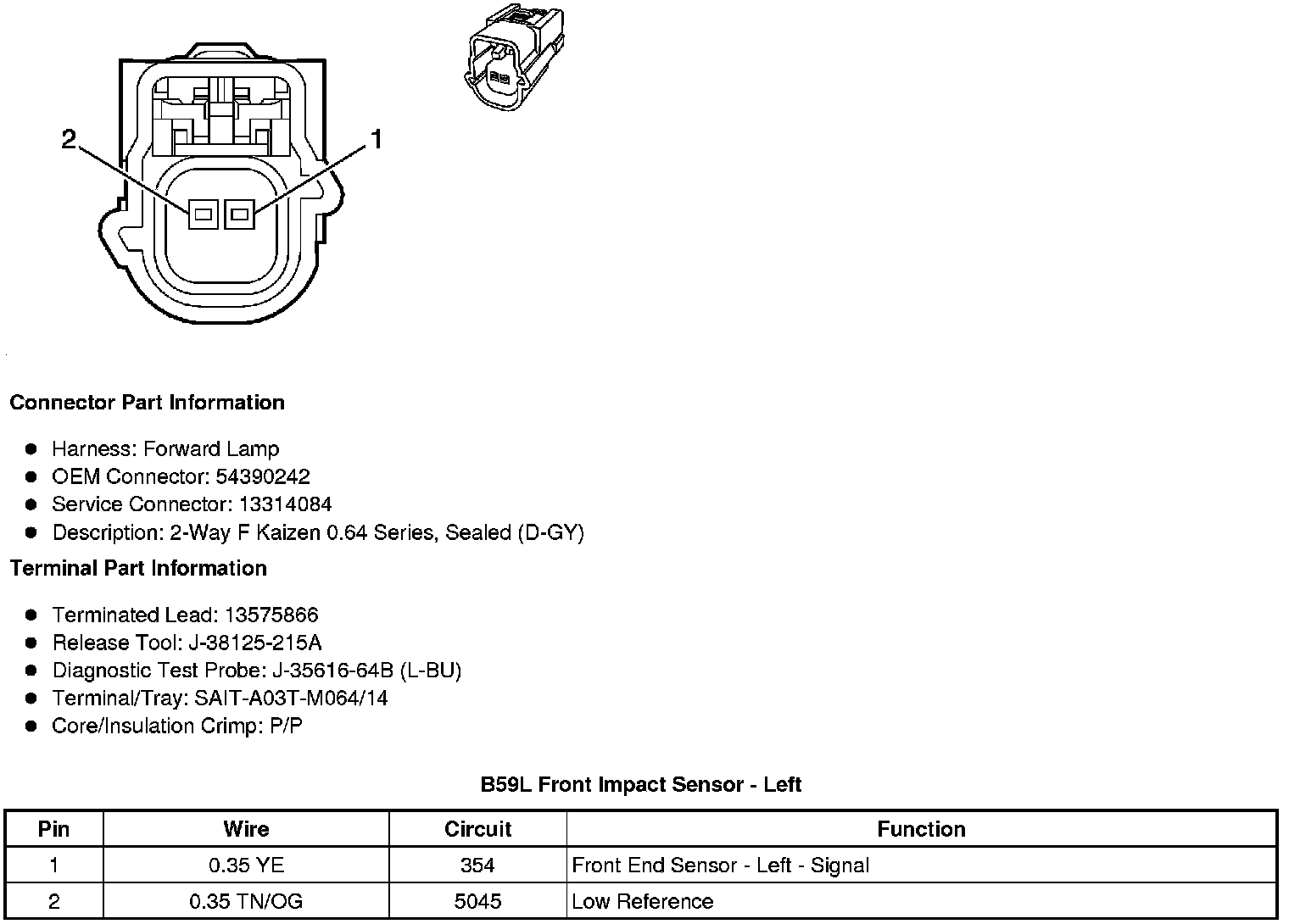

B59L Front Impact Sensor - Left

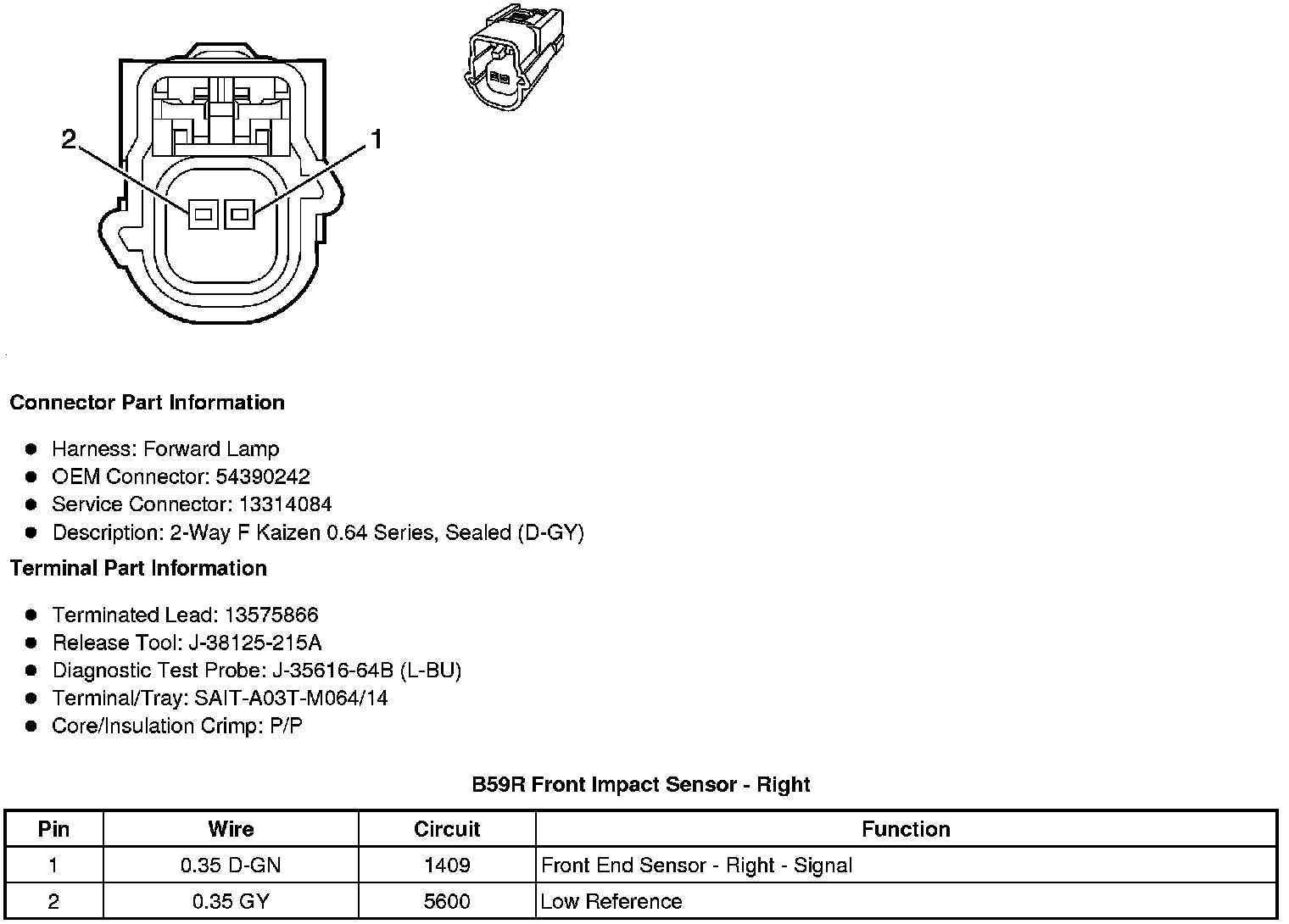

B59R Front Impact Sensor - Right

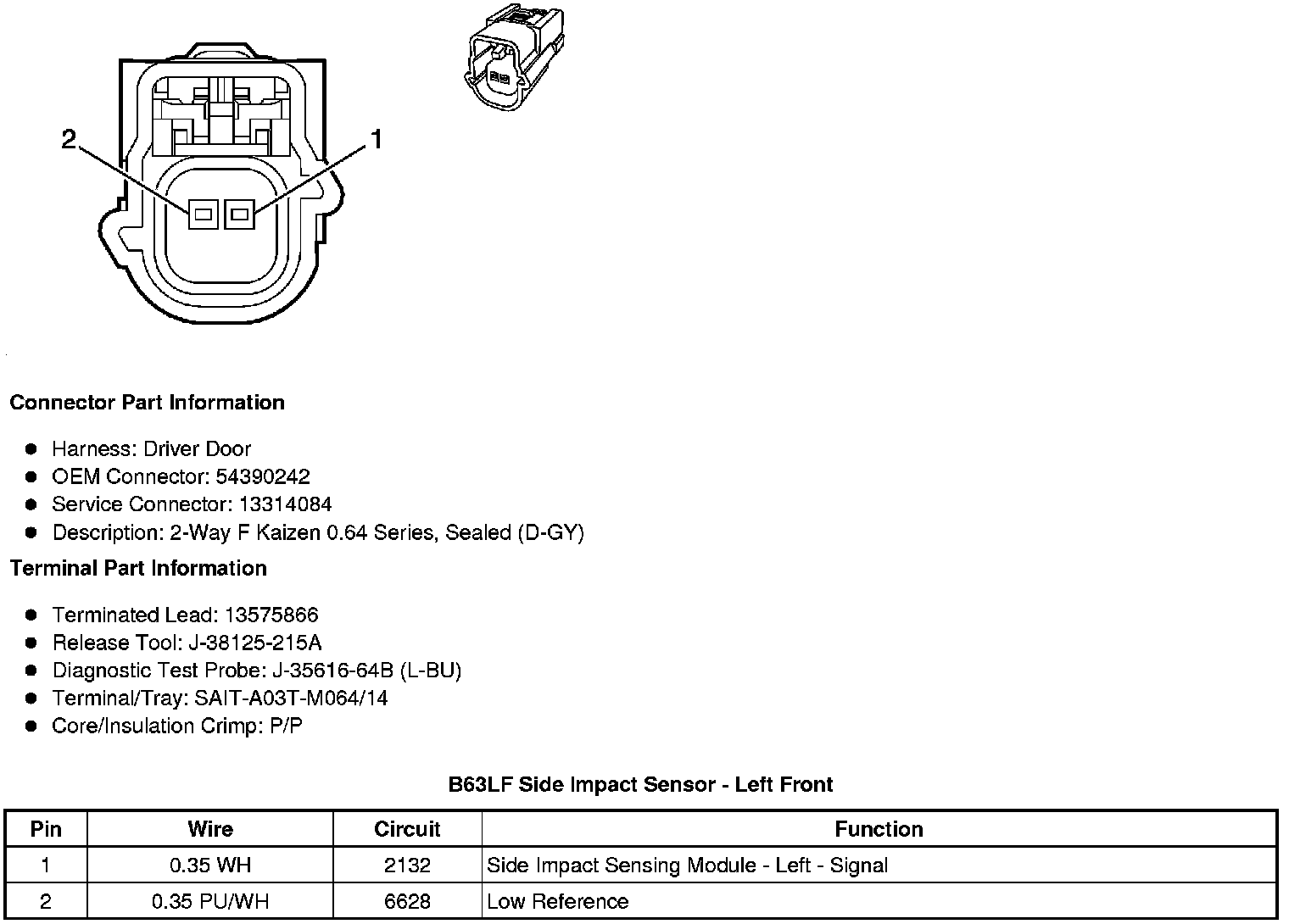

B63LF Side Impact Sensor - Left Front





B63LR Side Impact Sensor - Left Rear

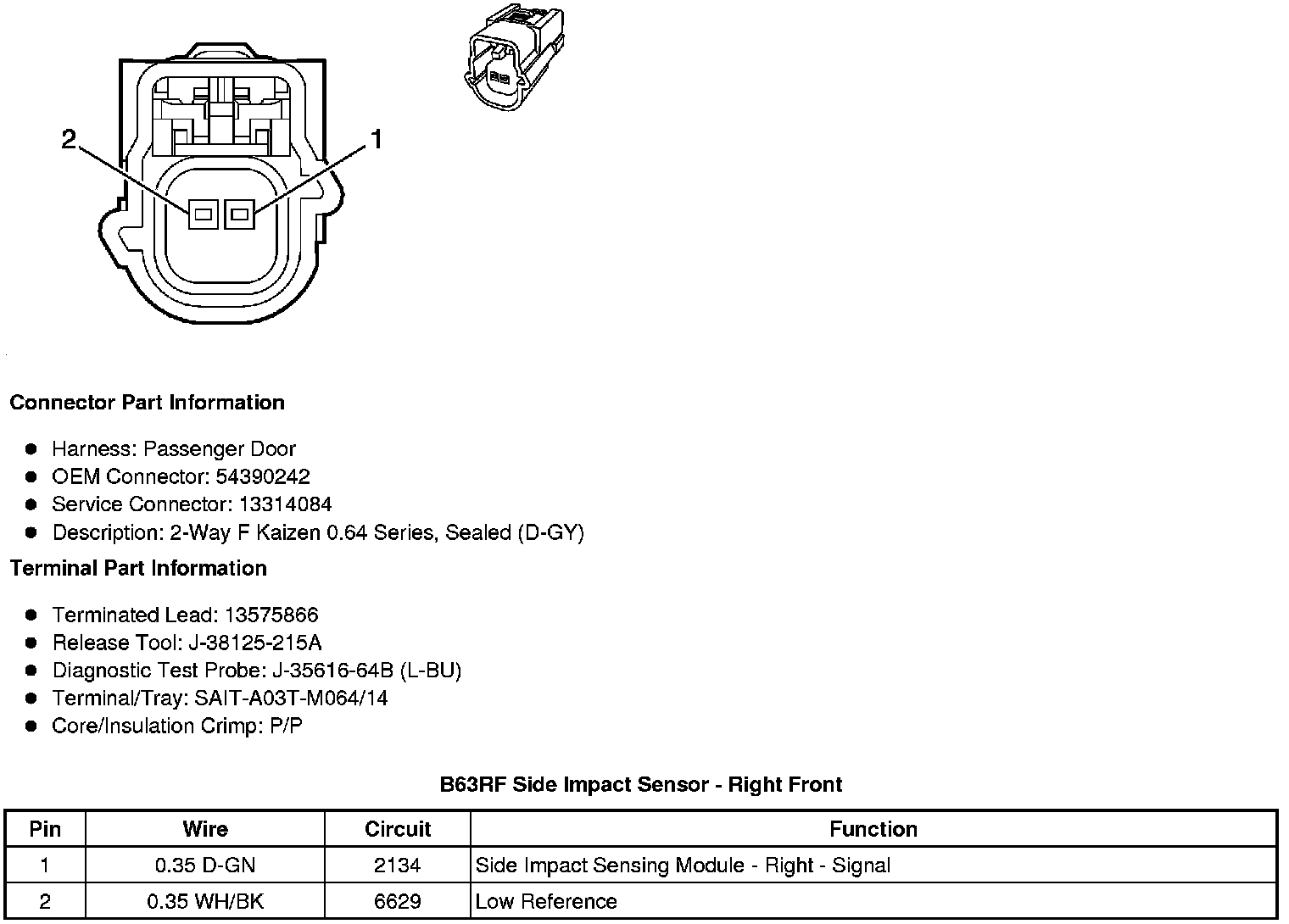

B63RF Side Impact Sensor - Right Front

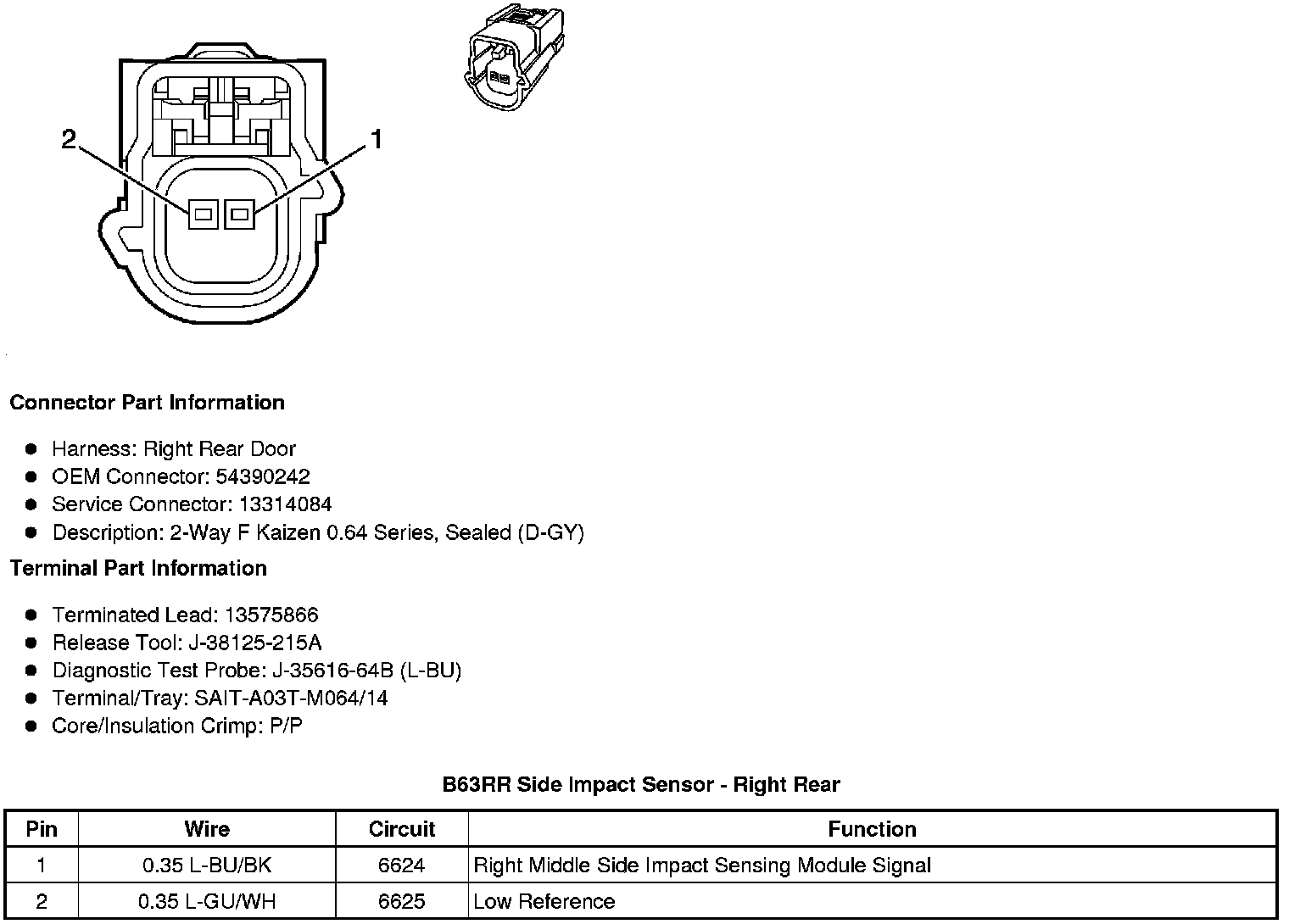

B63RR Side Impact Sensor - Right Rear
