Home >> GMC >> 2010 >> Terrain AWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Driver/Vehicle Information Display
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Driver/Vehicle Information Display

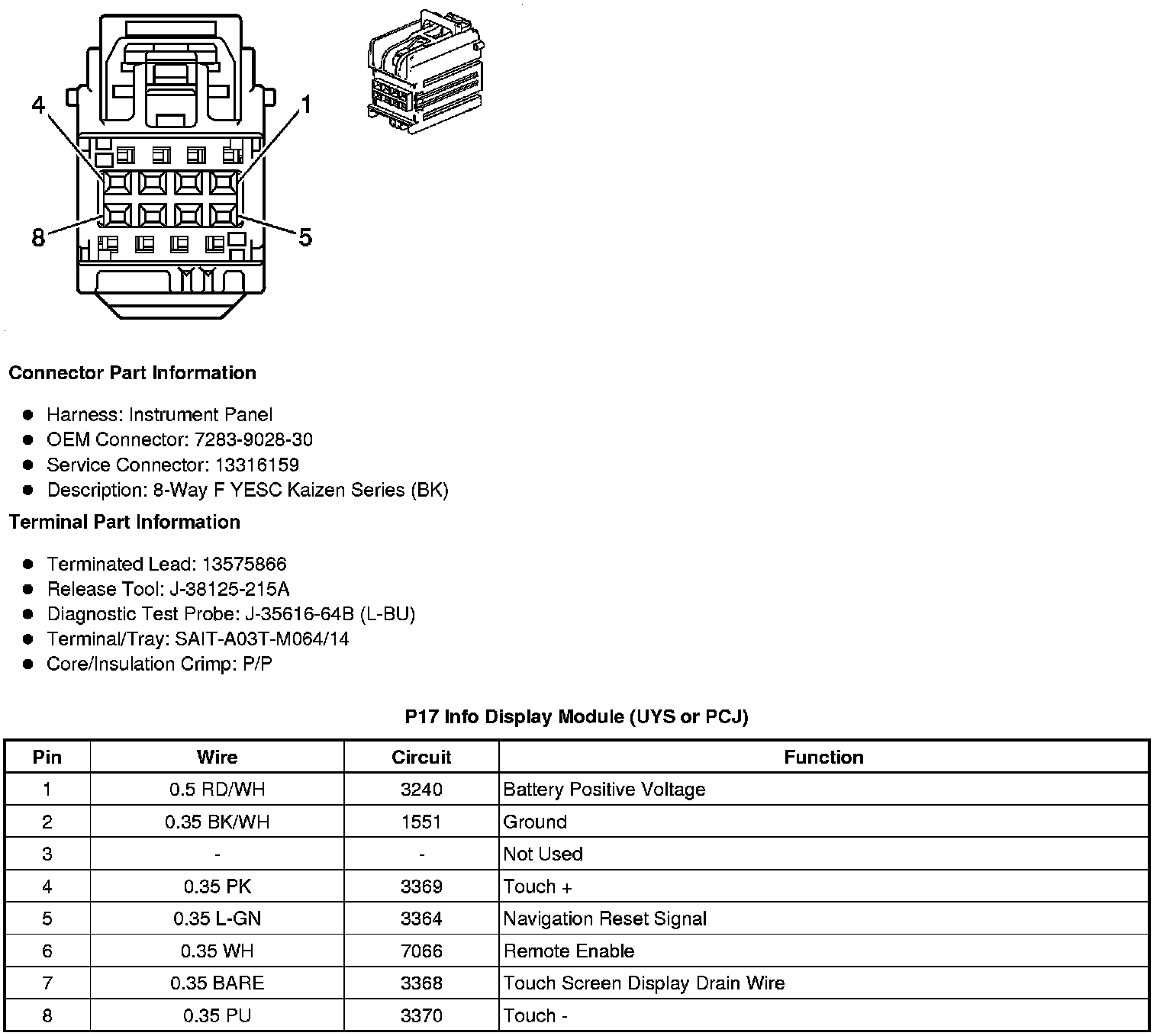

P17 Info Display Module (UYS or PCJ)

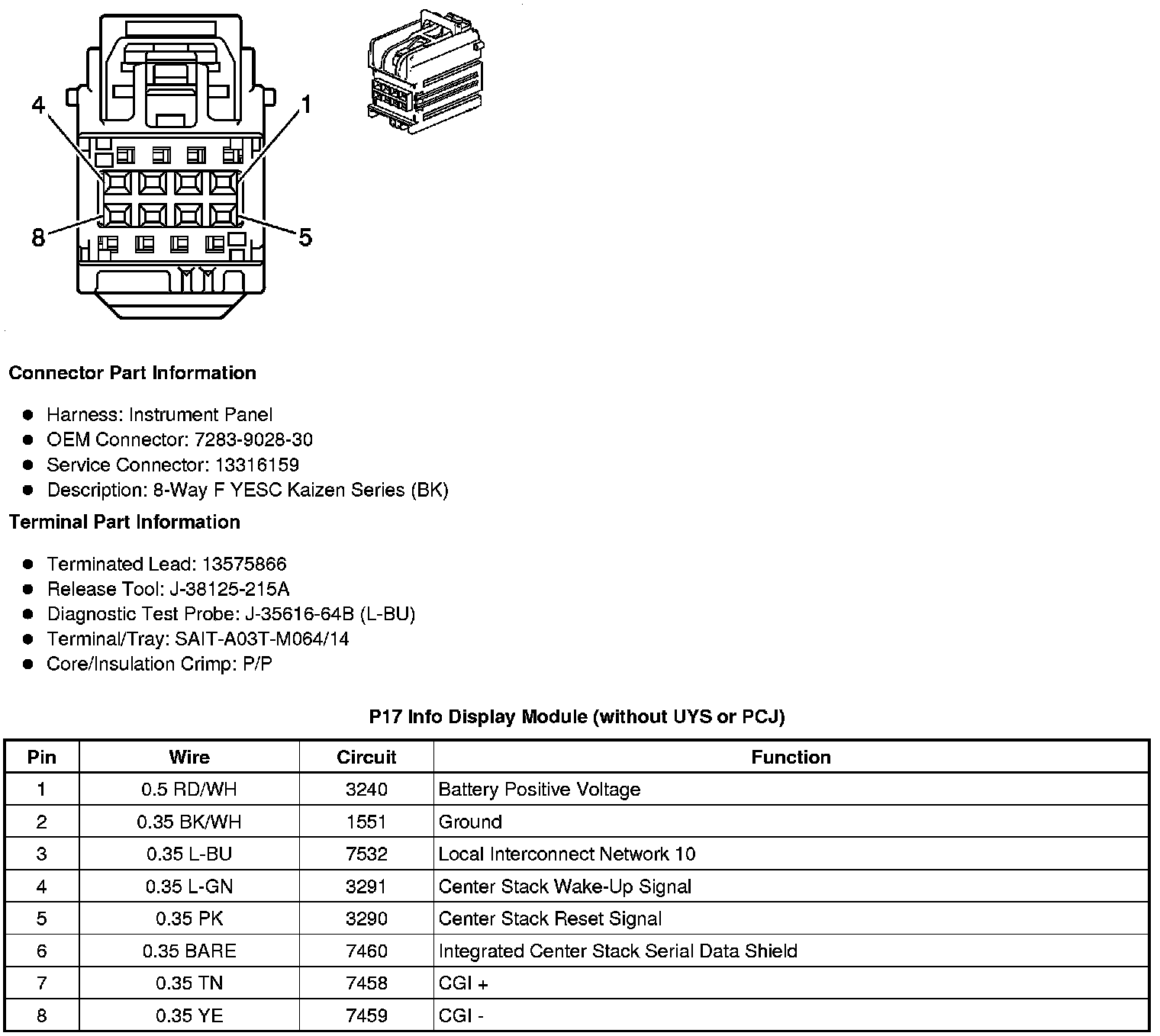

P17 Info Display Module (without UYS or PCJ)
