Air Bag




F105 Passenger Instrument Panel Air Bag X1

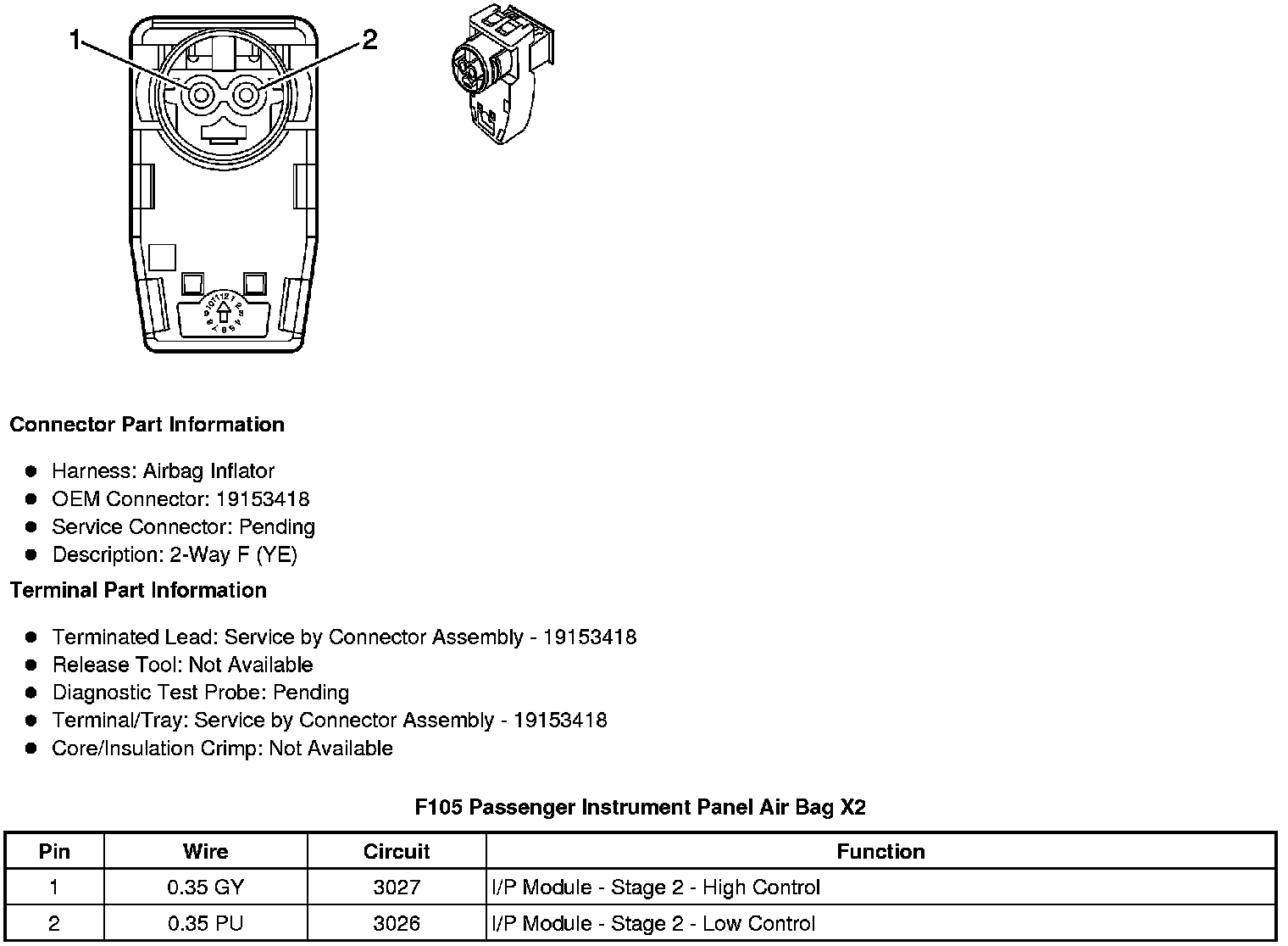

F105 Passenger Instrument Panel Air Bag X2

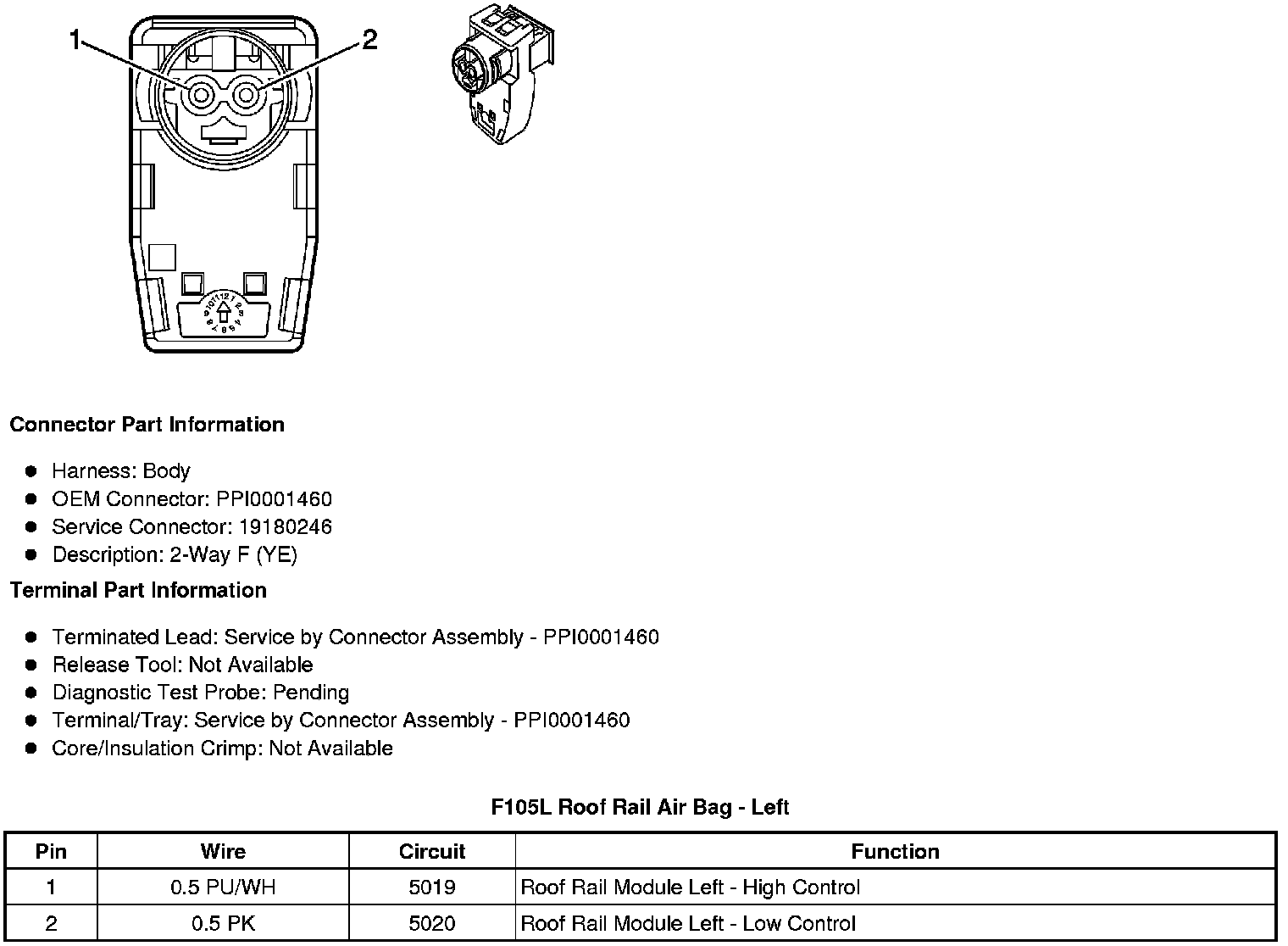

F105L Roof Rail Air Bag - Left

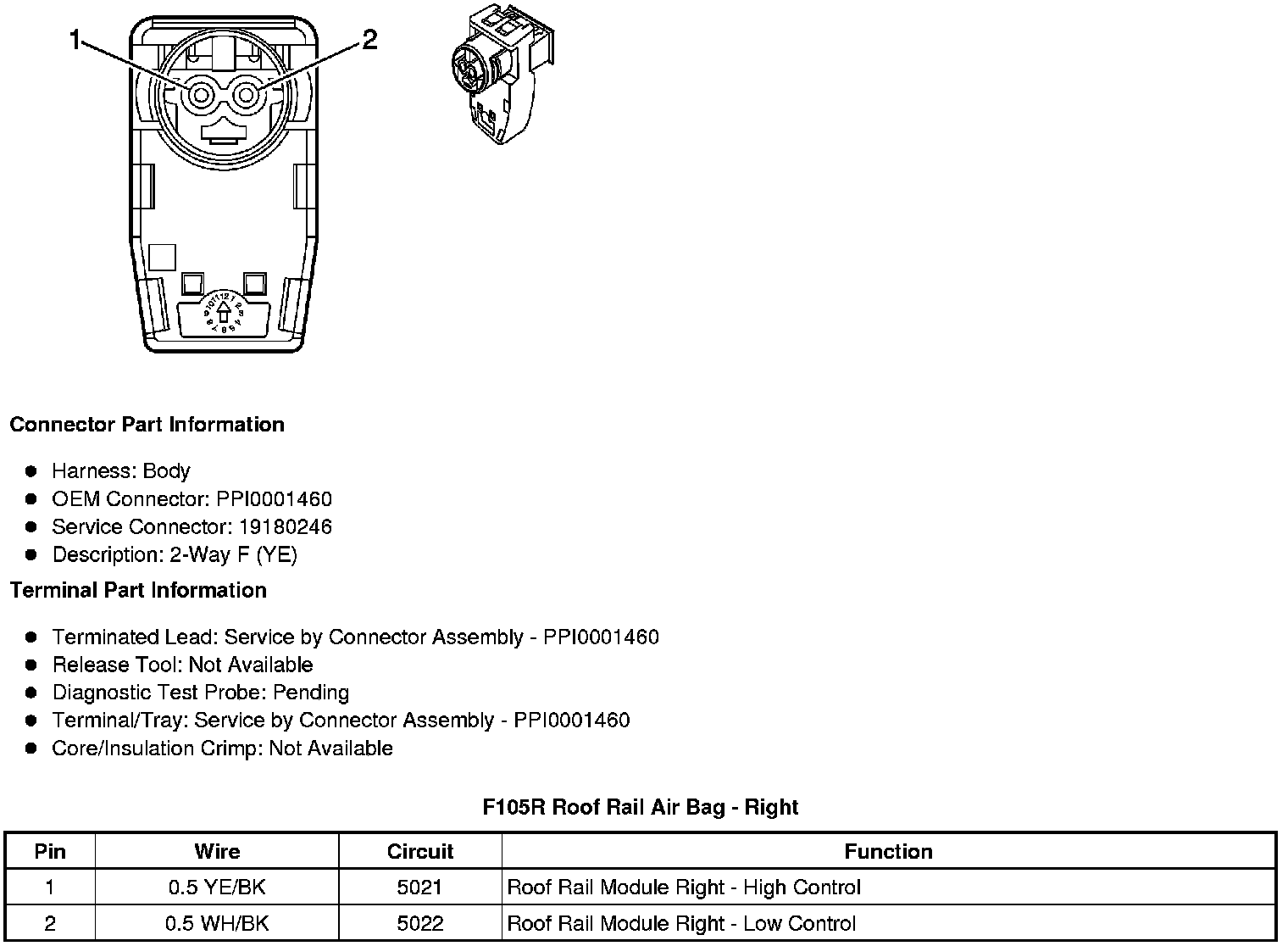

F105R Roof Rail Air Bag - Right

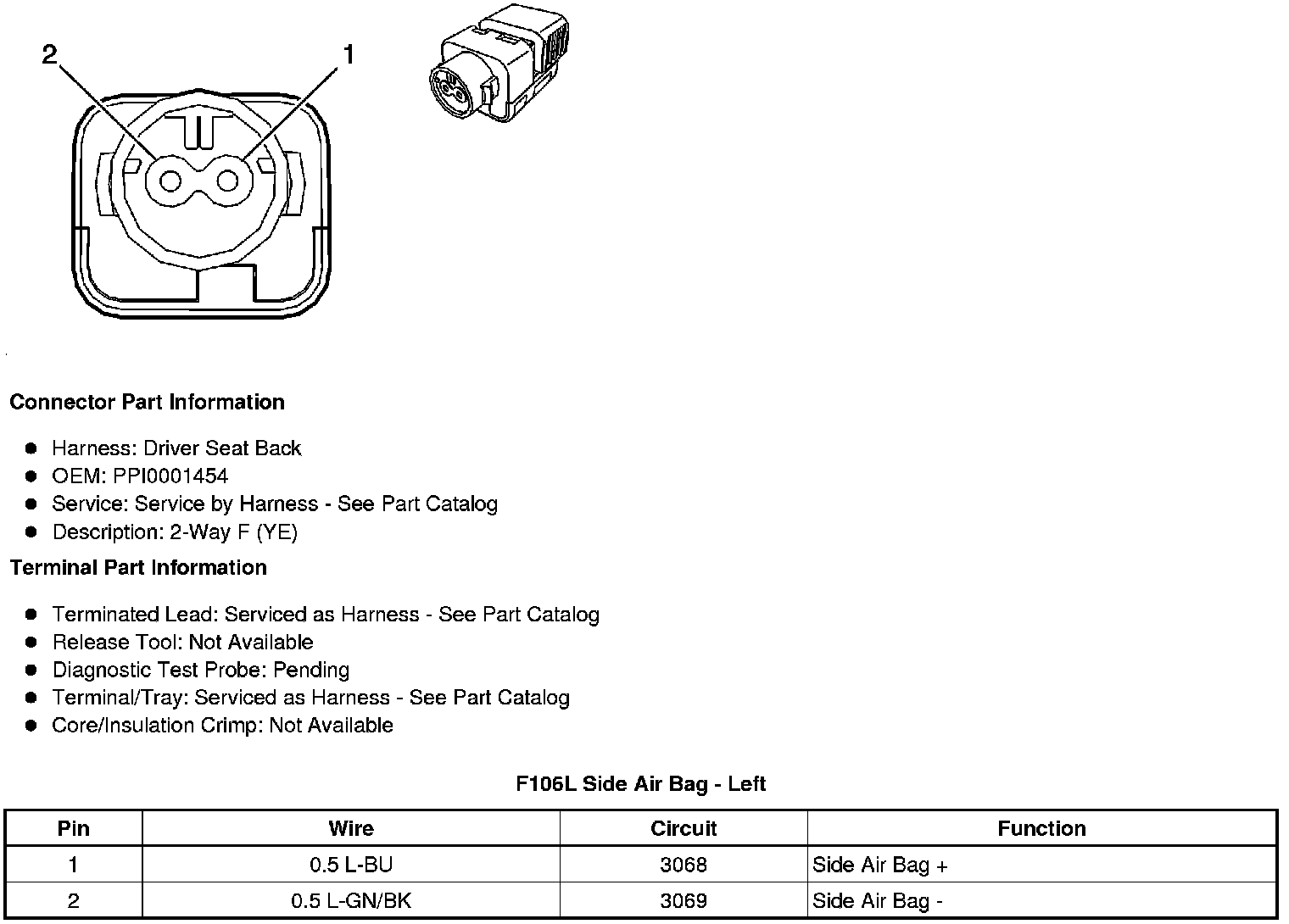

F106L Side Air Bag - Left





F106R Side Air Bag - Right

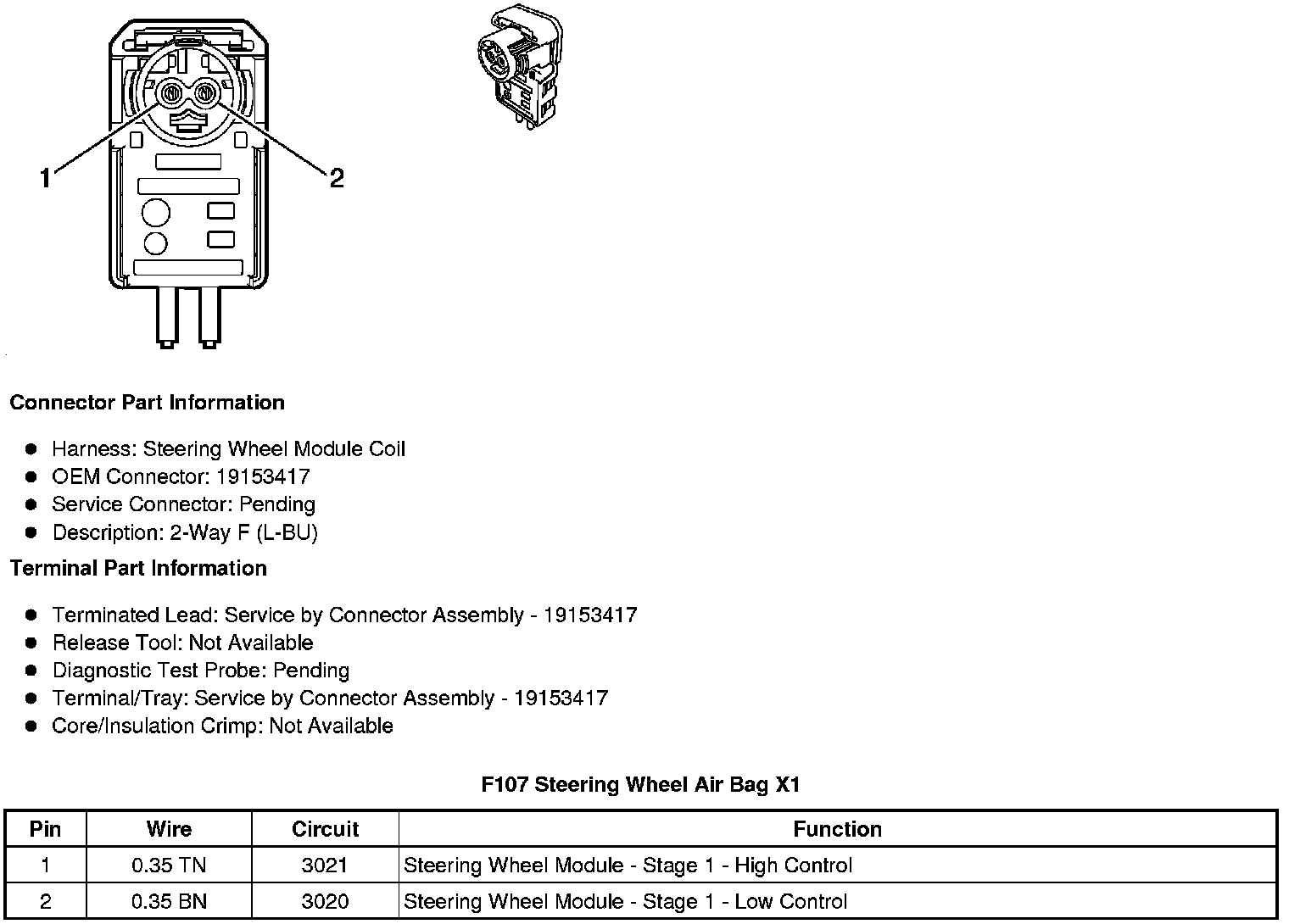

F107 Steering Wheel Air Bag X1

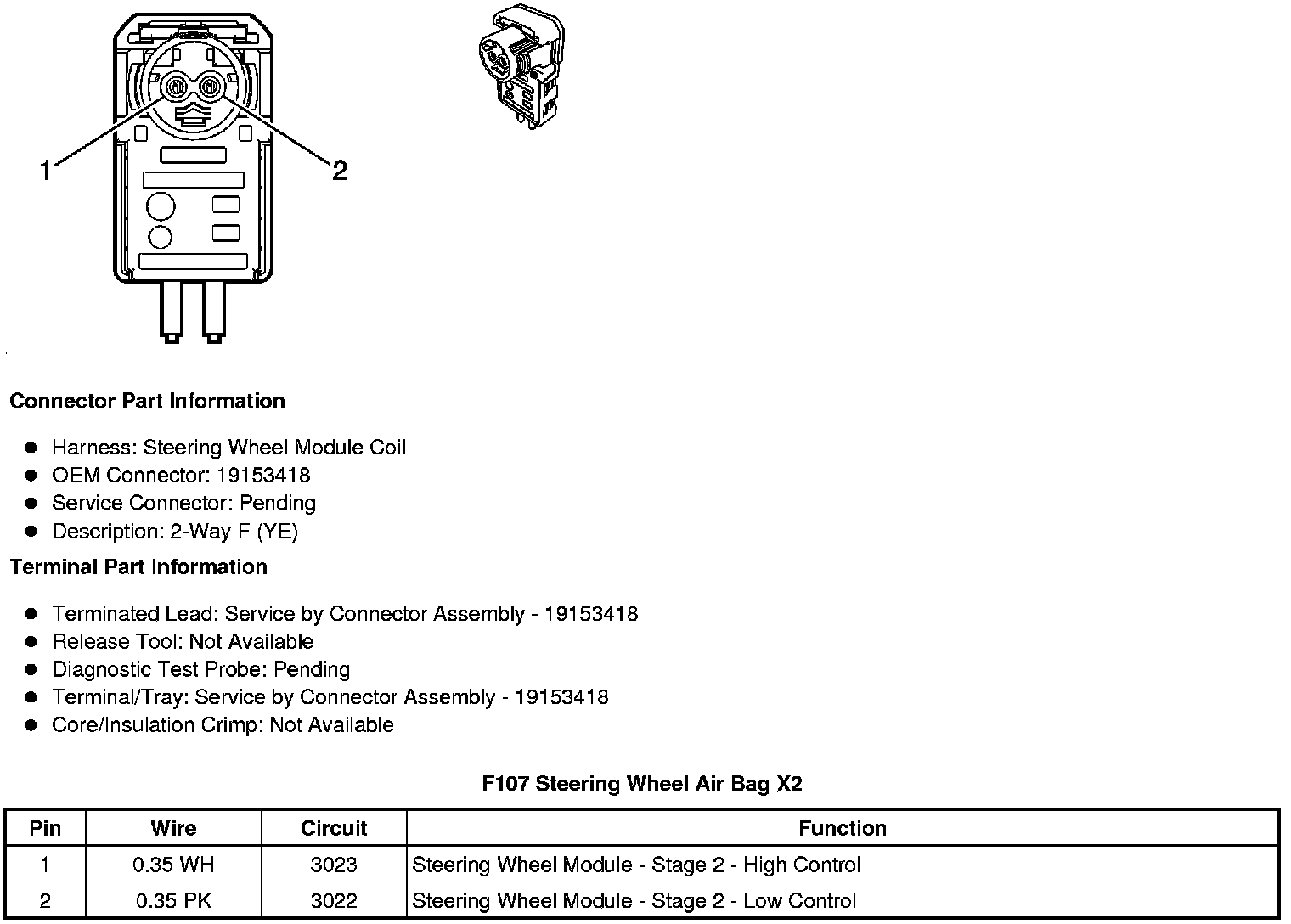

F107 Steering Wheel Air Bag X2
