Compressor Clutch: Diagrams




Component Connector End Views

A/C Compressor Clutch (C67)

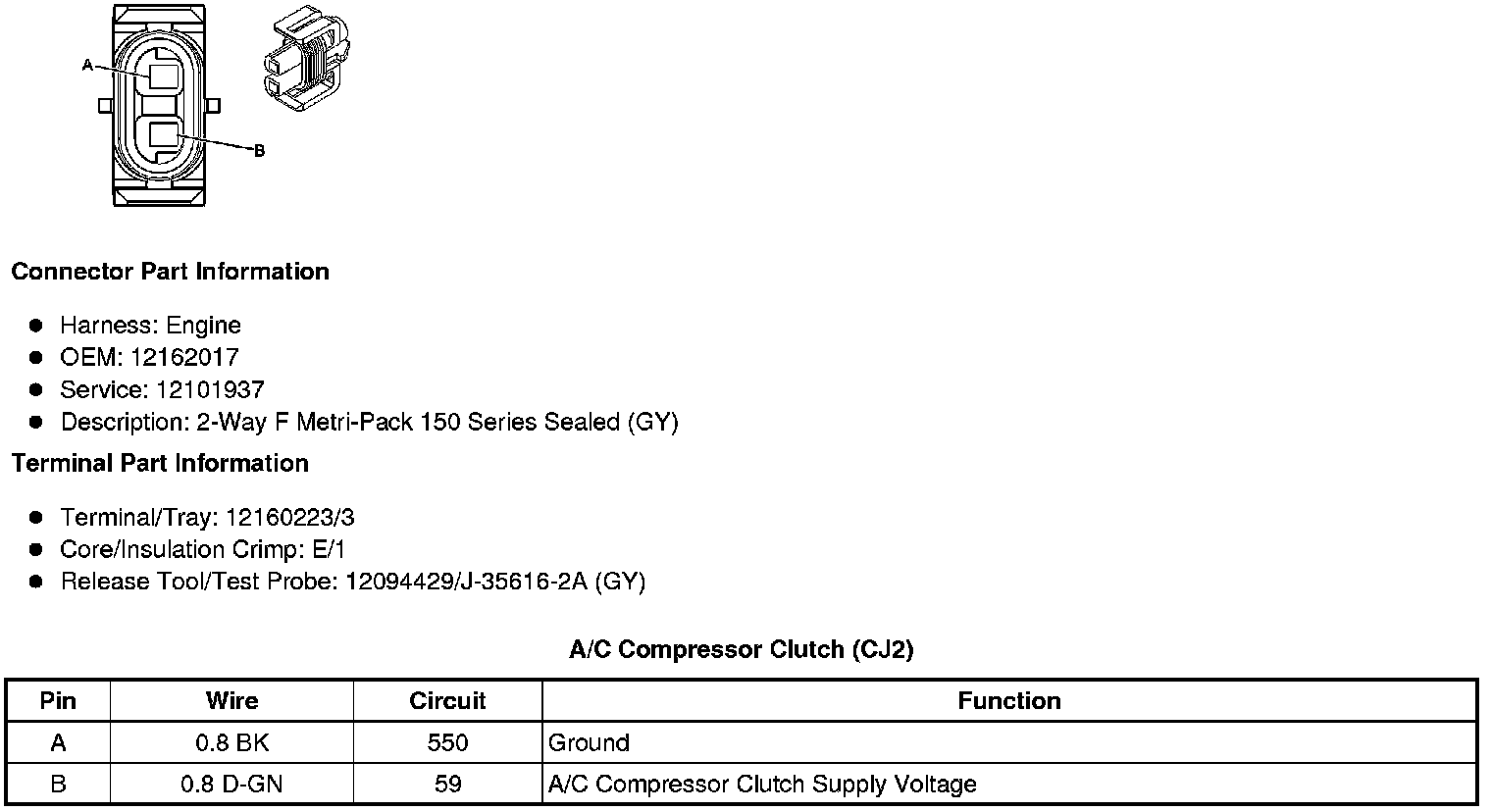

A/C Compressor Clutch (CJ2)
