System Diagram




Component Connector End Views

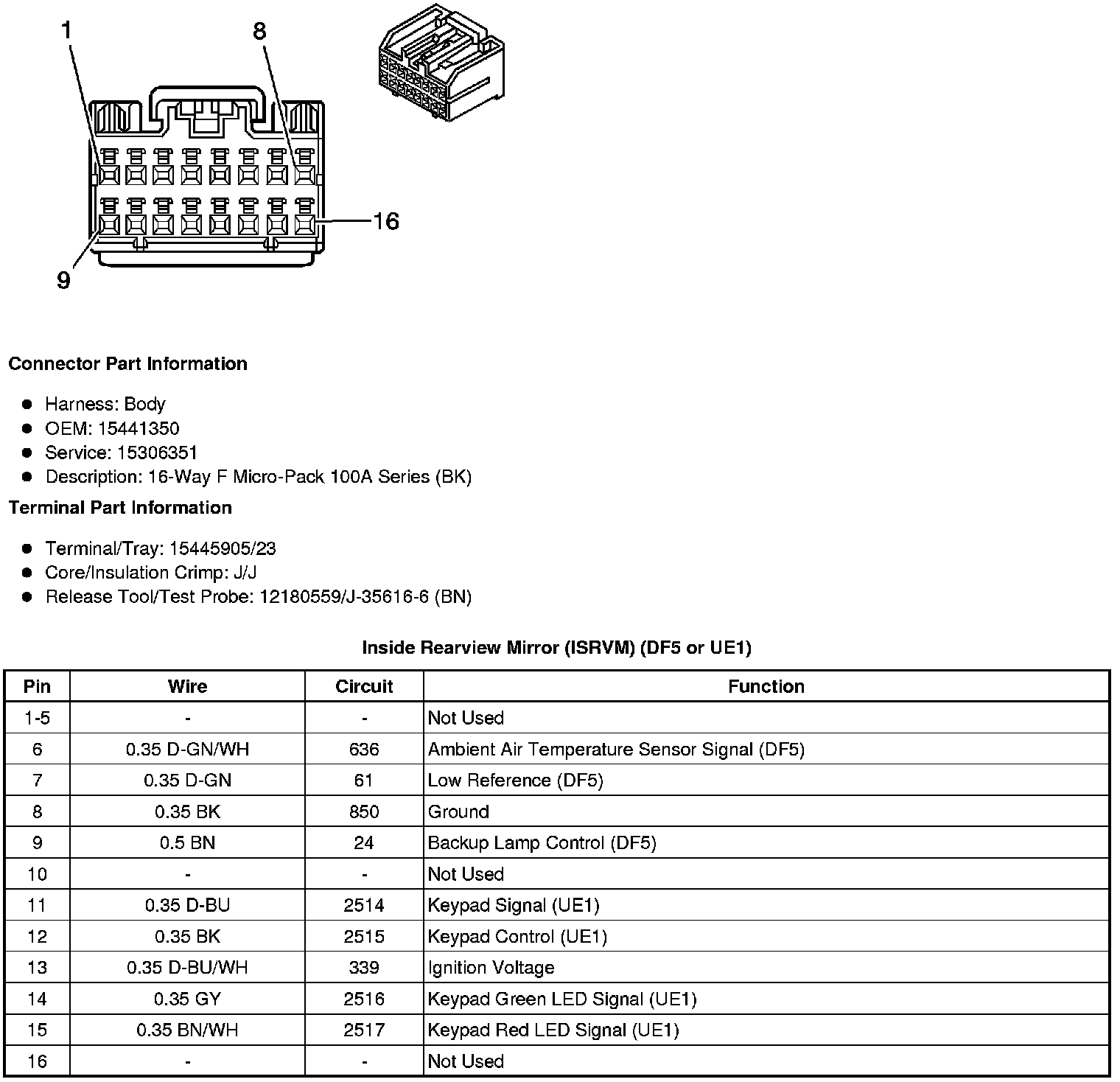

Inside Rearview Mirror (ISRVM) (DF5 or UE1)

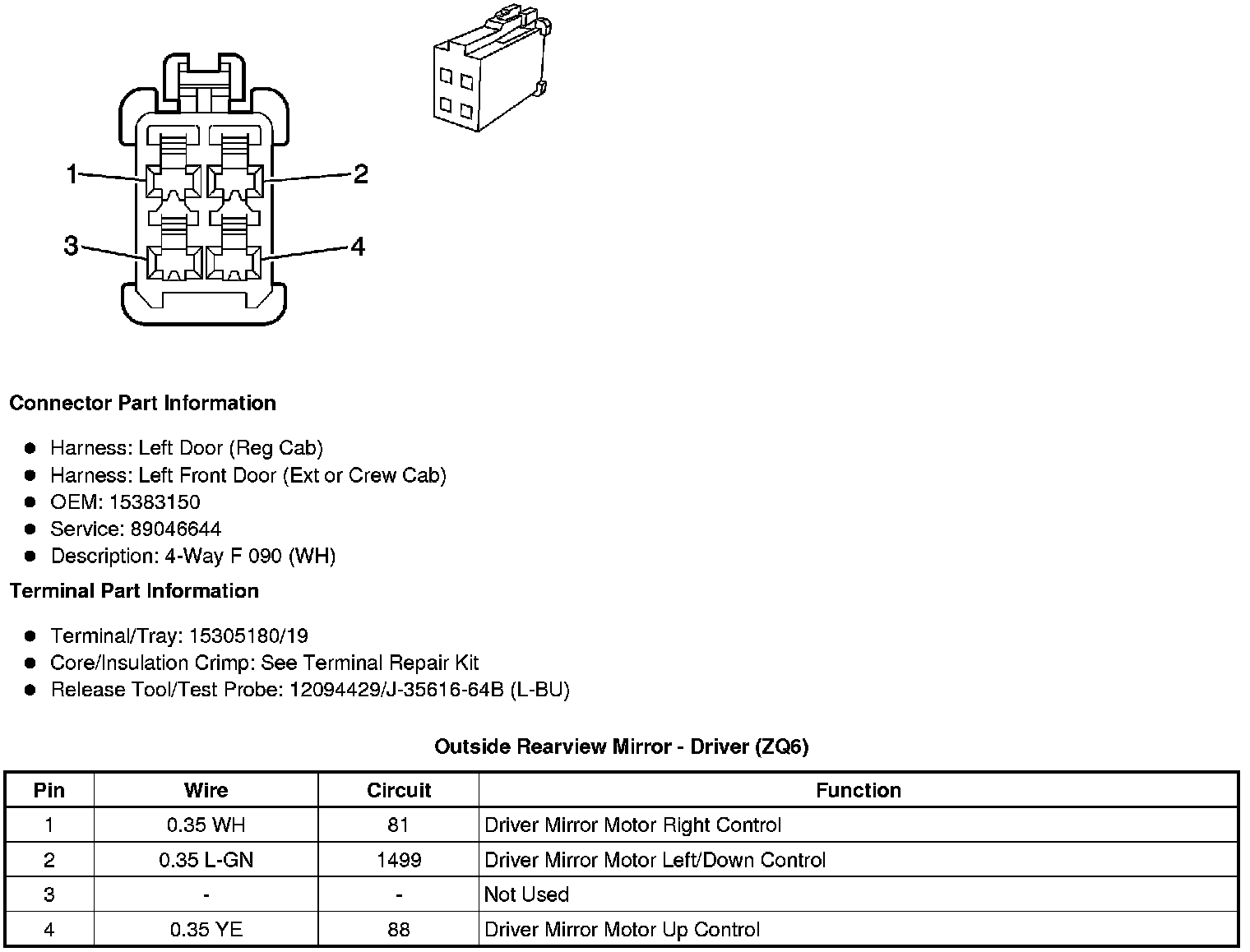

Outside Rearview Mirror - Driver (ZQ6)

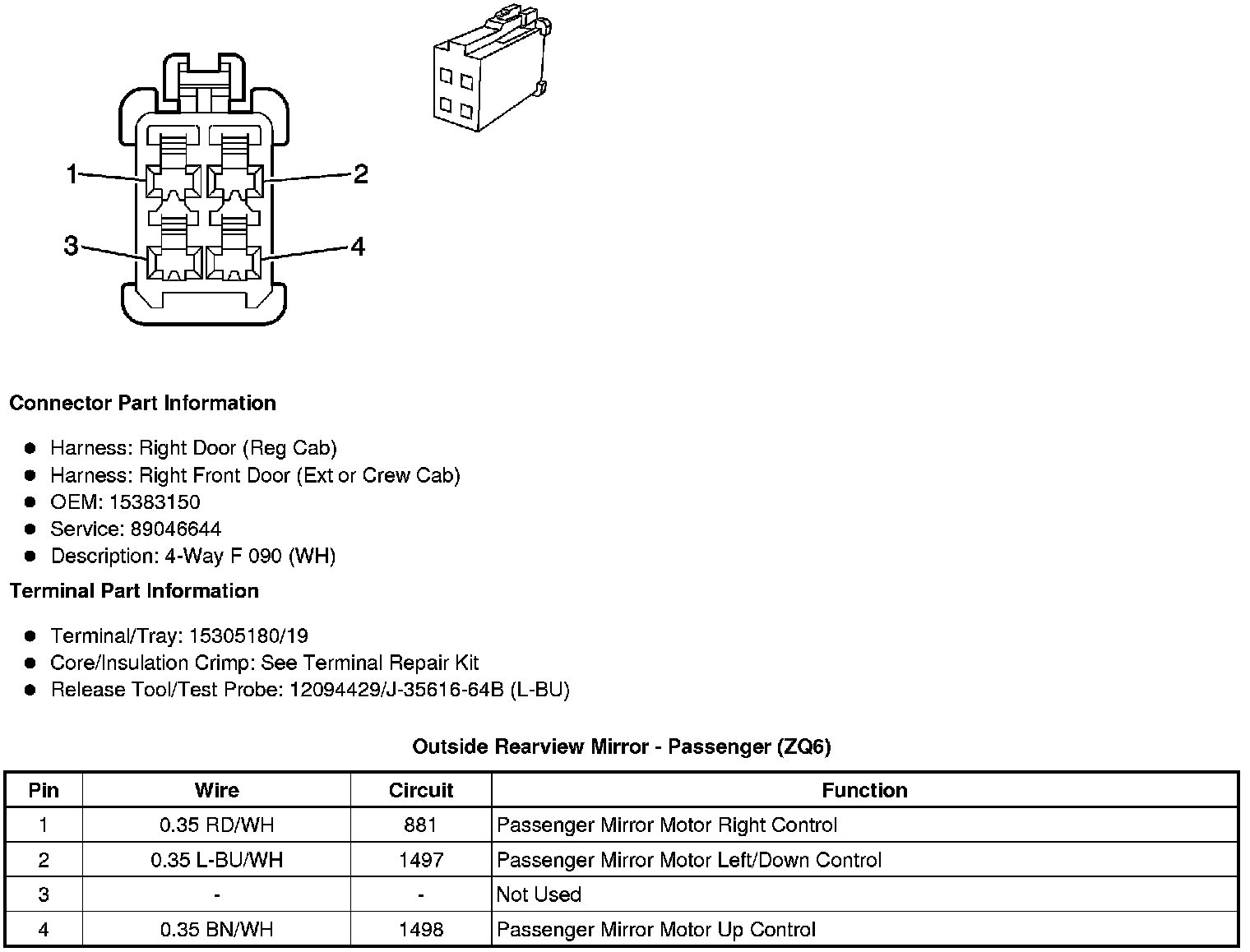

Outside Rearview Mirror - Passenger (ZQ6)
