Hybrid Controls

Hybrid Controls Component Views

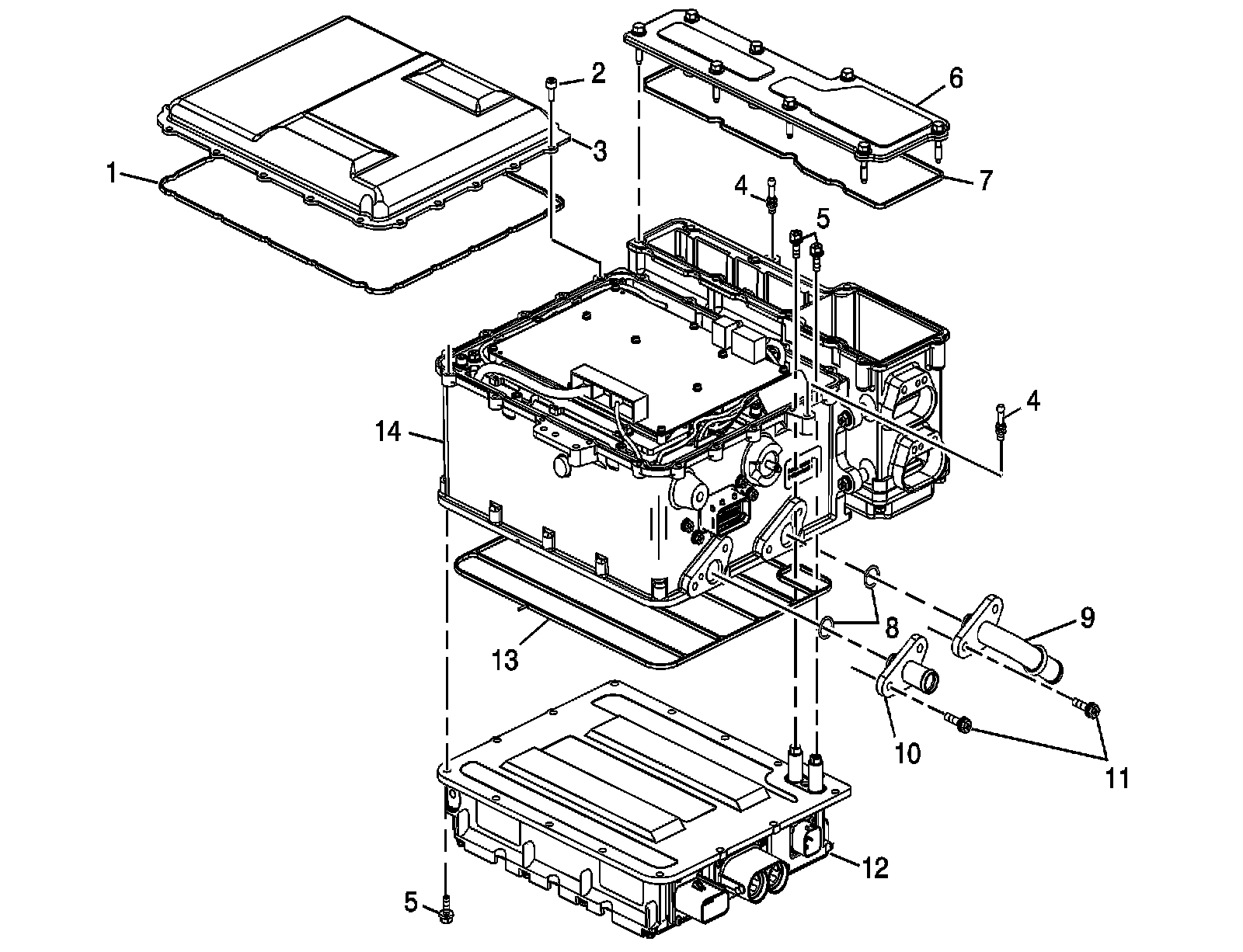

Drive Motor Generator Control Module Assembly




1 - Drive Motor Generator Power Inverter Module Cover Seal
2 - Drive Motor Generator Power Inverter Module Cover Bolt
3 - Drive Motor Generator Power Inverter Module Cover
4 - Ball Stud
4 - Ball Stud
5 - Accessory DC Power Control Module (APM) Bolts
6 - Drive Motor Generator Power Inverter Module 3 Phase Cable Cover
7 - Drive Motor Generator Power Inverter Module Cable Housing Cover Seal
8 - Drive Motor Generator Power Inverter Module Coolant Pipe Seals
9 - Drive Motor Generator Power Inverter Module Coolant Inlet Pipe Assembly
10 - Drive Motor Generator Power Inverter Coolant Outlet Pipe Assembly
11 - Drive Motor Generator Power Inverter Coolant Pipe Bolts
12 - Accessory DC Power Control Module (APM) Assembly
13 - Drive Motor Generator Control Module Seal
14 - Drive Motor Generator Power Inverter Module Assembly
