Component Locations

Passenger Compartment/Roof Component Views

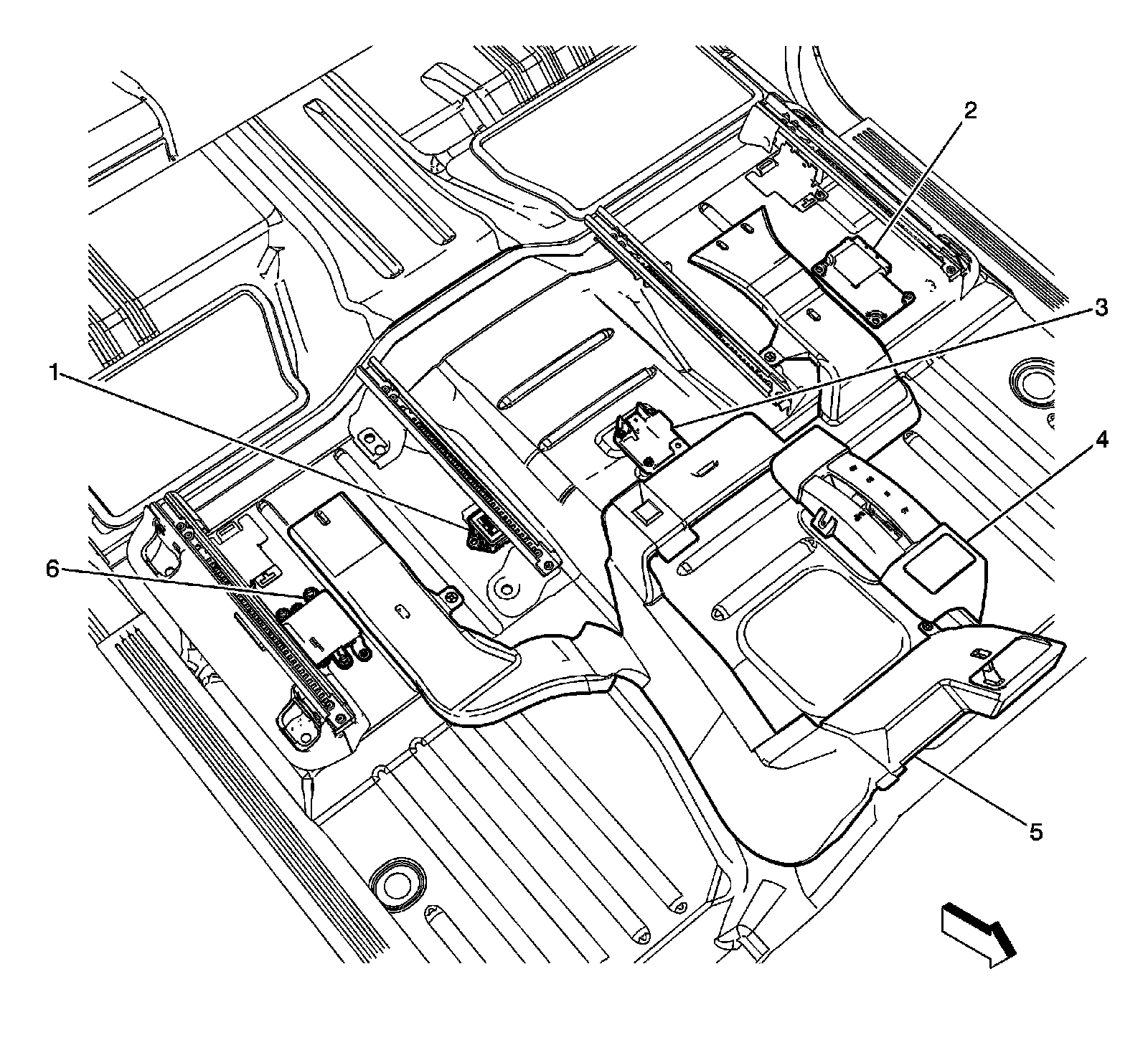

Under the Front Seats Components




1 - Yaw and Lateral Accelerometer Sensor (JL4/HP2)
2 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
3 - Inflatable Restraint Vehicle Rollover Sensor (ASF)
4 - Shifter Housing
5 - Rear HVAC Outlet Duct
6 - Rear Object Sensor Control Module (UD7)

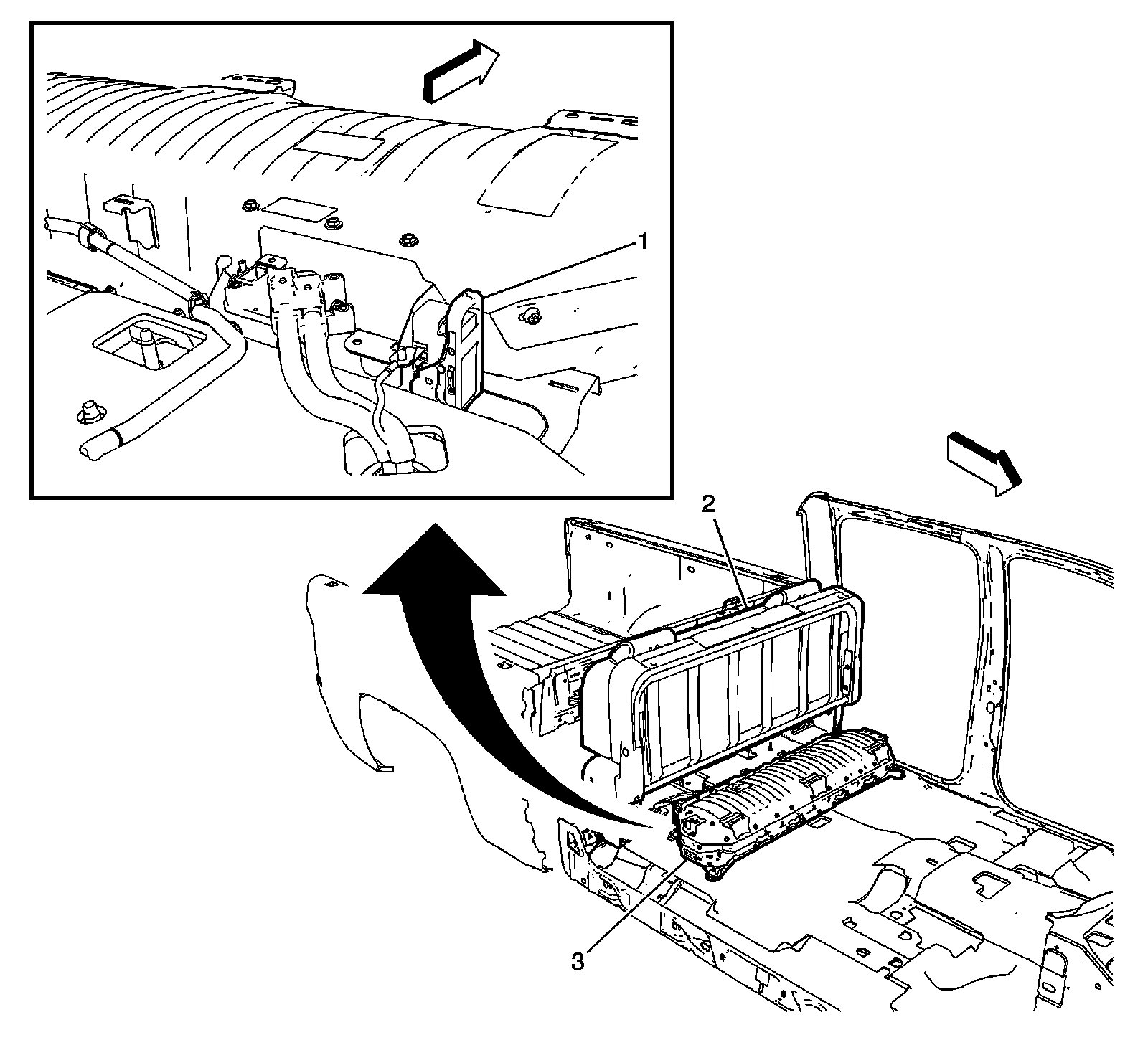

Under the Rear Seat Components (HP2)




1 - Drive Motor Battery High Voltage Manual Disconnect Lever
2 - Rear Seat - Folded
3 - Drive Motor Generator Battery (HP2)
