Fuel Tank Pressure Sensor Replacement (15 Ext/Crew Cab With 26 gal Tank)

Fuel Tank Pressure Sensor Replacement (15 Ext/Crew Cab w/26 gal Tank)

Removal Procedure





1. Remove the fuel tank. Refer to Fuel Tank Replacement (35 Reg/Ext/Crew Cab w/34 Gal Tank) (Service and Repair)Fuel Tank Replacement (15 Ext/Crew Cab w/26 Gal Tank) (Service and Repair)Fuel Tank Replacement (15/25 Reg/Ext/Crew Cab w/34 Gal Tank) (Service and Repair)Fuel Tank Replacement (15 Rec Cab w/26 Gal Tank) (Service and Repair)Fuel Tank Replacement (25 Ext/Crew Cab w/26 Gal Tank) (Service and Repair) .

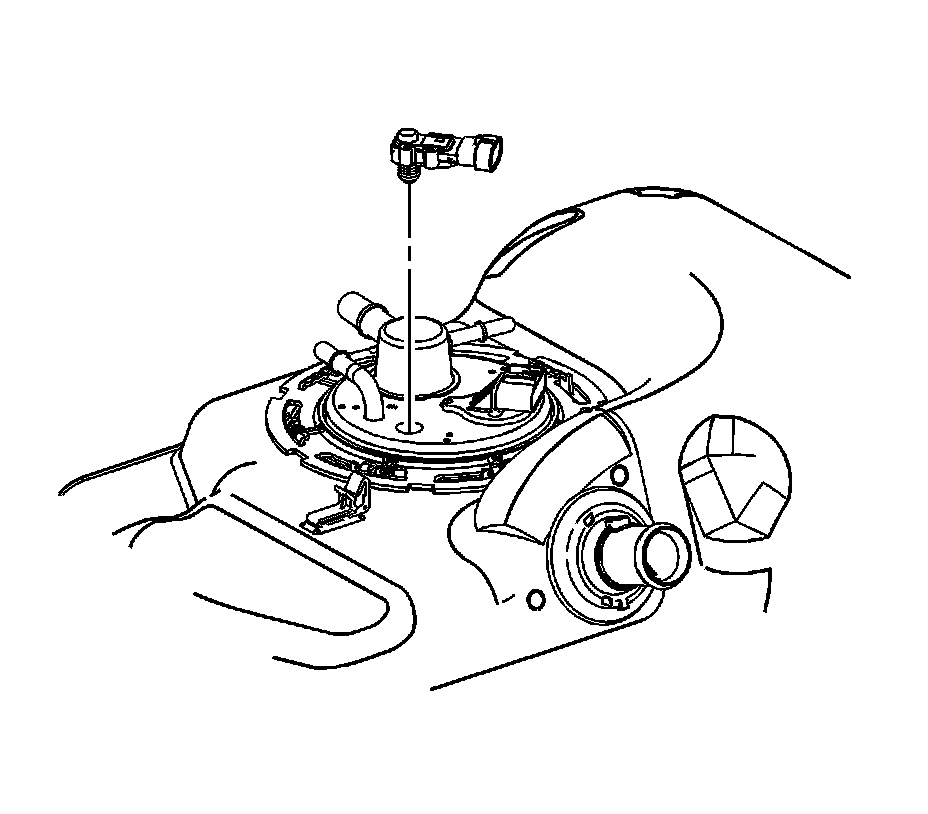

2. Remove the fuel tank pressure sensor by pulling straight up using a slight rocking motion.



Installation Procedure





1. Install the fuel tank pressure sensor.
2. Install the fuel tank. Refer to Fuel Tank Replacement (35 Reg/Ext/Crew Cab w/34 Gal Tank) (Service and Repair)Fuel Tank Replacement (15 Ext/Crew Cab w/26 Gal Tank) (Service and Repair)Fuel Tank Replacement (15/25 Reg/Ext/Crew Cab w/34 Gal Tank) (Service and Repair)Fuel Tank Replacement (15 Rec Cab w/26 Gal Tank) (Service and Repair)Fuel Tank Replacement (25 Ext/Crew Cab w/26 Gal Tank) (Service and Repair) .
