Electrical Diagrams
Data Communication Schematics

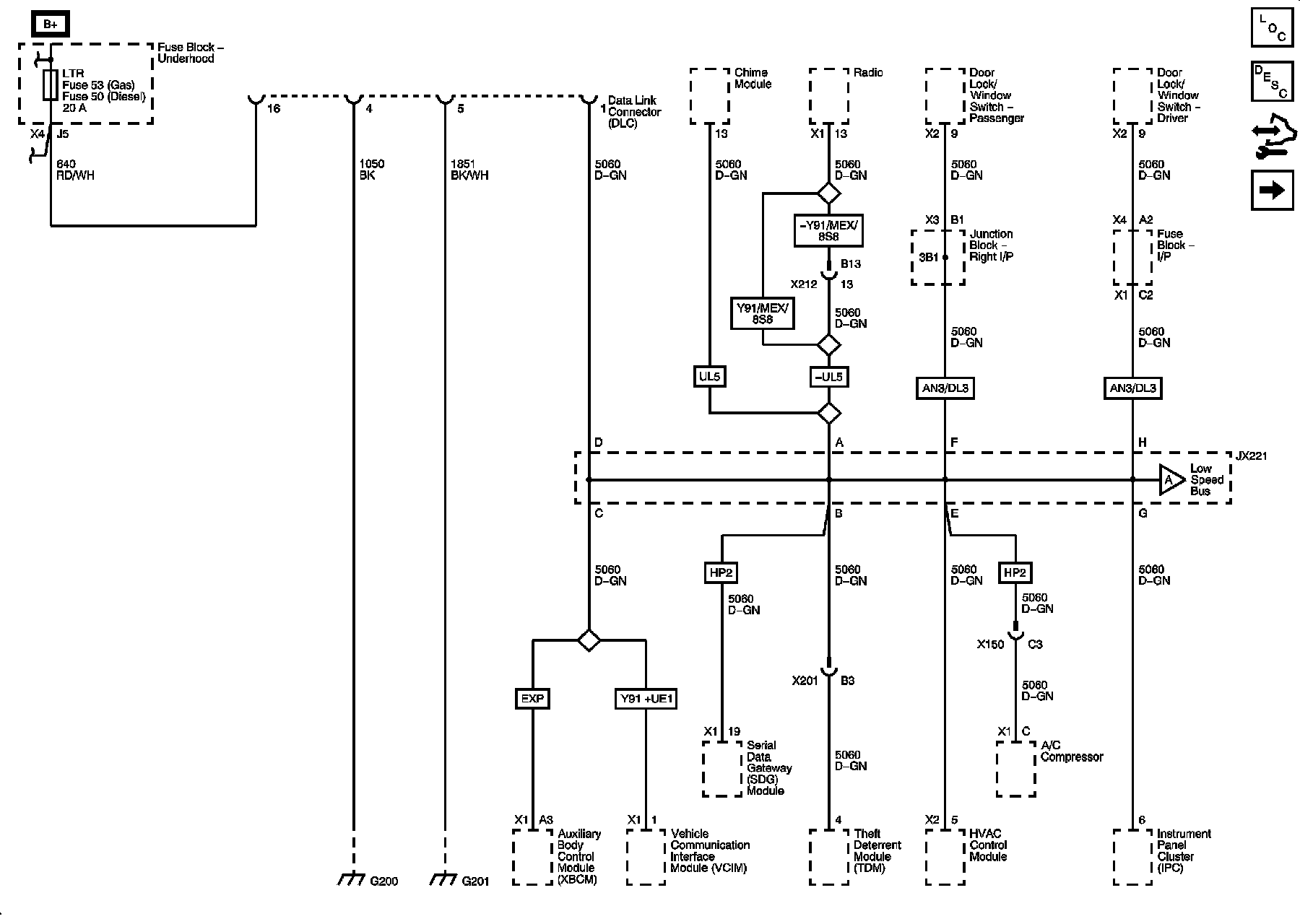

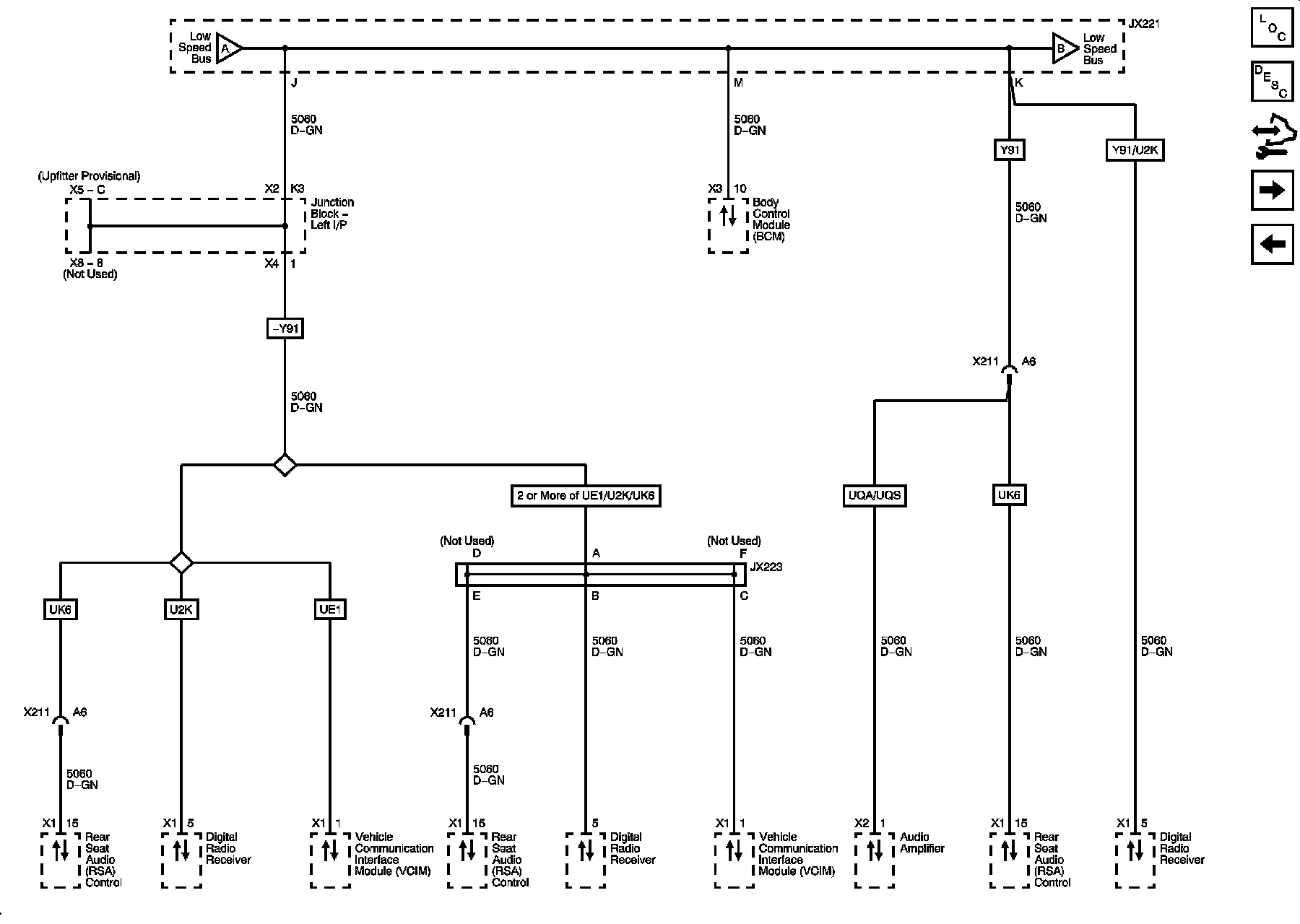

Low Speed Bus - 1 of 3

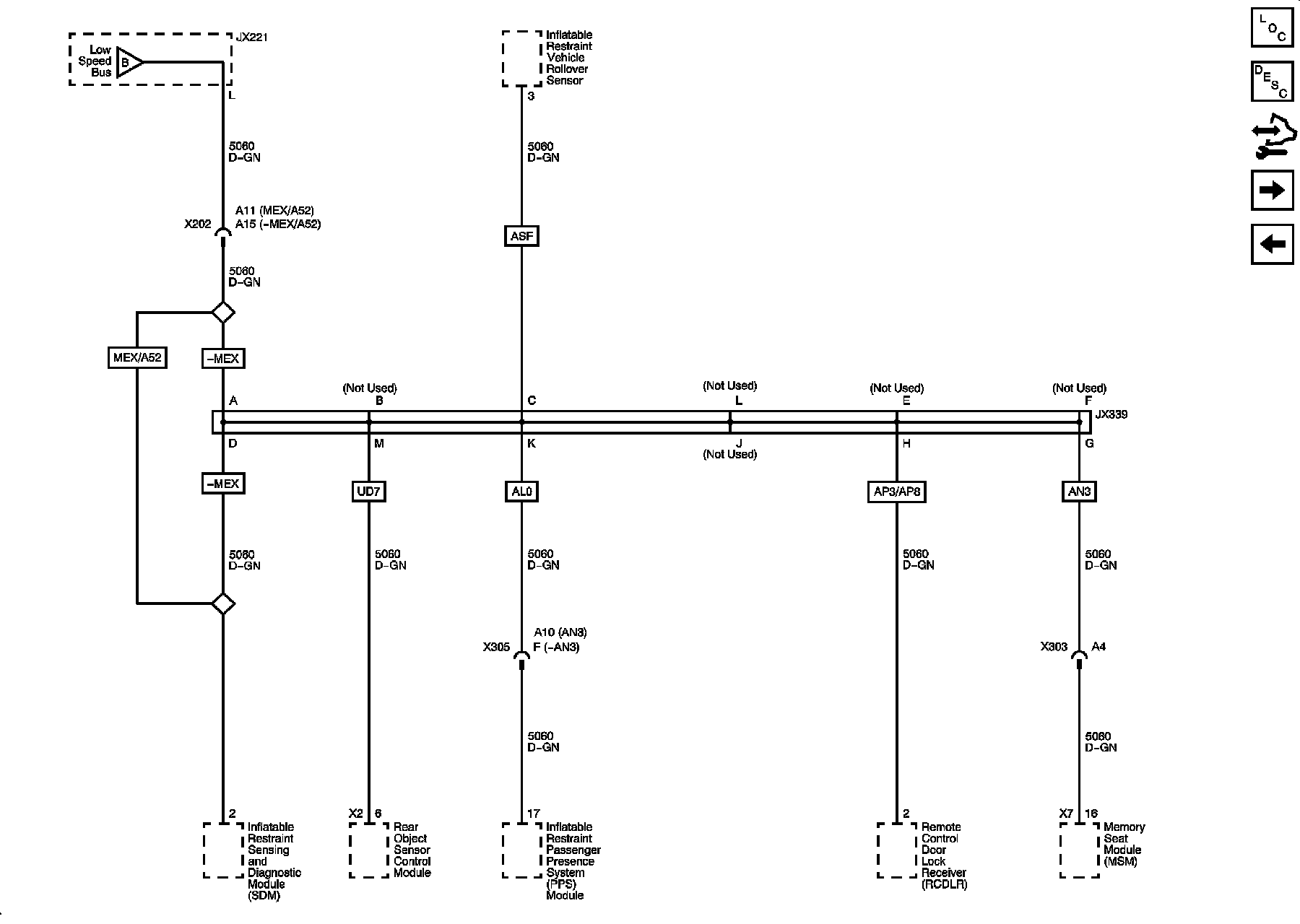

Low Speed Bus - 2 of 3
Low Speed Bus - 3 of 3

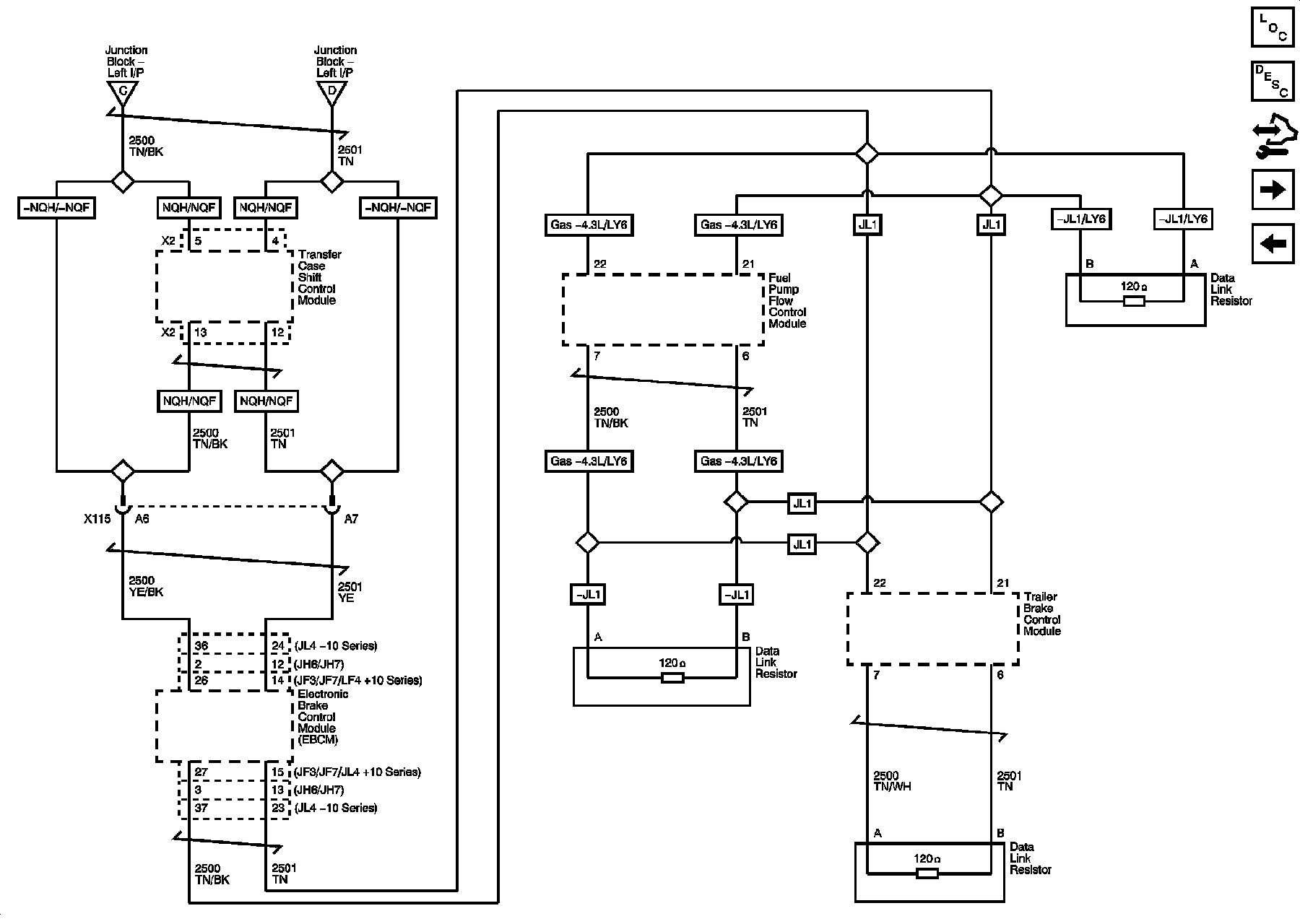

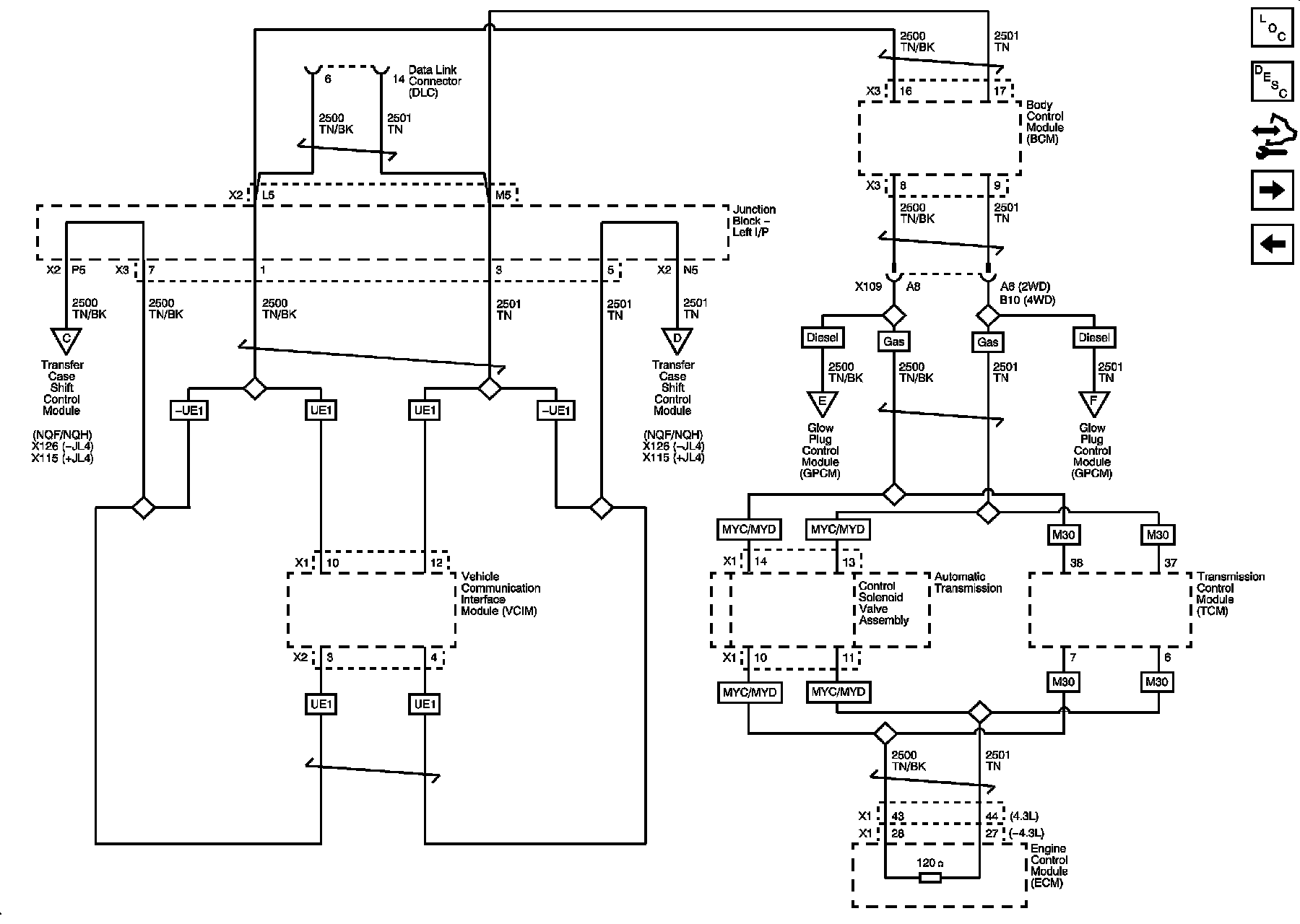

High Speed Bus - 1 of 6 (except MEX/HP2)
High Speed Bus - 2 of 6 (except MEX/HP2)

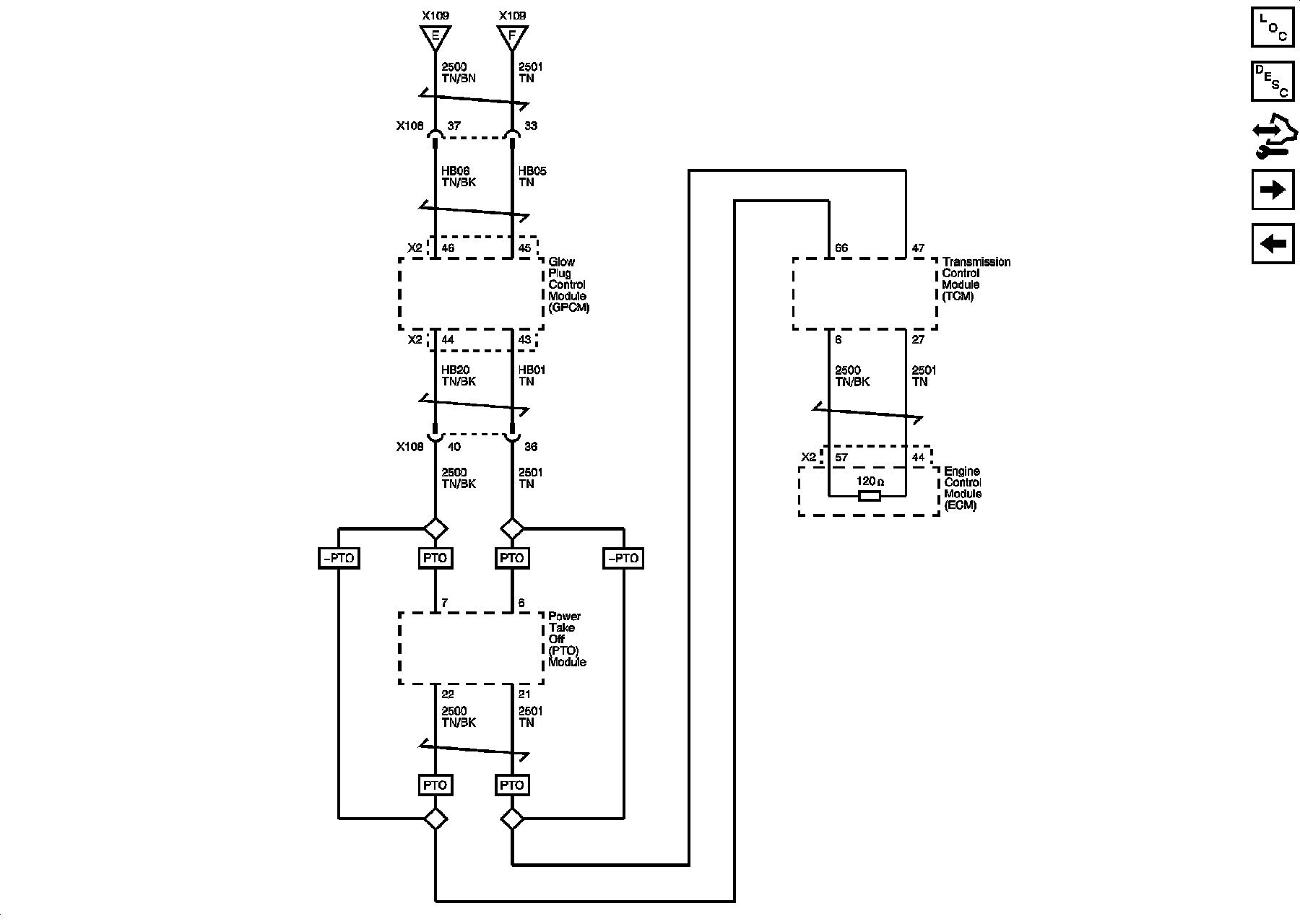

High Speed Bus - 3 of 6 (Diesel)
High Speed Bus - 4 of 6 (MEX)

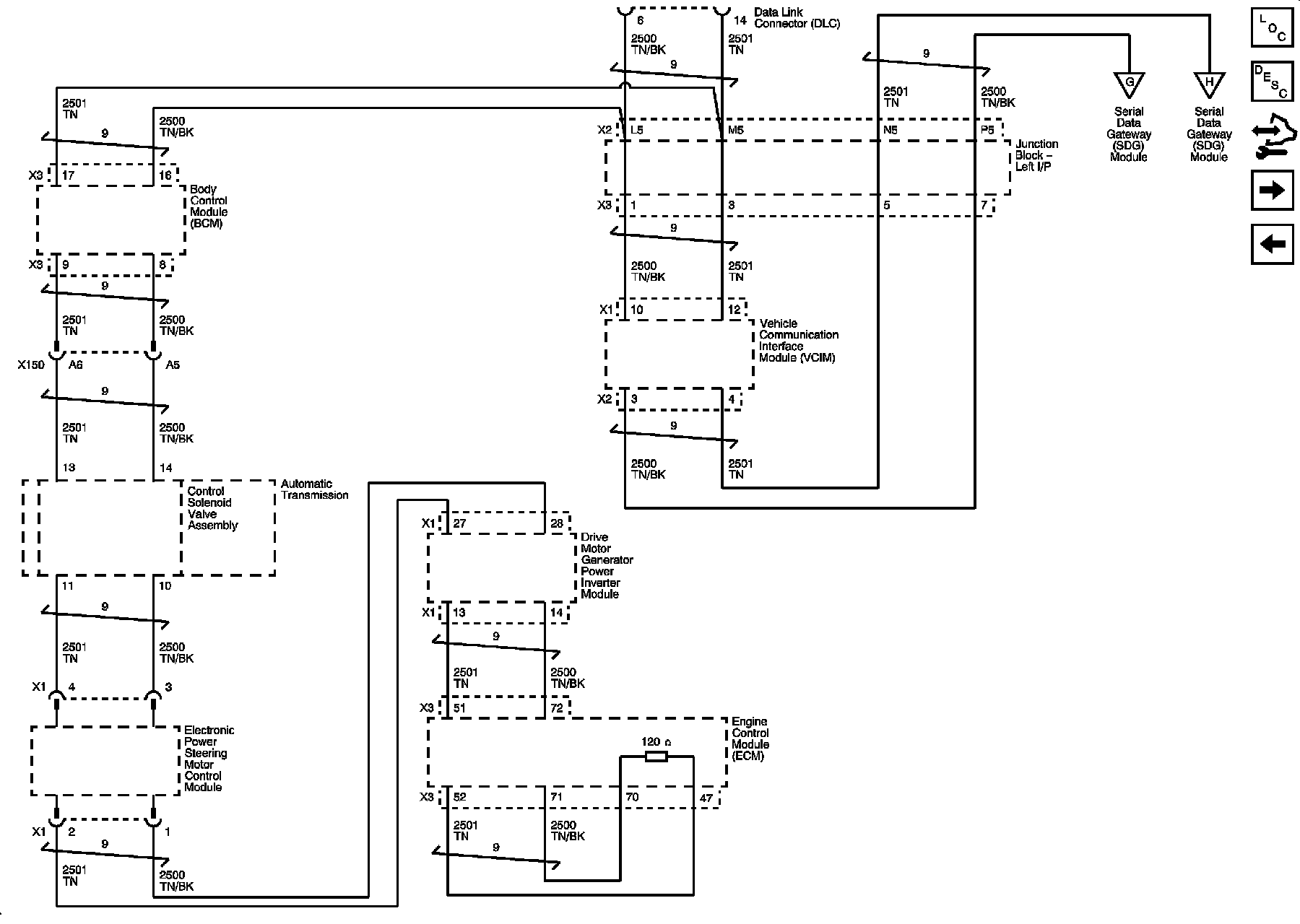

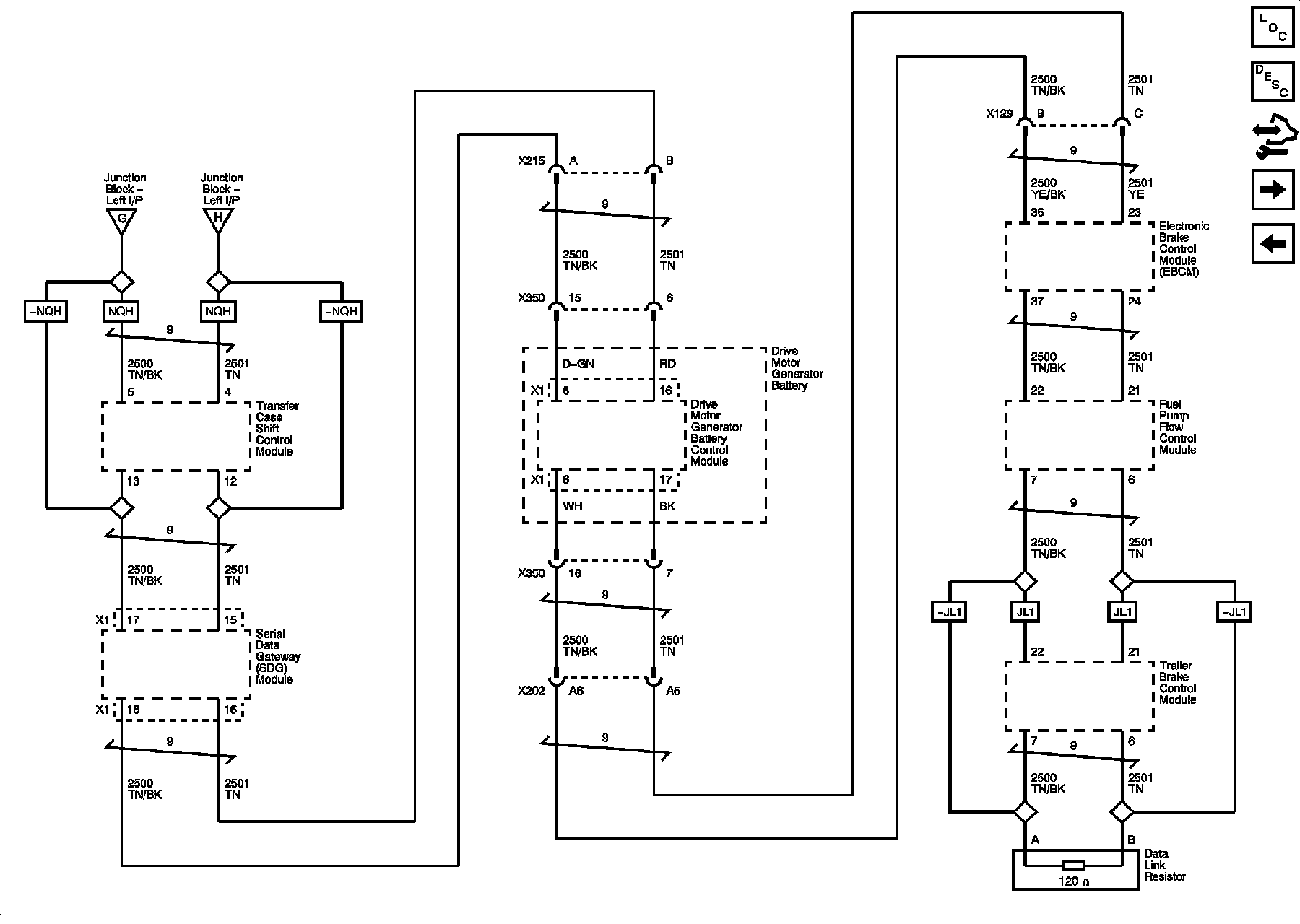

High Speed Bus - 5 of 6 (HP2)
High Speed Bus - 6 of 6 (HP2)

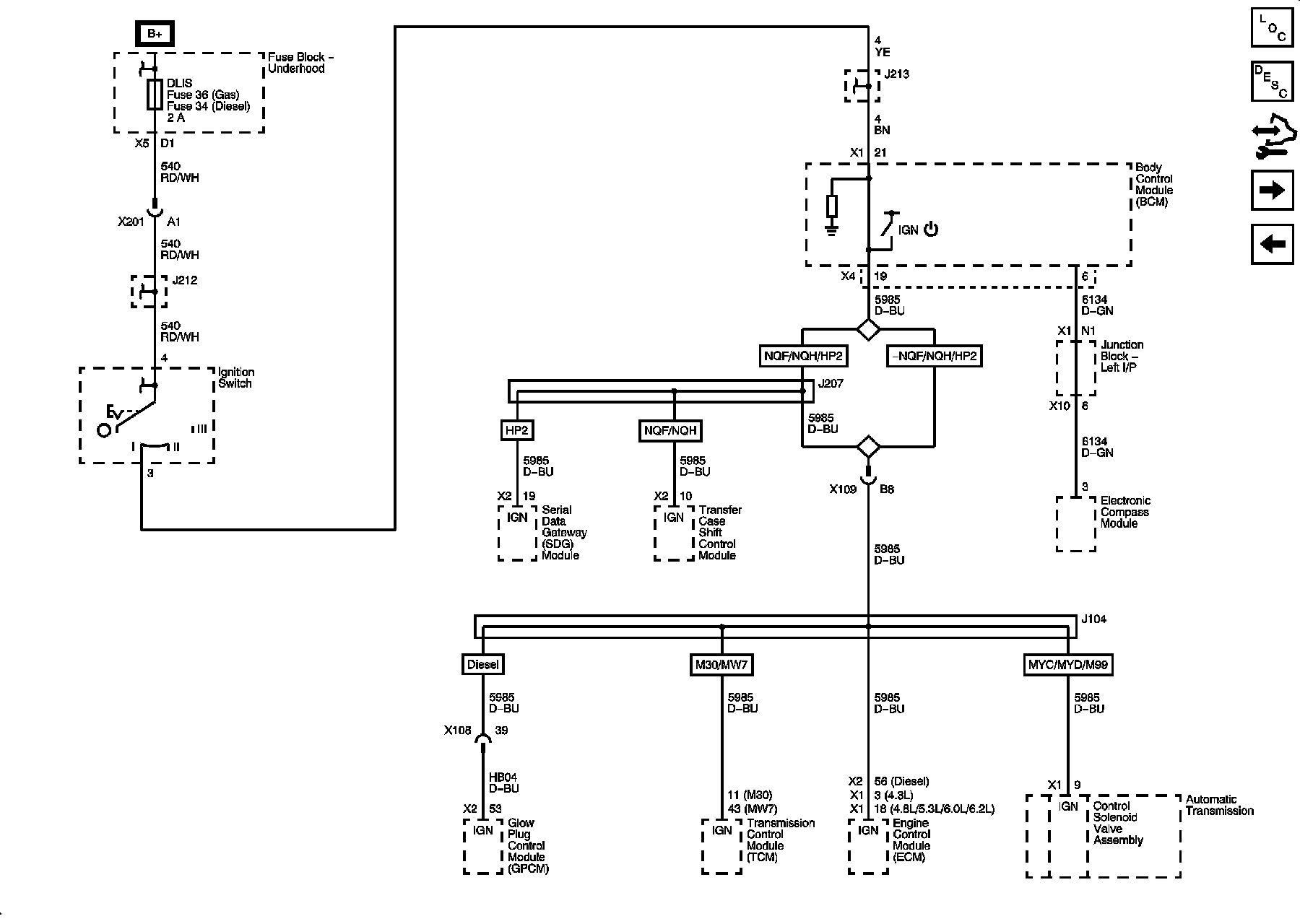

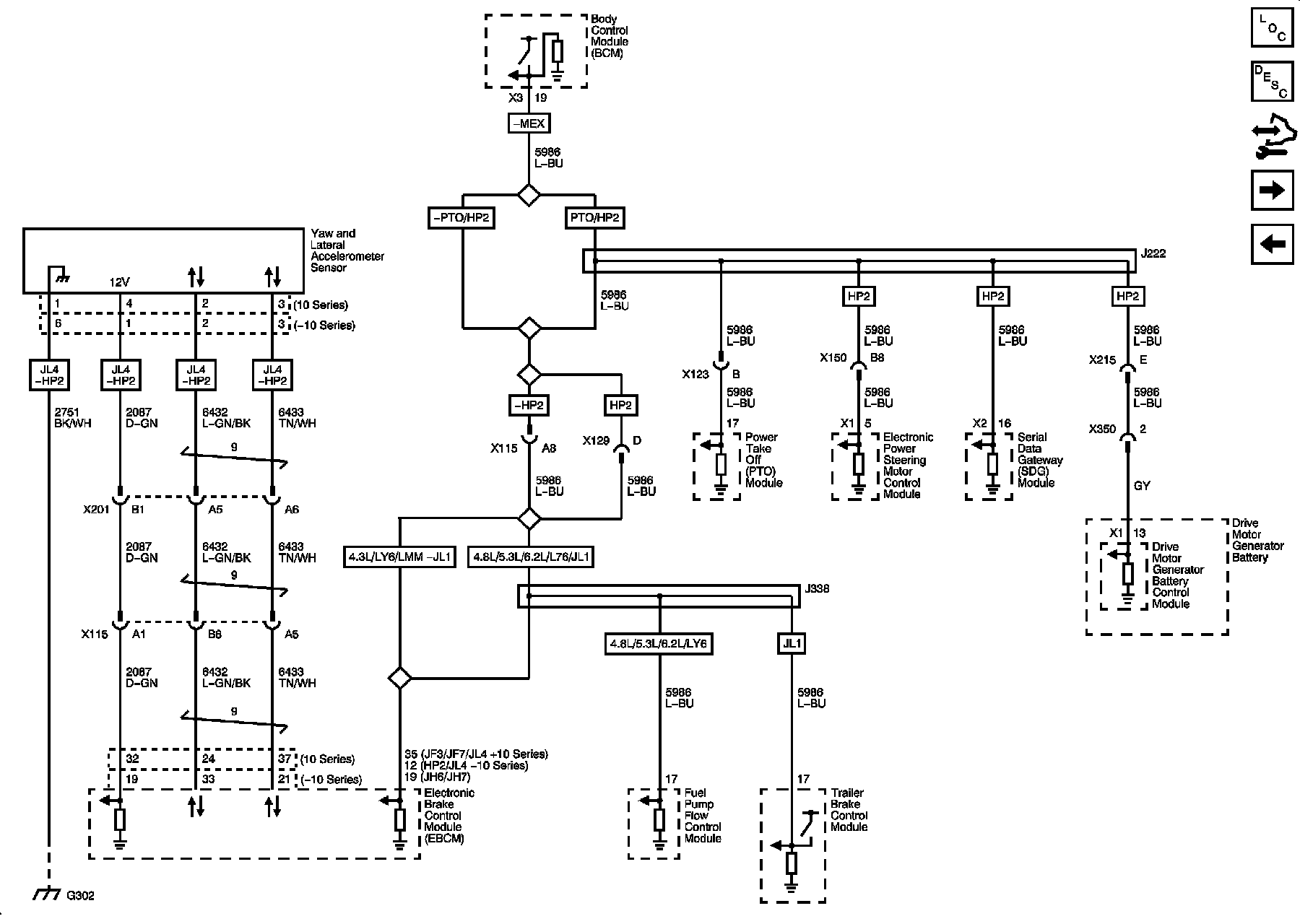

Serial Data Communication Enable
Accessory Wakeup Serial Data and Linear Interconnect Network (LIN)

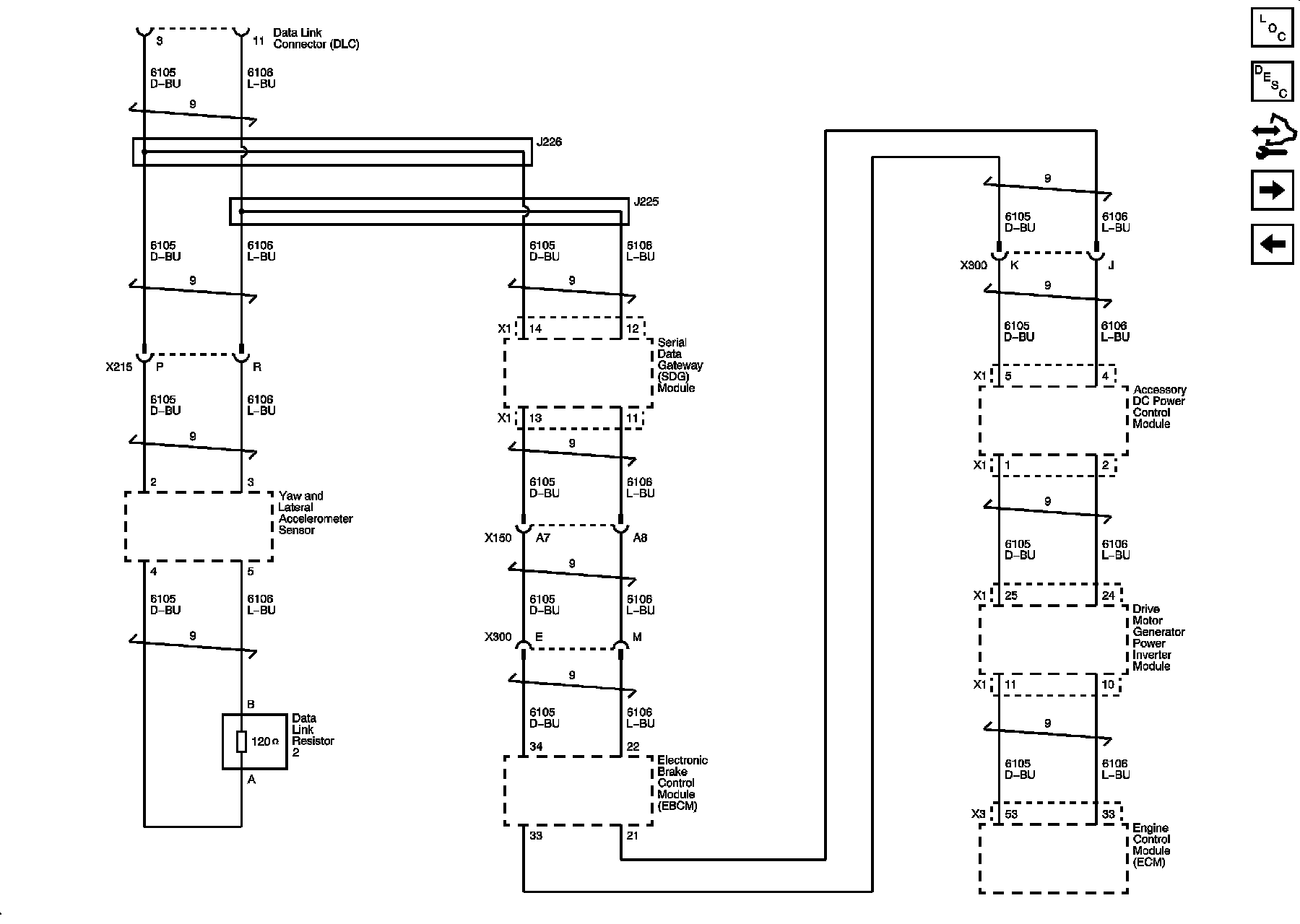

Powertrain Expansion Bus (HP2)

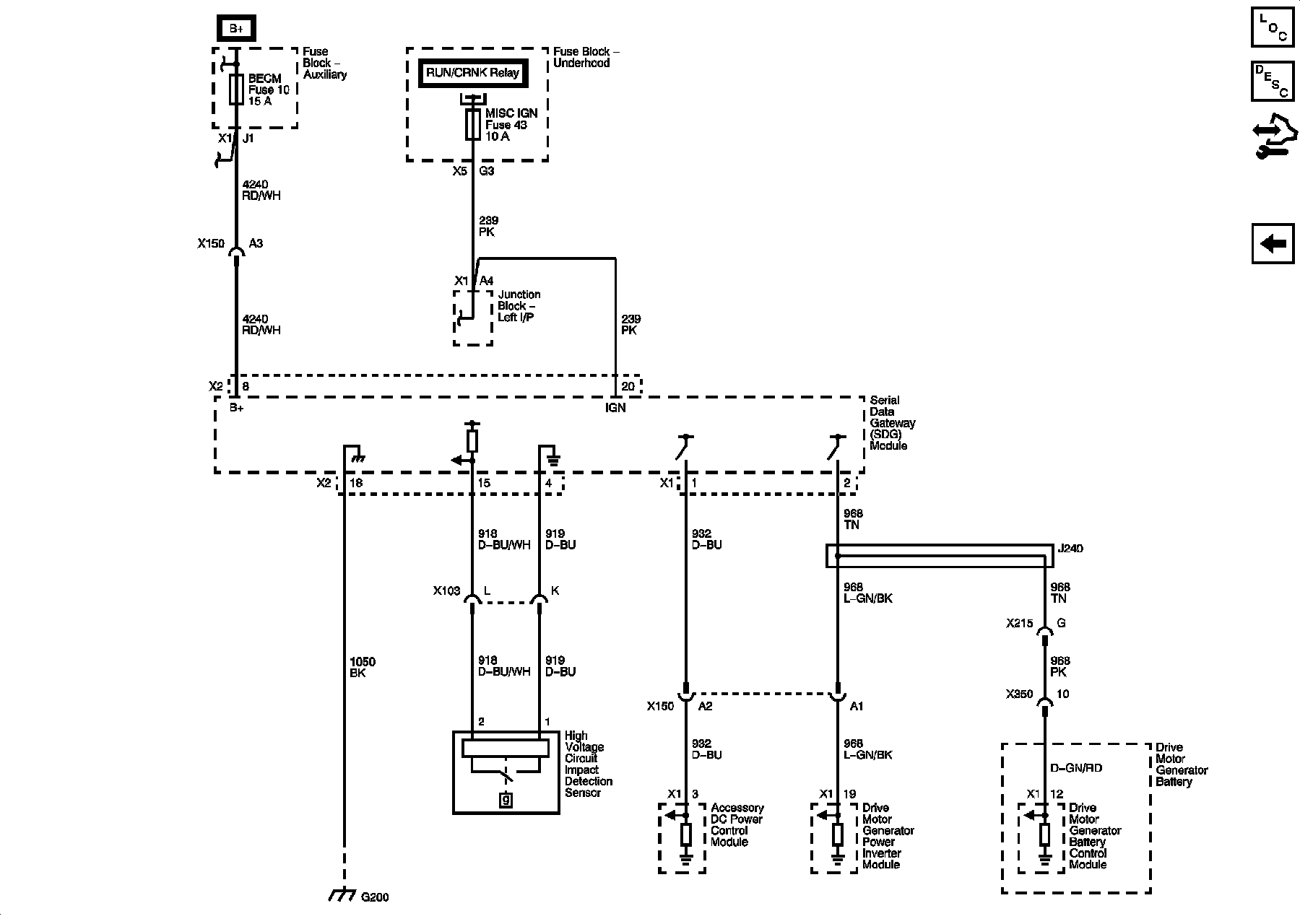

Serial Data Gateway (SDG) Module (HP2)
