Crankshaft Position Sensor: Diagrams



Component Connector End Views

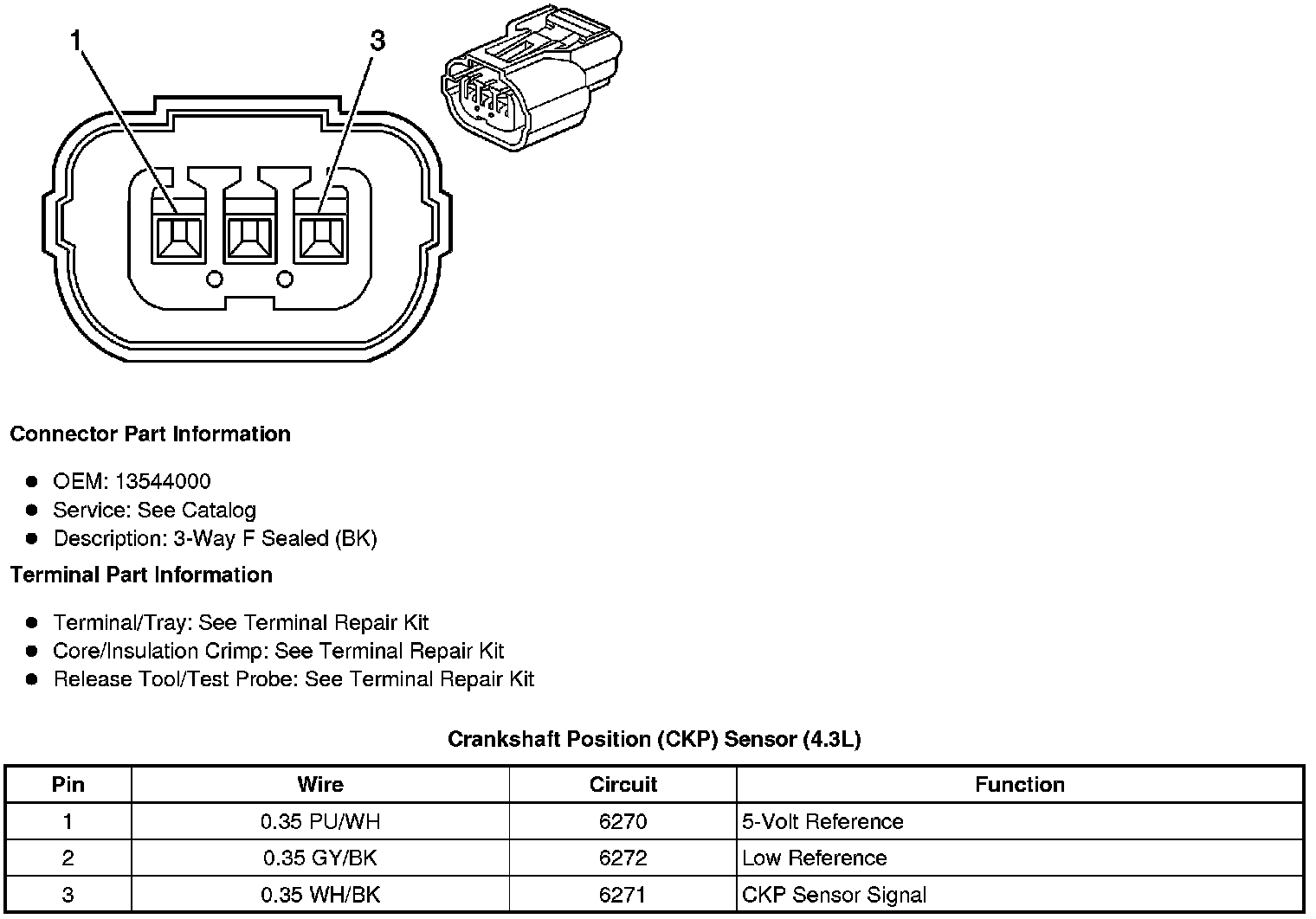

Crankshaft Position (CKP) Sensor (4.3L)

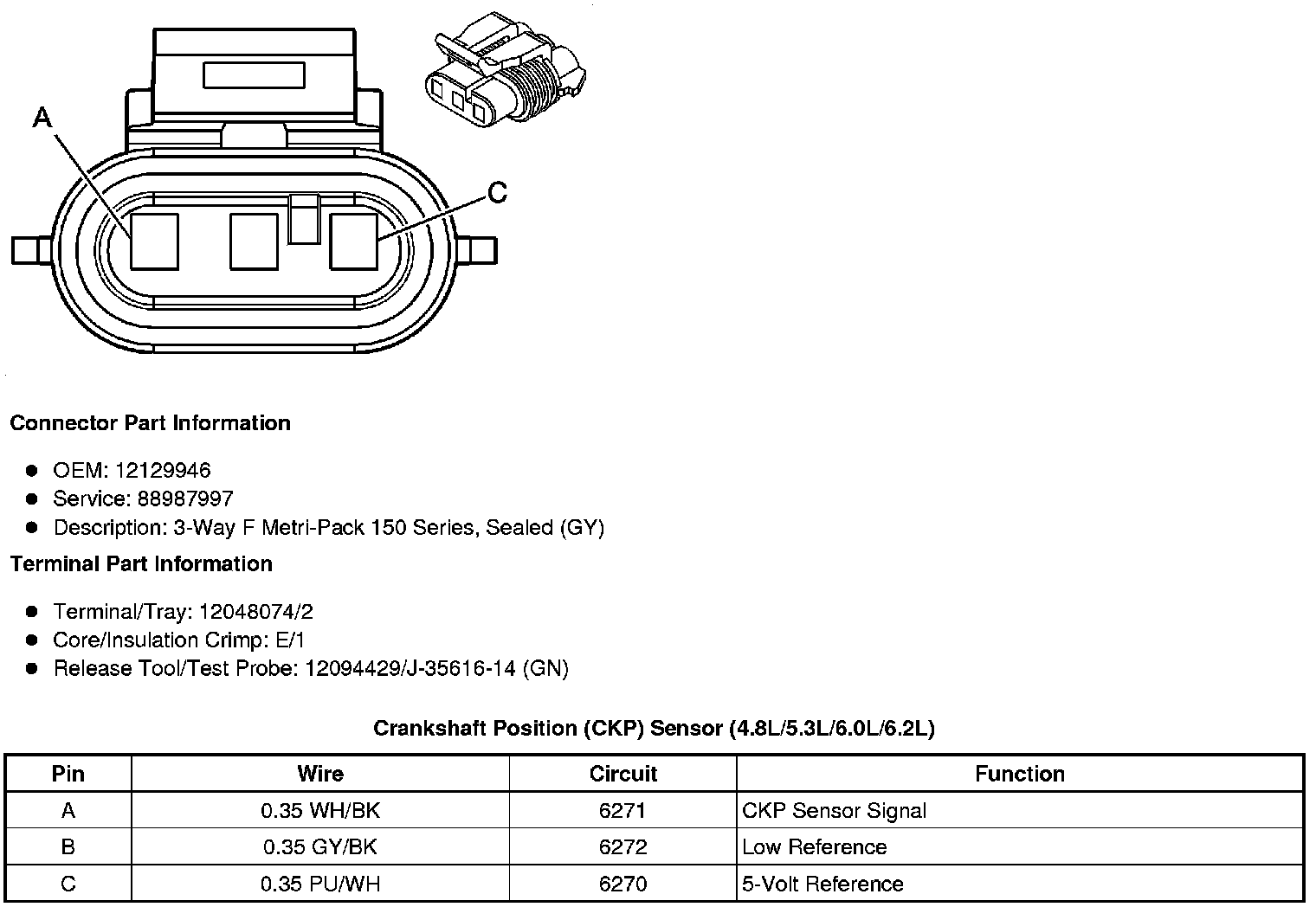

Crankshaft Position (CKP) Sensor (4.8L/5.3L/6.0L/6.2L)

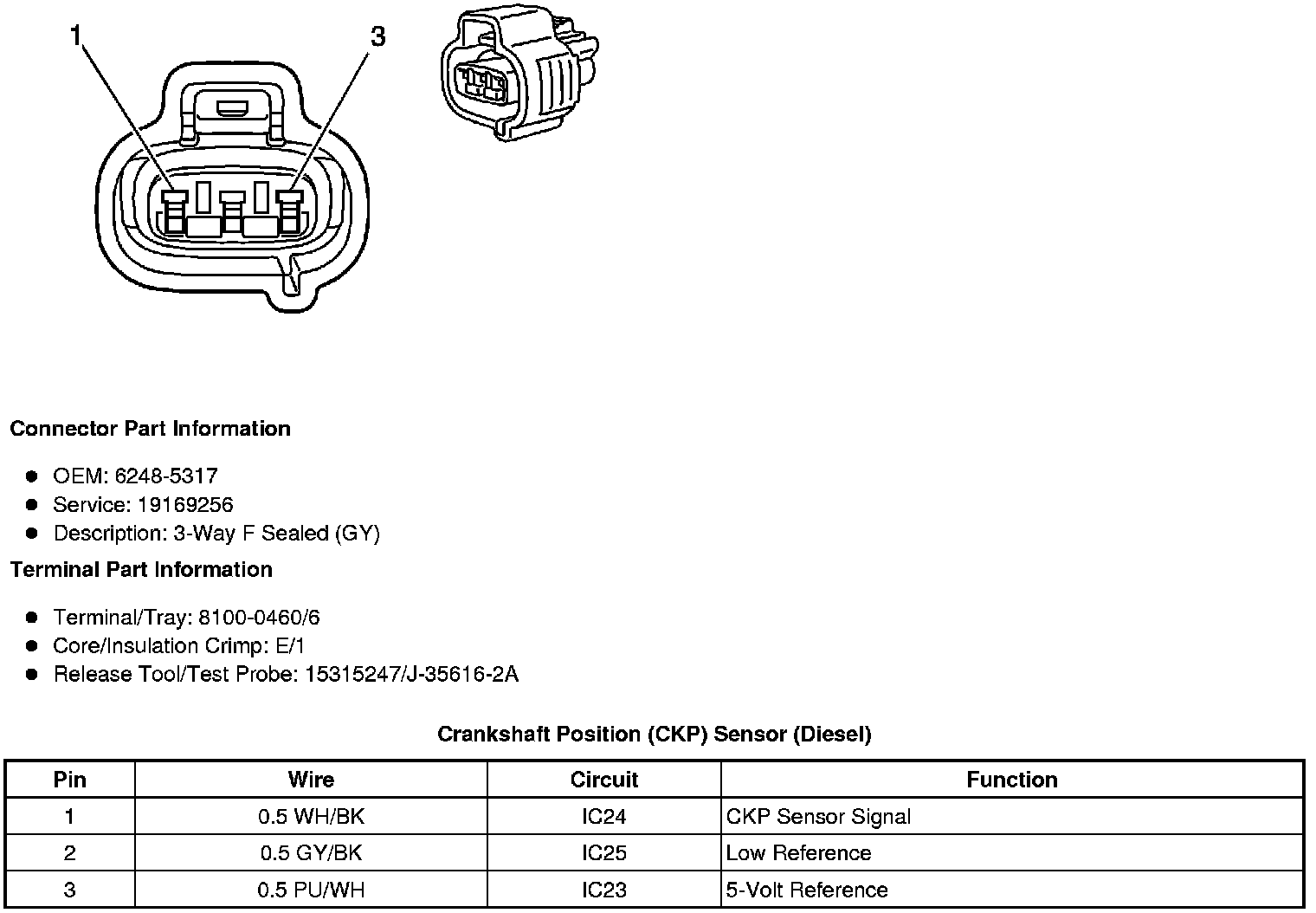

Crankshaft Position (CKP) Sensor (Diesel)
