Powertrain Component Views




Powertrain Component Views

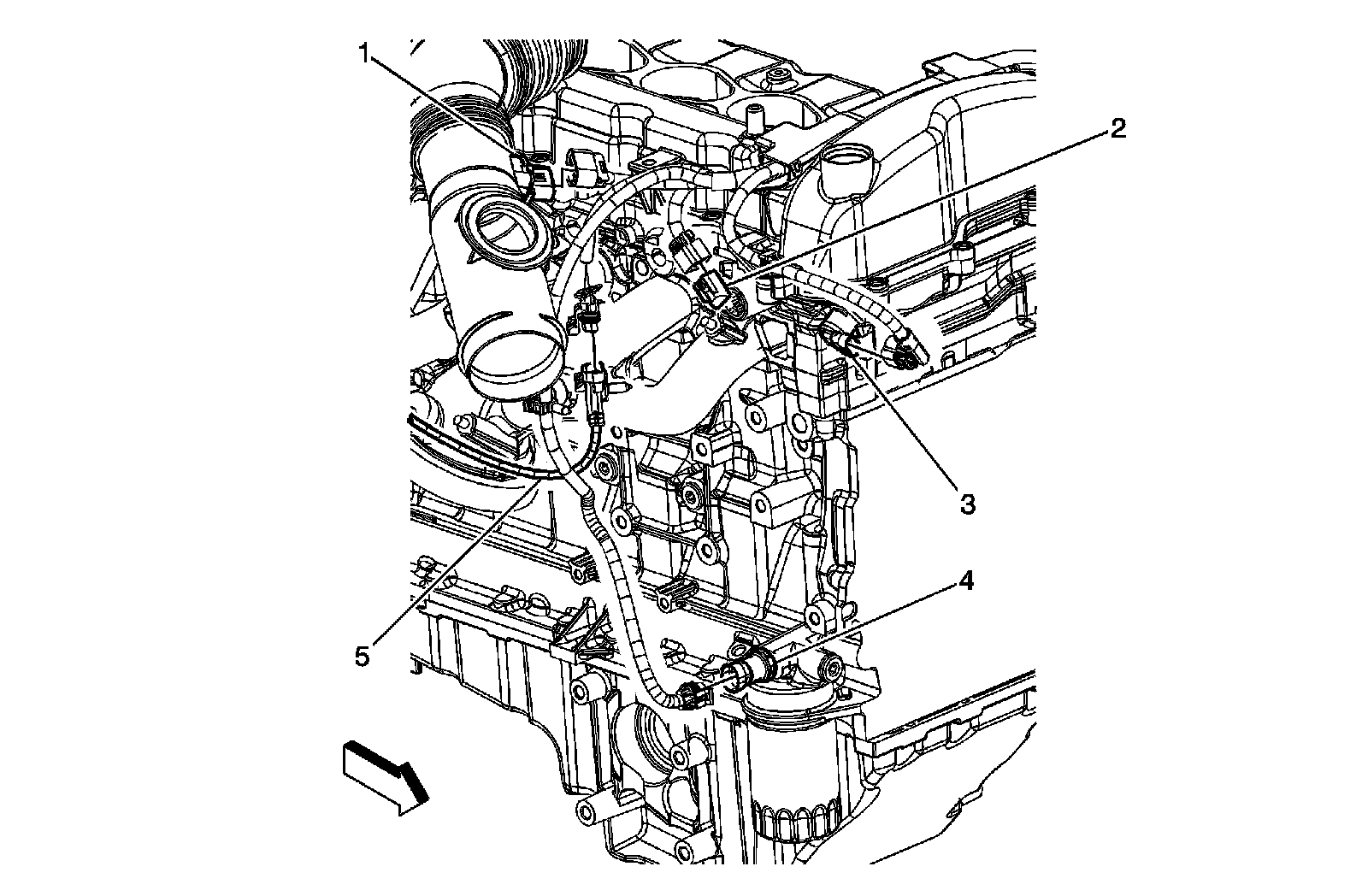

Right Side of Engine - Front




1 - Mass Air Flow (MAF) / Intake Air Temperature (IAT) Sensor
2 - Camshaft Actuator Solenoid Assembly
3 - Camshaft Position (CMP) Sensor
4 - Engine Oil Pressure (EOP) Switch
5 - Heated Oxygen Sensor (HO2S) Sensor 1
