Powertrain Component Views




Powertrain Component Views

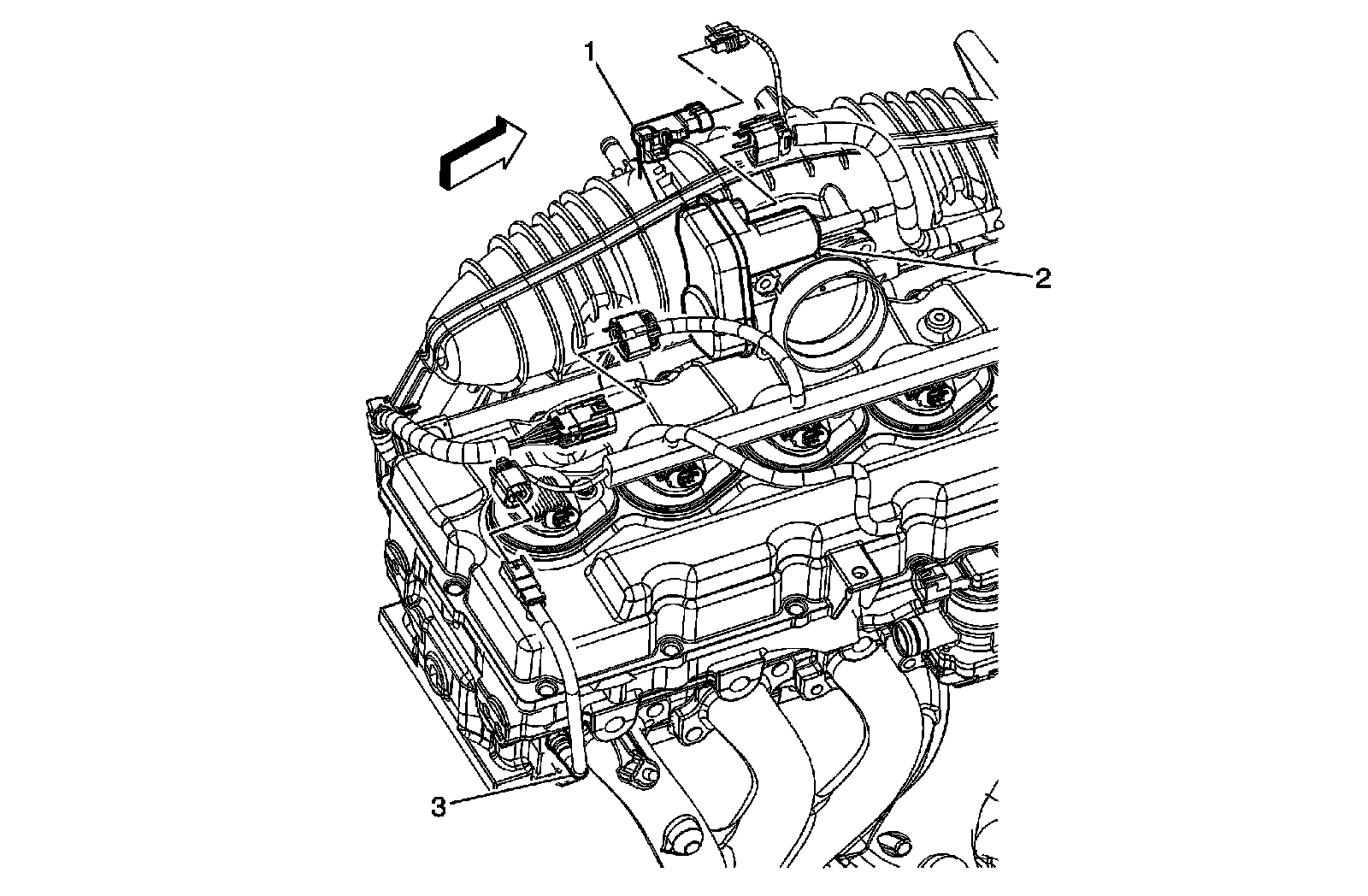

Top of Engine - Rear (LL8)




1 - Manifold Absolute Pressure (MAP) Sensor
2 - Throttle Body
3 - Engine Coolant Temperature (ECT) Sensor
