Trailer Brake Control Module: Diagrams



Component Connector End Views - Continued

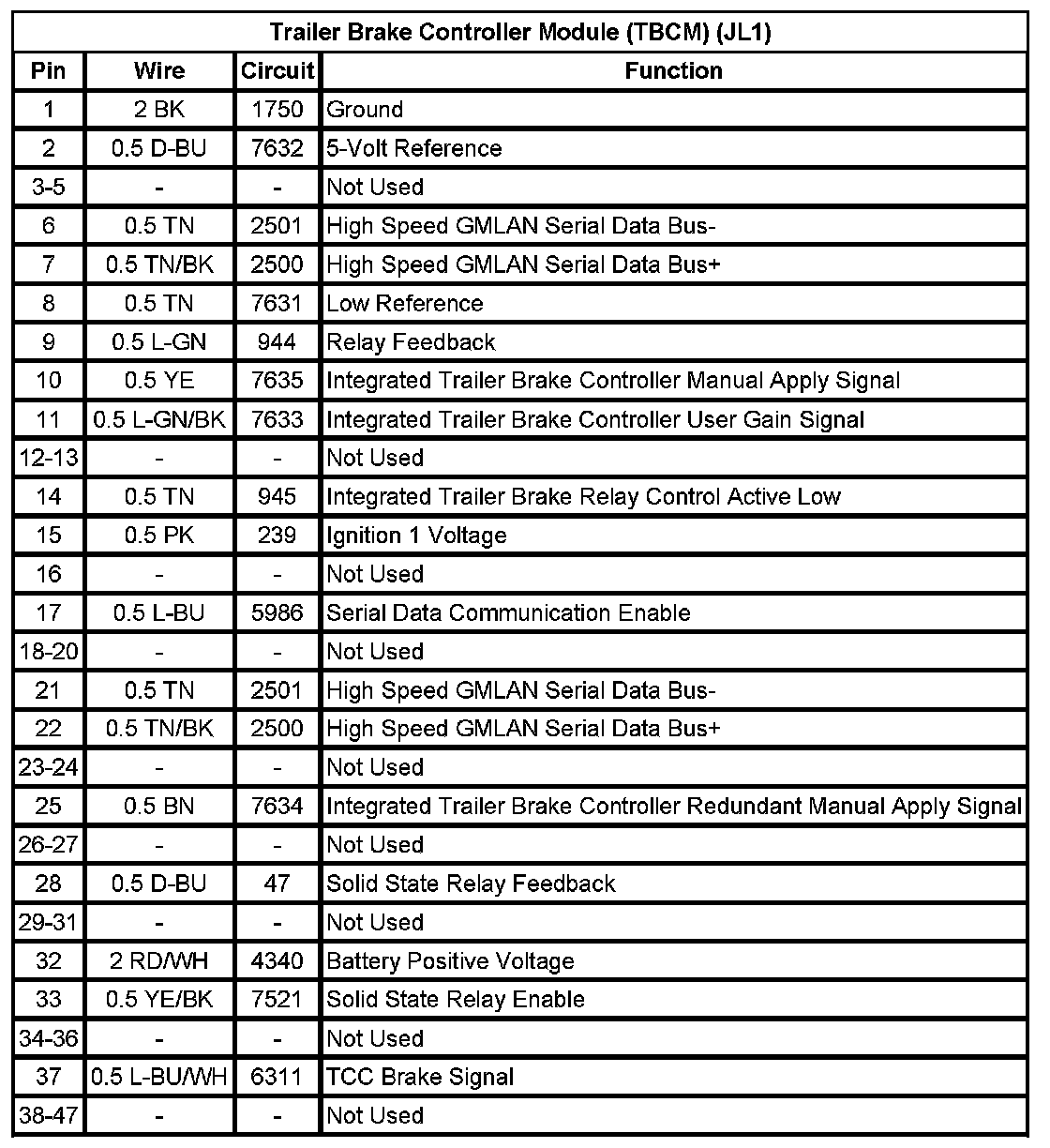

Trailer Brake Controller Module (TBCM) (JL1)

Electronic Suspension Control (ESC) Module:
