Scan Tool Data List

BCM Scan Tool Data List:

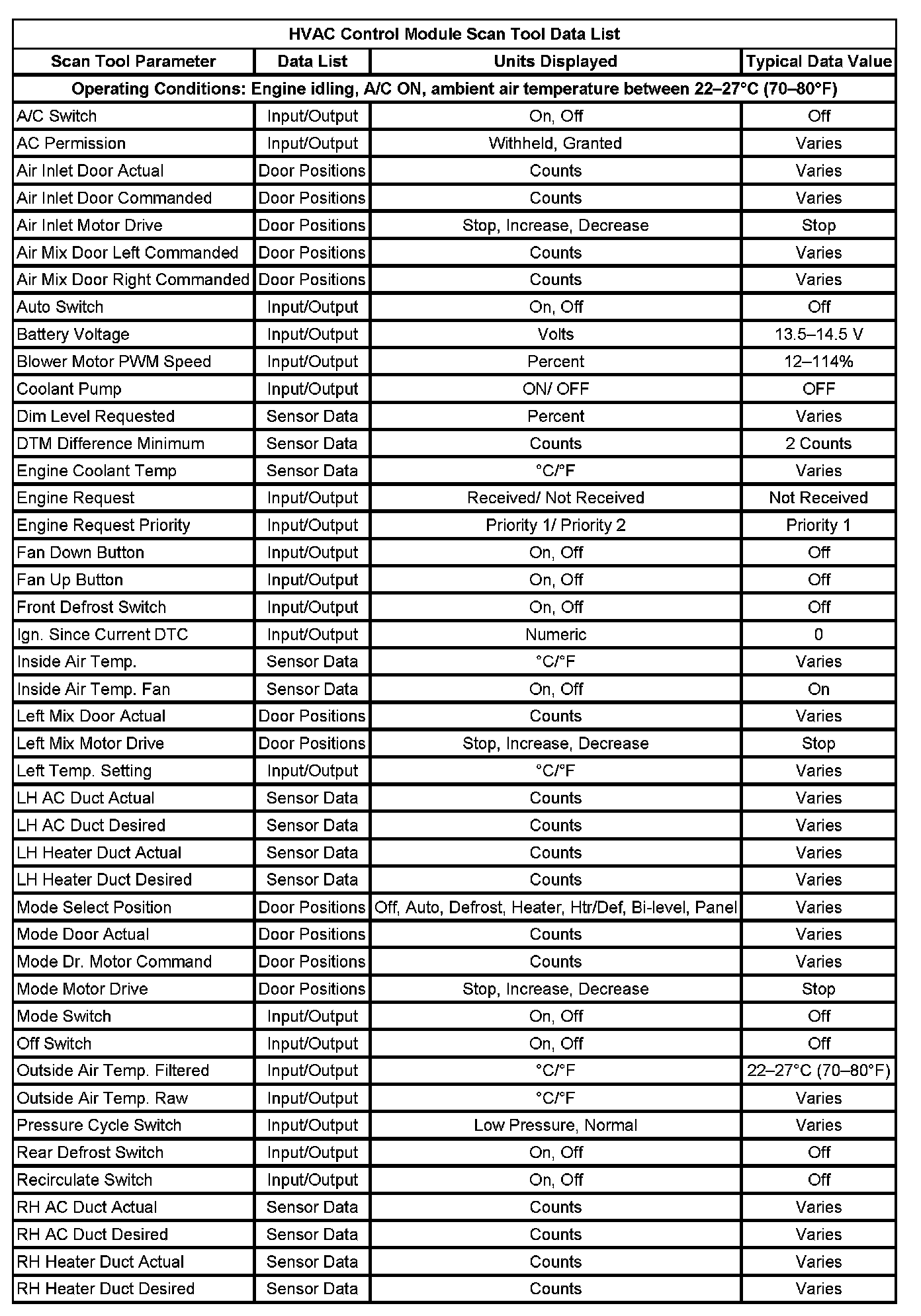

HVAC Control Module Scan Tool Data List:



HVAC Control Module Scan Tool Data List:



PCM Scan Tool Data List:
