Installation

Intake Air Temperature (IAT) Sensor 2

Installation

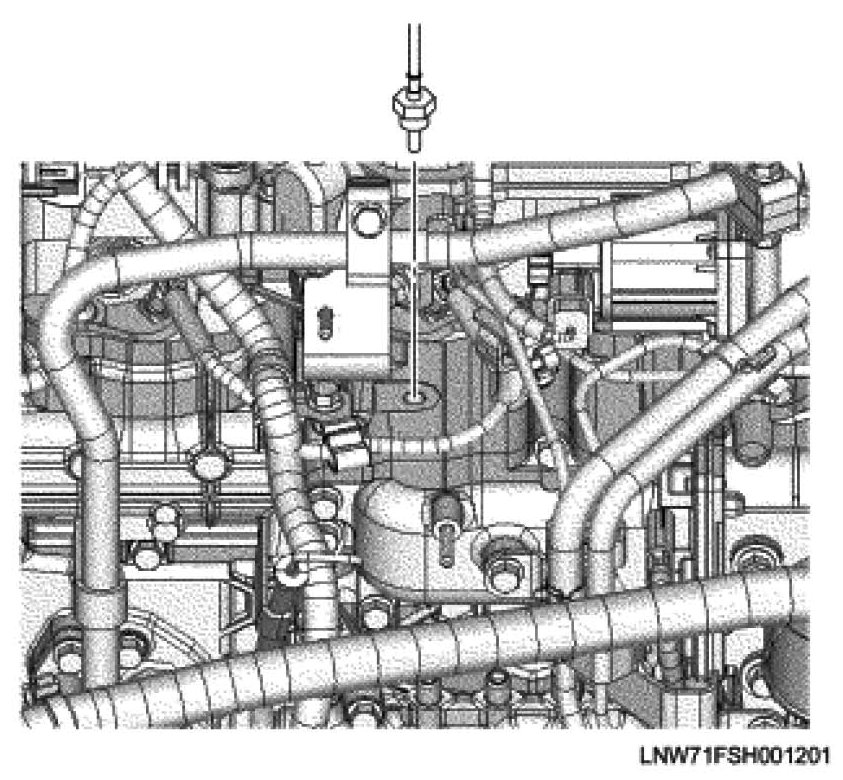

1. Install the IAT sensor 2.

Tightening torque: 20 N.m (14 lb.ft)







2. Connect the harness connector to the IAT sensor 2.
3. Install the Injection pipe #1, #2.
