Electronic Brake Control Module (JL4)



Electronic Brake Control Module (JL4)

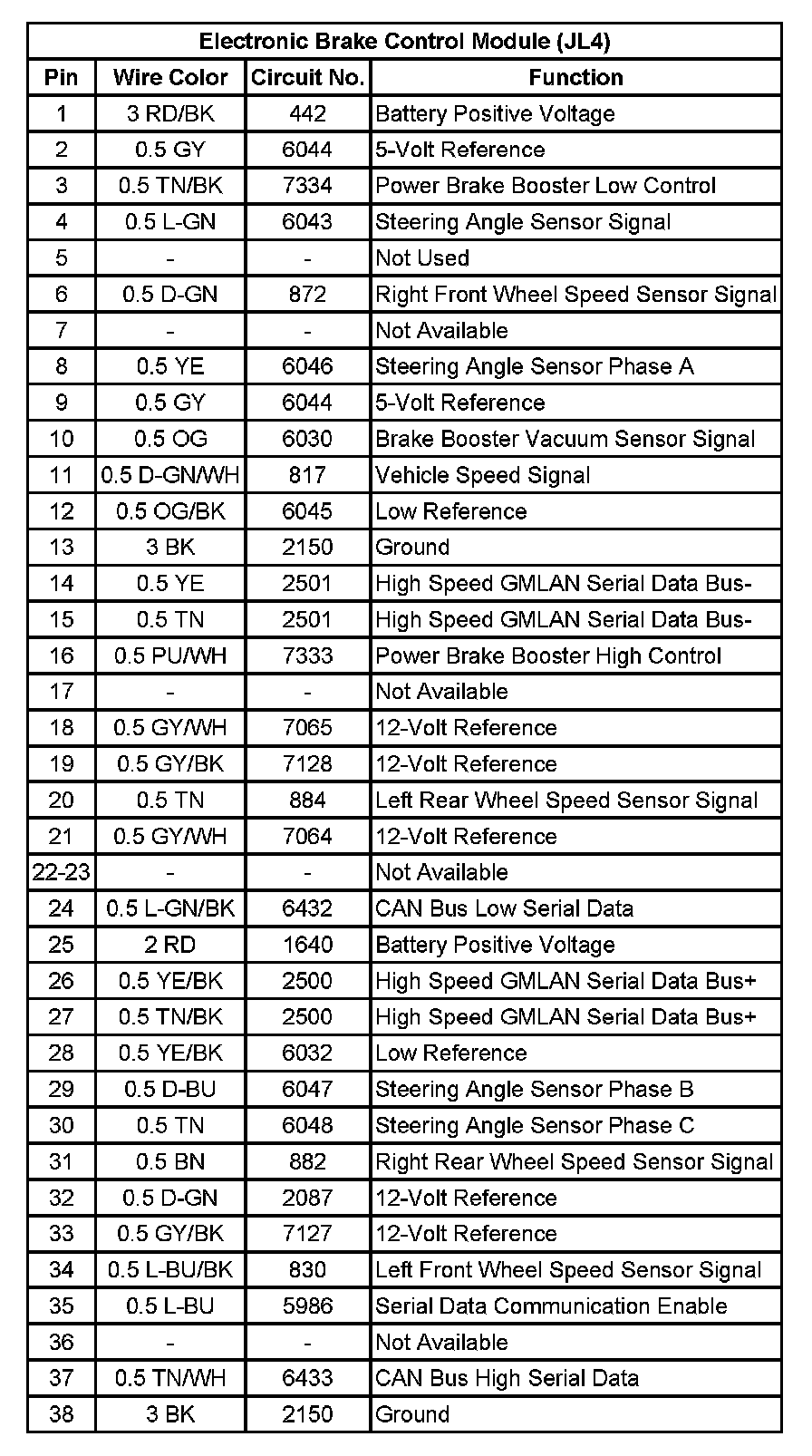

Electronic Brake Control Module (JL4):
