Allison - Automatic Transmission



Automatic Transmission Inline Harness Connector End View

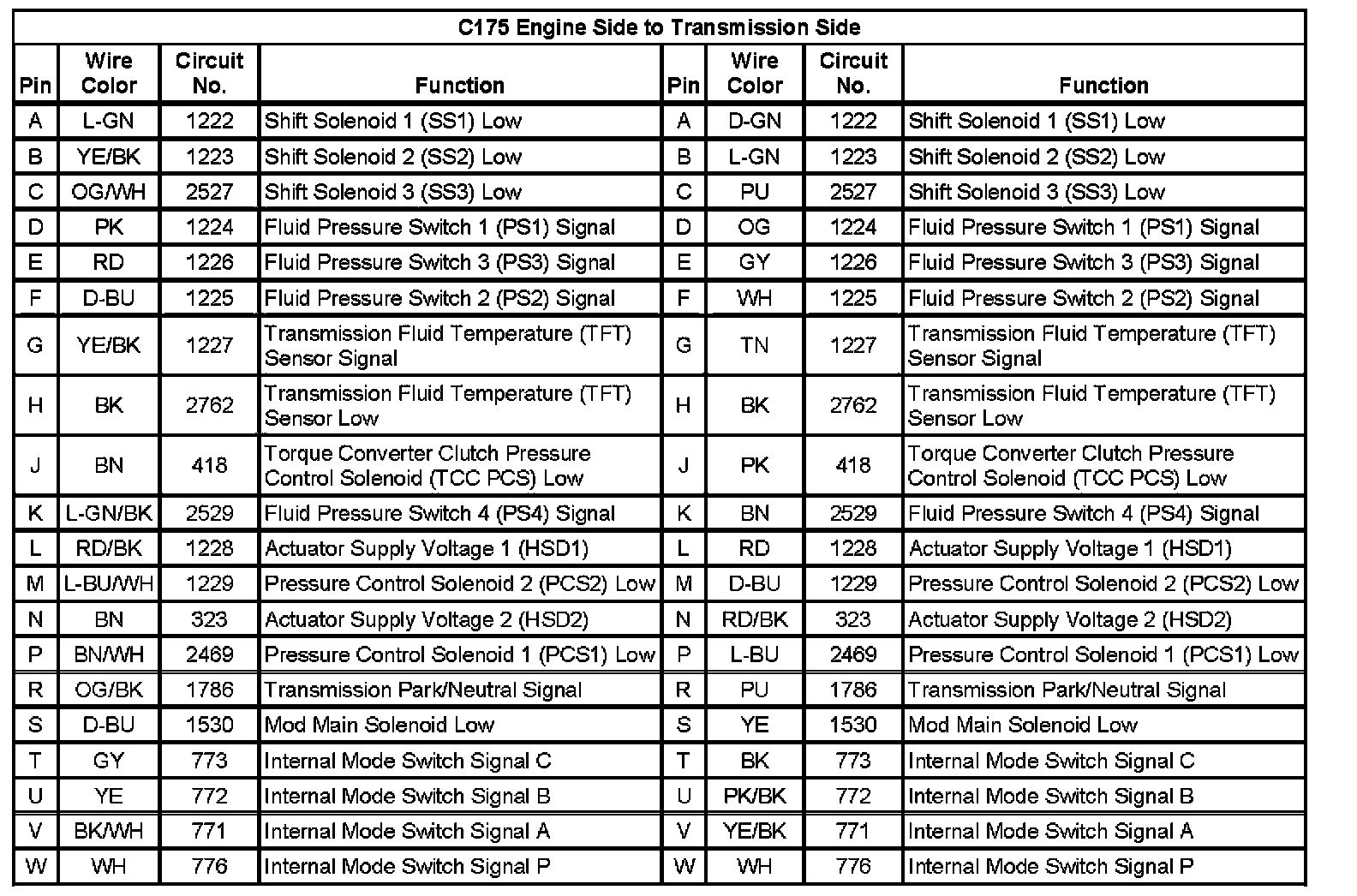

C175 Engine Side to Transmission Side:
