Fuse Block - I/P, Top View



Electrical Center Identification Views

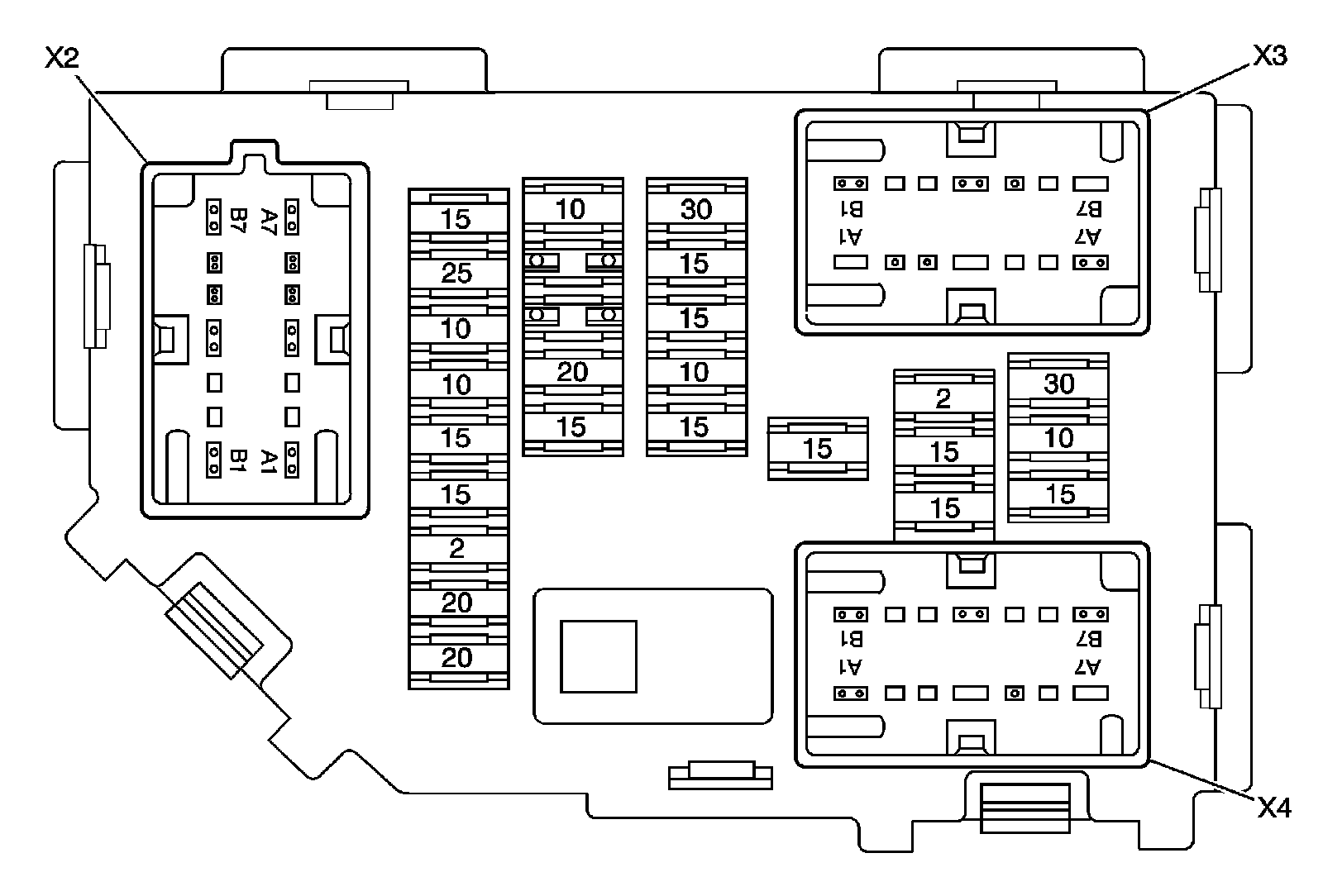

Fuse Block - I/P, Top View






Fuse Block - I/P, Bottom View

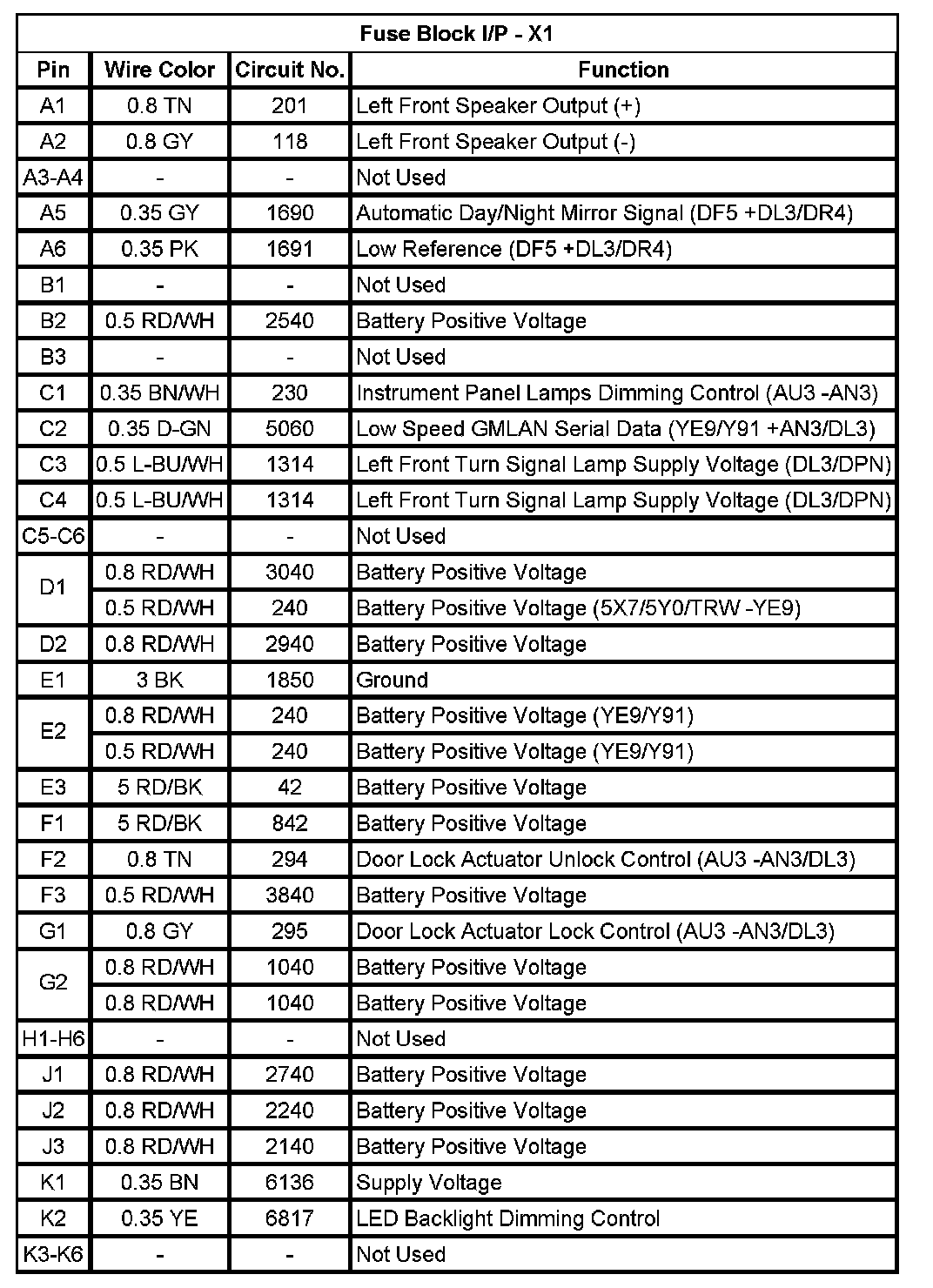

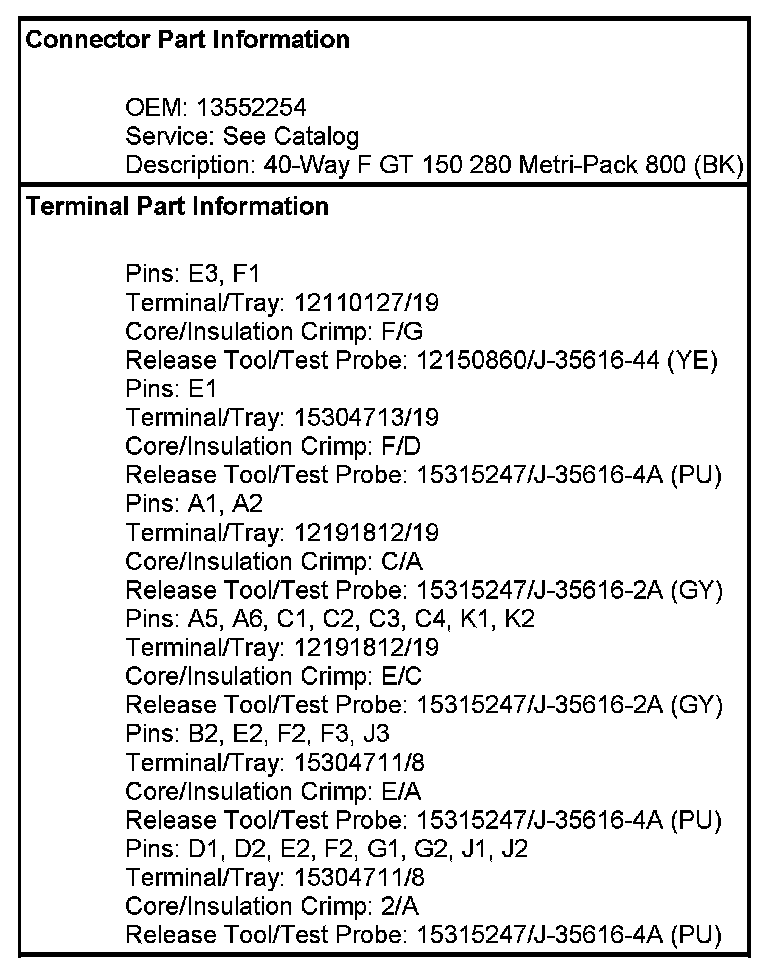

Fuse Block - I/P X1

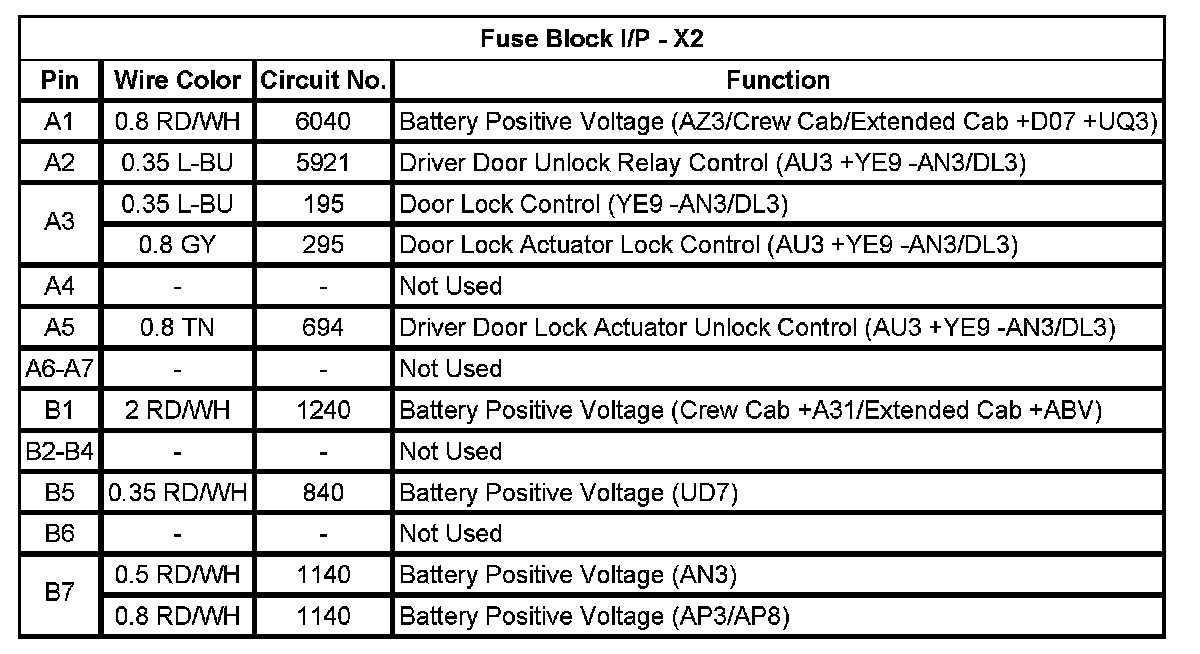

Fuse Block - I/P X2

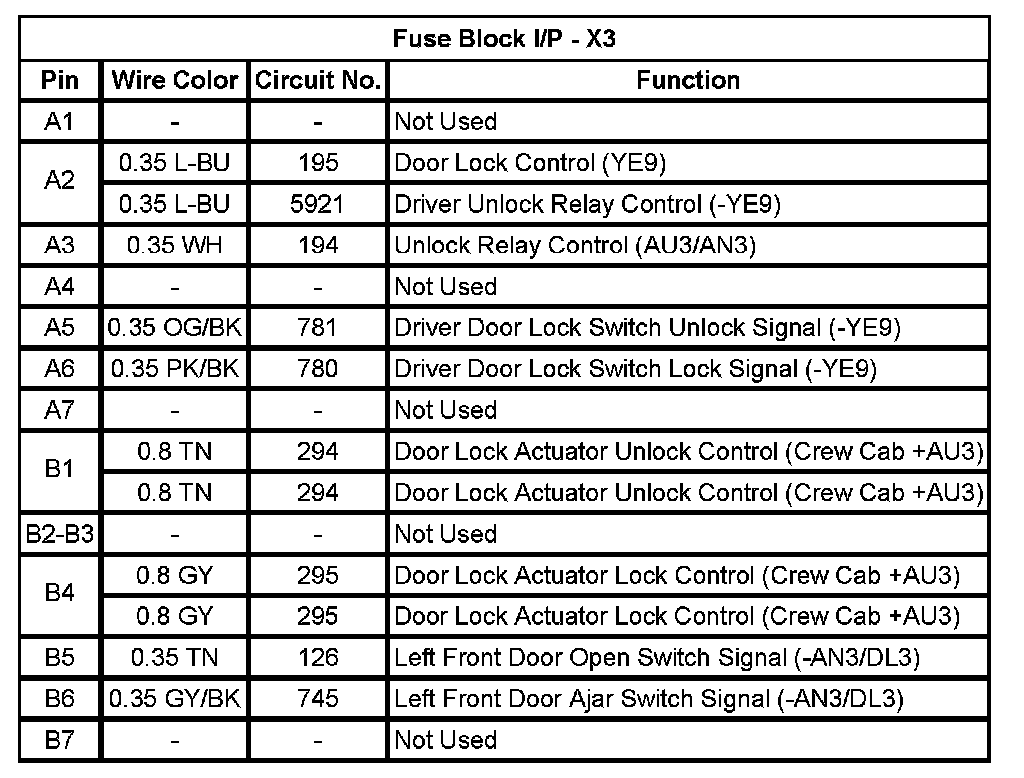

Fuse Block - I/P X3

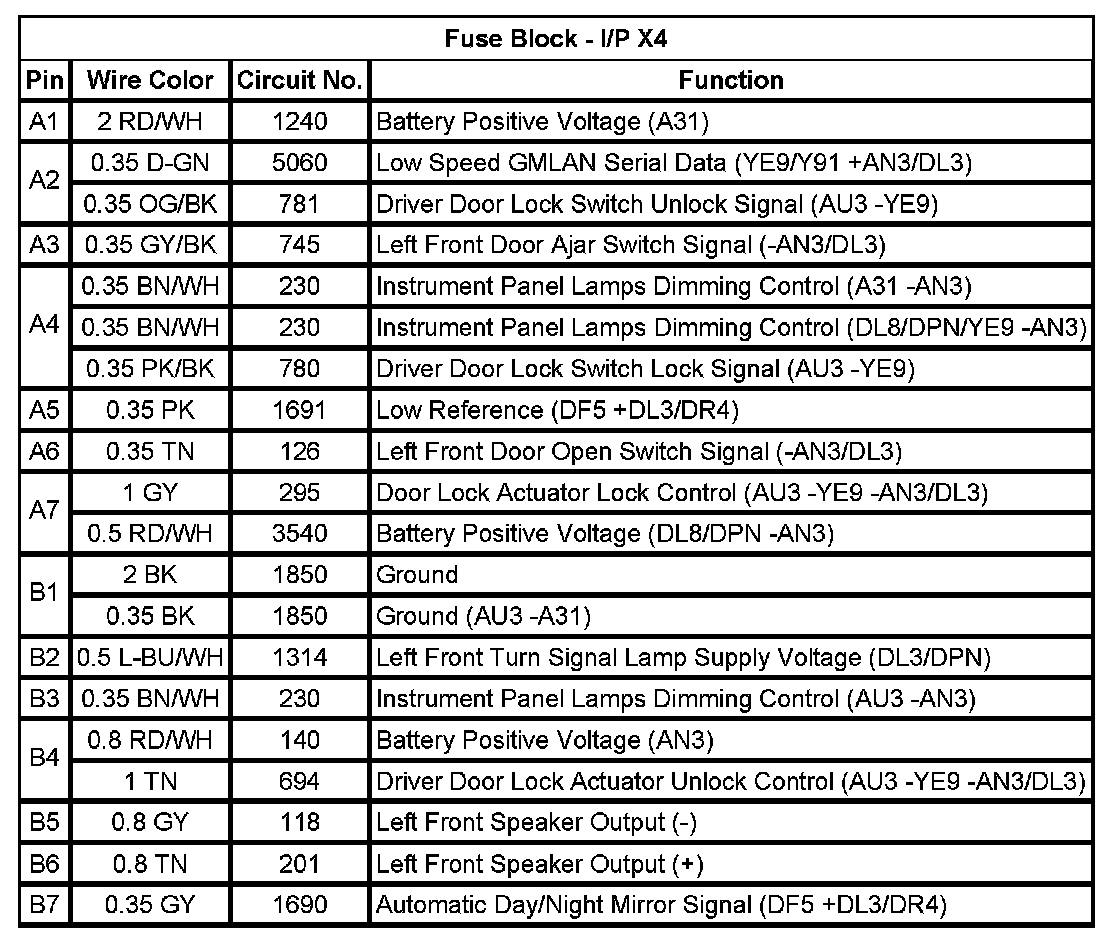

Fuse Block - I/P X4
