Data Communication Schematics

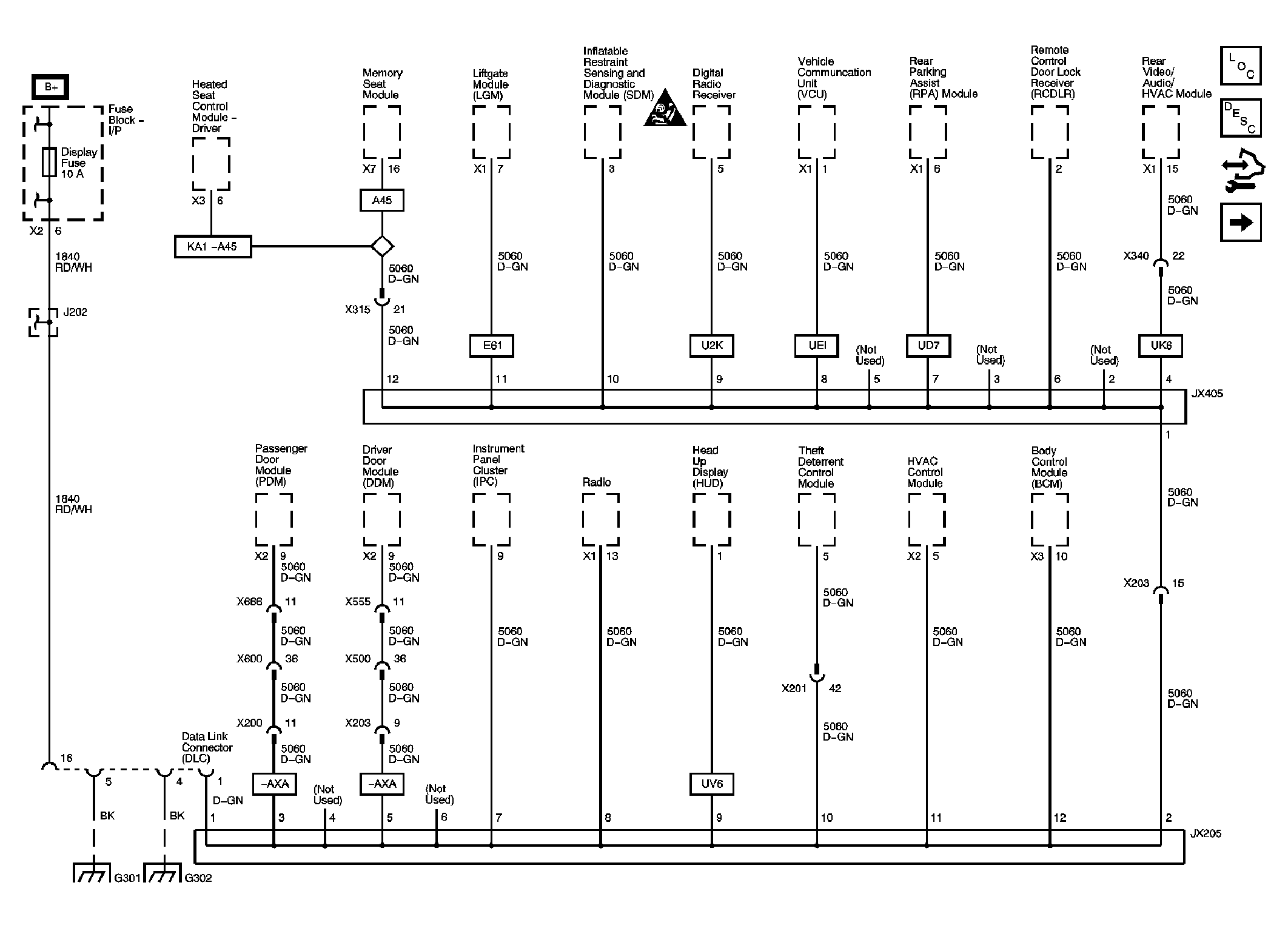

Fig 1: Low Speed GMLAN - Schematic
GM1843878Courtesy of GENERAL MOTORS CORP.

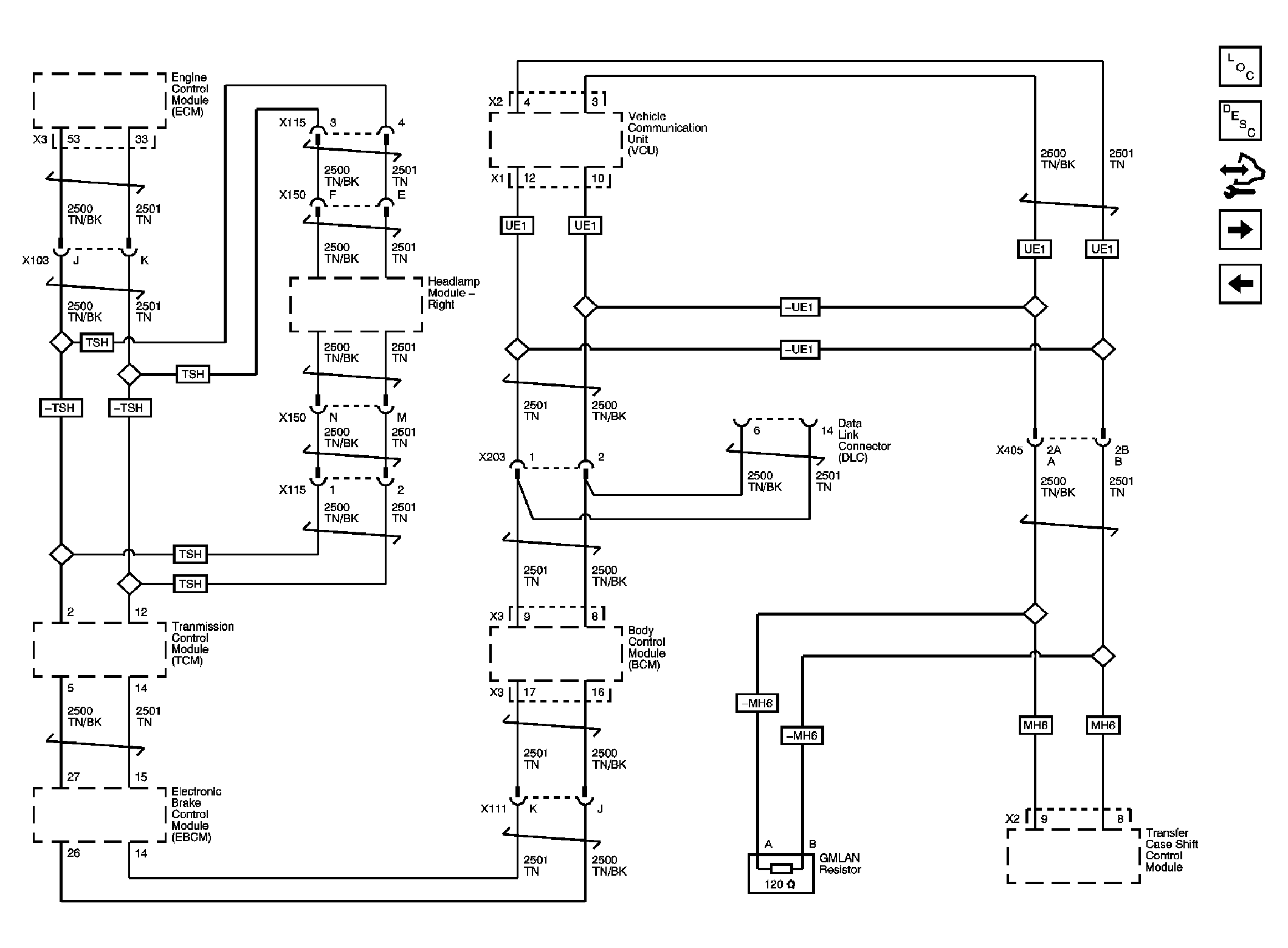

Fig 2: High Speed GMLAN - Schematic
GM1843879Courtesy of GENERAL MOTORS CORP.

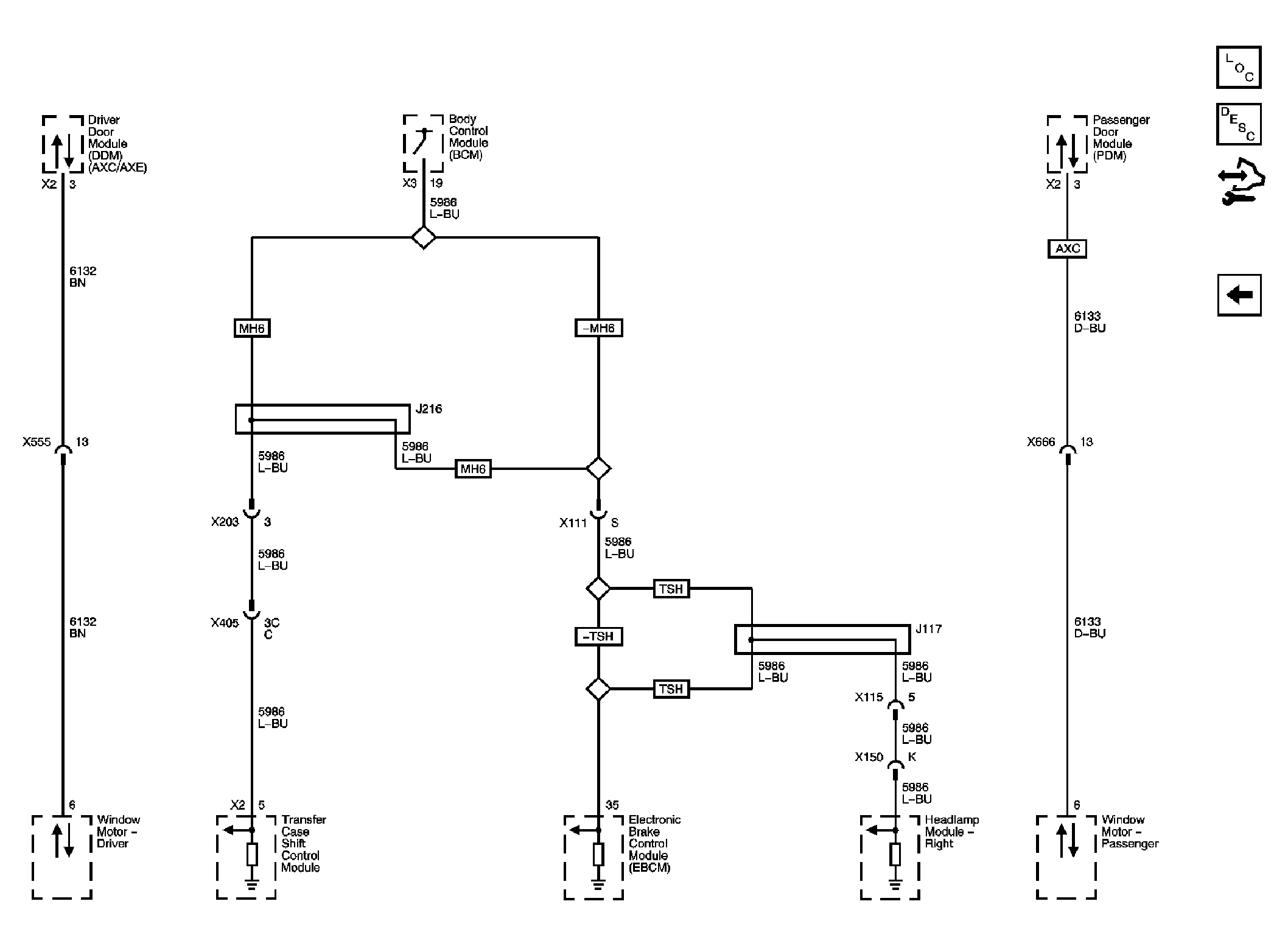

Fig 3: Communication Enable - Schematic
GM1843880Courtesy of GENERAL MOTORS CORP.
