Steering Wheel Secondary/Configurable Control Schematics

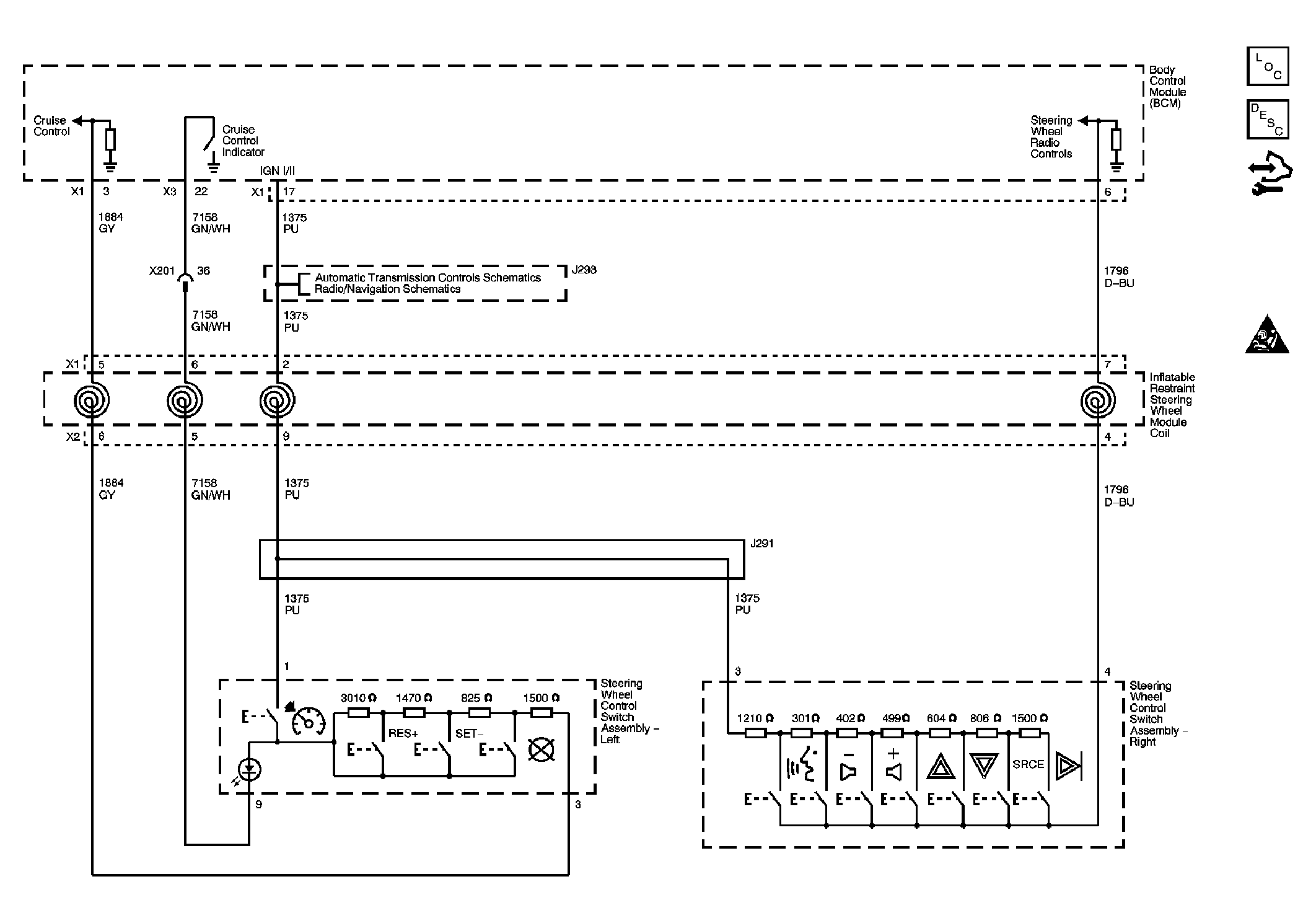

Fig 1: UK3 - Schematic
Courtesy of GENERAL MOTORS CORP.
