Splice Pack-SP207

Splice Pack - SP207 (Without RPO Code Y91):

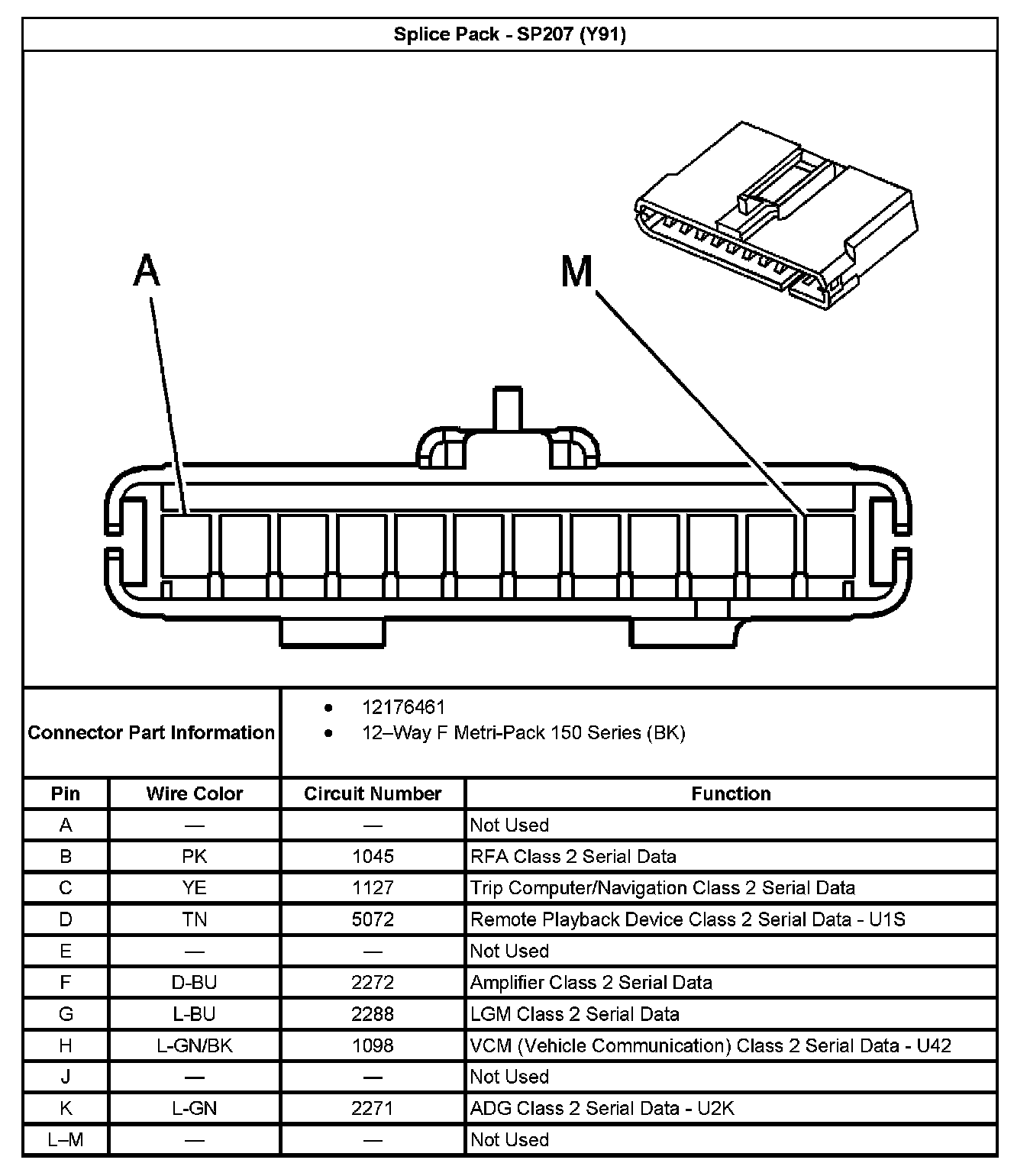

Splice Pack - SP207 (With RPO Code Y91):
