Control Module: Diagrams



Automatic Transmission Related Connector End Views

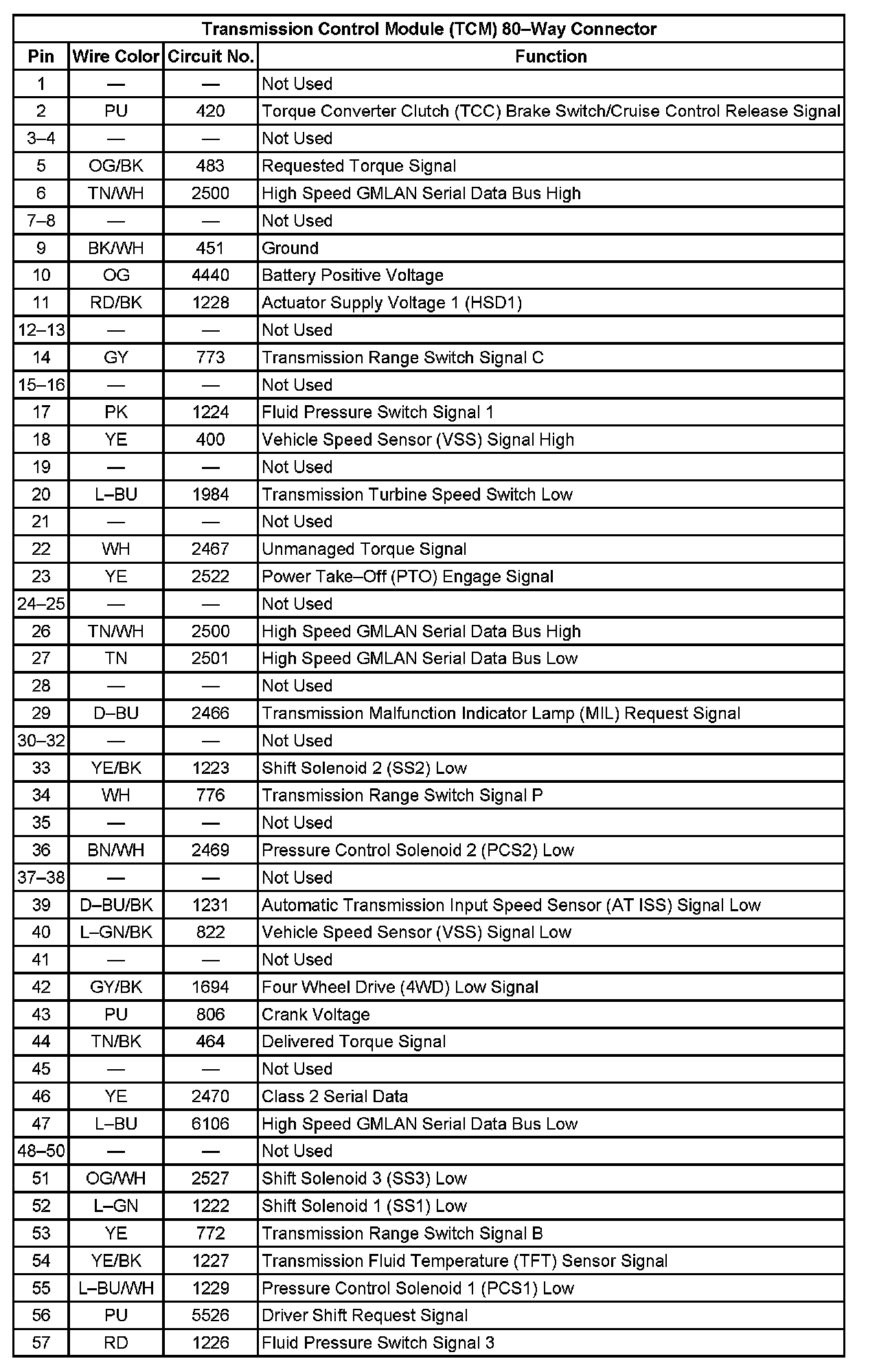

Transmission Control Module (TCM) 80-Way Connector:




Transmission Control Module (TCM) 80-Way Connector:

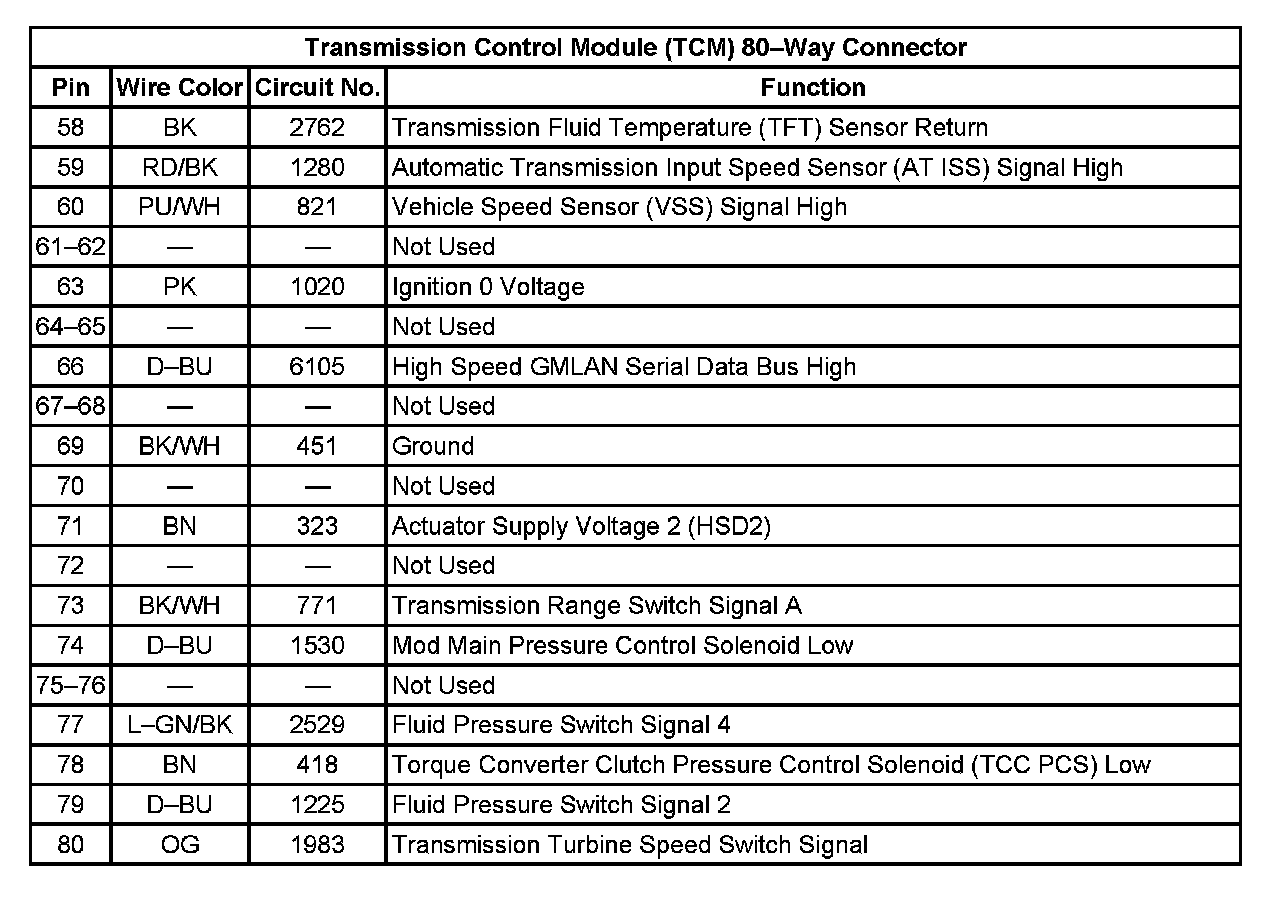

Transmission Control Module (TCM) 80-Way Connector
