HVAC Systems - Manual

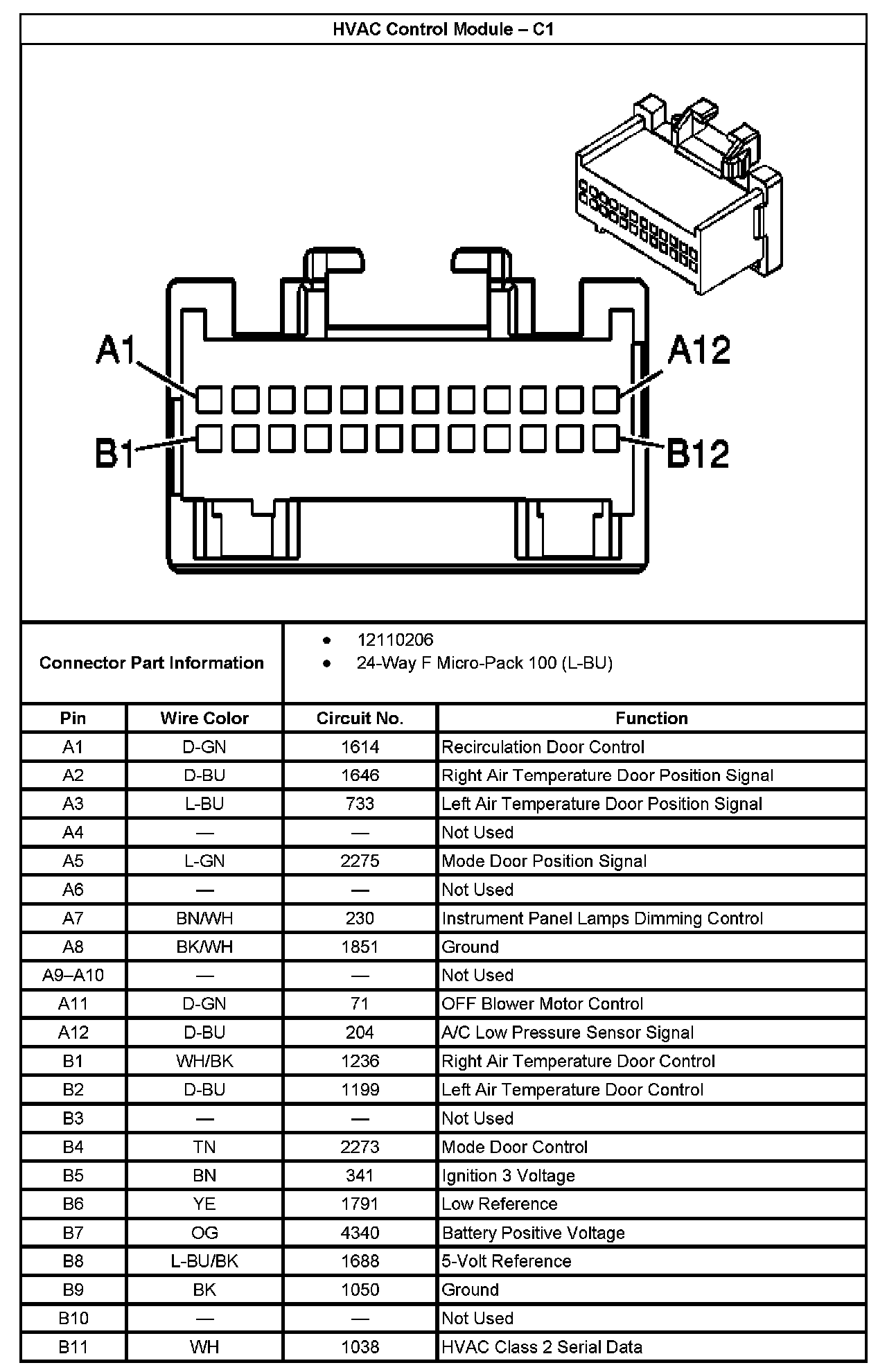

HVAC Control Module - C1 Part 1:



HVAC Control Module - C1 Part 2:

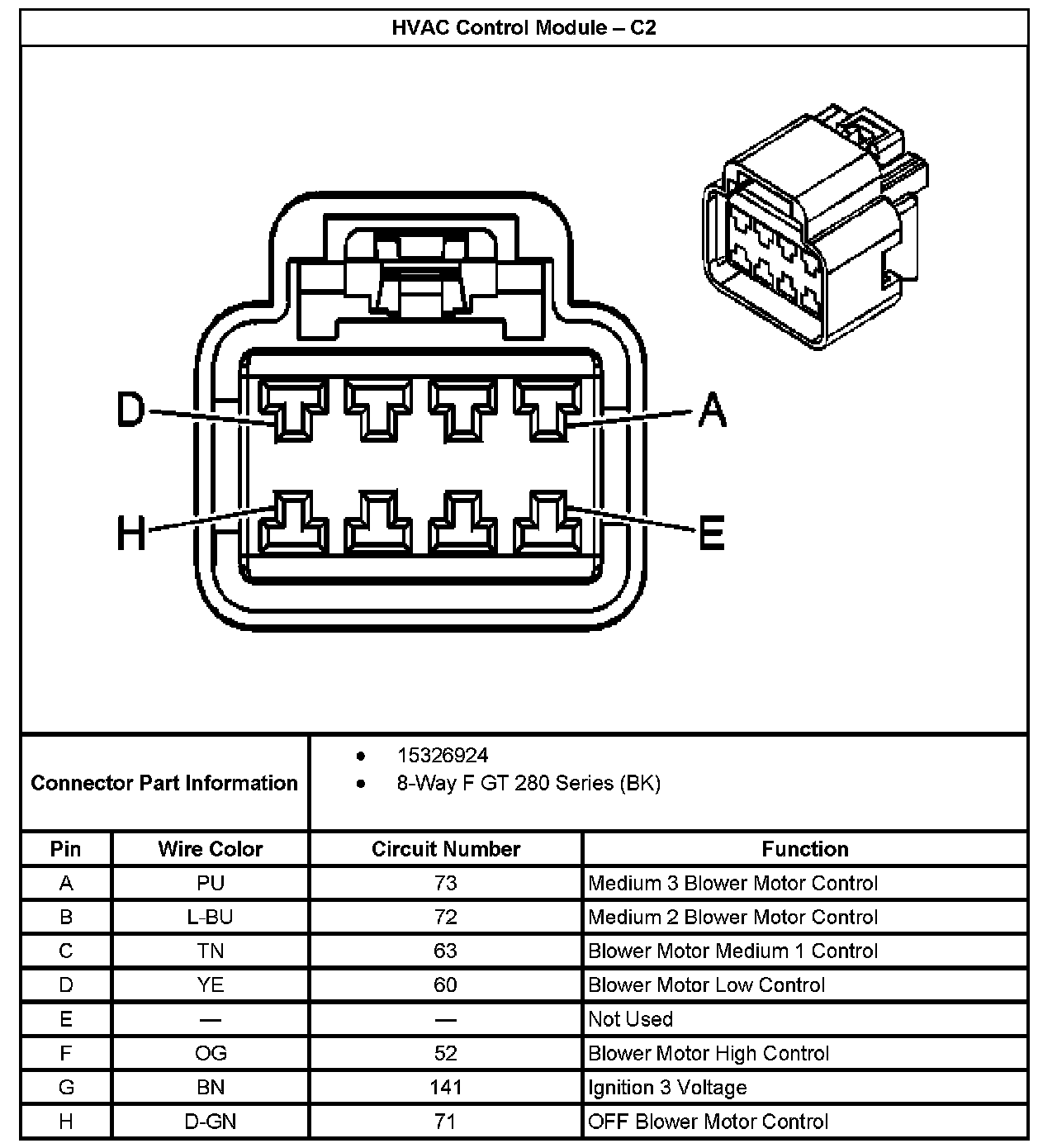

HVAC Control Module - C2:
