Installation Procedure

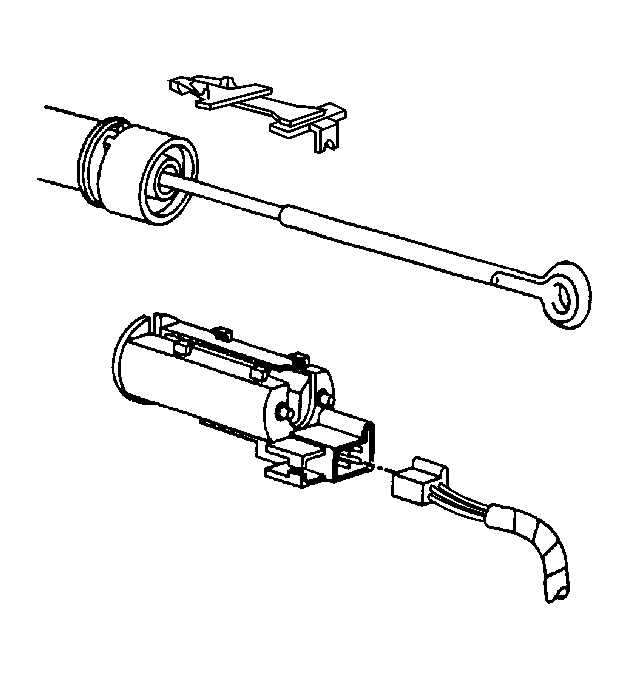

    Fig 1: View Of Clutch Start Switch
    GM34070Courtesy of GENERAL MOTORS CORP.
  1. Install the connector to the clutch start switch switch.
  2. Install the clutch start switch to the pushrod with the plastic tabs.
  3. Install the push rod to the clutch pedal.
