Installation Procedure

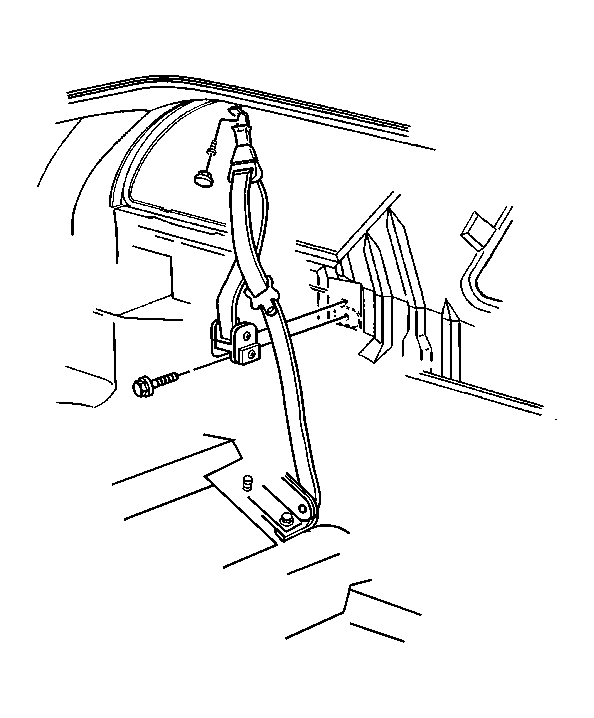

Fig 1: Locating Bolt Retaining Seat Belt Retractor Assembly

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the bolt that retains the rear seat belt retractor assembly to the vehicle.
Tighten: Tighten the seat belt retractor assembly bolt to 70 N.m (52 lb ft).
Guide the seat belt through the opening in the body side trim panel.
Install the body side trim panel. Refer to Trim Panel Replacement - Body Side (2-Door Utility) or Trim Panel Replacement - Body Side (4-Door Utility) in Interior Trim.

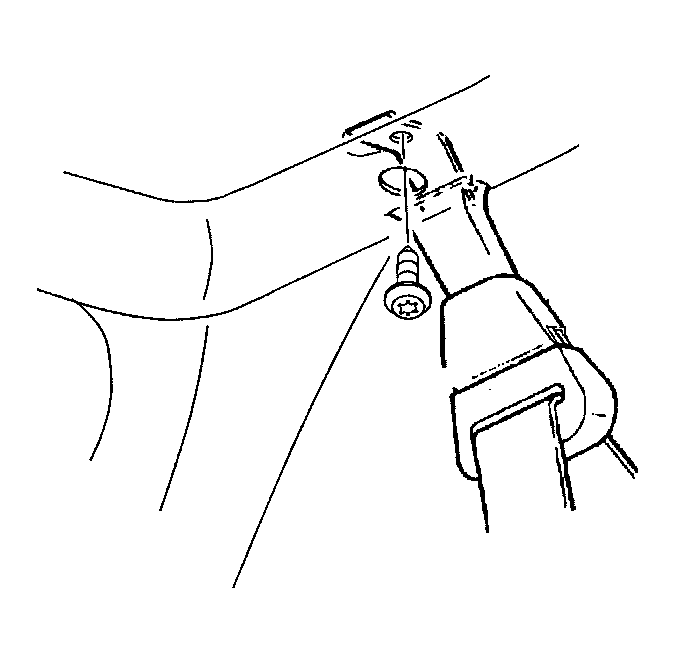

Fig 2: Locating Bolt Retaining Upper Seat Belt Anchor Plate

Courtesy of GENERAL MOTORS CORP.

Install the upper seat belt anchor plate and bolt to the vehicle.
Tighten: Tighten the upper seat belt anchor plate bolt to 70 N.m (52 lb ft).

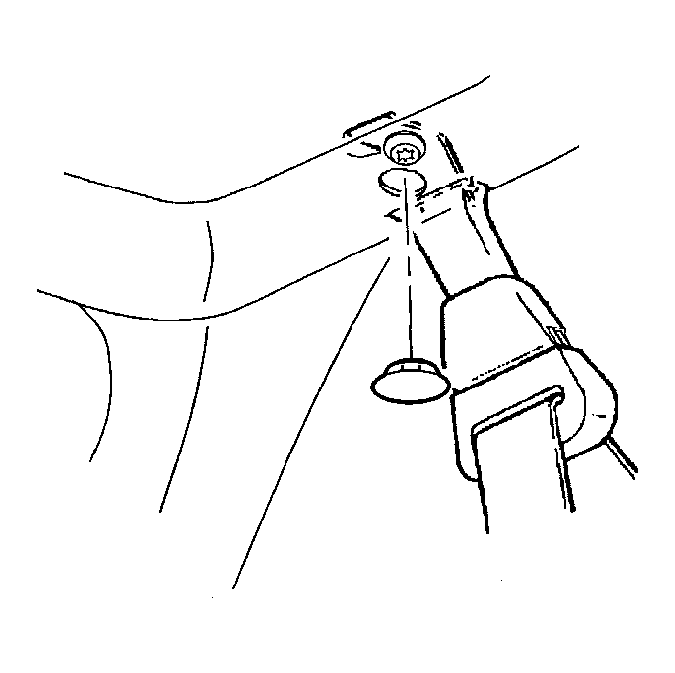

Fig 3: Locating Upper Seat Belt Anchor Bolt Cover

Courtesy of GENERAL MOTORS CORP.

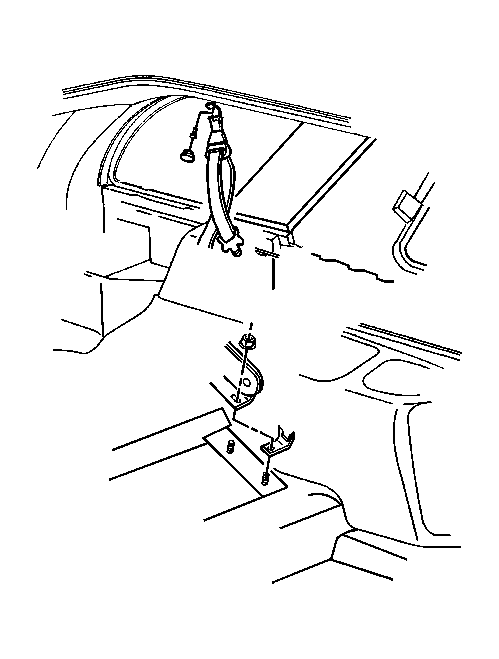

Fig 4: View Of Lower Seat Belt Anchor Plate

Courtesy of GENERAL MOTORS CORP.

Install the lower seat belt anchor plate to the rear seat bolt.
Install the rear seat assembly. Refer to Seat Replacement - Rear (2-Door Utility) or Seat Replacement - Rear (4-Door Utility) in Seats.
