Cruise Control Schematics

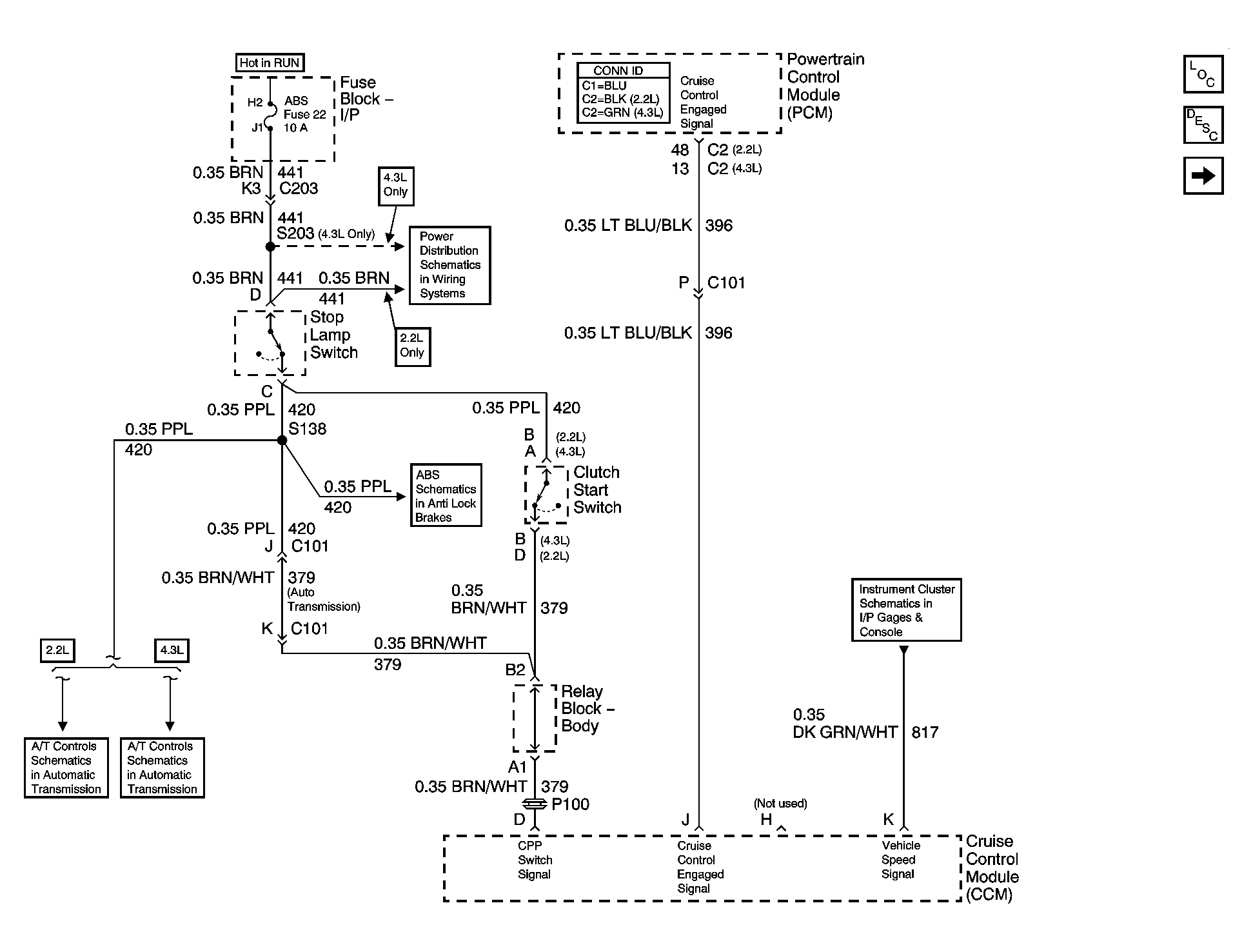

Fig 1: Clutch Pedal Position Switch, Stop Lamp Switch, PCM and Cruise Control Module Schematic
Courtesy of GENERAL MOTORS CORP.

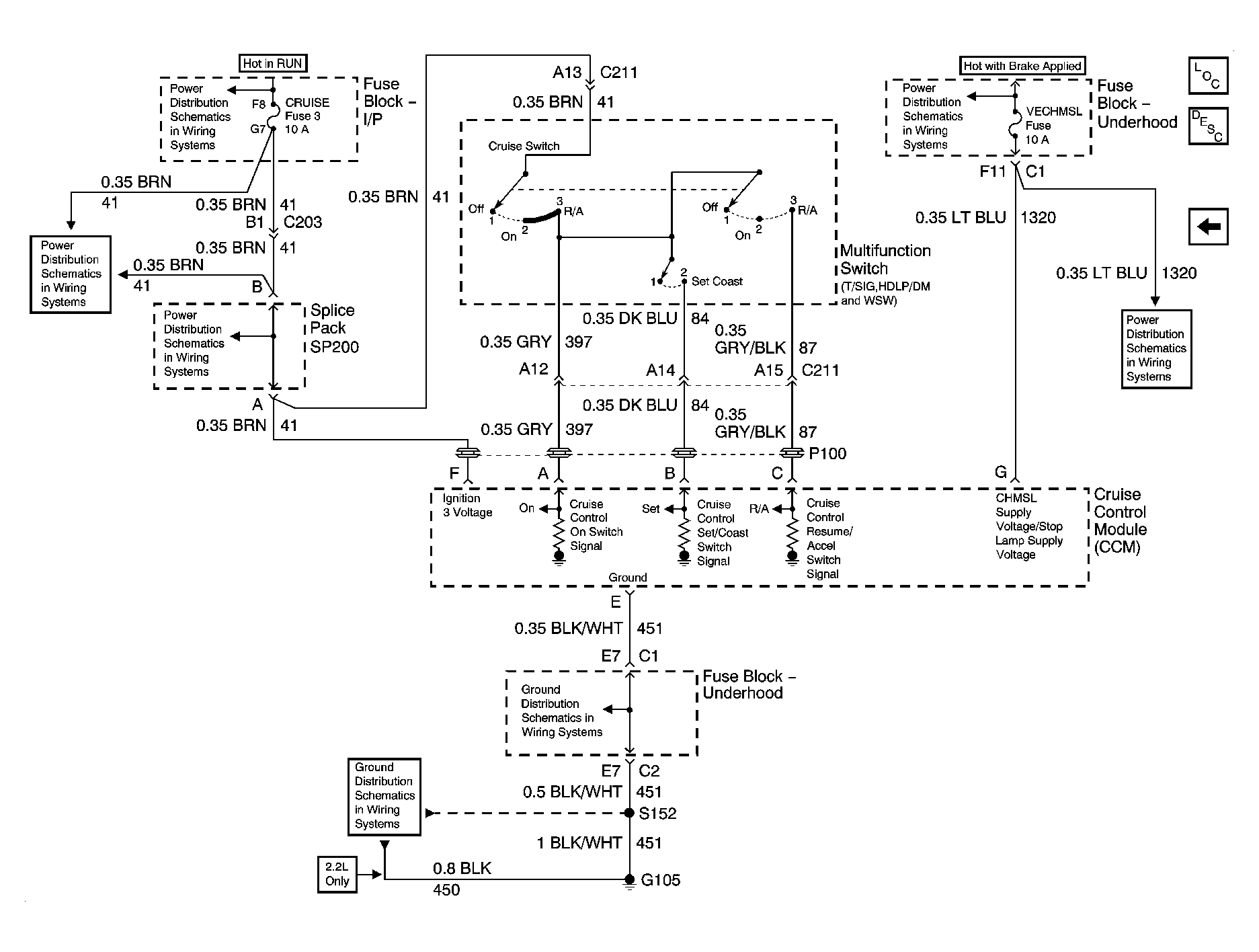

Fig 2: Cruise Fuse, Multifunction Switch and Cruise Control Module Schematic
Courtesy of GENERAL MOTORS CORP.
