Retained Accessory Power (RAP) Schematics

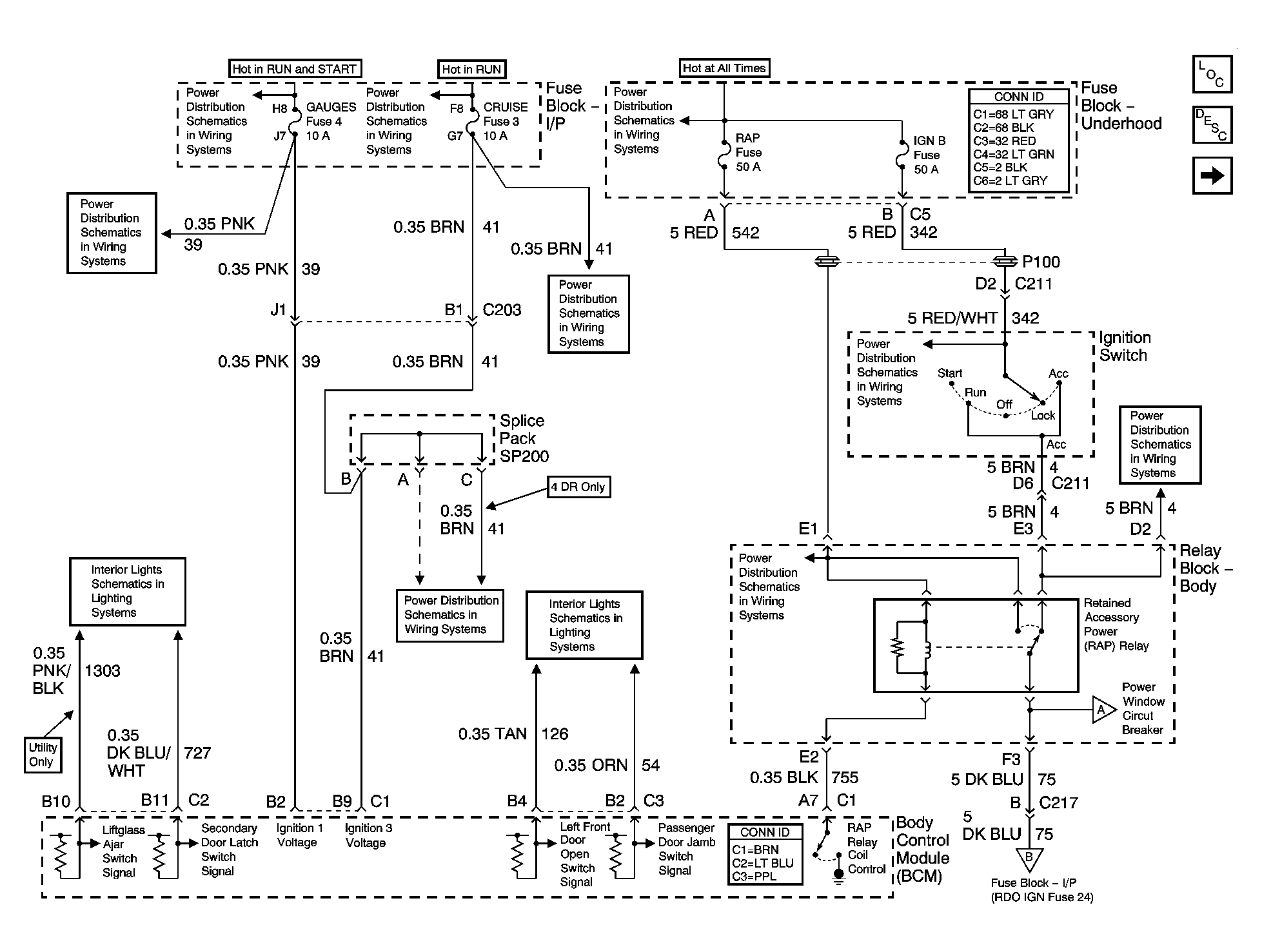

Fig 1: RAP Relay and Ignition Switch Schematics
GM887654Courtesy of GENERAL MOTORS CORP.

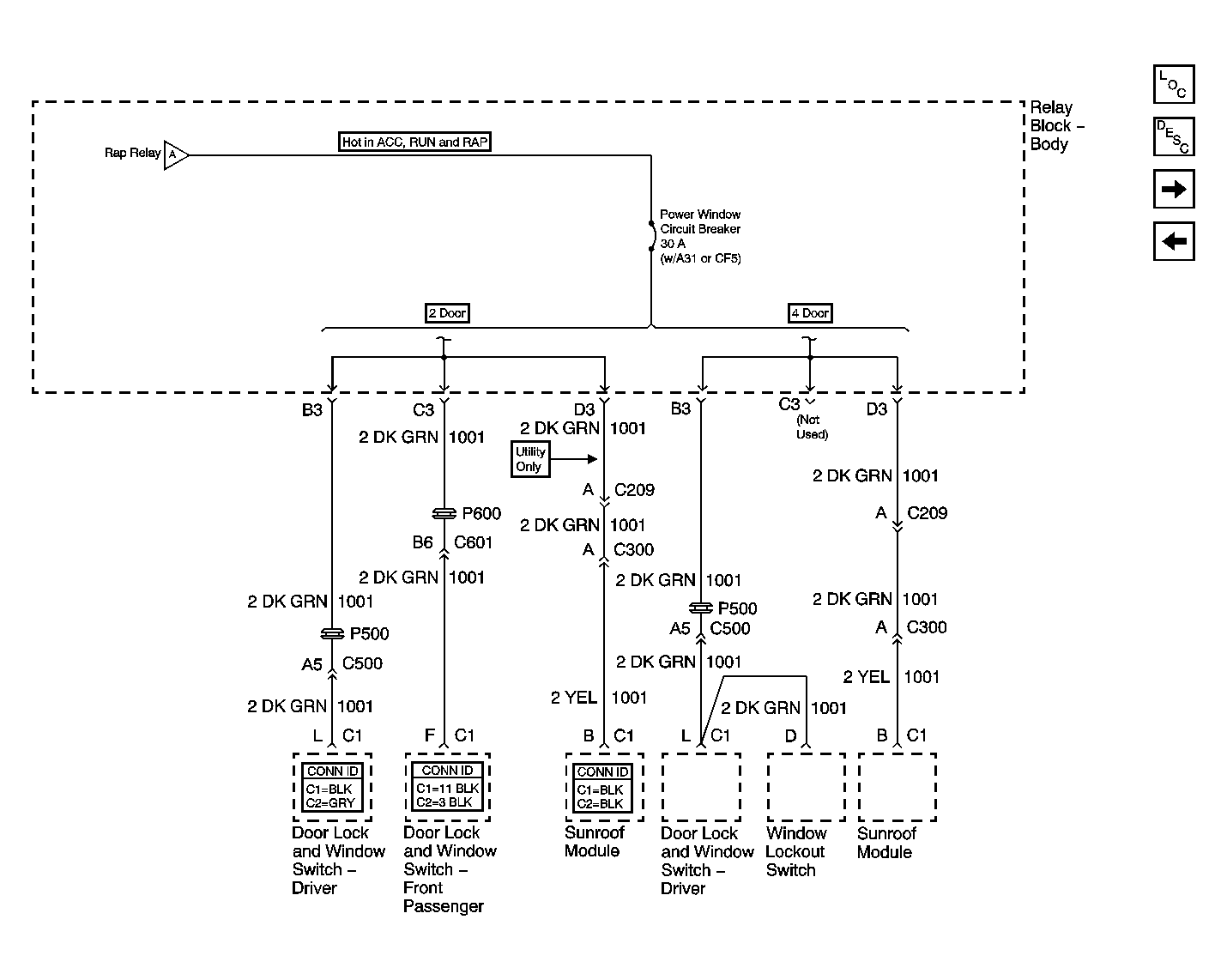

Fig 2: Door Lock and Window Switches Schematics
GM754504Courtesy of GENERAL MOTORS CORP.

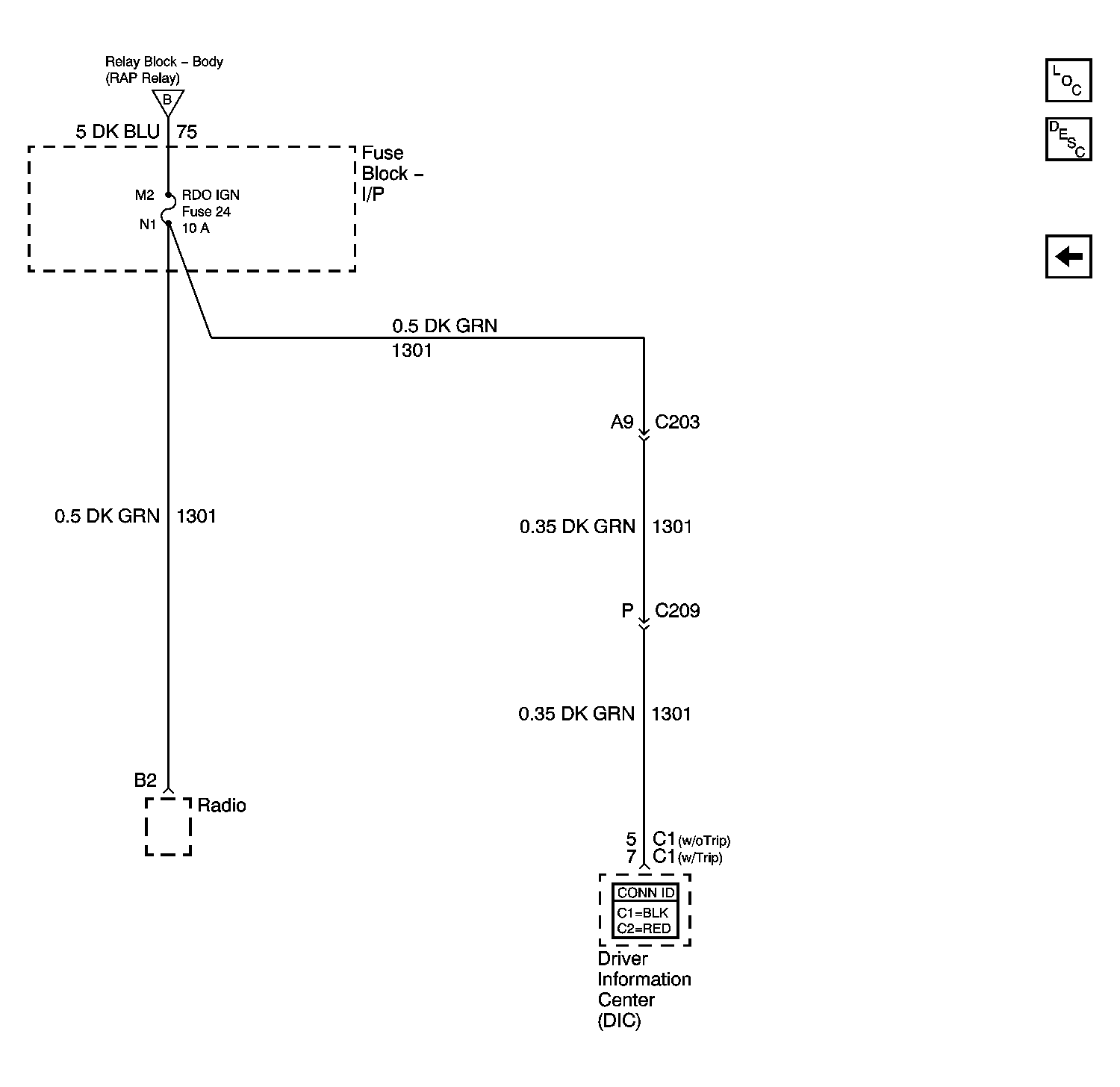

Fig 3: RDO IGN Fuse Schematics
GM1509521Courtesy of GENERAL MOTORS CORP.
