Automatic Transmission Controls Schematics

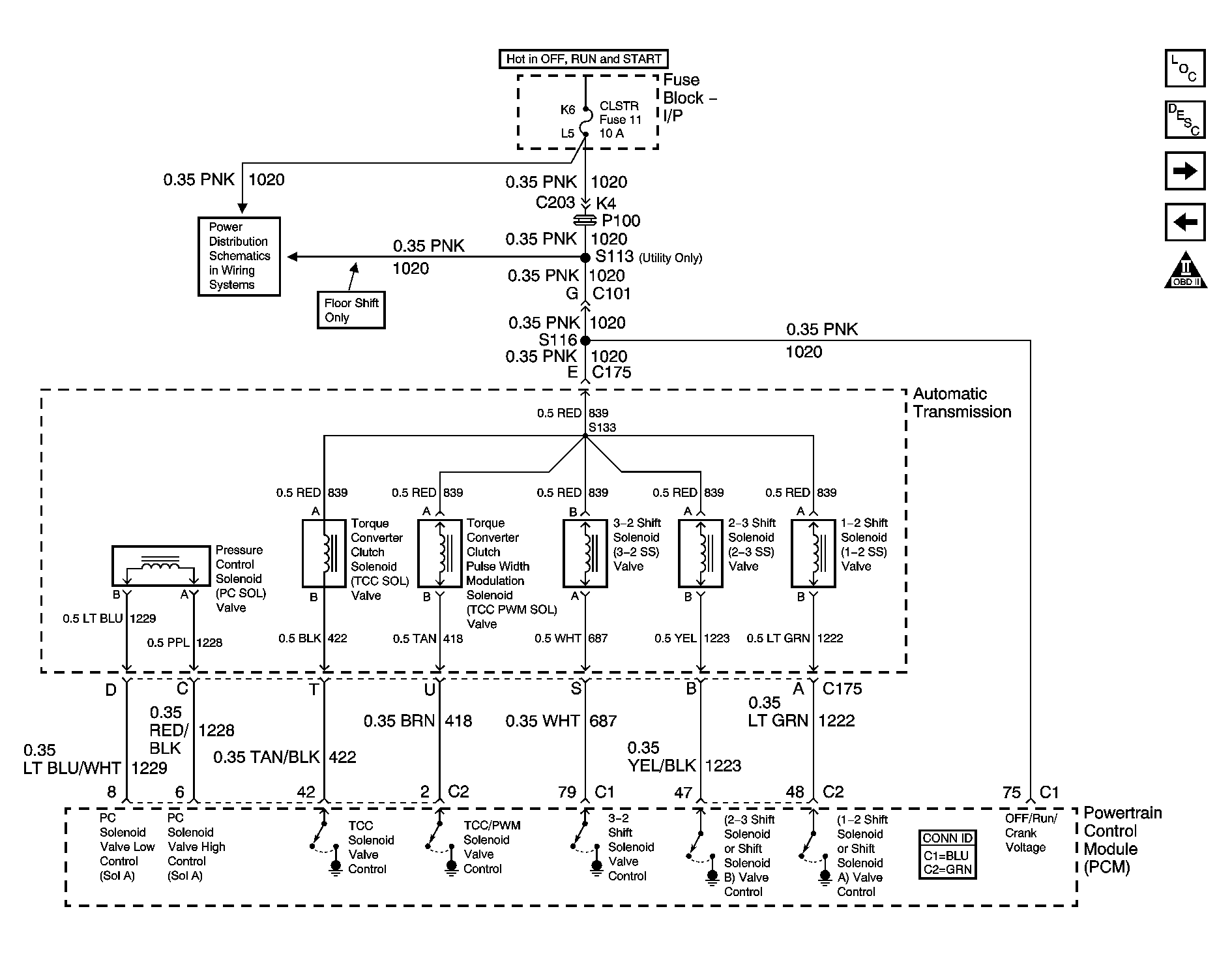

Fig 1: Valve Controls - 4.3L

Courtesy of GENERAL MOTORS CORP.

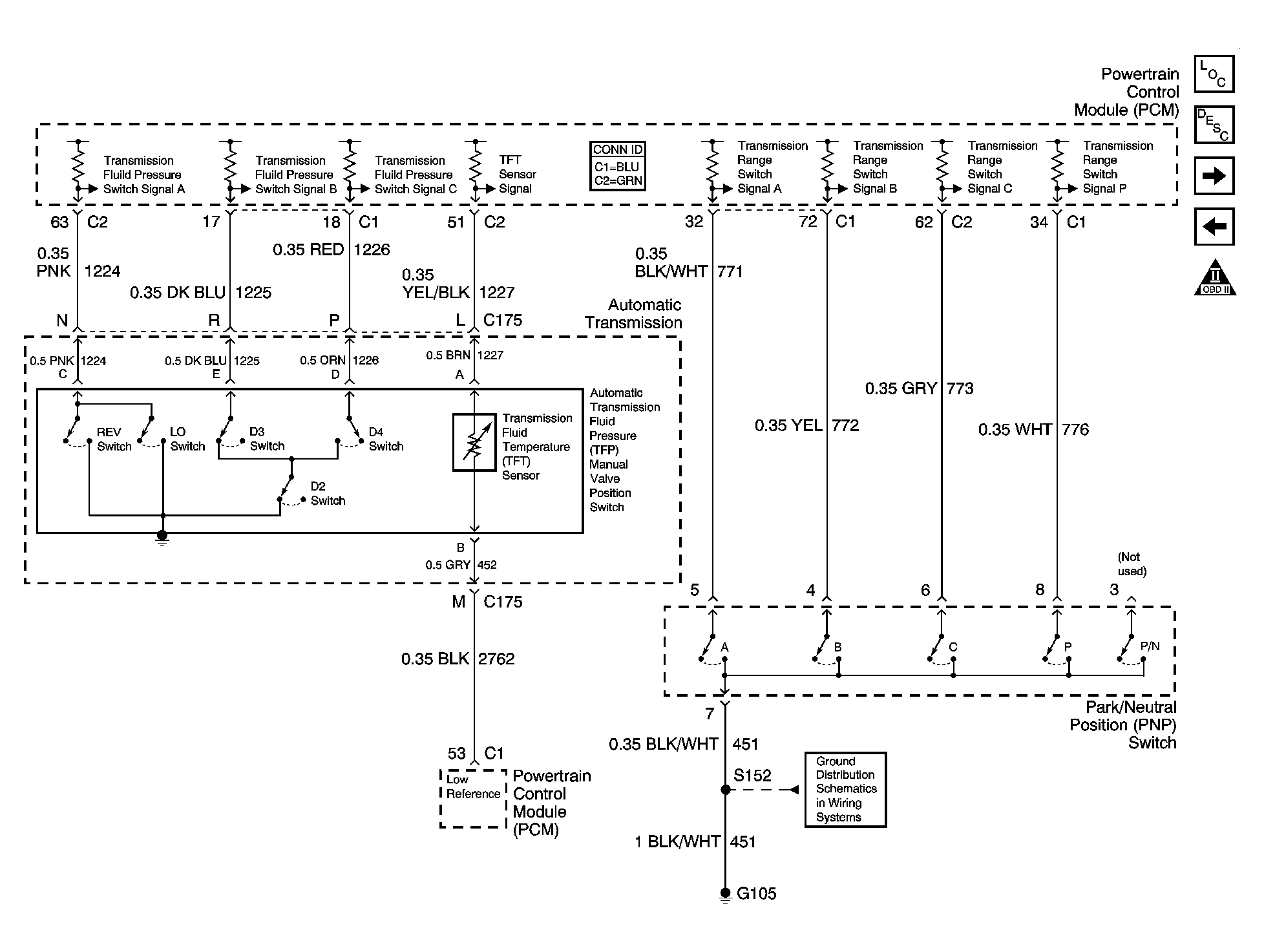

Fig 2: Switch Inputs and PNP Switch - 4.3L

Courtesy of GENERAL MOTORS CORP.

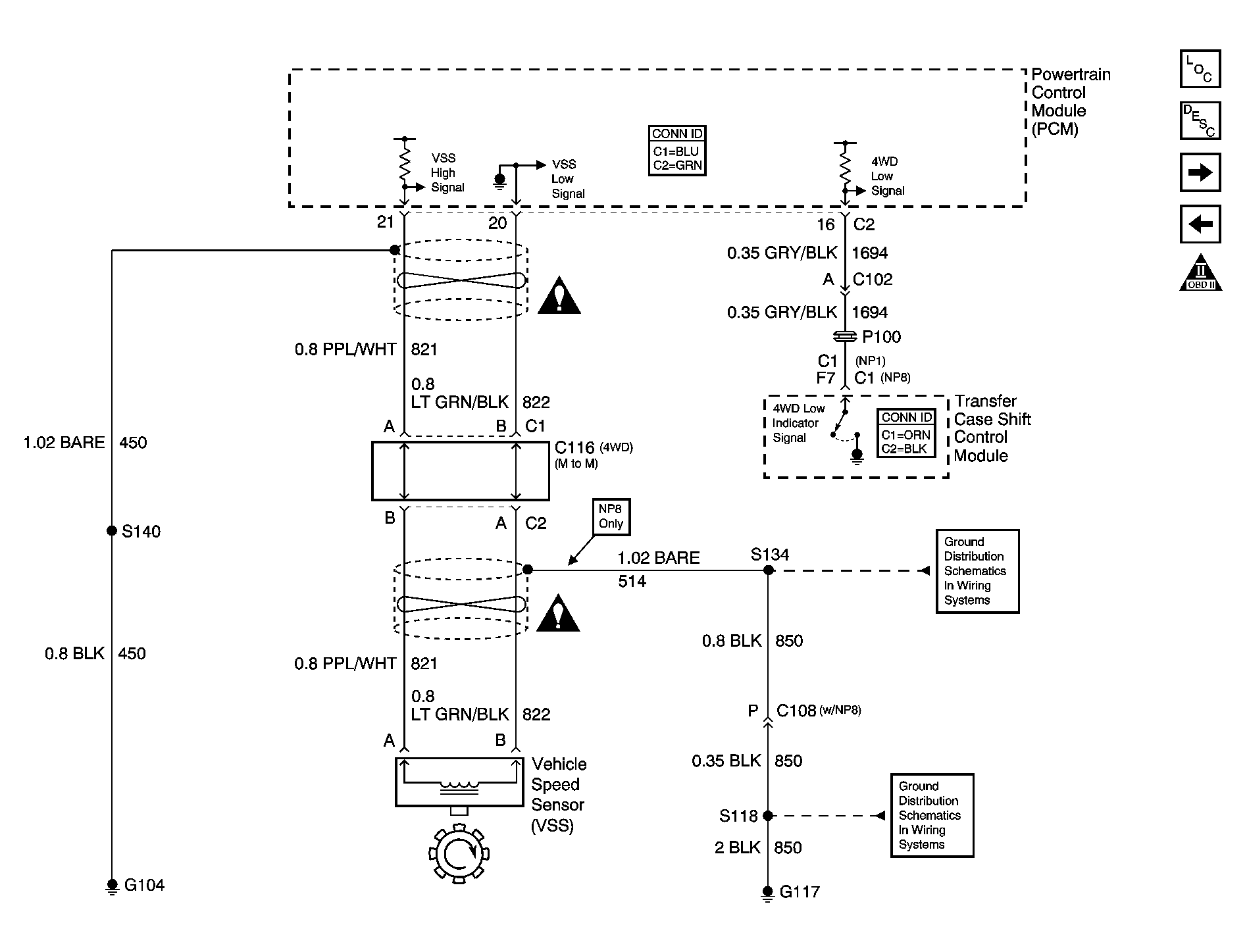

Fig 3: VSS Inputs, 4WD Low Indicator Signal - 4.3L

Courtesy of GENERAL MOTORS CORP.

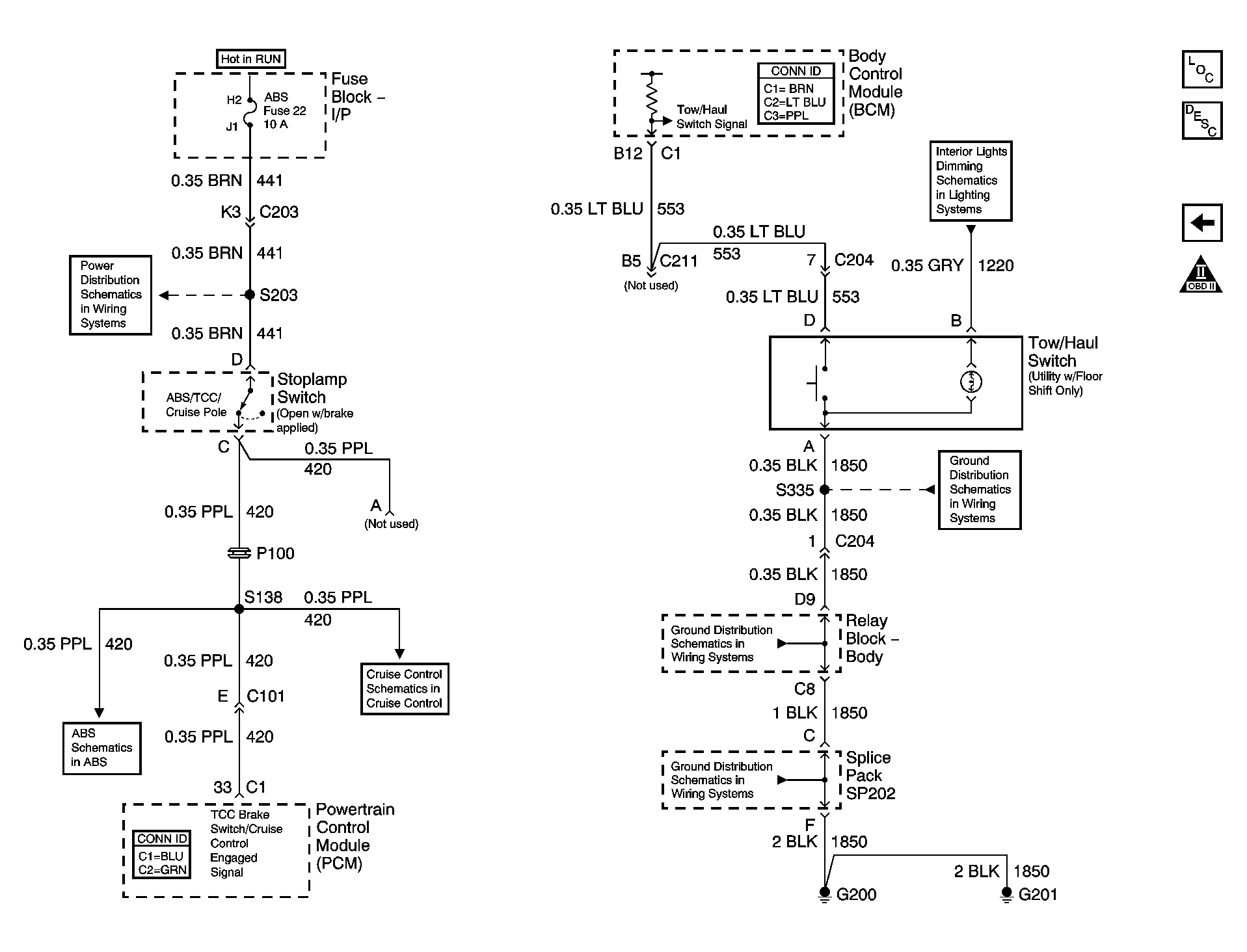

Fig 4: Brake Switch Input (4.3L) and Tow/Haul Switch

Courtesy of GENERAL MOTORS CORP.
