Automatic Transmission Internal Connectors

Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch Connector, Wiring Harness Side

GM168424Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162213
  • Conn 5-Way F Metri-Pack 150.2 P2S (NAT)
Pin Wire Color Circuit No. Function
A BRN 1227 TFT Sensor Signal
B GRY 452 Low Reference
C PNK 1224 Transmission Fluid Pressure Switch Signal A
D ORN 1226 Transmission Fluid Pressure Switch Signal C
E DK BLU 1225 Transmission Fluid Pressure Switch Signal B

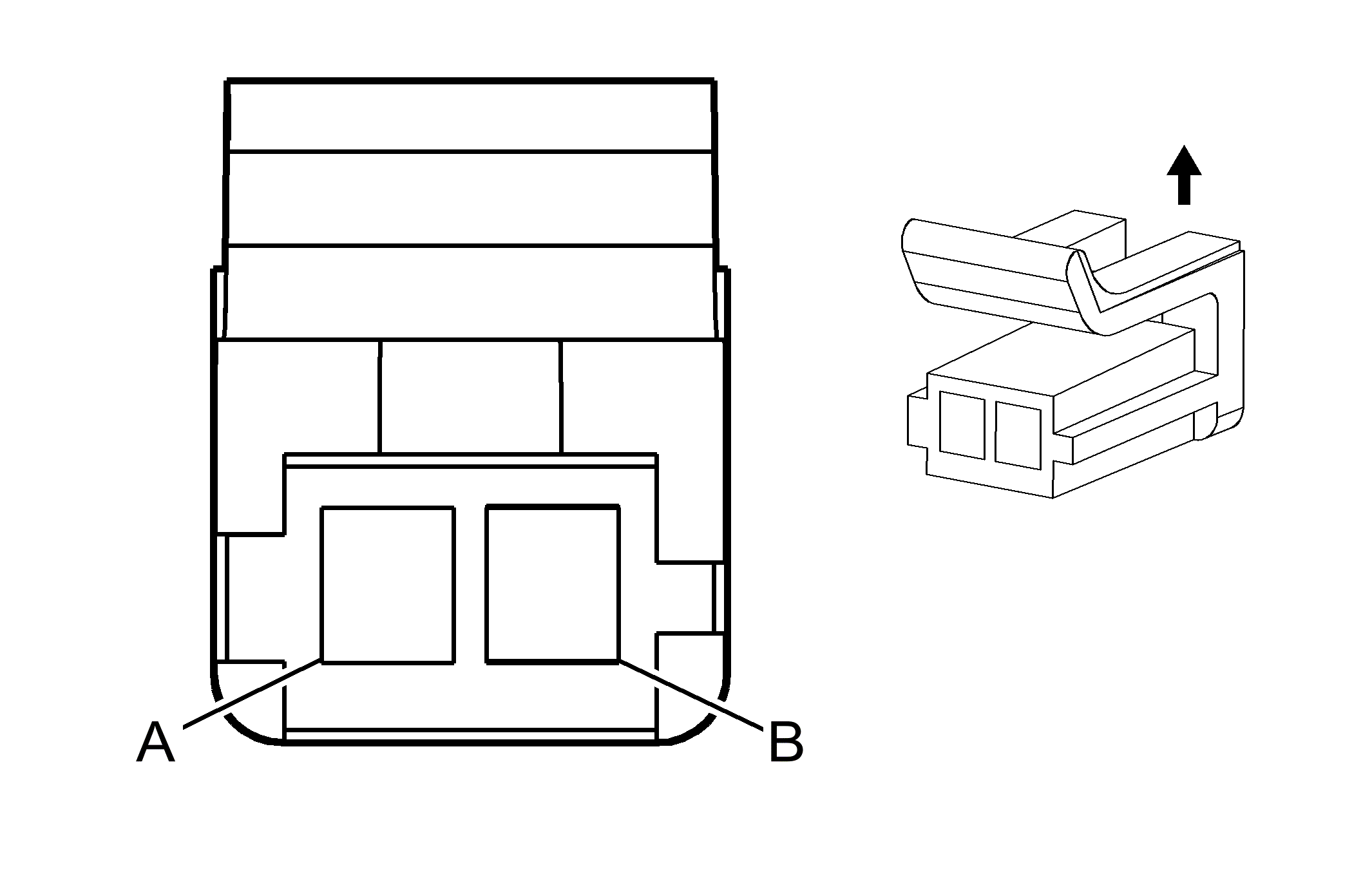

1-2 Shift Solenoid (SS) Valve Connector, Wiring Harness Side

GM168428Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162201
  • Conn 2-Way F Metri-Pack 150.2 P2S (NAT)
Pin Wire Color Circuit No. Function
A RED 839 Ignition 1 Voltage
B LT GRN 1222 1-2 Shift Solenoid Valve Control
2-3 Shift Solenoid (SS) Valve Connector, Wiring Harness Side

GM168428Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162201
  • Conn 2-Way F Metri-Pack 150.2 P2S (NAT)
Pin Wire Color Circuit No. Function
A RED 839 Ignition 1 Voltage
B YEL 1223 2-3 Shift Solenoid Valve Control
Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve Connector, Wiring Harness Side

GM168428Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162202
  • Conn 2-Way F Metri-Pack 150.2 P2S (BLU)
Pin Wire Color Circuit No. Function
A RED 839 Ignition 1 Voltage
B TAN 418 TCC PWM Solenoid Valve Control
3-2 Shift Solenoid (SS) Valve Assembly Connector, Wiring Harness Side

GM82345Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12146094
  • Conn 2-Way F Metri-Pack 150.2 P2S (MD GRY)
Pin Wire Color Circuit No. Function
A RED 839 Ignition 1 Voltage
B WHT 687 3-2 Shift Solenoid Valve Control
Pressure Control (PC) Solenoid Valve Connector, Wiring Harness Side

GM1240818Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12146800
  • Conn 2-Way F Metri-Pack 150.2 (LT GRY) Delphi
Pin Wire Color Circuit No. Function
A PPL 1228 PC Solenoid Valve High Control
B LT BLU 1229 PC Solenoid Valve Low Control
Torque Converter Clutch (TCC) Solenoid Valve Connector, Wiring Harness Side

GM168419Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 10478128
  • CBL Solenoid Valve
Pin Wire Color Circuit No. Function
A RED 839 Ignition 1 Voltage
B BLK 422 TCC Solenoid Valve Control
