NVG 236-NP8 Transfer Case


Transfer Case Control Connector End Views

Transfer Case Shift Control Module C1 Connector End View 1:




Transfer Case Shift Control Module C1 Connector End View 2:

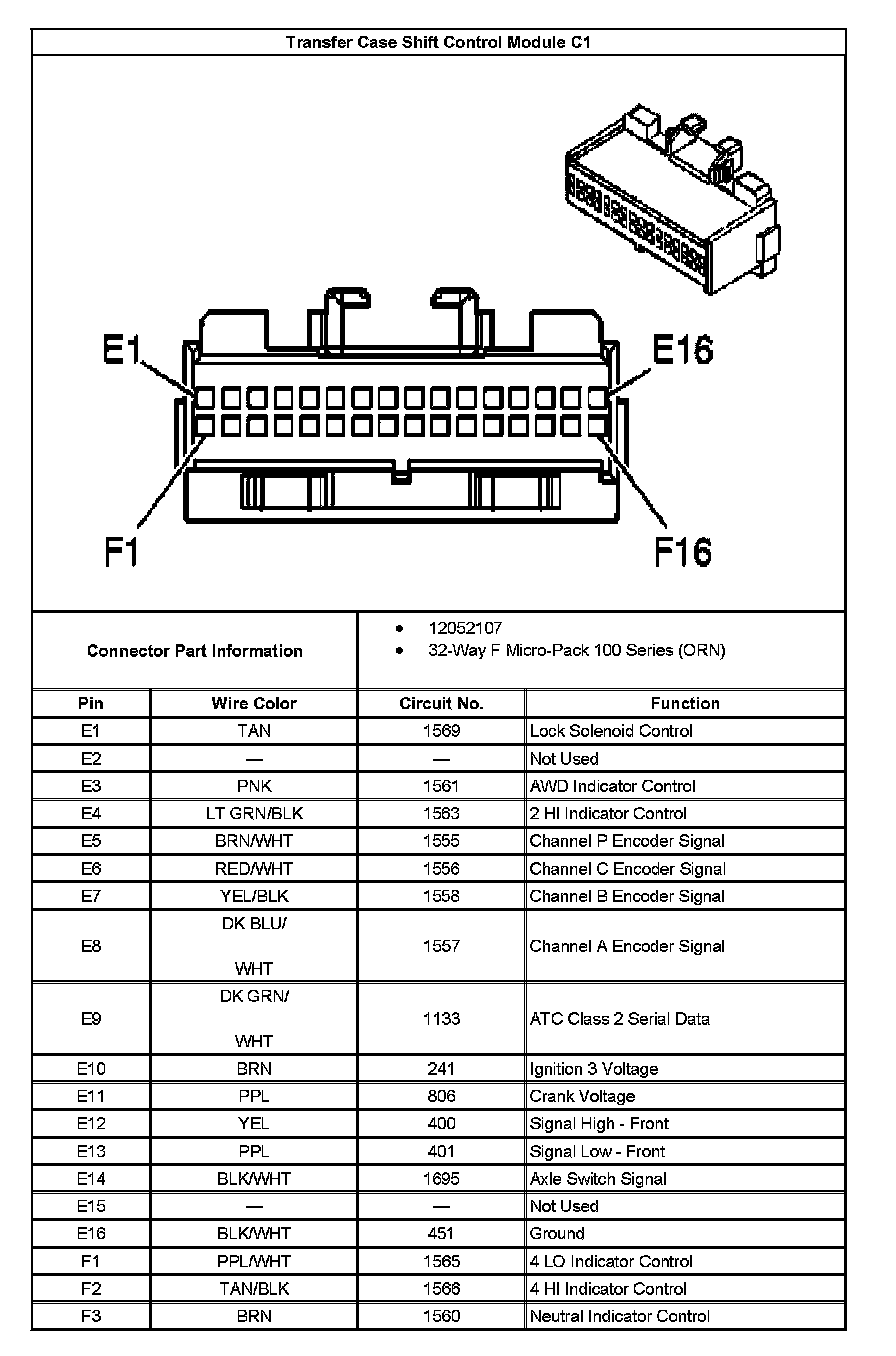

Transfer Case Shift Control Module C1

Transfer Case Shift Control Module C2 Connector End View:





Transfer Case Shift Control Module C2
