LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
GMC
>>
2005
>>
Jimmy (CANADA) V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

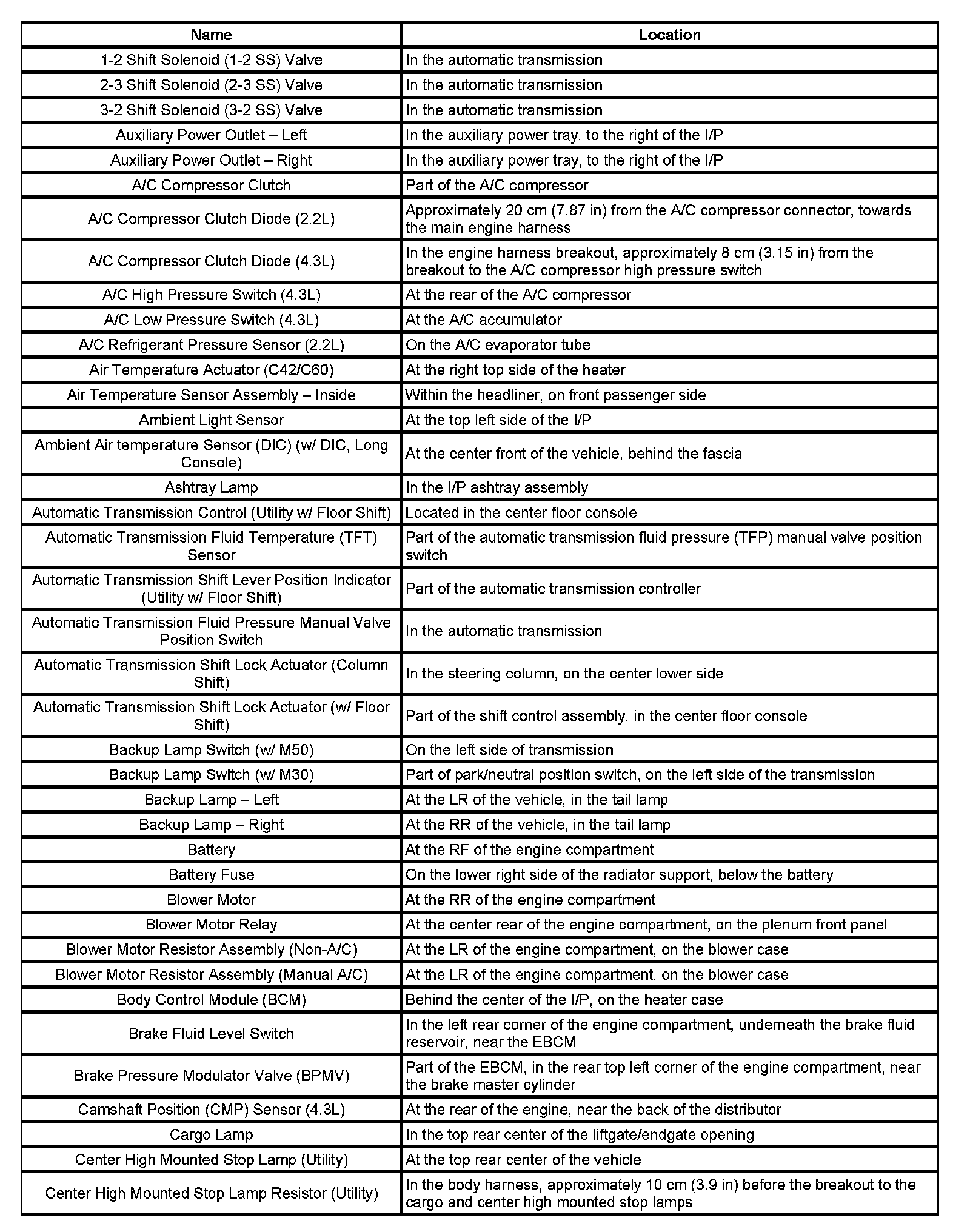

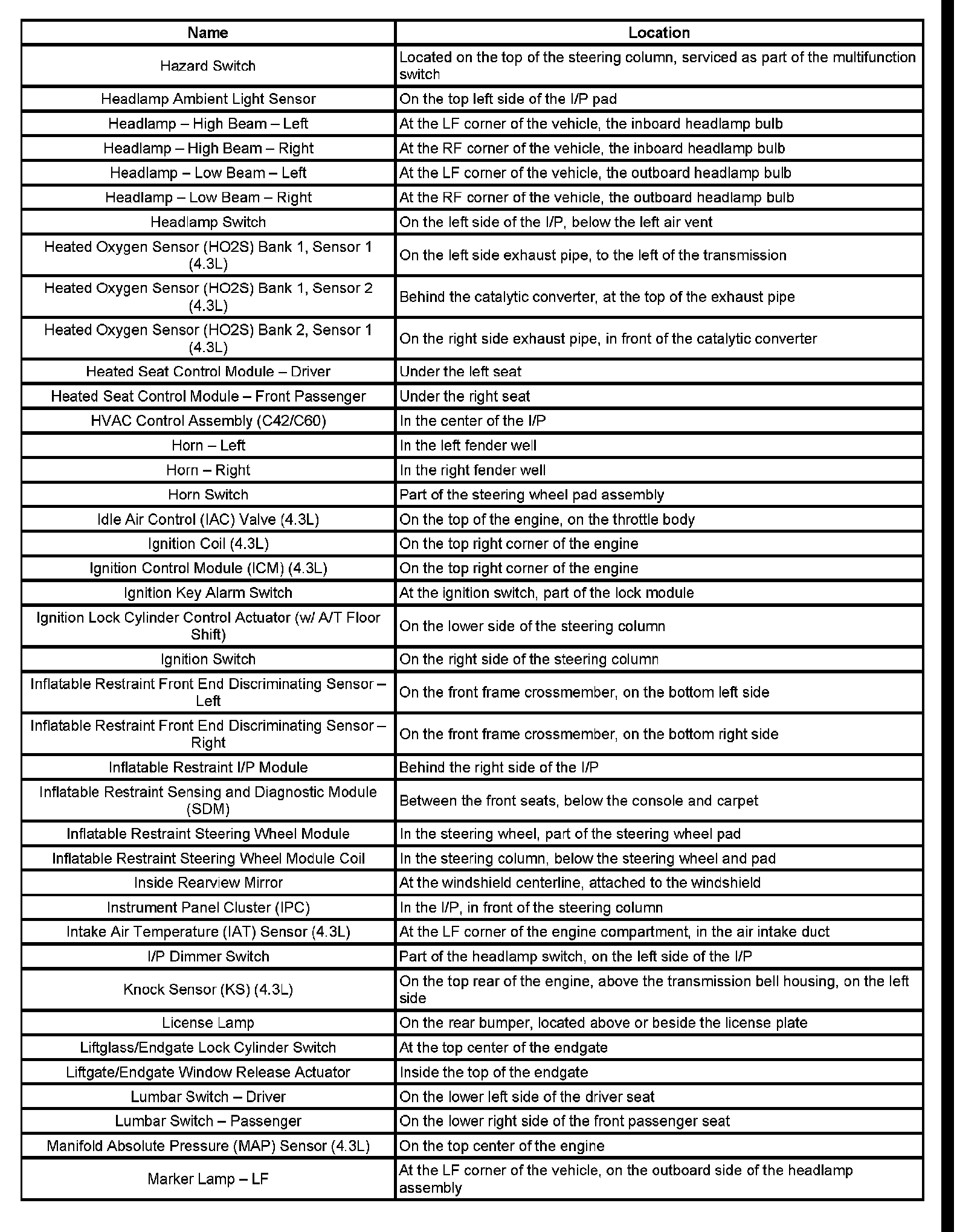

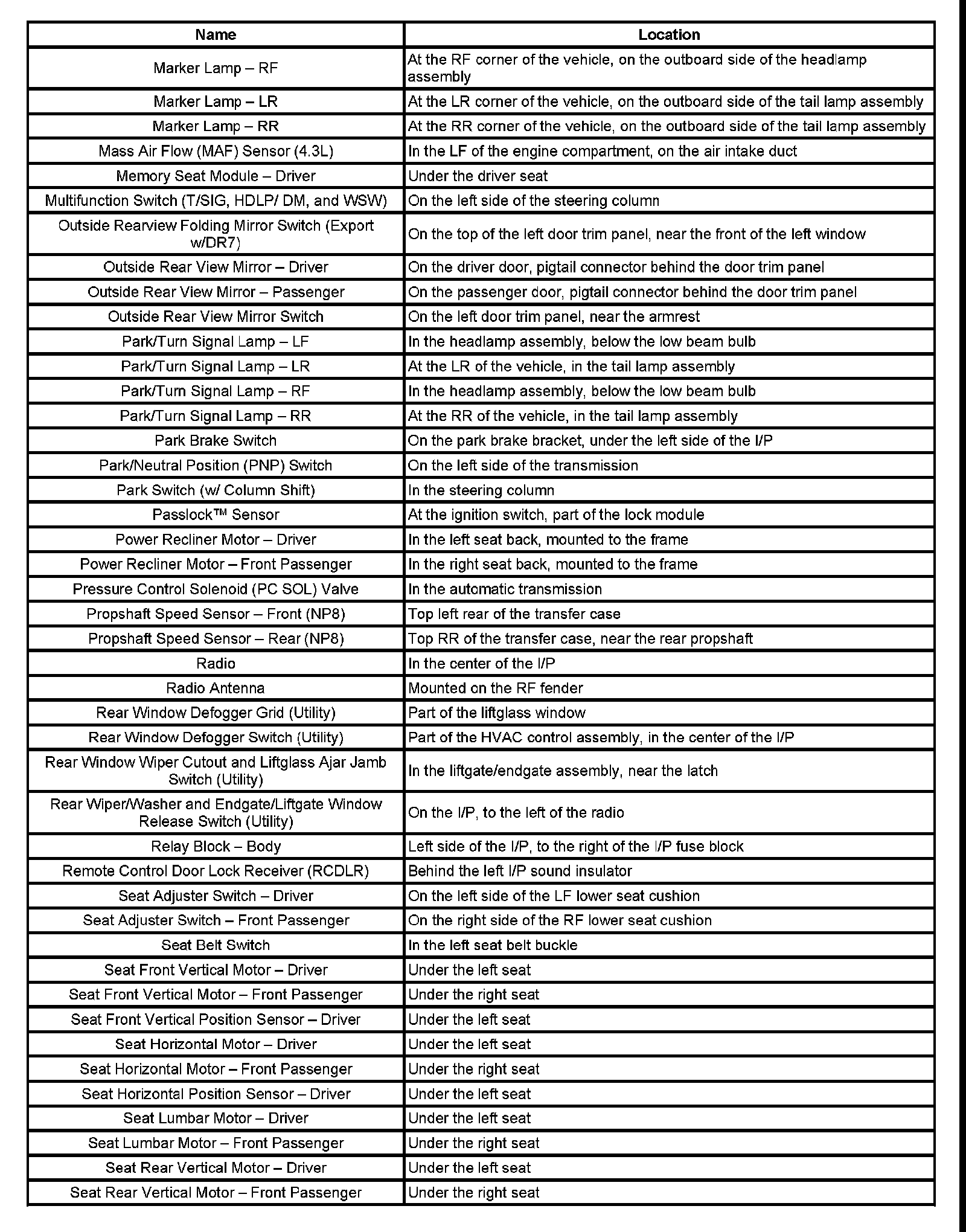

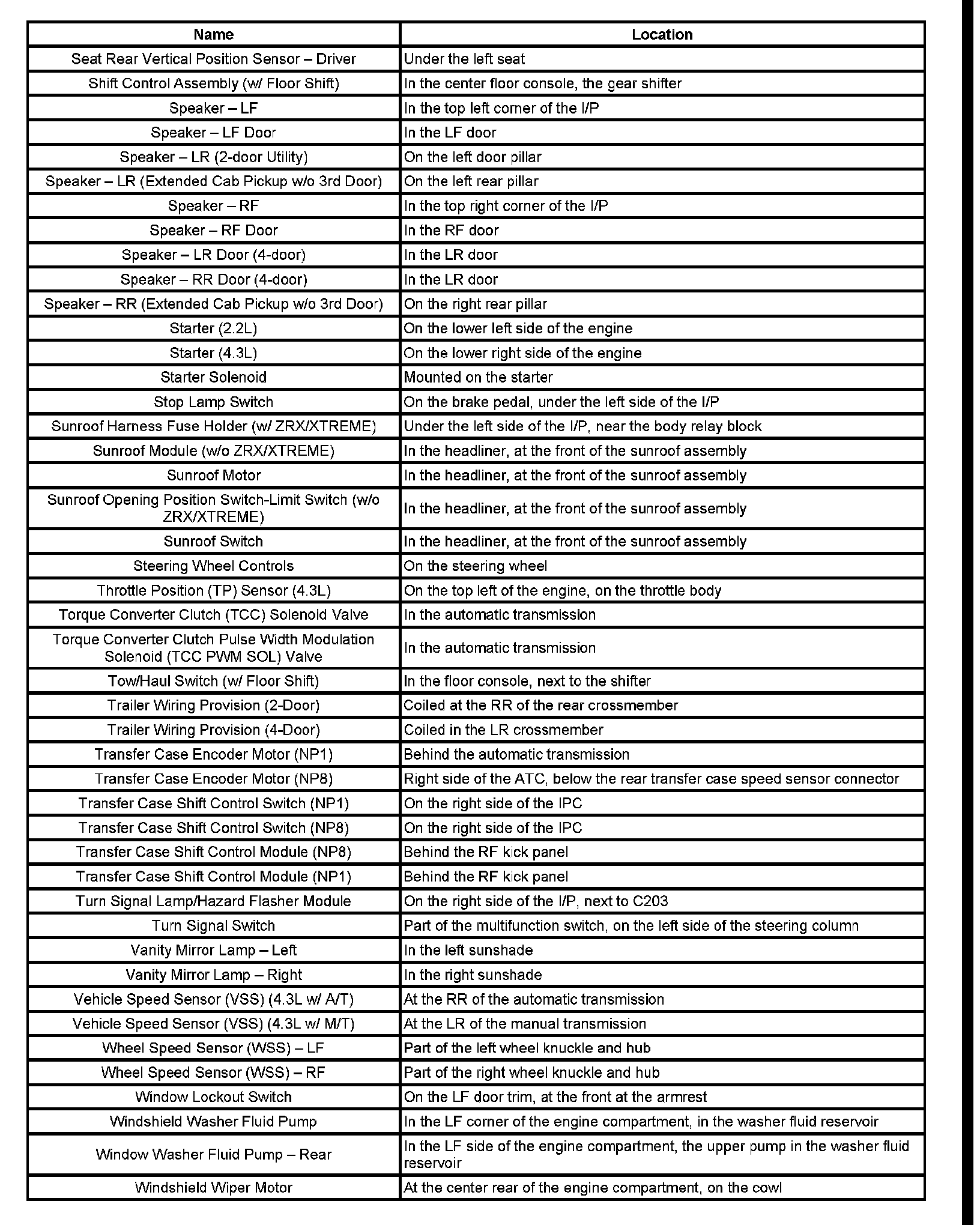

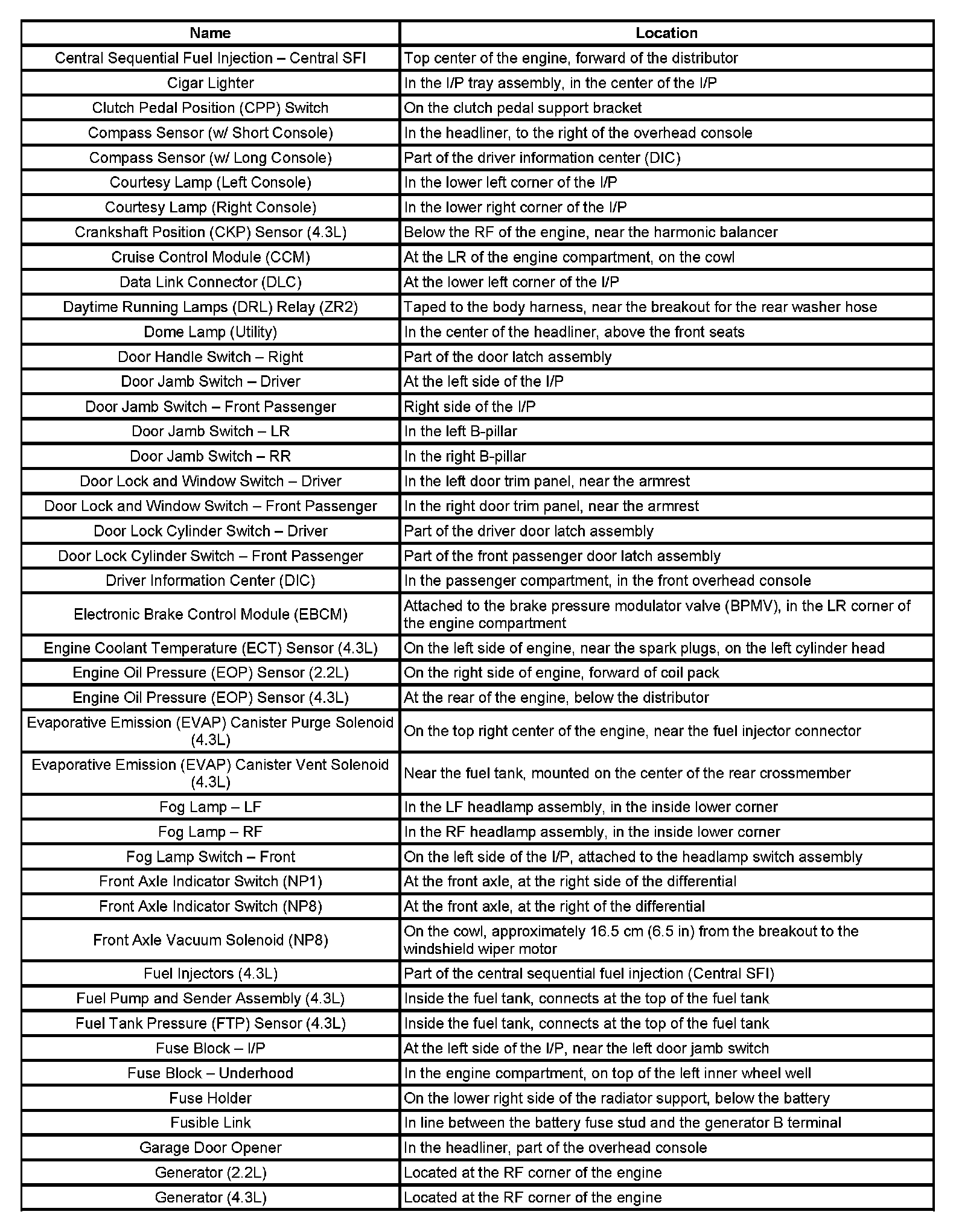

Components
1-2 Shift - Center High:
Ce - Ge:
Ha - Ma:
Ma - Se:
Se - Wi:
Wi - Wi:
