Radio/Audio System Schematics
WARNING: This page is about a different car, the 2004 GMC Safari and 2004 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

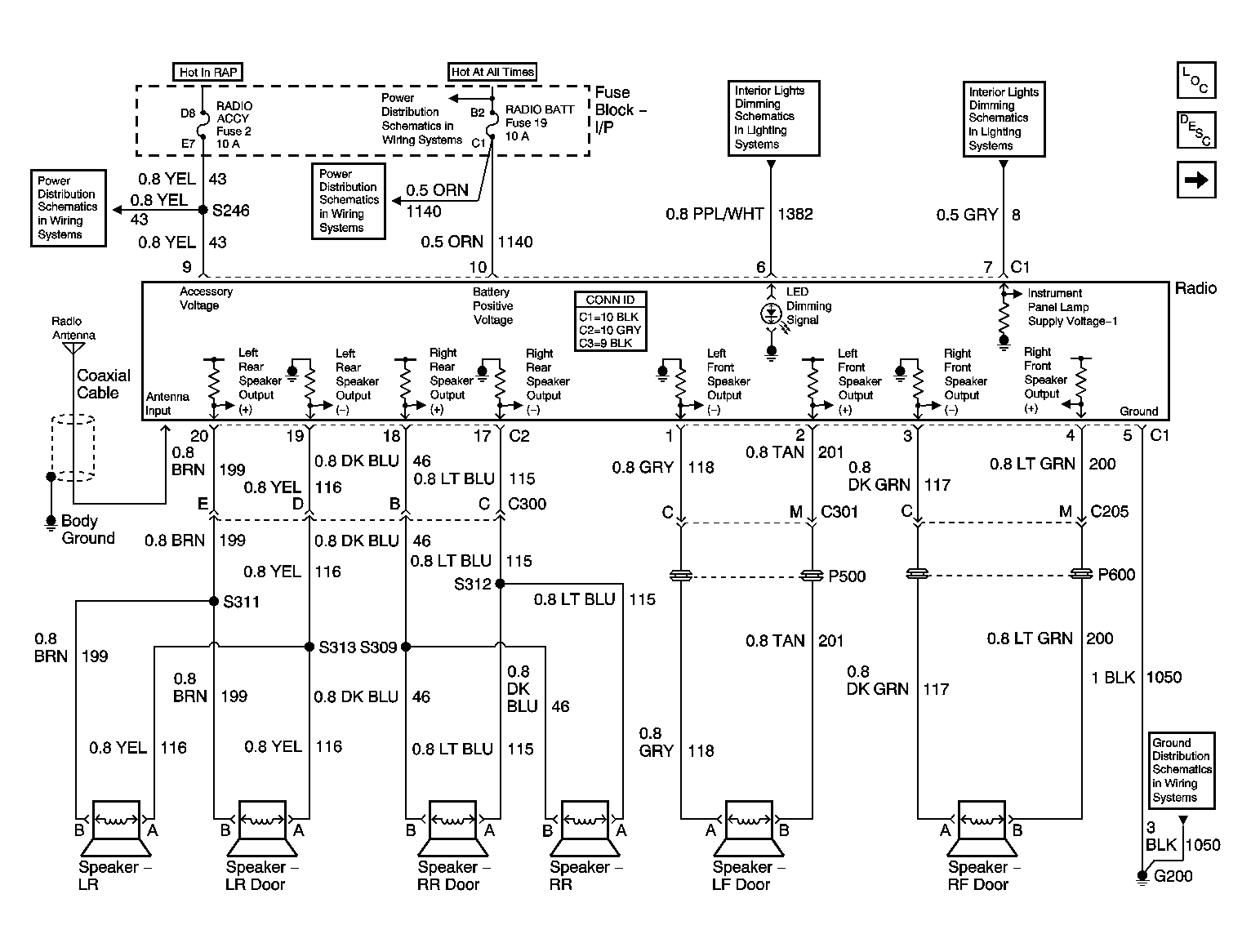

Fig 1: Base Radio Schematic
Courtesy of GENERAL MOTORS CORP.
Fig 2: Power and Ground (Premium w/o RSA) Schematic
Courtesy of GENERAL MOTORS CORP.
Fig 3: Speakers and Sub-Woofers (Premium w/o RSA) Schematic
Courtesy of GENERAL MOTORS CORP.

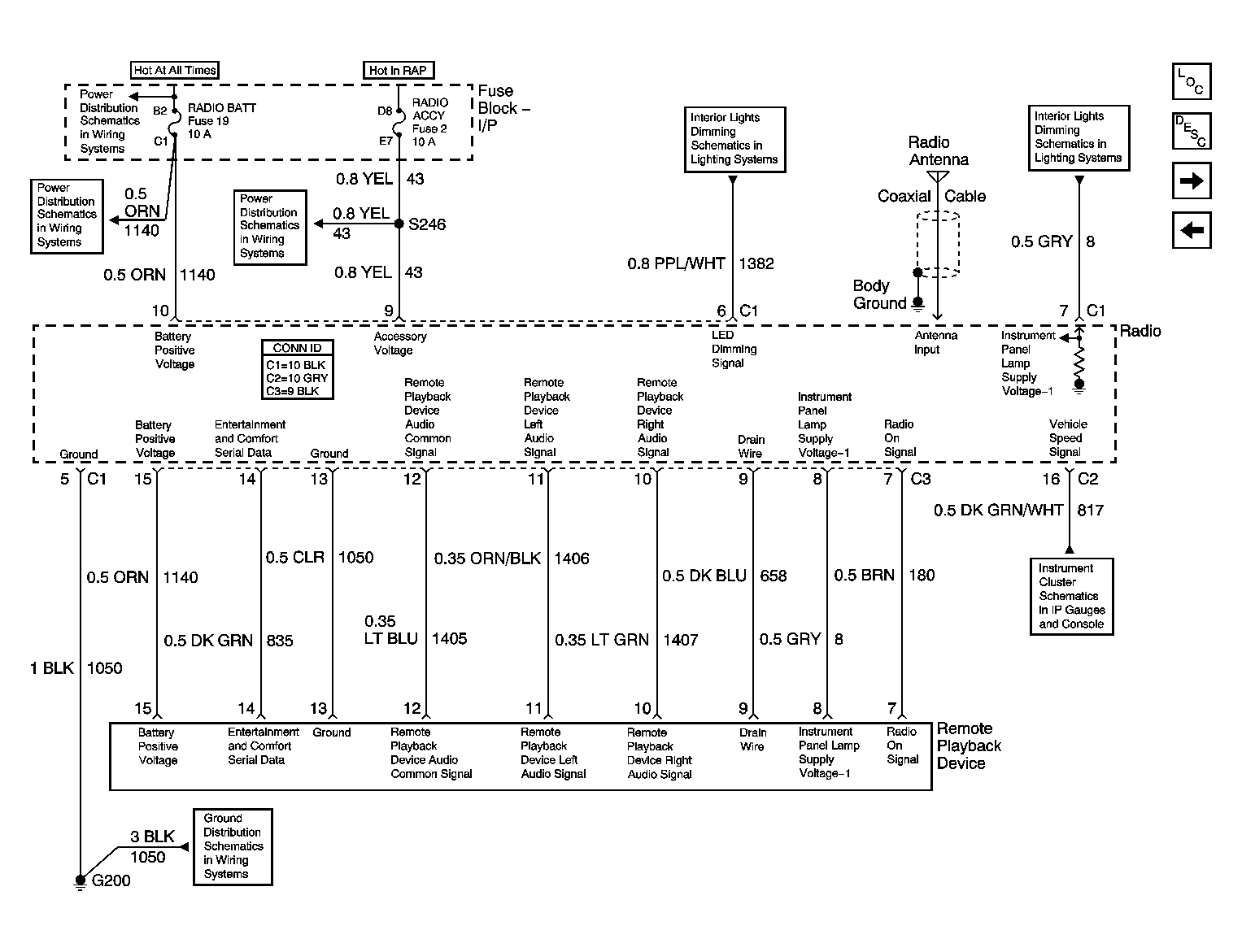

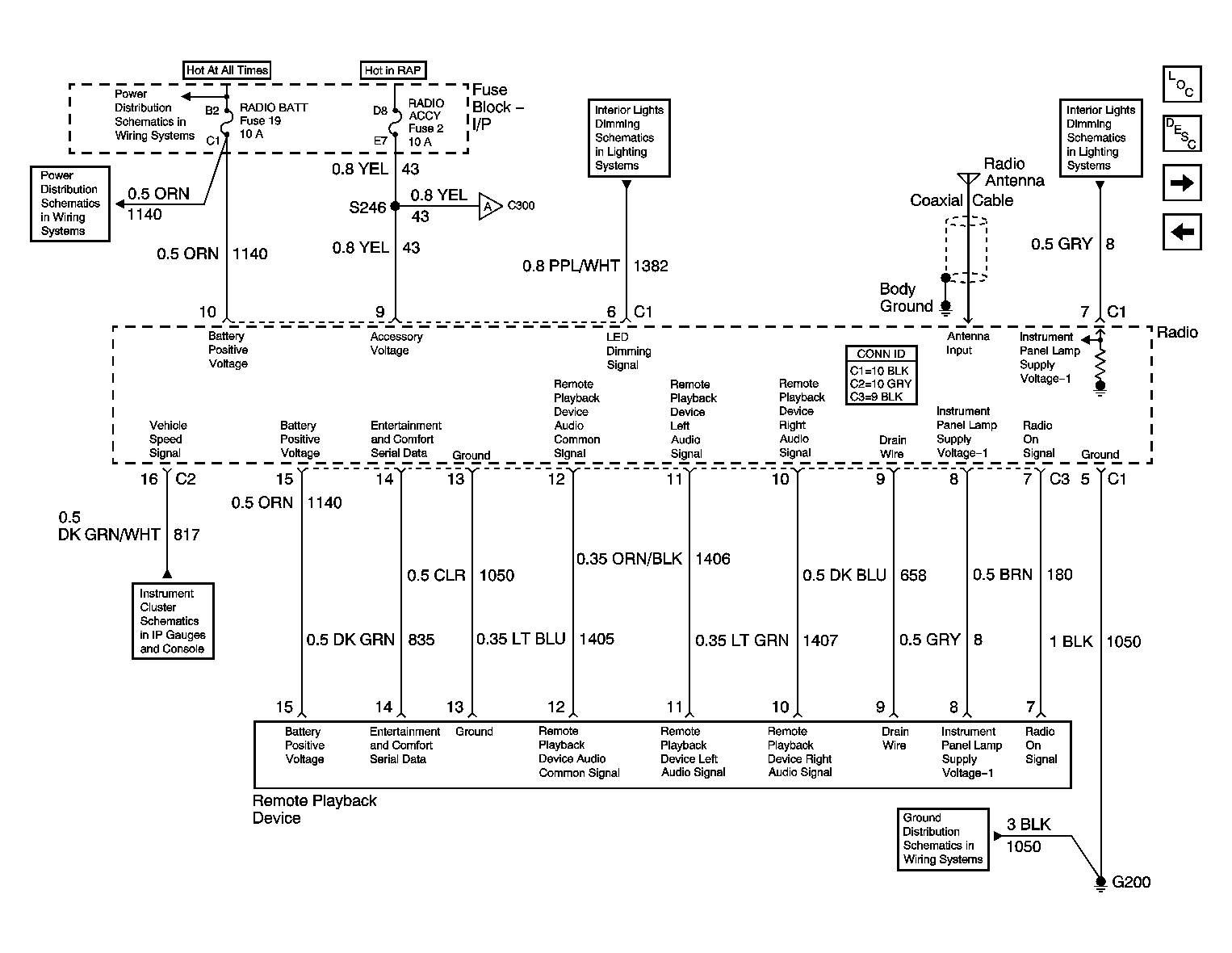

Fig 4: Power and Ground, Remote Playback Device (Premium w/RSA) Schematic
Courtesy of GENERAL MOTORS CORP.

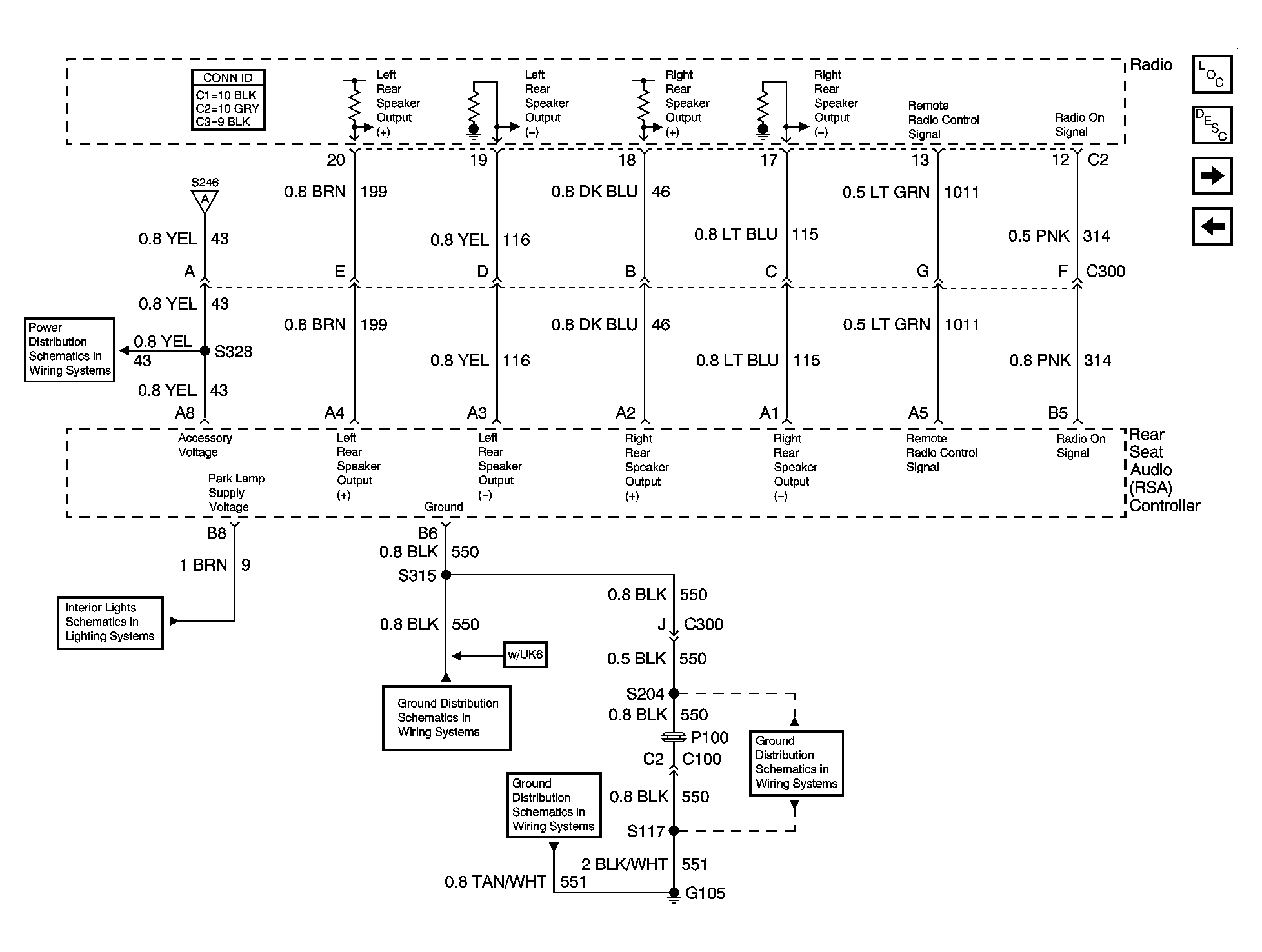

Fig 5: Rear Radio Control Module (Premium w/RSA) Schematic
Courtesy of GENERAL MOTORS CORP.

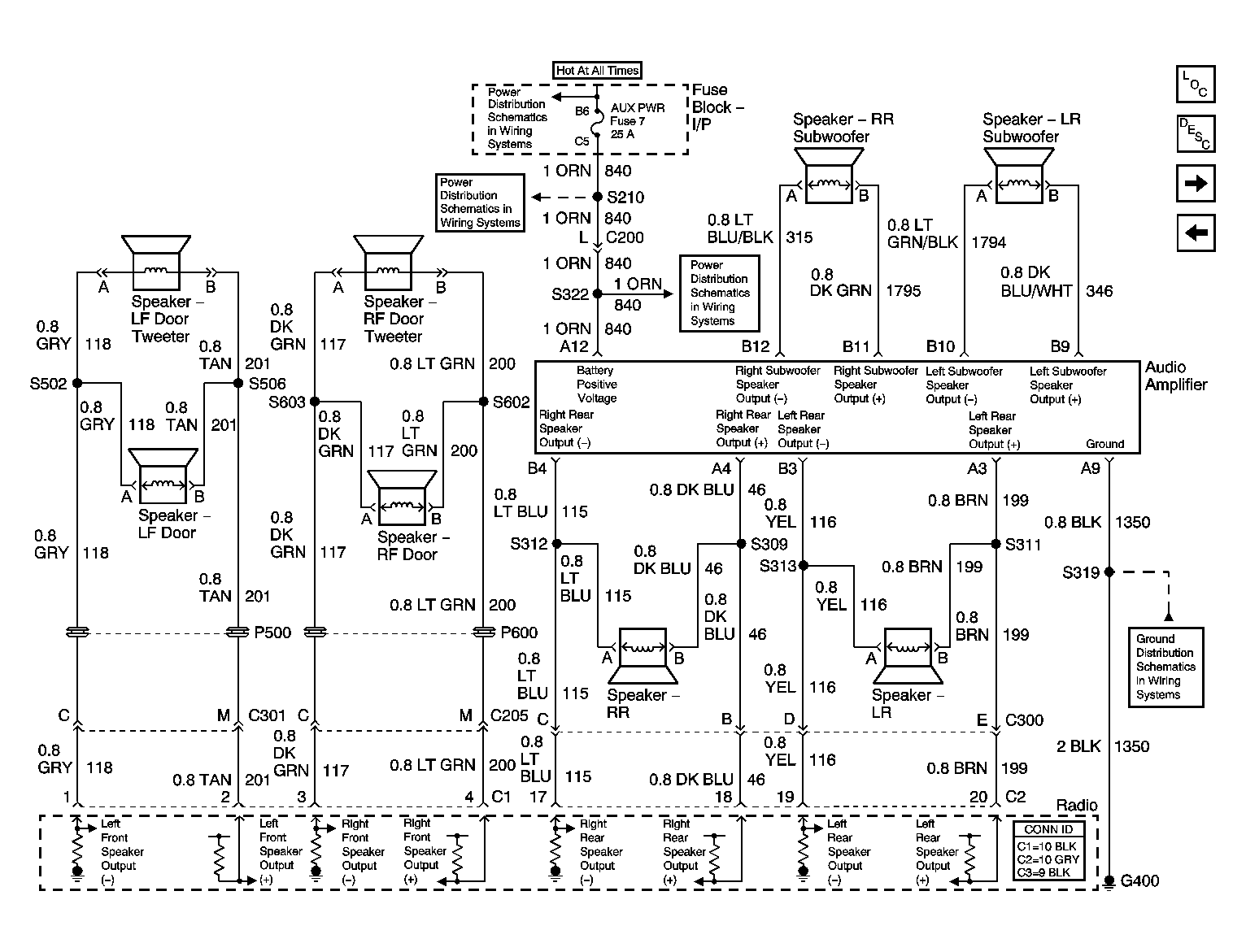

Fig 6: Speaker and Sub-Woofer (Premium w/RSA) Schematic
