Wiring Diagrams
>>
Wiring Systems - Introduction
>>
Schematic and Routing Diagrams
>>
Ground Distribution Schematics
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Ground Distribution Schematics

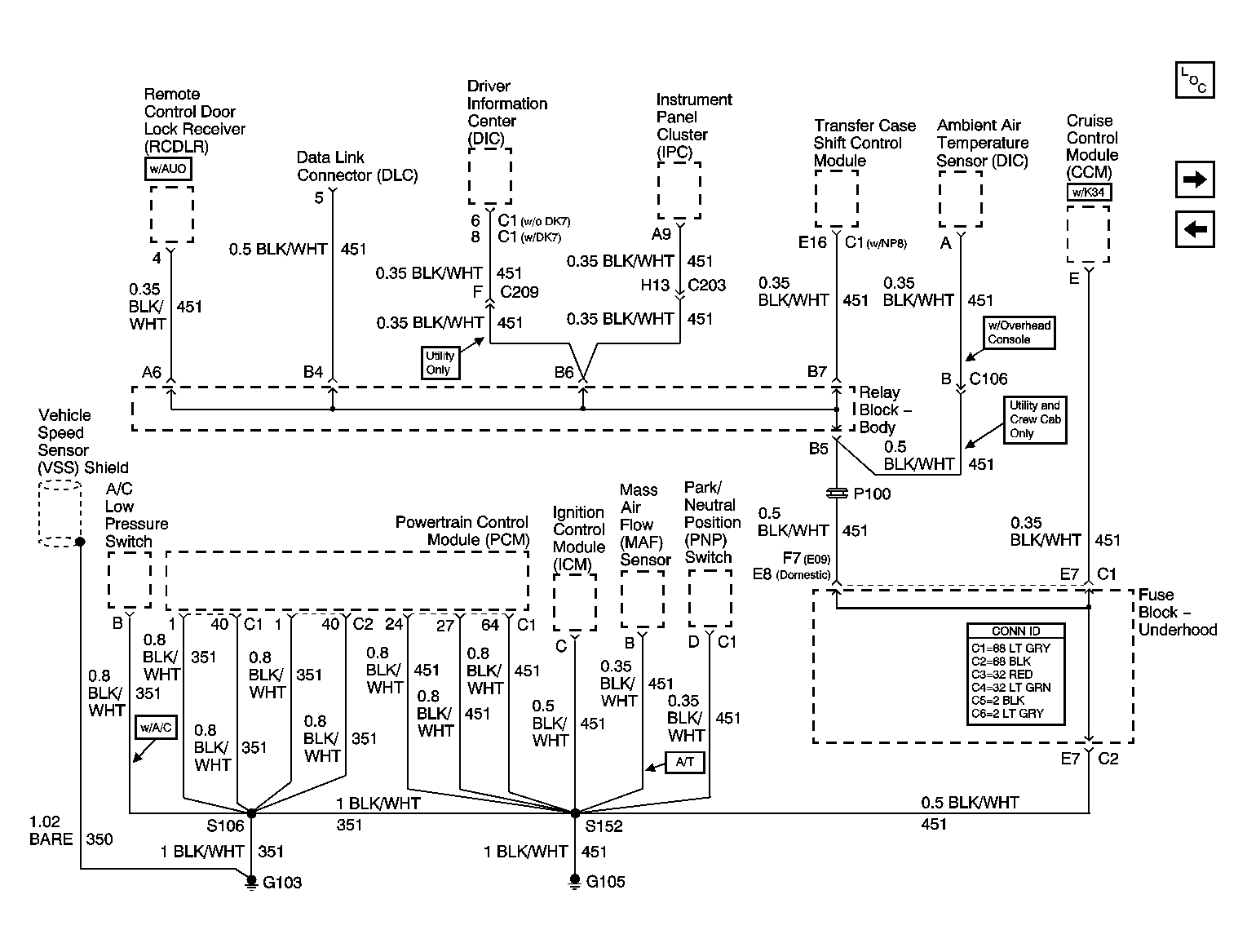

Fig 1: G111 and G112 - Except Export
Courtesy of GENERAL MOTORS CORP.
Fig 2: G111 and G112 - Export
Courtesy of GENERAL MOTORS CORP.

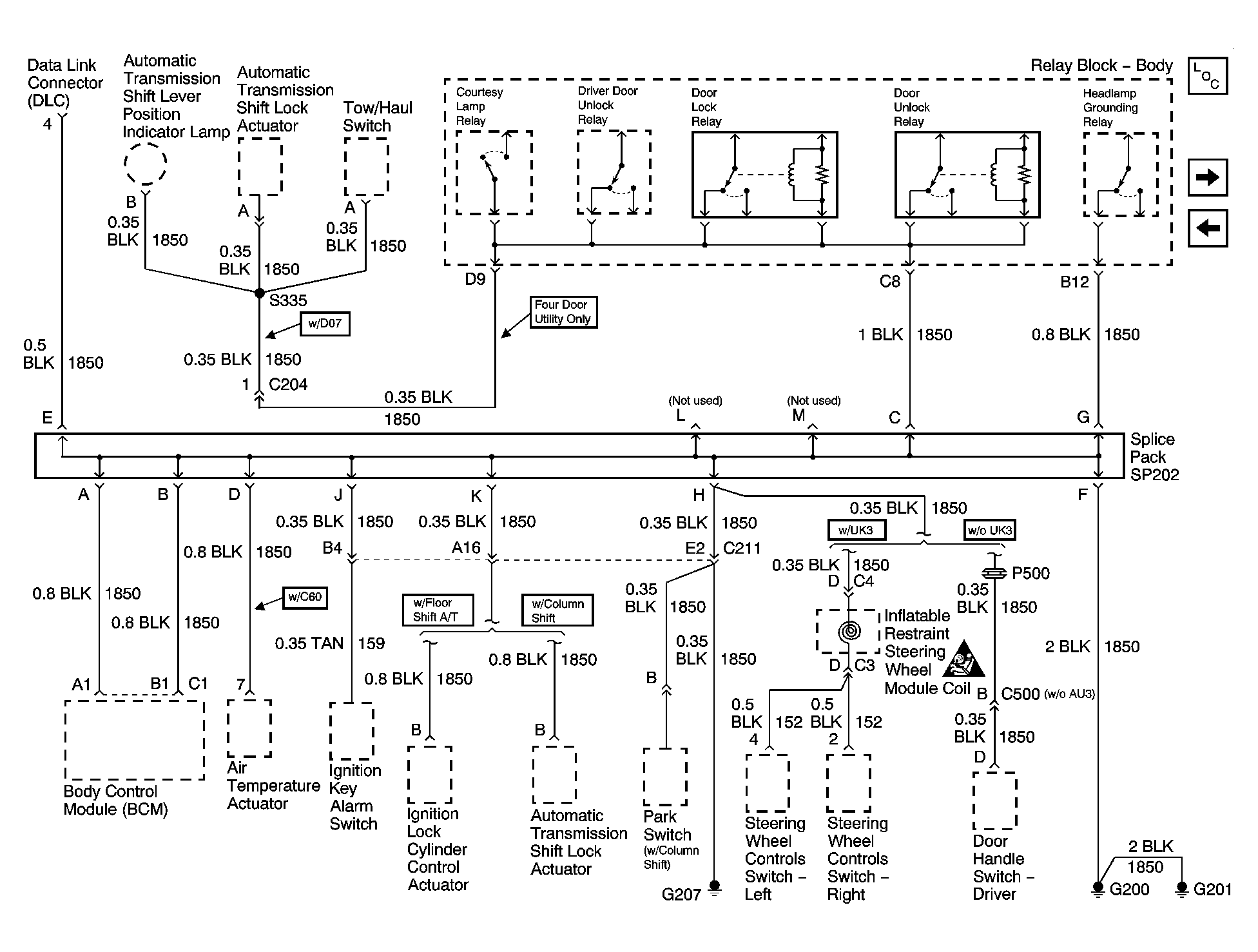

Fig 3: G100, G101, G106, G107, G108 and G110
Courtesy of GENERAL MOTORS CORP.

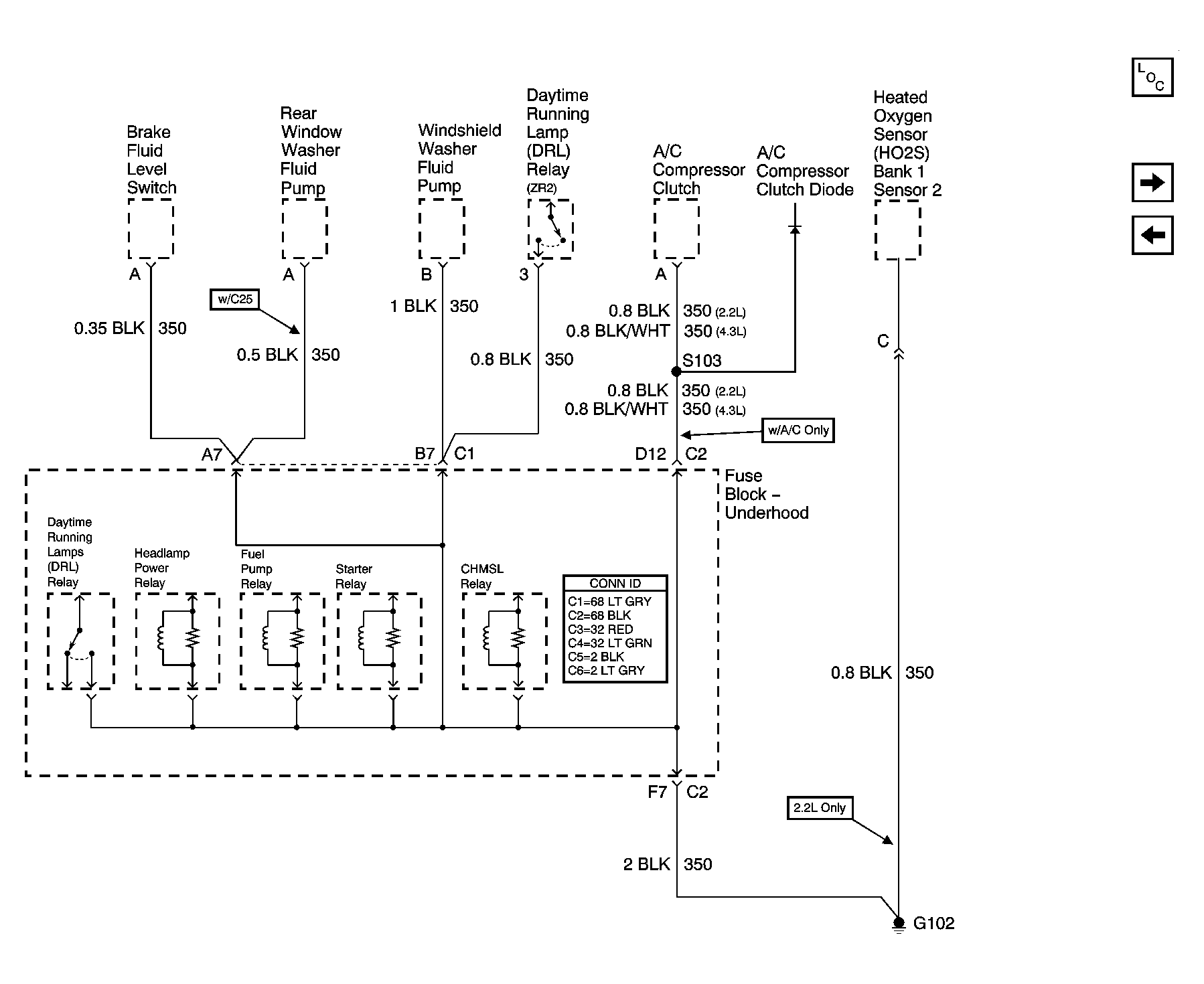

Fig 4: G102 - Except Export
Courtesy of GENERAL MOTORS CORP.
Fig 5: G102 - Export
Courtesy of GENERAL MOTORS CORP.
Fig 6: G103 and G105 - 4.3L
Courtesy of GENERAL MOTORS CORP.

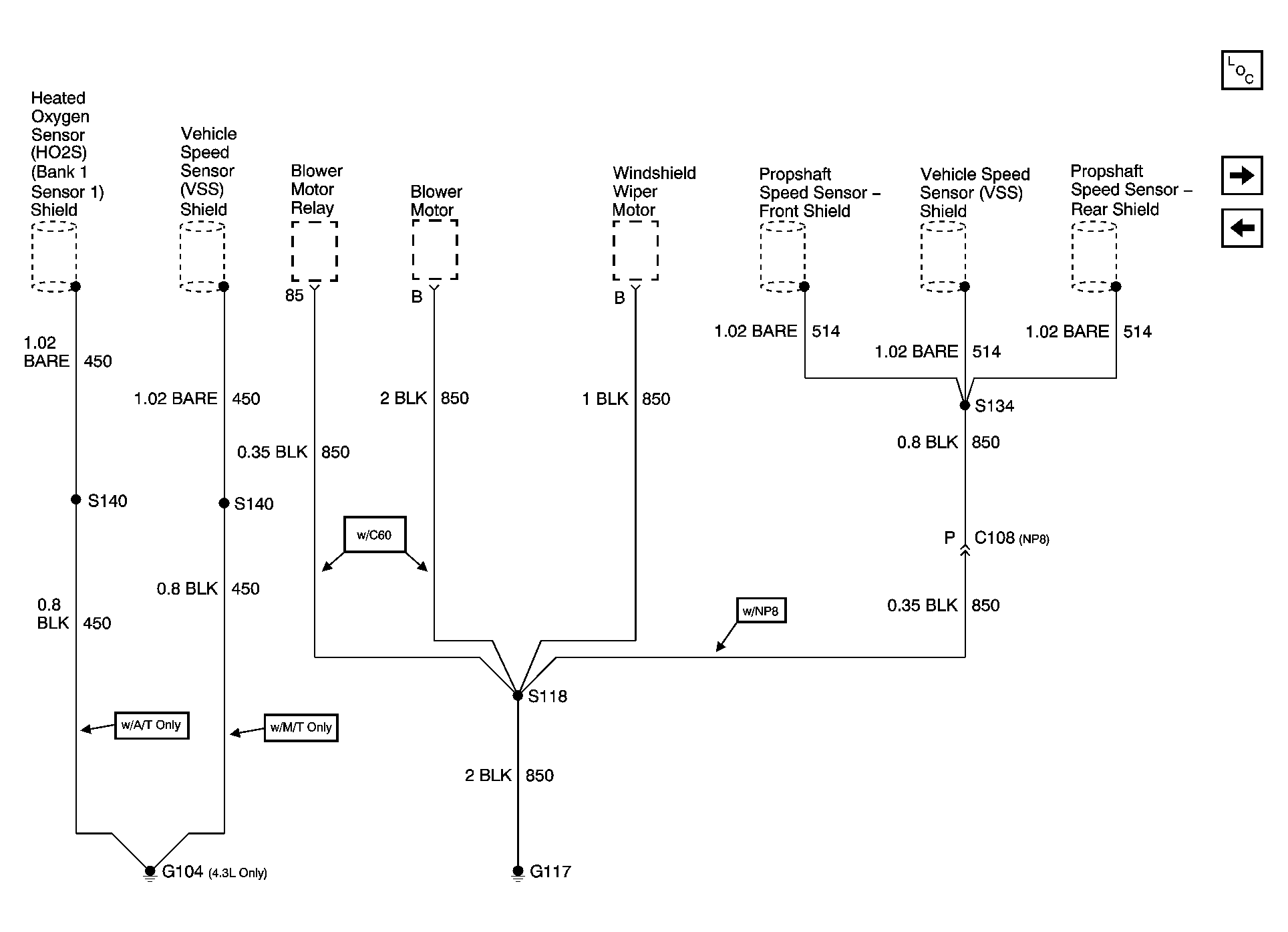

Fig 7: G104 and G117
Courtesy of GENERAL MOTORS CORP.
Fig 8: G200, G201 and G207 - Pickup and Crew Cab
Courtesy of GENERAL MOTORS CORP.
Fig 9: G200, G201 and G207 - Utility
Courtesy of GENERAL MOTORS CORP.
Fig 10: G200, G201, and G207 - Export
Courtesy of GENERAL MOTORS CORP.

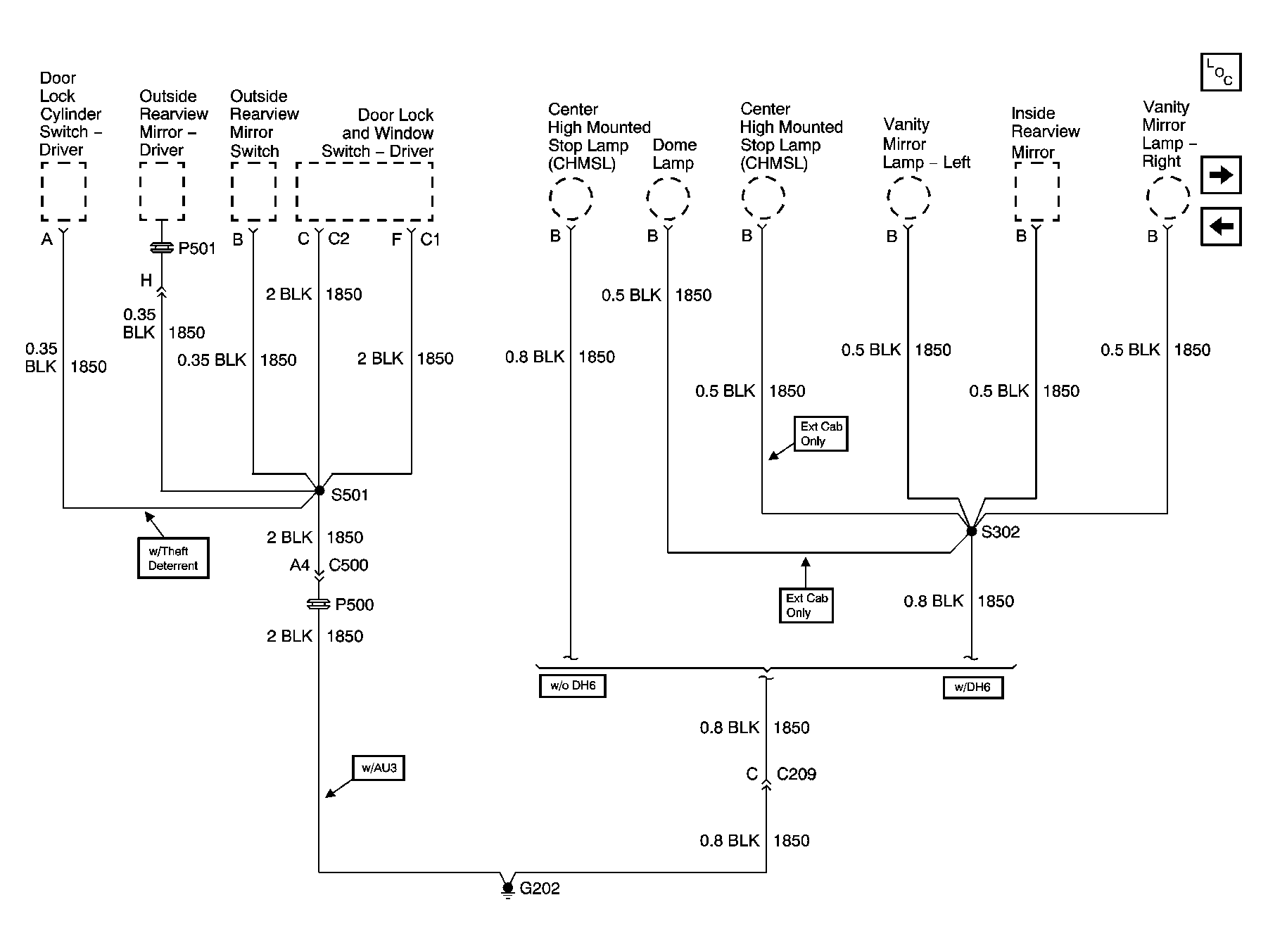

Fig 11: G202 - Pickup Except Crew Cab
Courtesy of GENERAL MOTORS CORP.
Fig 12: S501 - Utility
Courtesy of GENERAL MOTORS CORP.

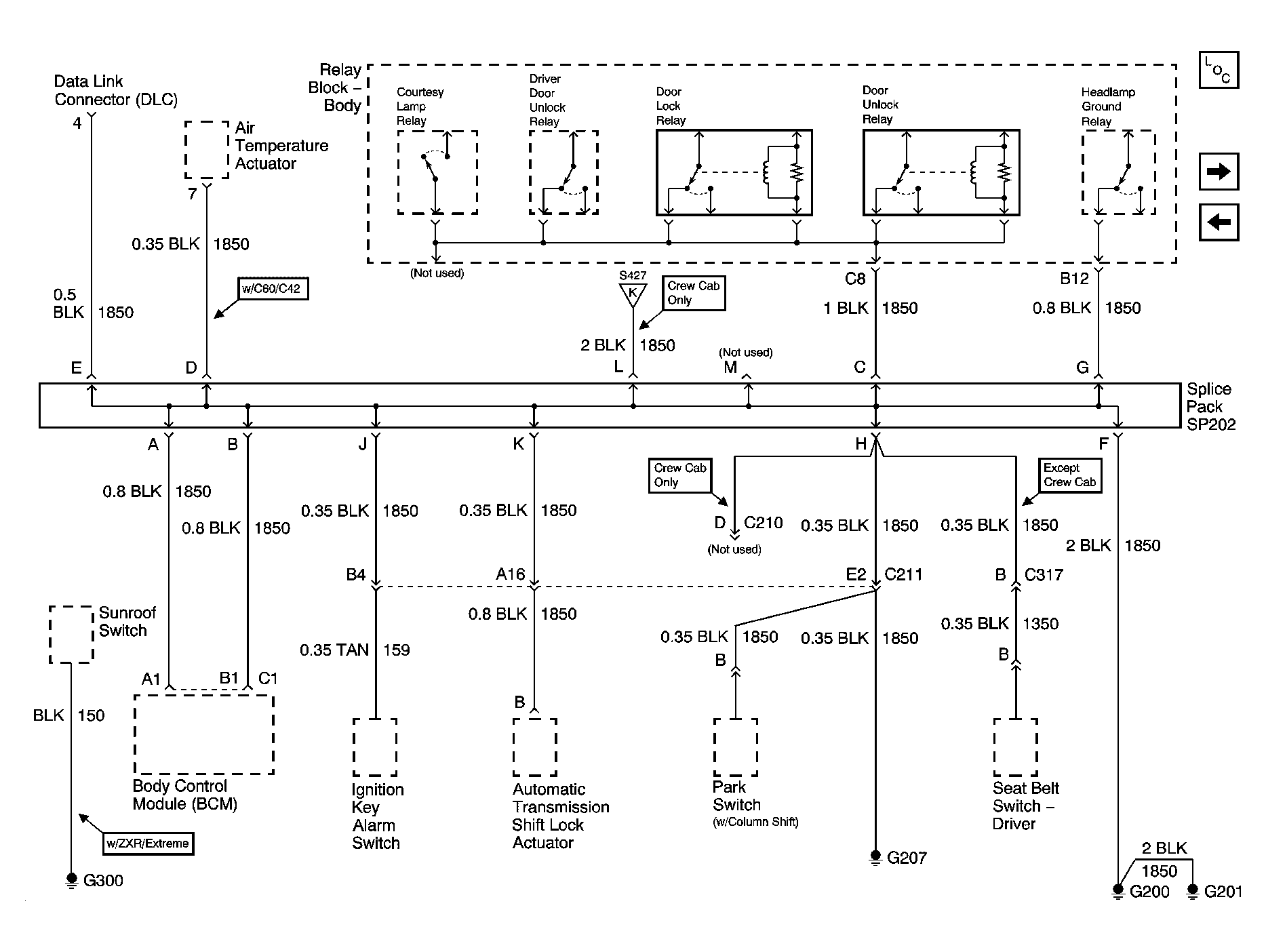

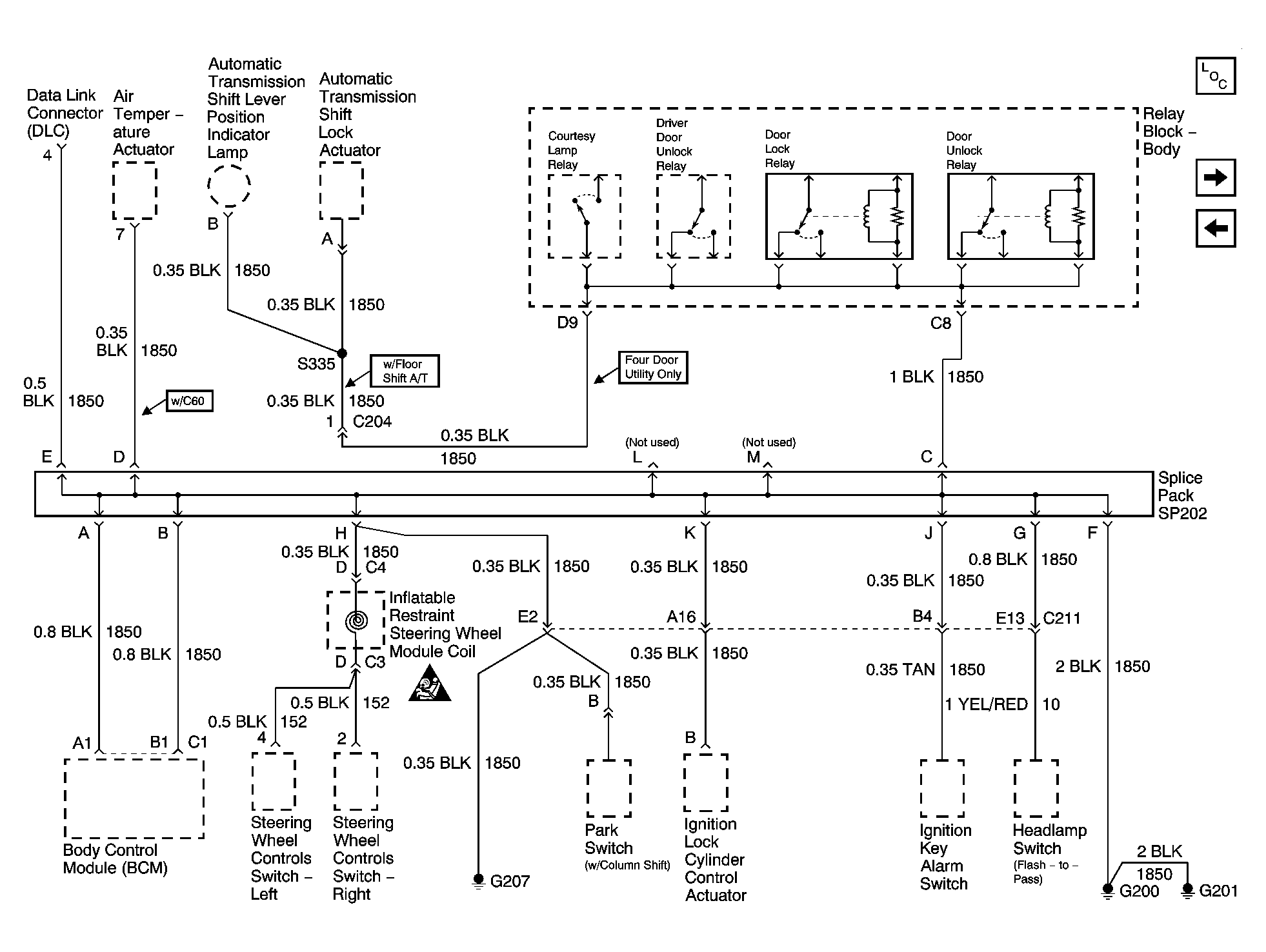

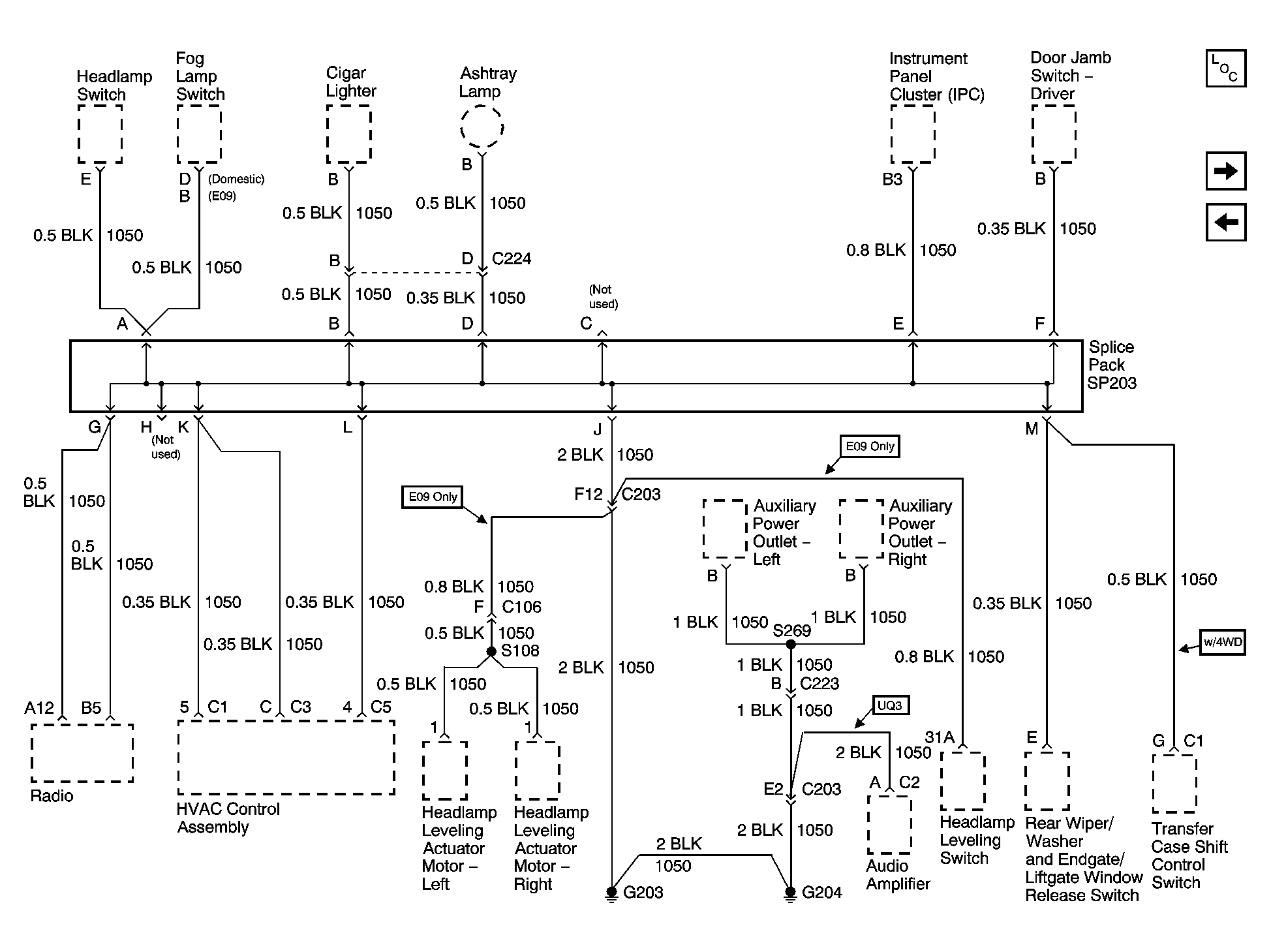

Fig 13: G202 - Utility and Crew Cab
Courtesy of GENERAL MOTORS CORP.
Fig 14: G203 and G204 - Pickup
Courtesy of GENERAL MOTORS CORP.
Fig 15: G203 and G204 - Utility w/Manual A/C
Courtesy of GENERAL MOTORS CORP.

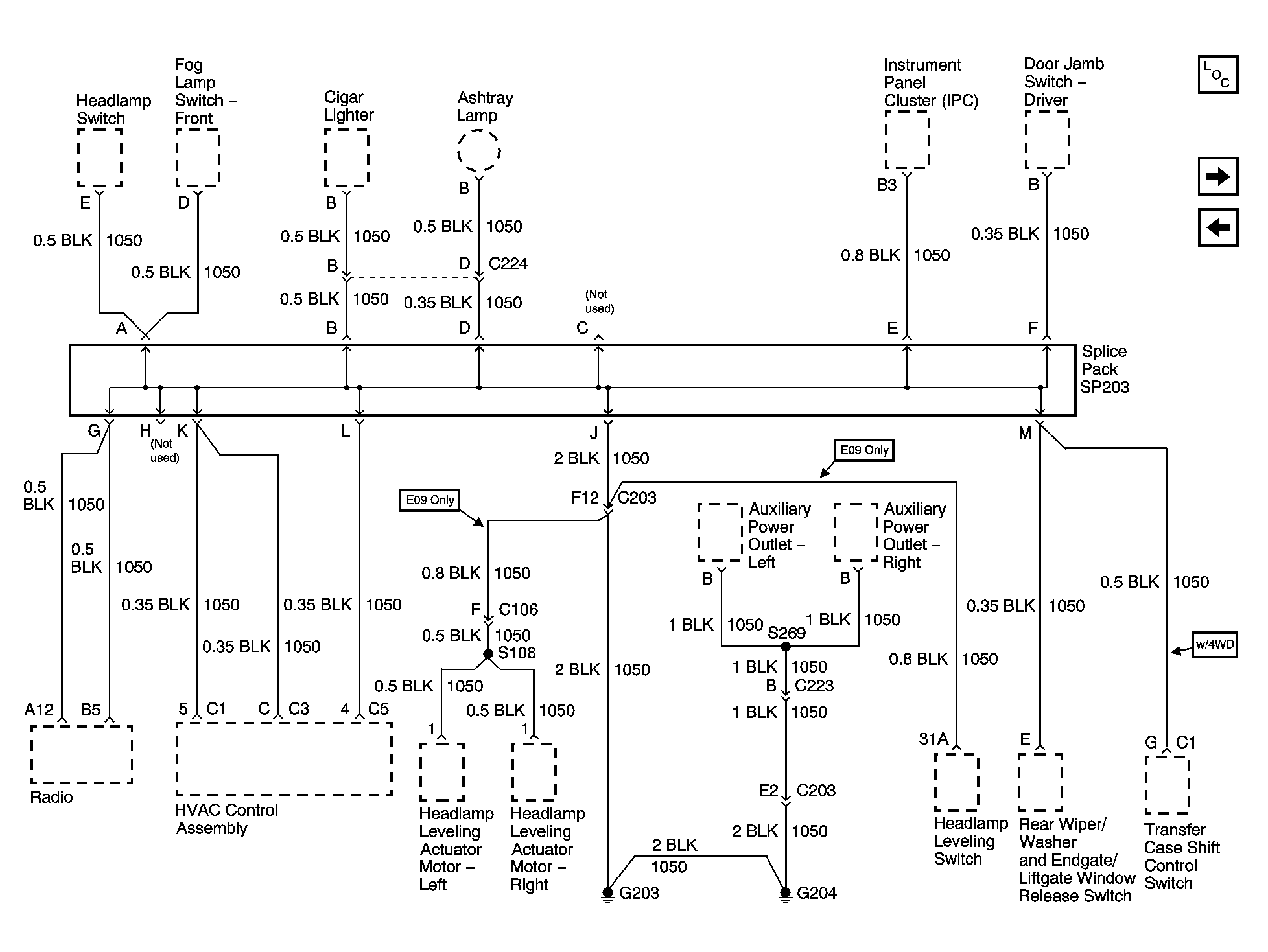

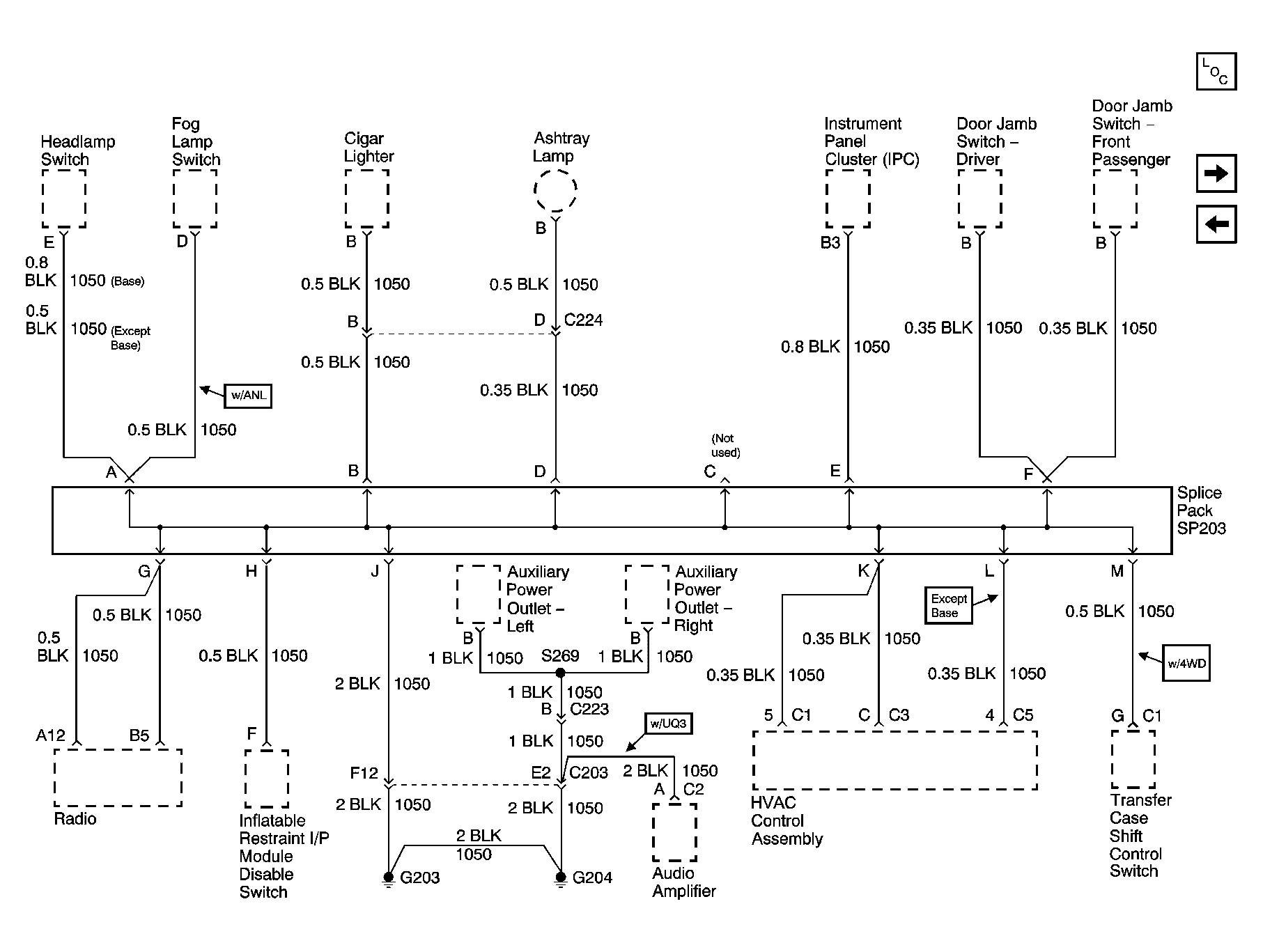

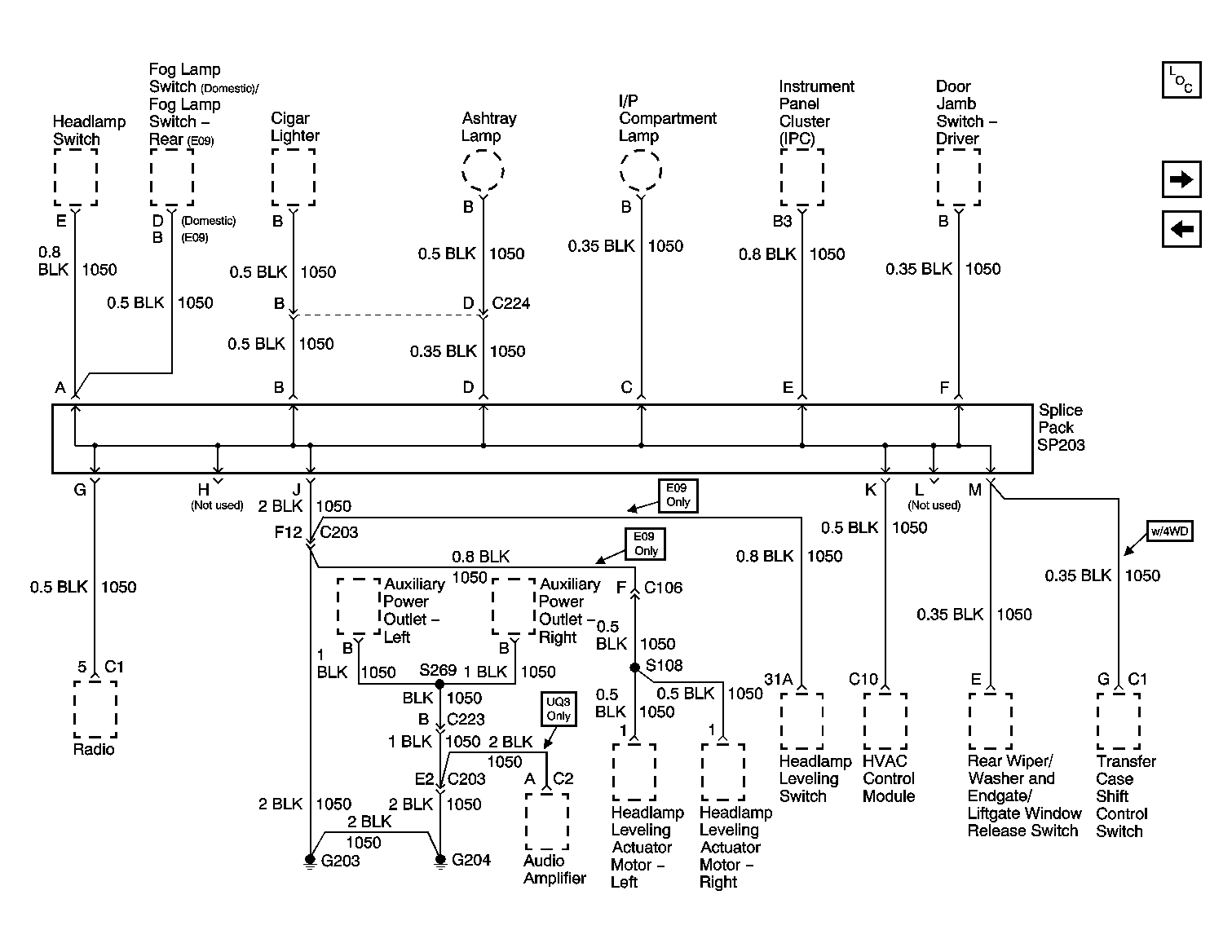

Fig 16: G203 and G204 - Utility w/Auto A/C
Courtesy of GENERAL MOTORS CORP.

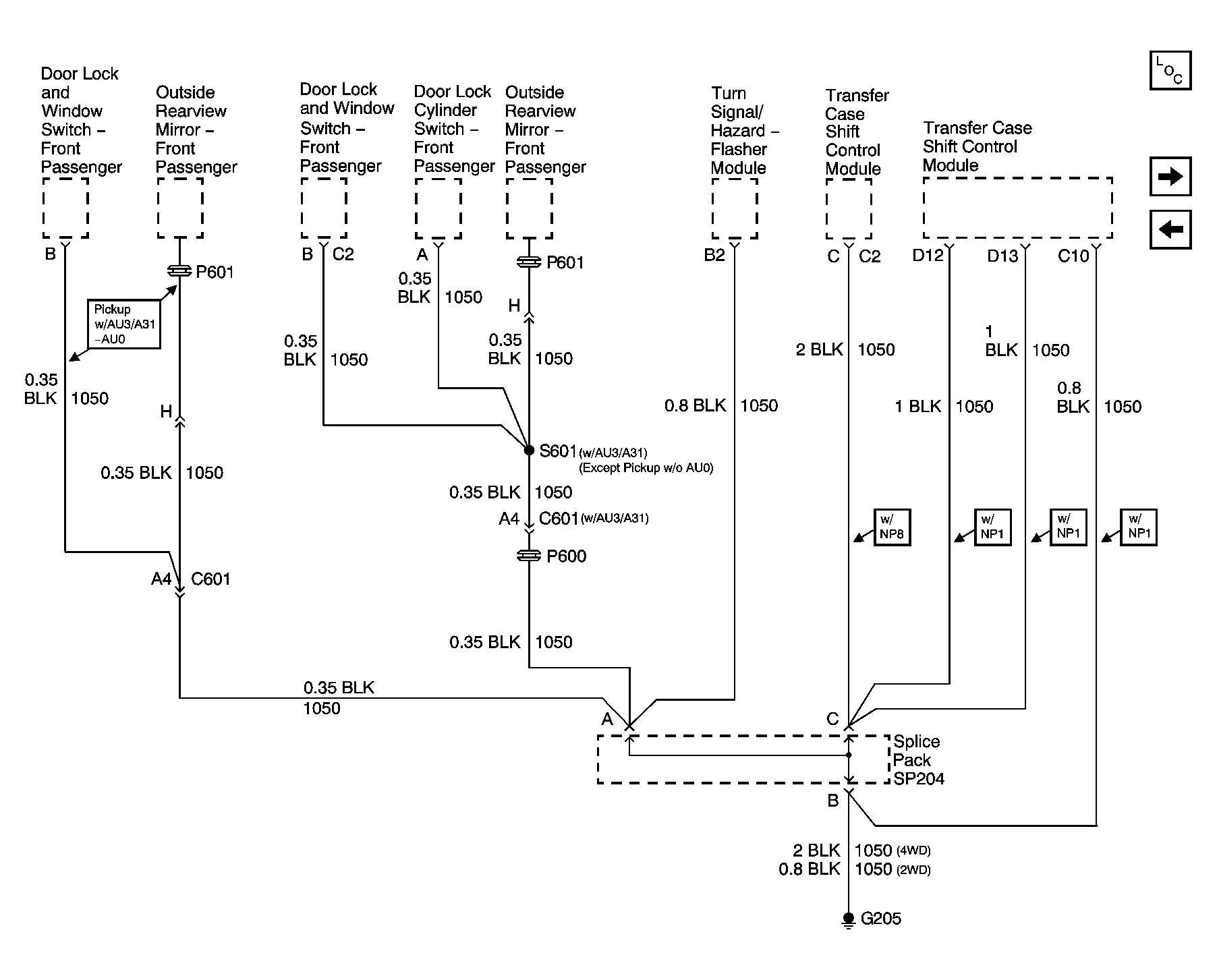

Fig 17: G205 - Utility and Crew Cab
Courtesy of GENERAL MOTORS CORP.

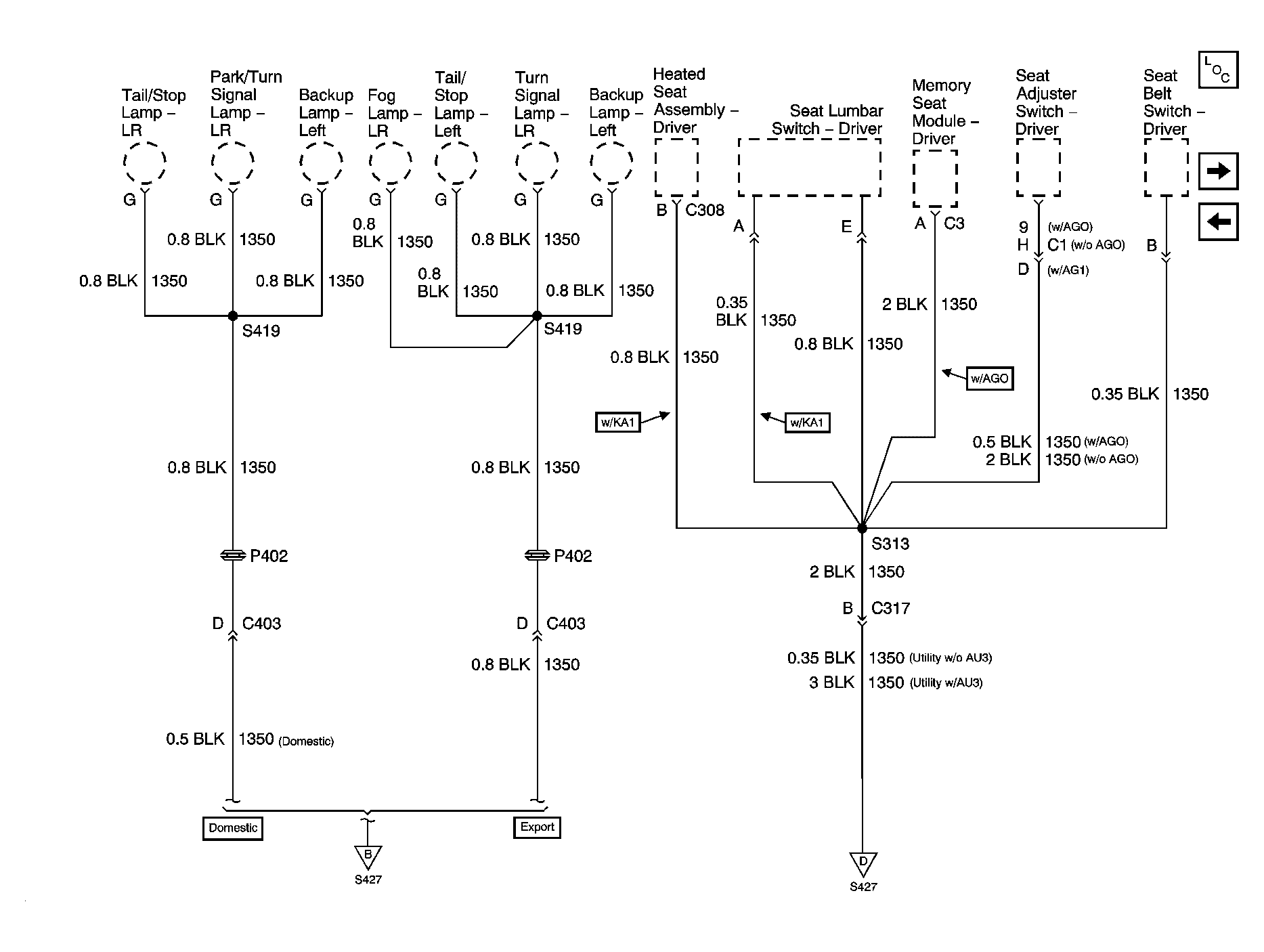

Fig 18: S313 and S419
Courtesy of GENERAL MOTORS CORP.

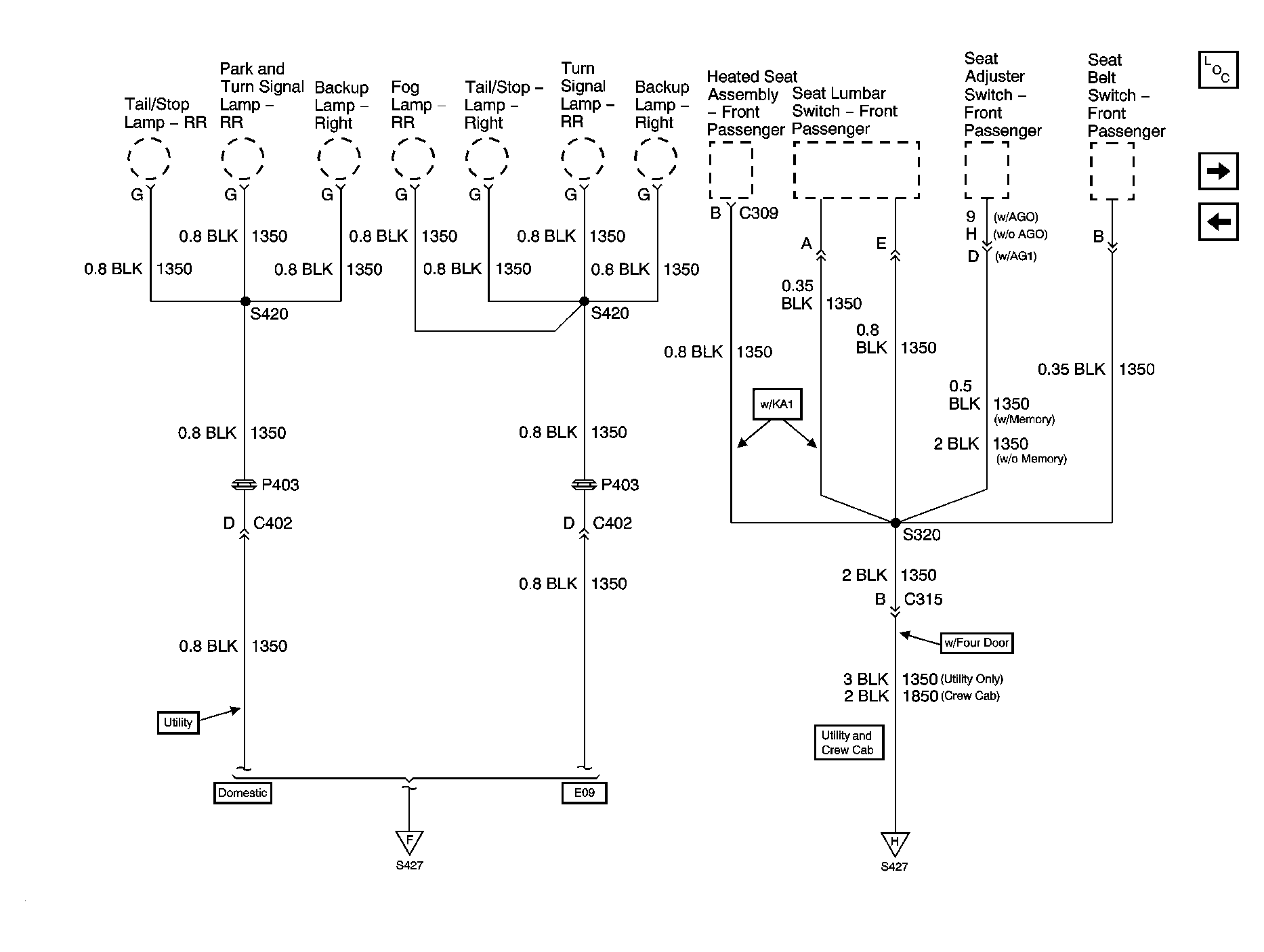

Fig 19: S320 and S420
Courtesy of GENERAL MOTORS CORP.

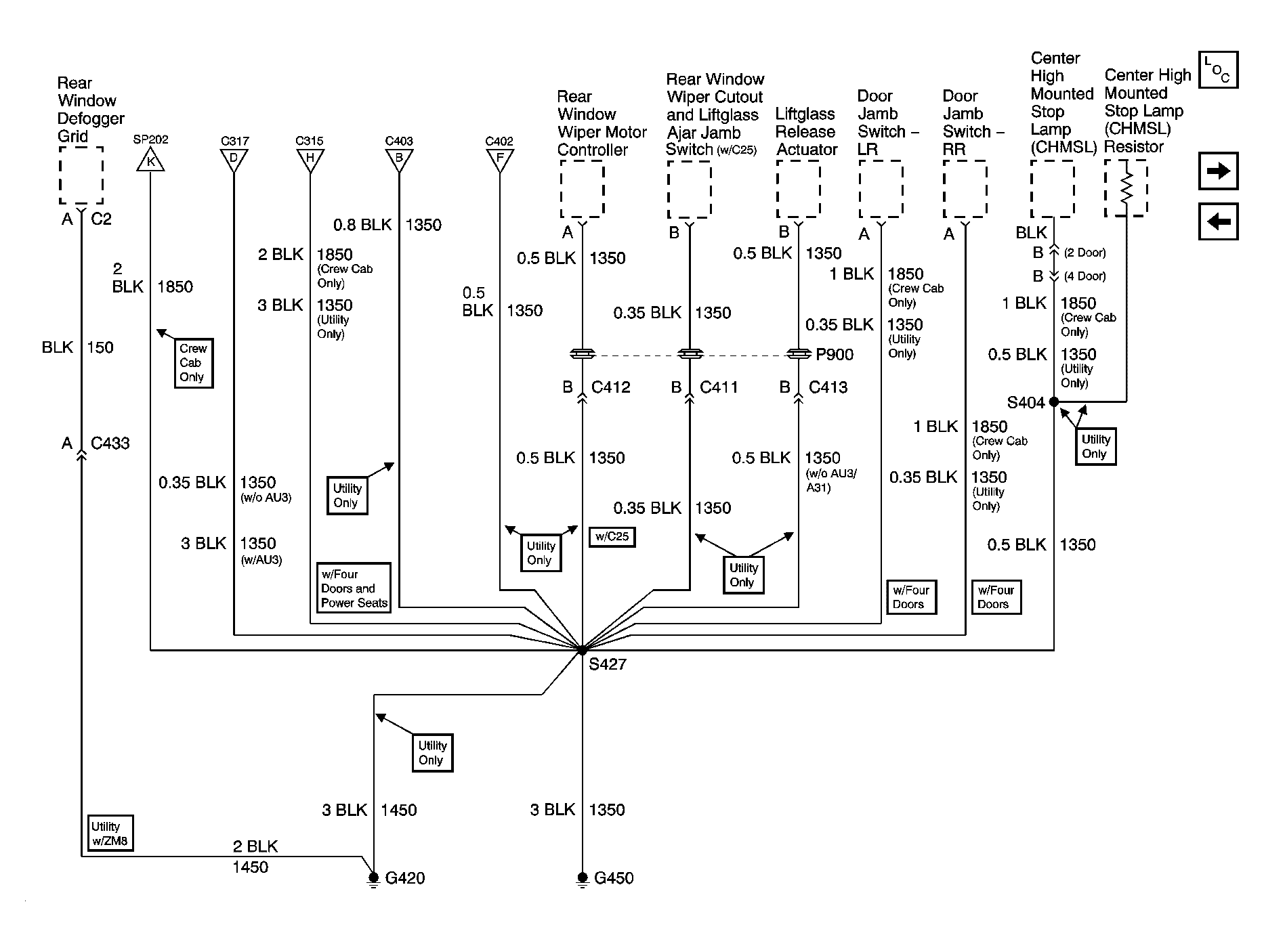

Fig 20: G420, G450 and S427 - Utility and Crew Cab
Courtesy of GENERAL MOTORS CORP.

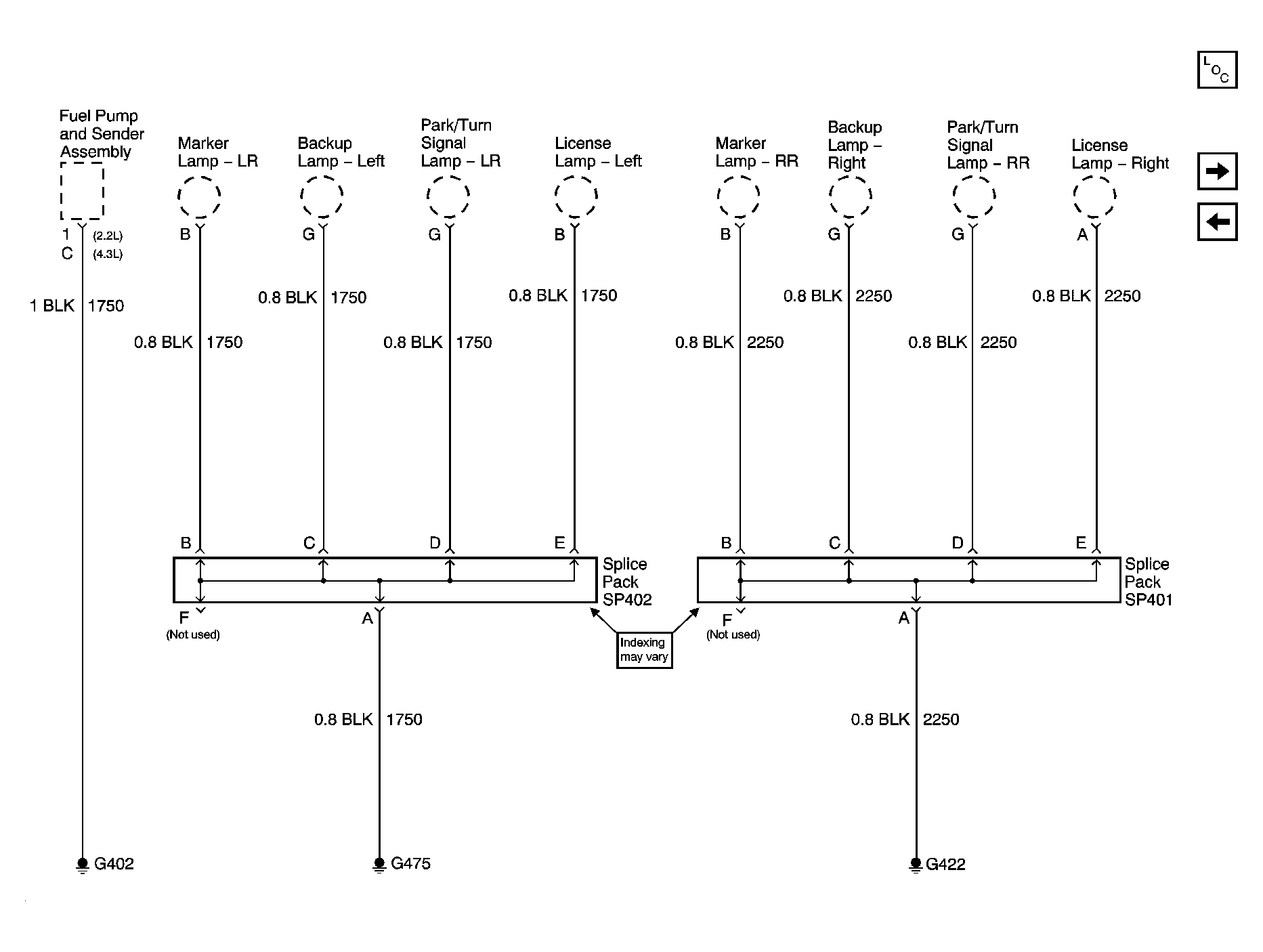

Fig 21: G402, G422 and G475 - Fleetside Pickup
Courtesy of GENERAL MOTORS CORP.

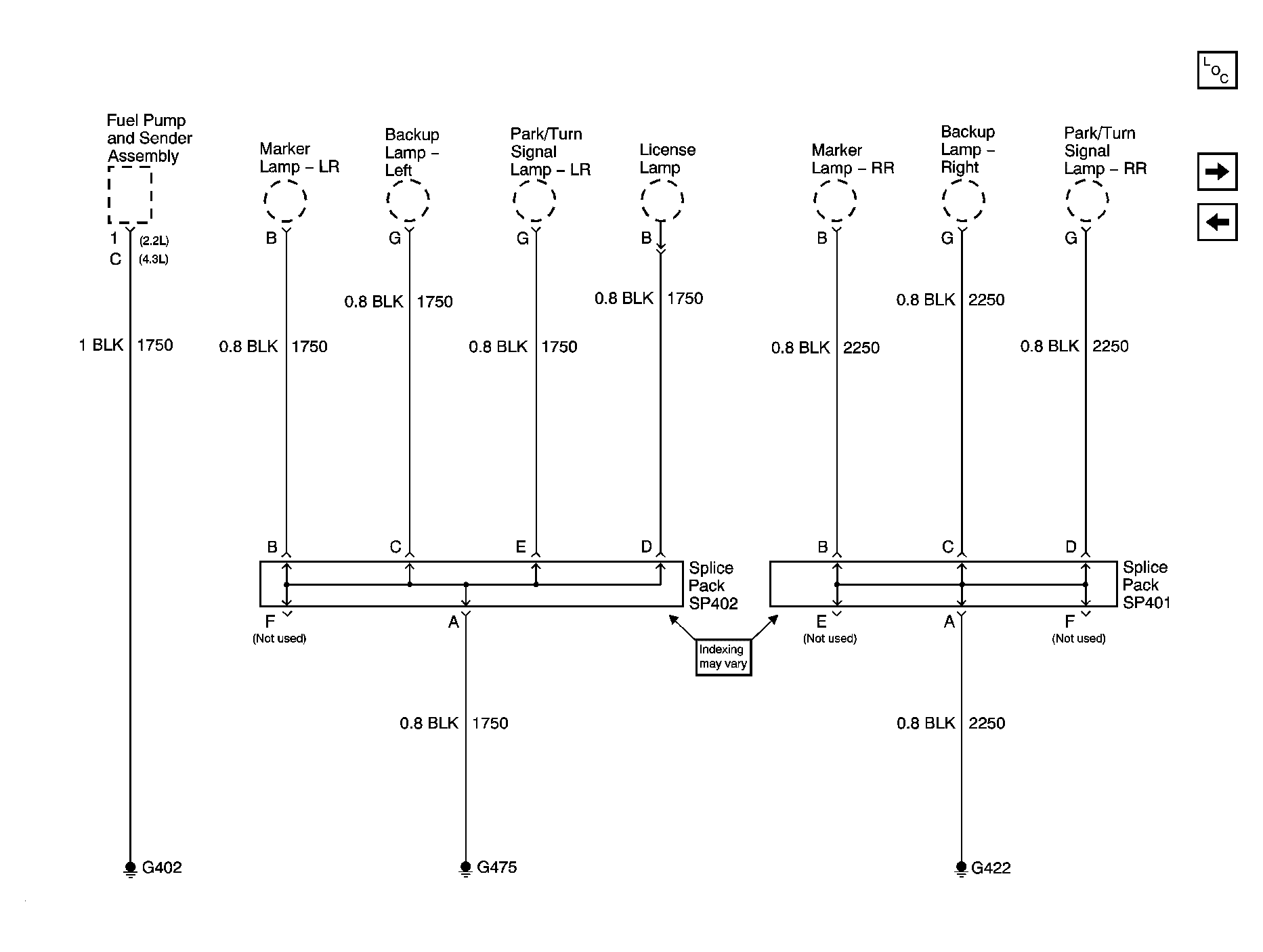

Fig 22: G402, G422 and G475 - Sportside Pickup
Courtesy of GENERAL MOTORS CORP.
Fig 23: G402 and G421 - Utility
Courtesy of GENERAL MOTORS CORP.

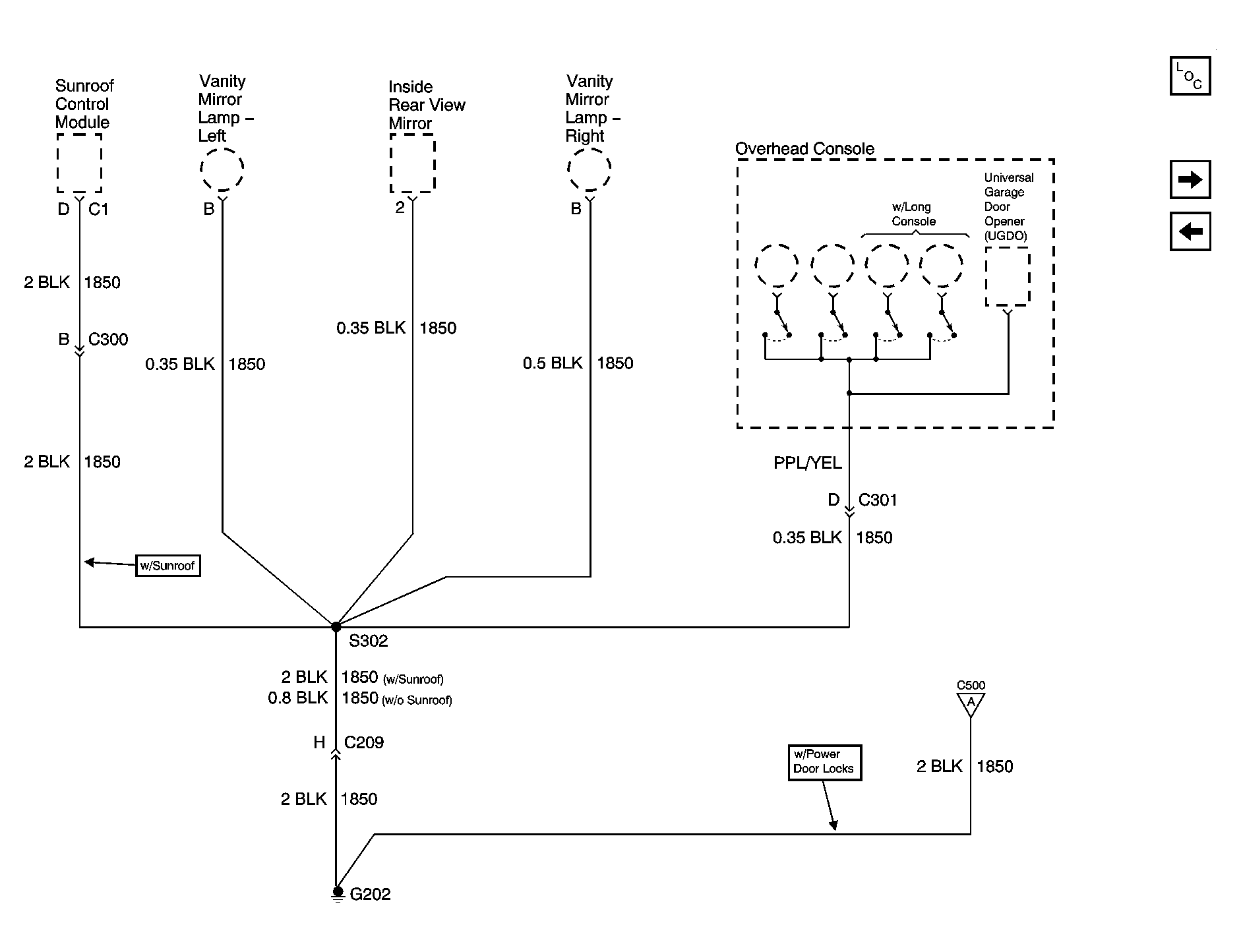

Fig 24: G203 and G204 - Utility
Courtesy of GENERAL MOTORS CORP.
