Upper Engine View 1
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

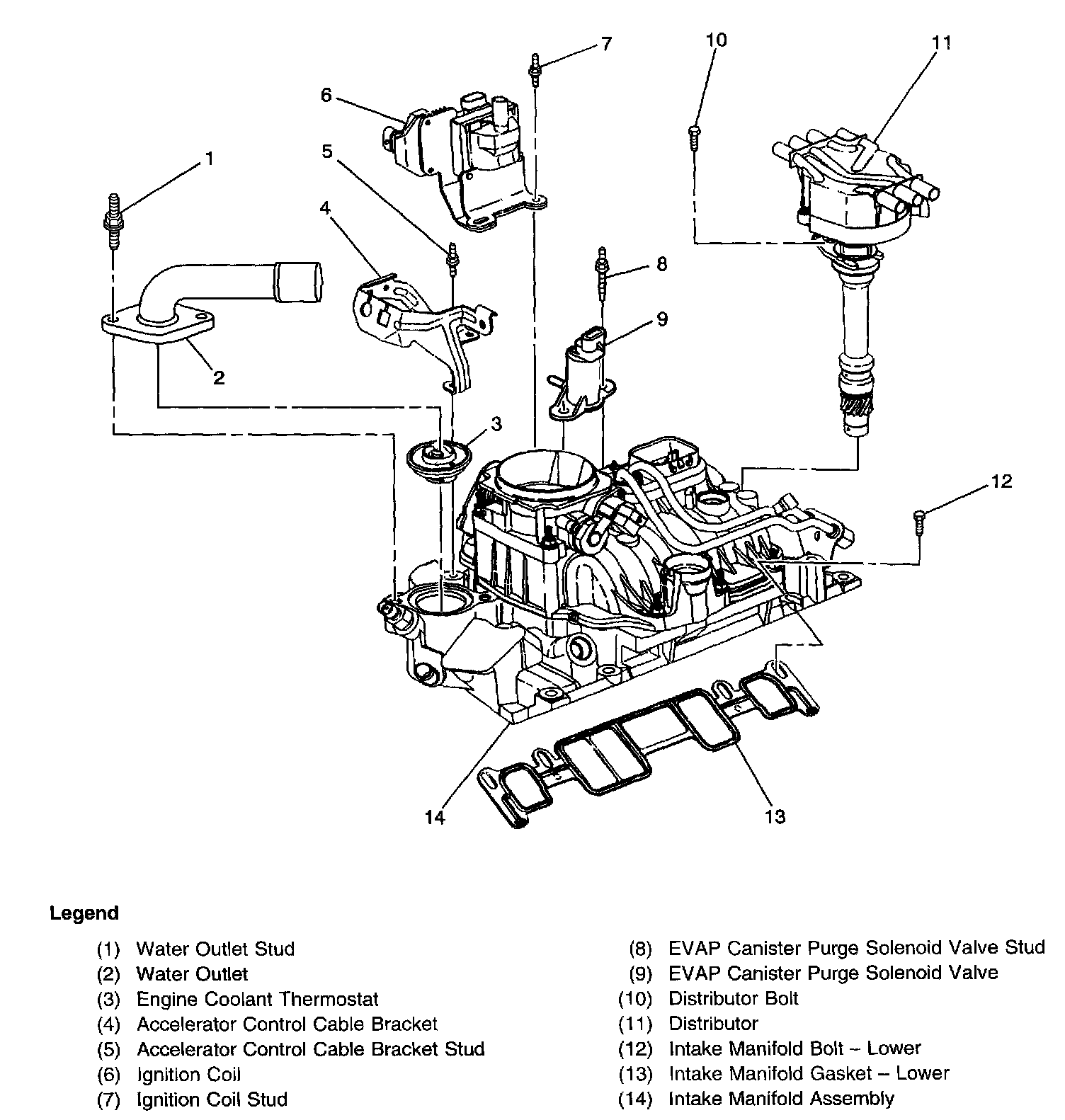

Upper Engine View 1
Upper Engine View 1:
