Jimmy (CANADA) V6-4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Lower Engine View 1
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

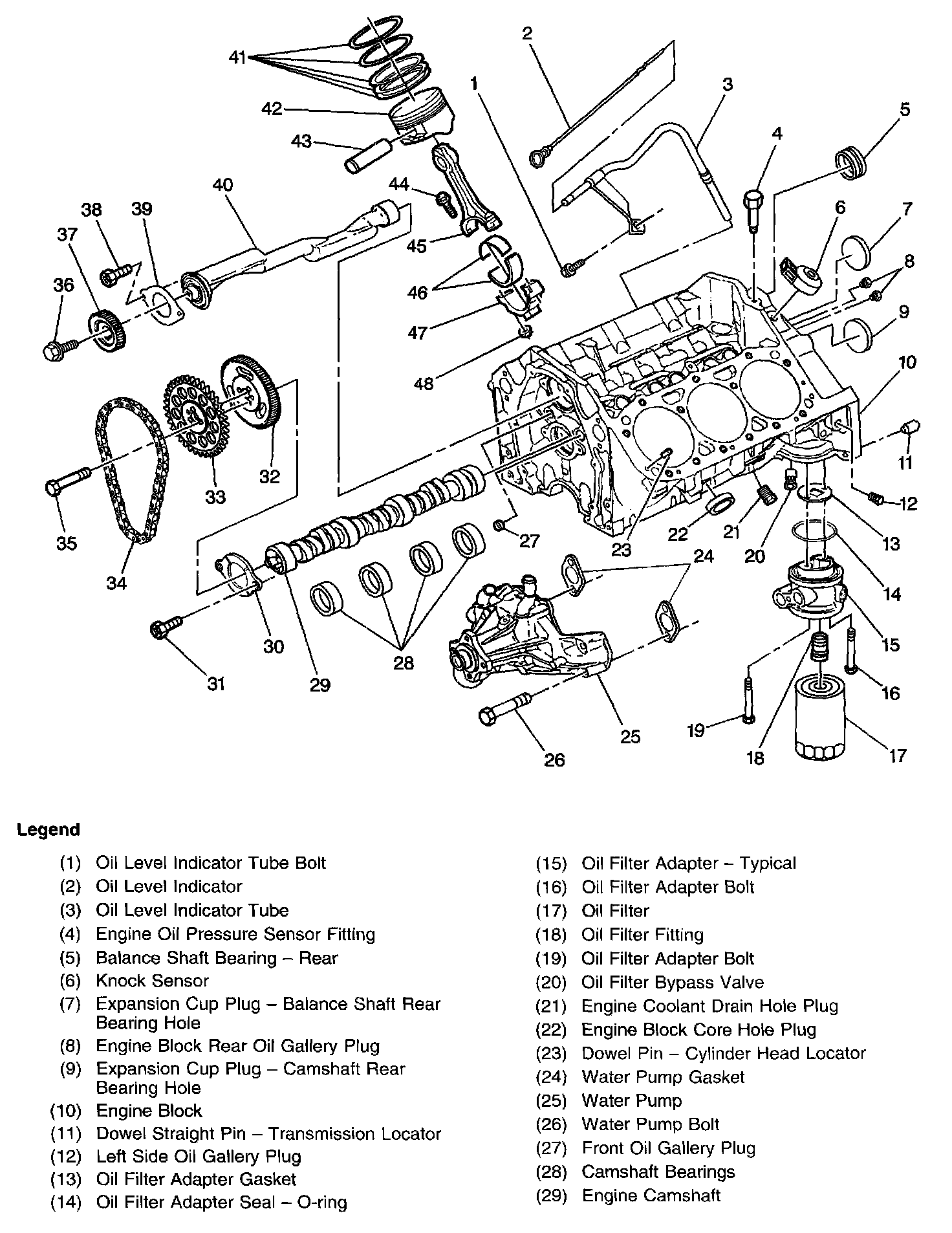

Lower Engine View 1
Lower Engine View 1 Part 1 Of 2:
Lower Engine View 1 Part 2 Of 2:
