Power Seat Control Module

Memory Seat Module - Driver C1 Part 1:

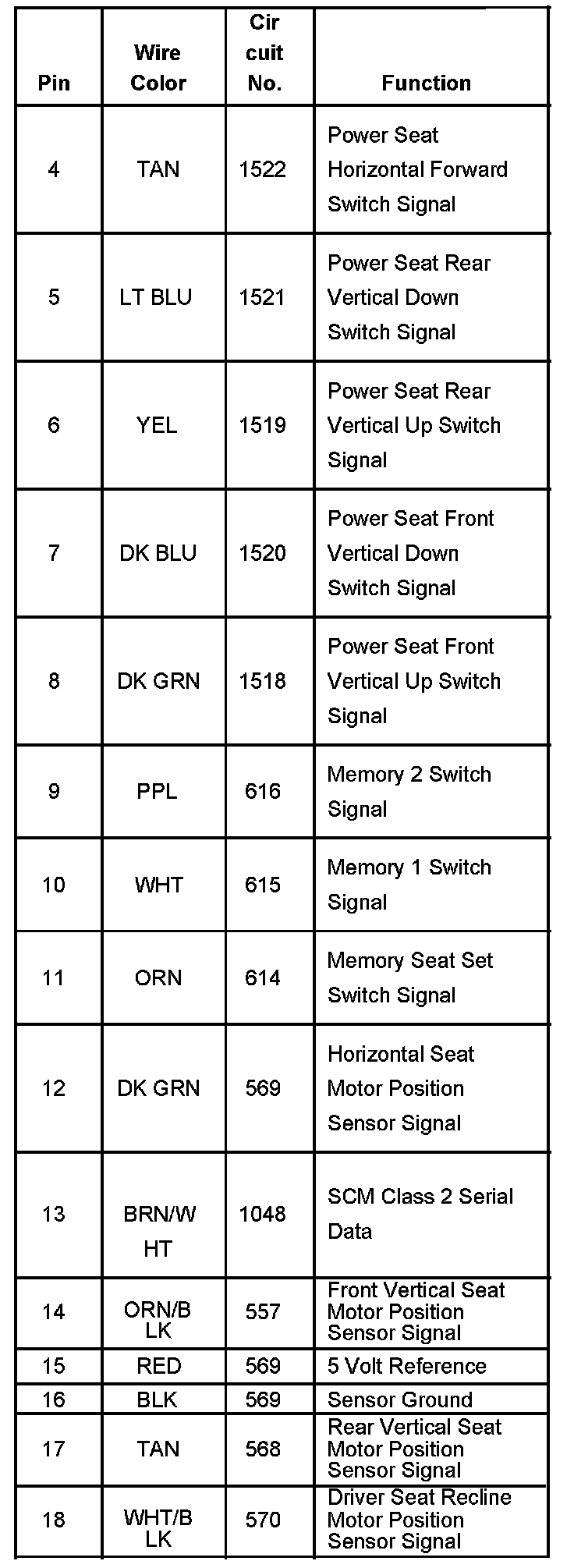

Memory Seat Module - Driver C1 Part 2:

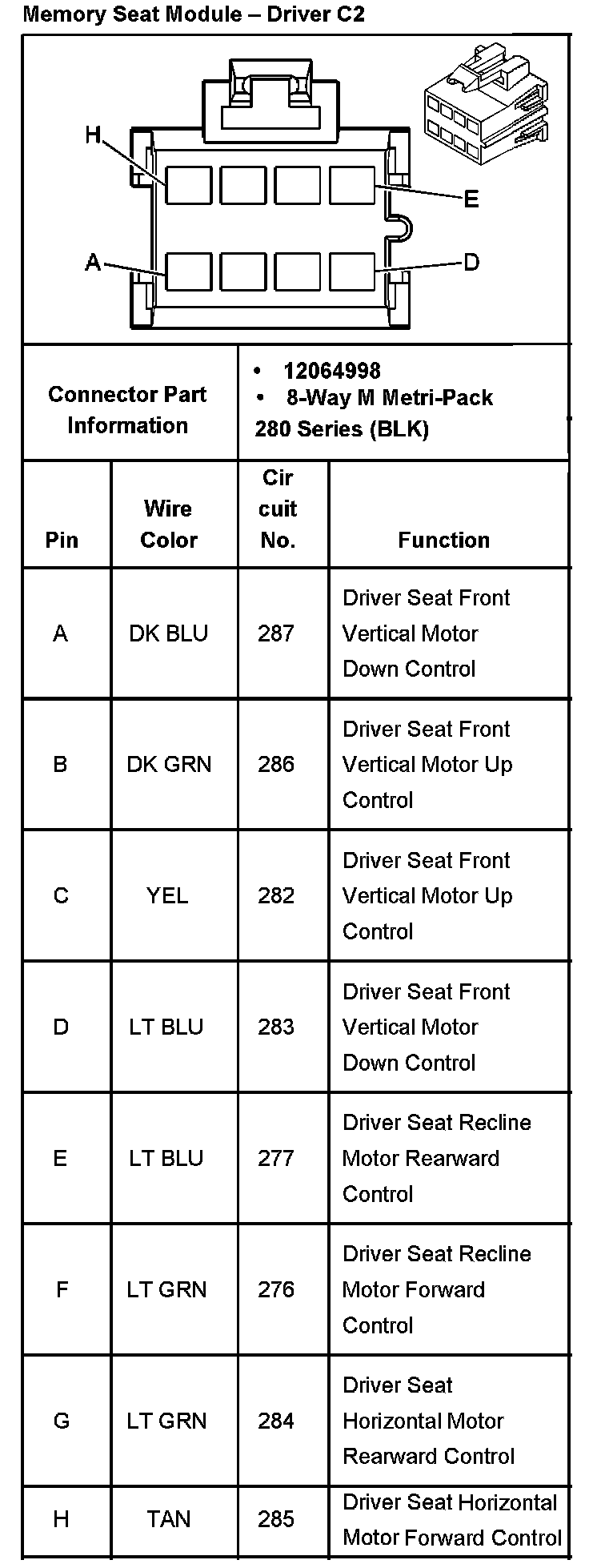

Memory Seat Module - Driver C2:



Memory Seat Module - Driver C3:
