Transmission Control Module Harness Connector End View C2
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Transmission Control Module Harness Connector End View C2

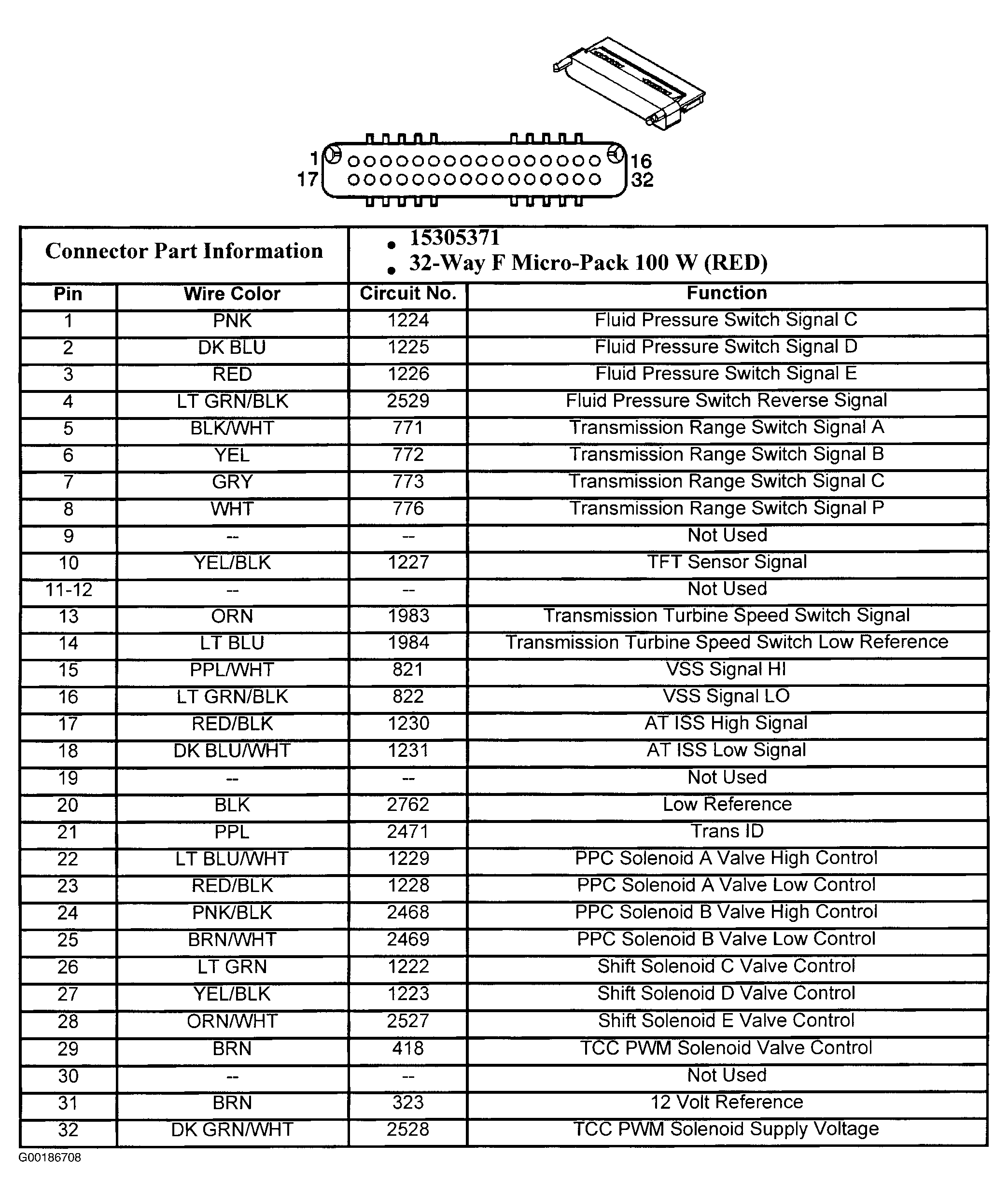

Fig 1: Transmission Control Module Harness Connector End View C2
Courtesy of GENERAL MOTORS CORP.
