Input Speed Sensor Harness Connector End View

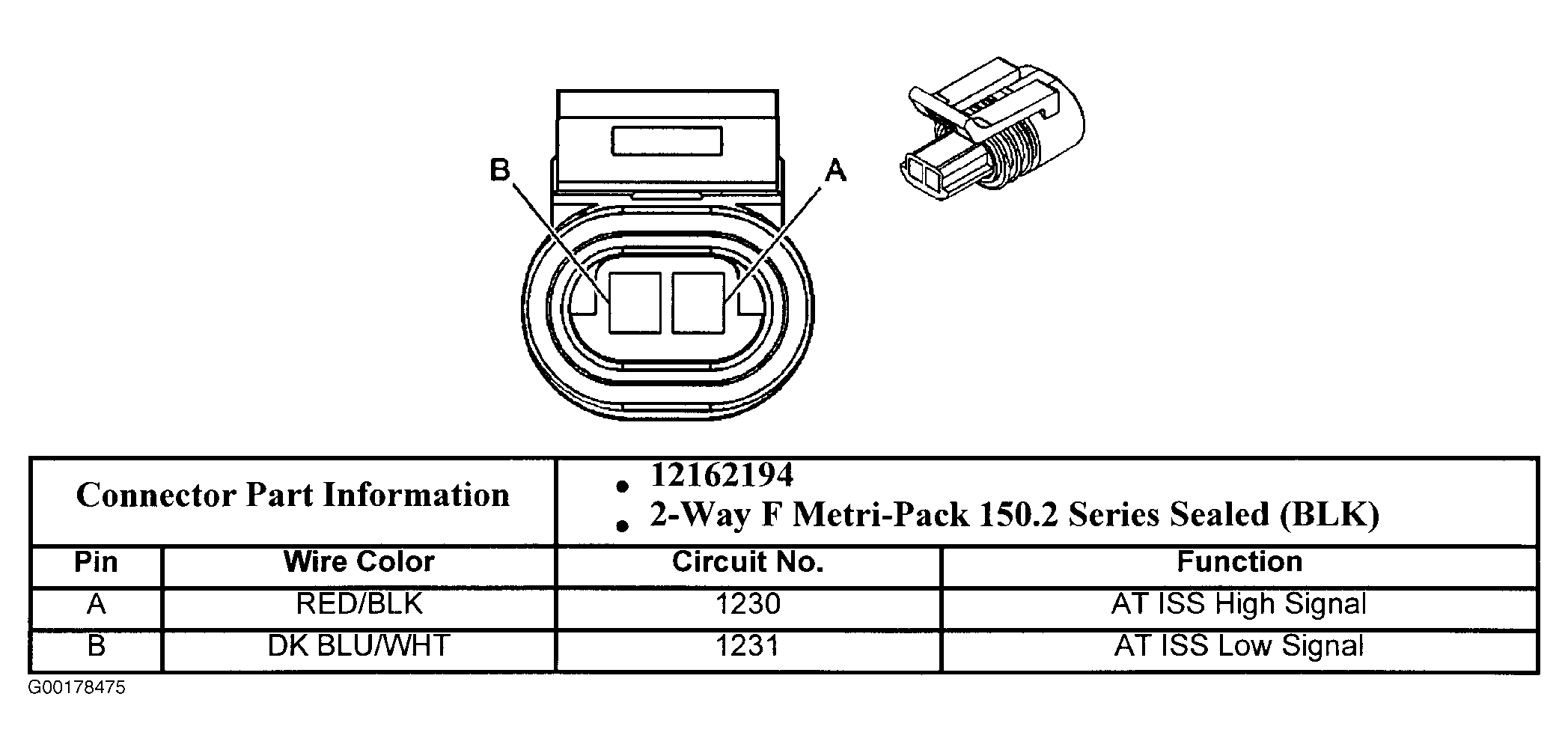

Fig 1: Input Speed Sensor Harness Connector End View
G00178475Courtesy of GENERAL MOTORS CORP.
