Removal Procedure

Use the J 38778  in order to remove the door auxiliary weatherstrip from the vehicle.

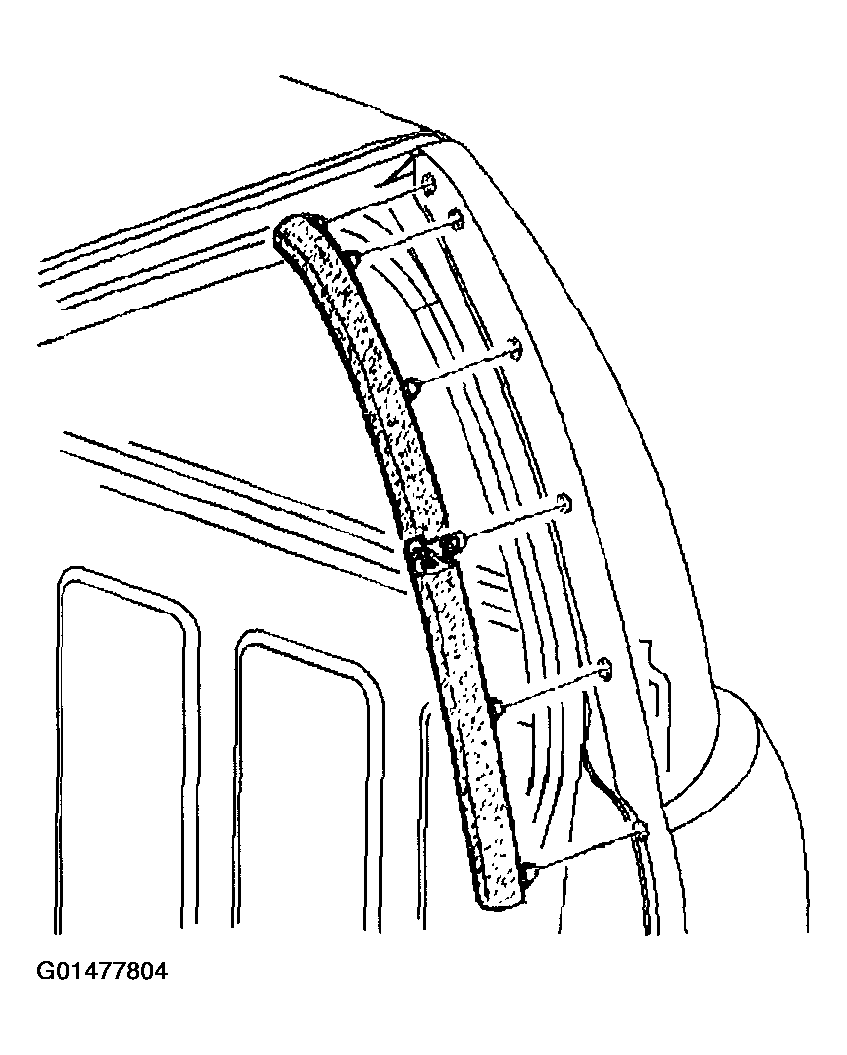

Fig 1: Remove Door Auxiliary Weatherstrip From Vehicle
G01477804Courtesy of GENERAL MOTORS CORP.
