Installation Procedure

  1. Position the seat on the 3 seat mounting studs on the floor of the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the seat mounting bolt.

    Tighten

    Tighten the seat mounting bolt to 70 N.m (52 lb ft).

    Install the seat mounting nuts.

    Tighten

    Tighten the seat mounting nuts to 45 N.m (33 lb ft).

  3. Install the seat adjuster trim covers. Refer to SEAT ADJUSTER TRACK COVER REPLACEMENT - Front (Power)  or SEAT ADJUSTER TRACK COVER REPLACEMENT - Front (Manual) .

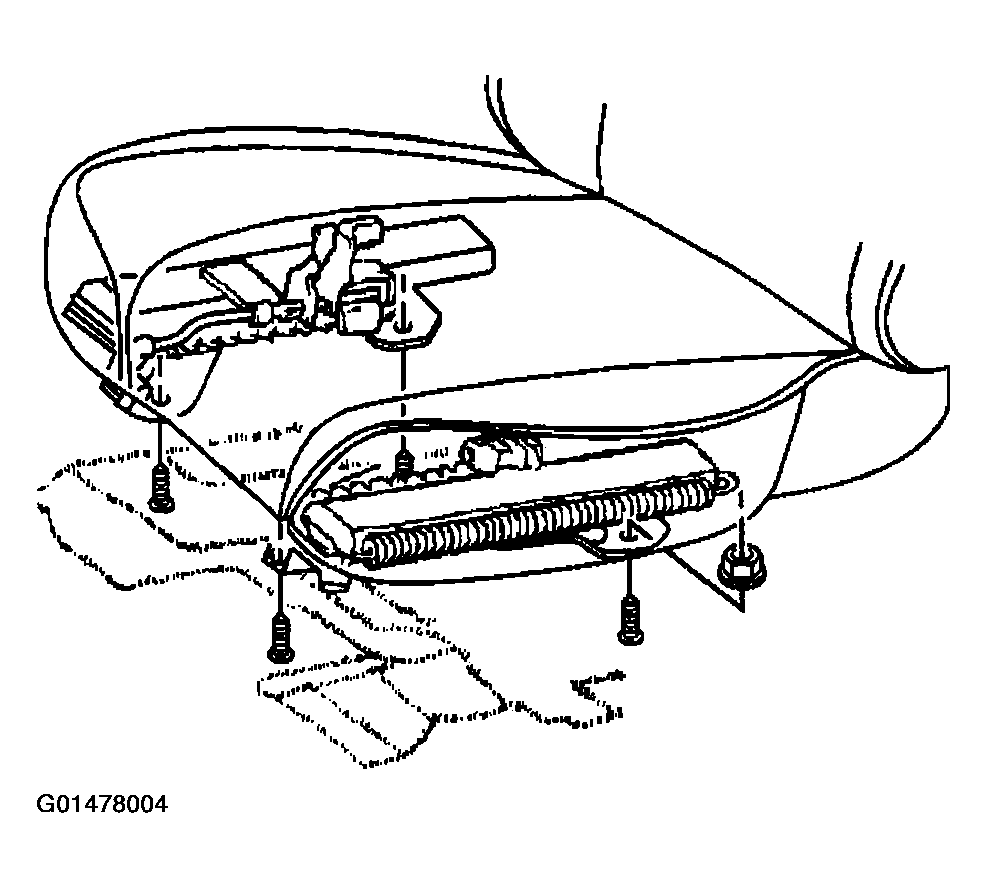

    Fig 1: Installing Seat (Bucket) To Vehicle
    G01478004Courtesy of GENERAL MOTORS CORP.
