Installation Procedure

CAUTION: Refer to SAFETY GLASSES CAUTION in Cautions and Notices.
  1. Install the NEW clutch pilot bearing using the J 26516-A  with the J 8092  .
  2. Measure to ensure the proper installation depth is obtained.
  3. Install the flywheel. Refer to ENGINE FLYWHEEL REPLACEMENT in Engine Mechanical 2.2L or ENGINE FLYWHEEL REPLACEMENT in Engine Mechanical 4.3L.

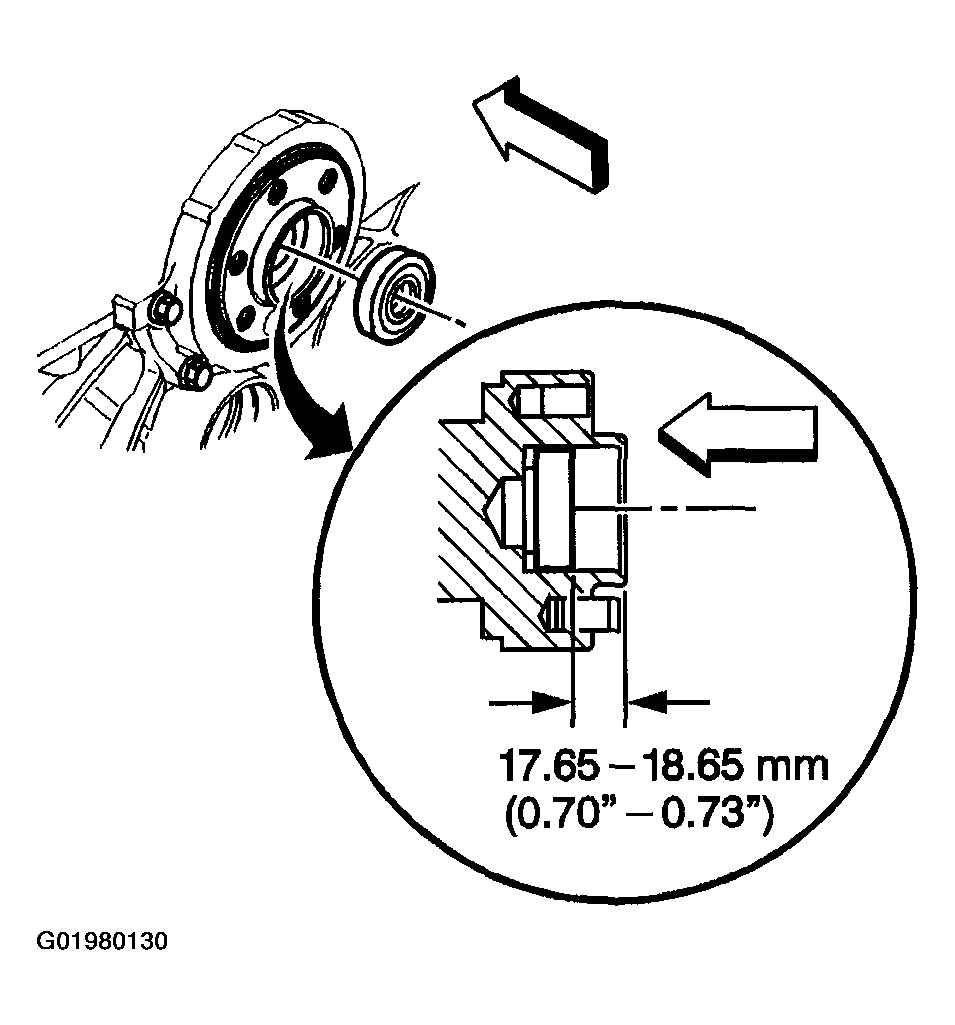

    Fig 1: Identifying Proper Installation Depth Of Clutch Pilot Bearing
    G01980130Courtesy of GENERAL MOTORS CORP.
