Power Steering Gear Disassembled View (700 Gear)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Power Steering Gear Disassembled View (700 Gear)

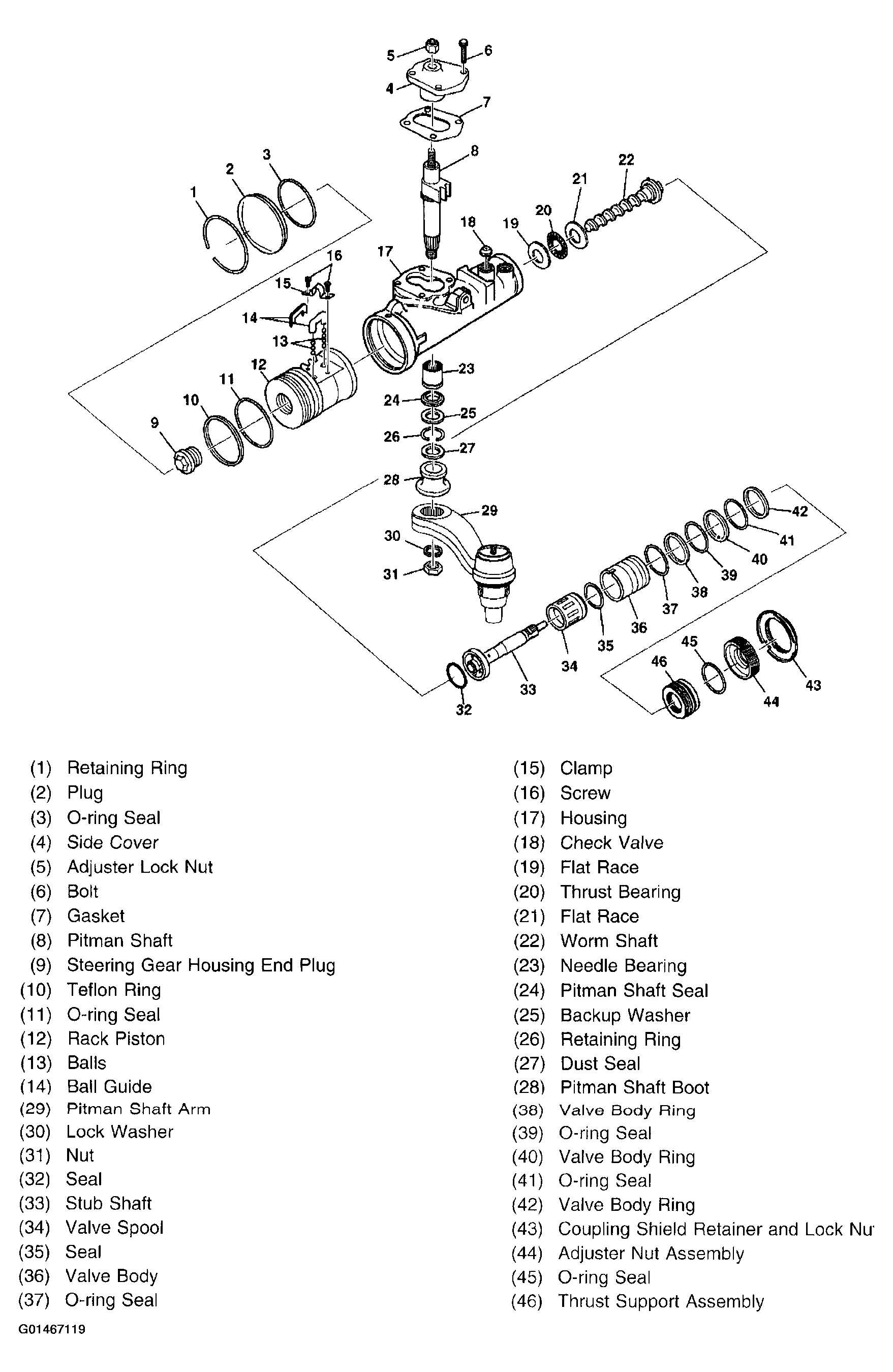

Fig 1: Power Steering Gear
Courtesy of GENERAL MOTORS CORP.
