Fuse Block Underhood Connector End View C4

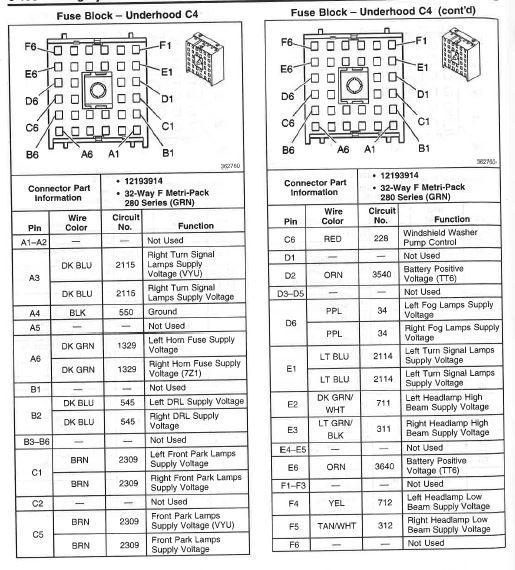

Fig 1: Fuse Block Underhood Connector End View C4
G00565927Courtesy of GENERAL MOTORS CORP.
