Installation Procedure

  1. Install the lumbar adjustment handle to the seat bottom.
  2. Ensure that the adjustment handle is secure before installing the retainer clip to the adjustment handle.
  3. Install the retainer clip to the adjustment handle.

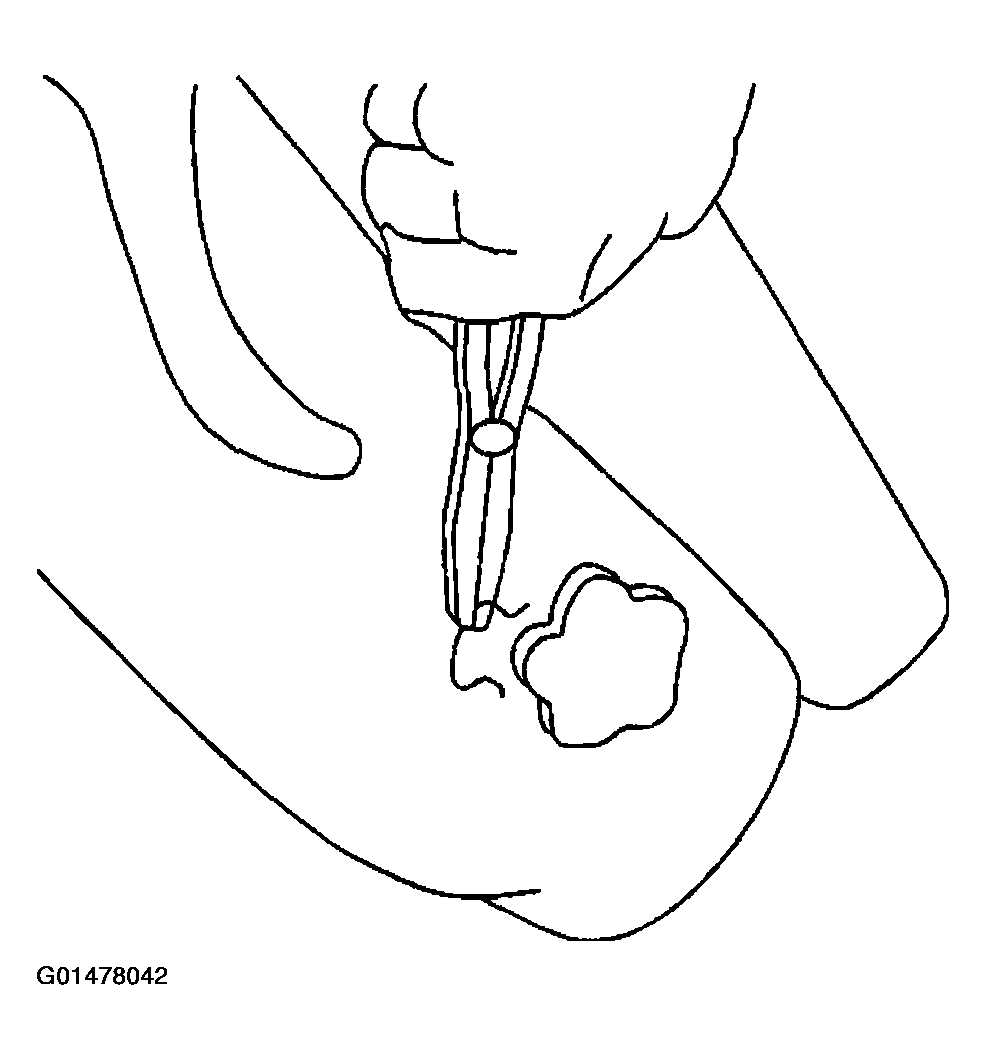

    Fig 1: Installing Lumbar Adjustment Handle To Seat Bottom
    G01478042Courtesy of GENERAL MOTORS CORP.
