Underhood Fuse Block

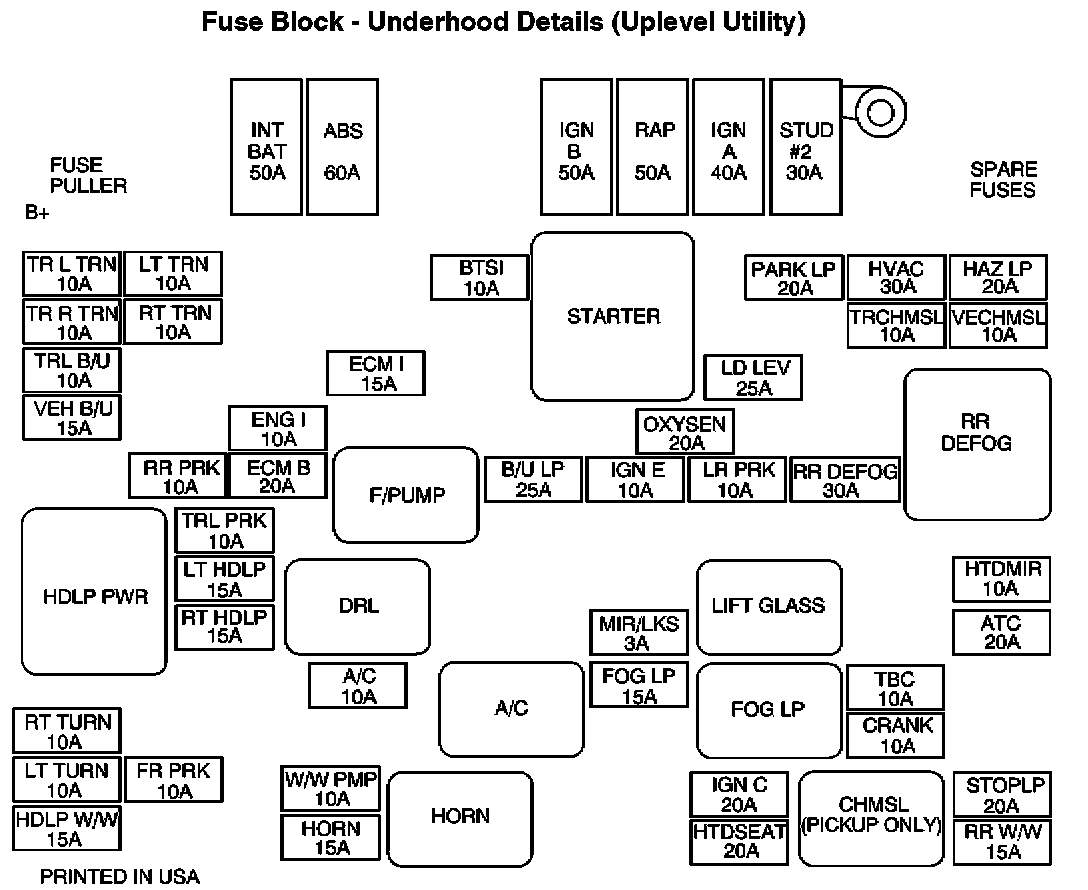

Fuse Block - Underhood Details (Uplevel Utility):

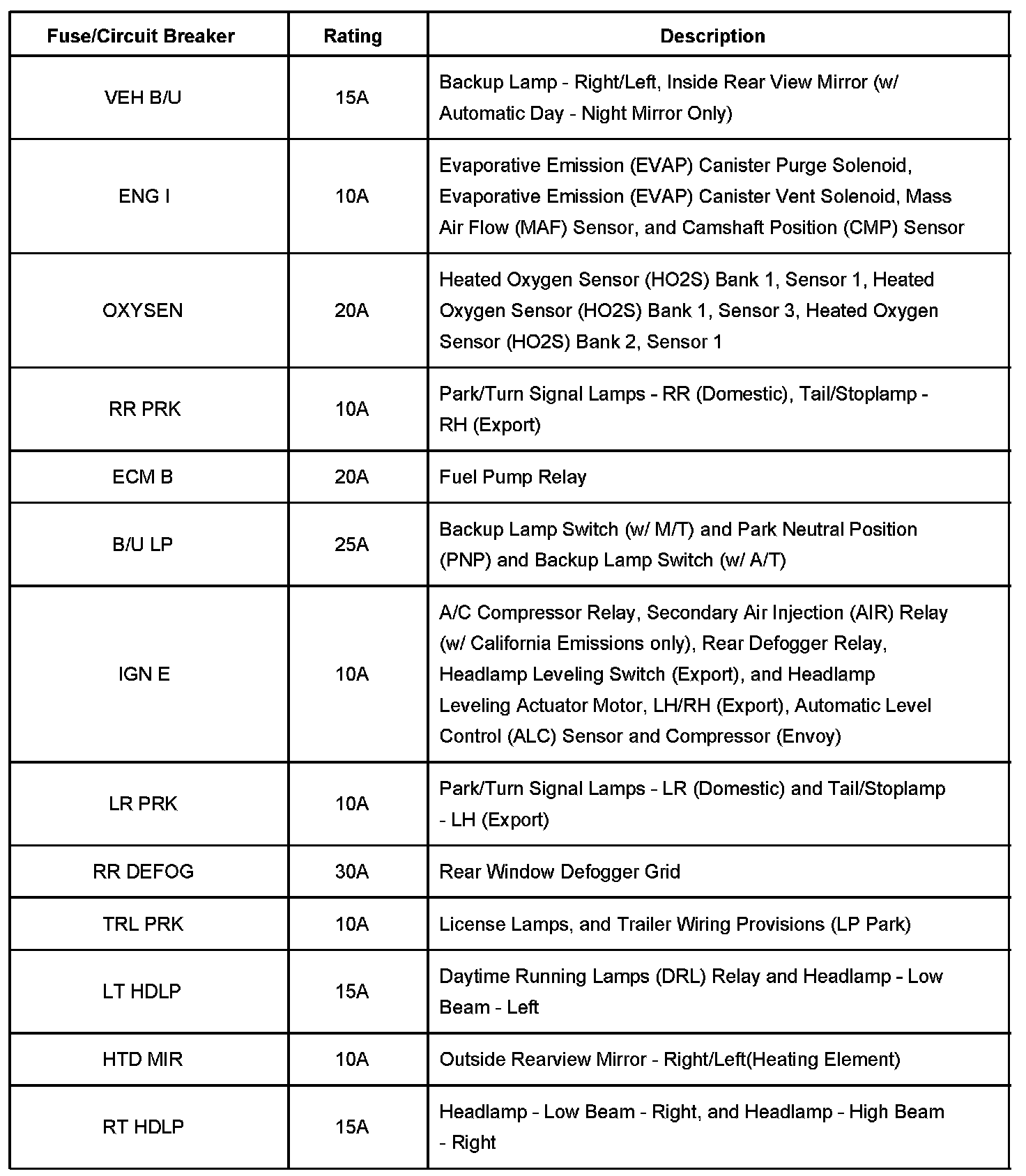

Application Table Part 1:

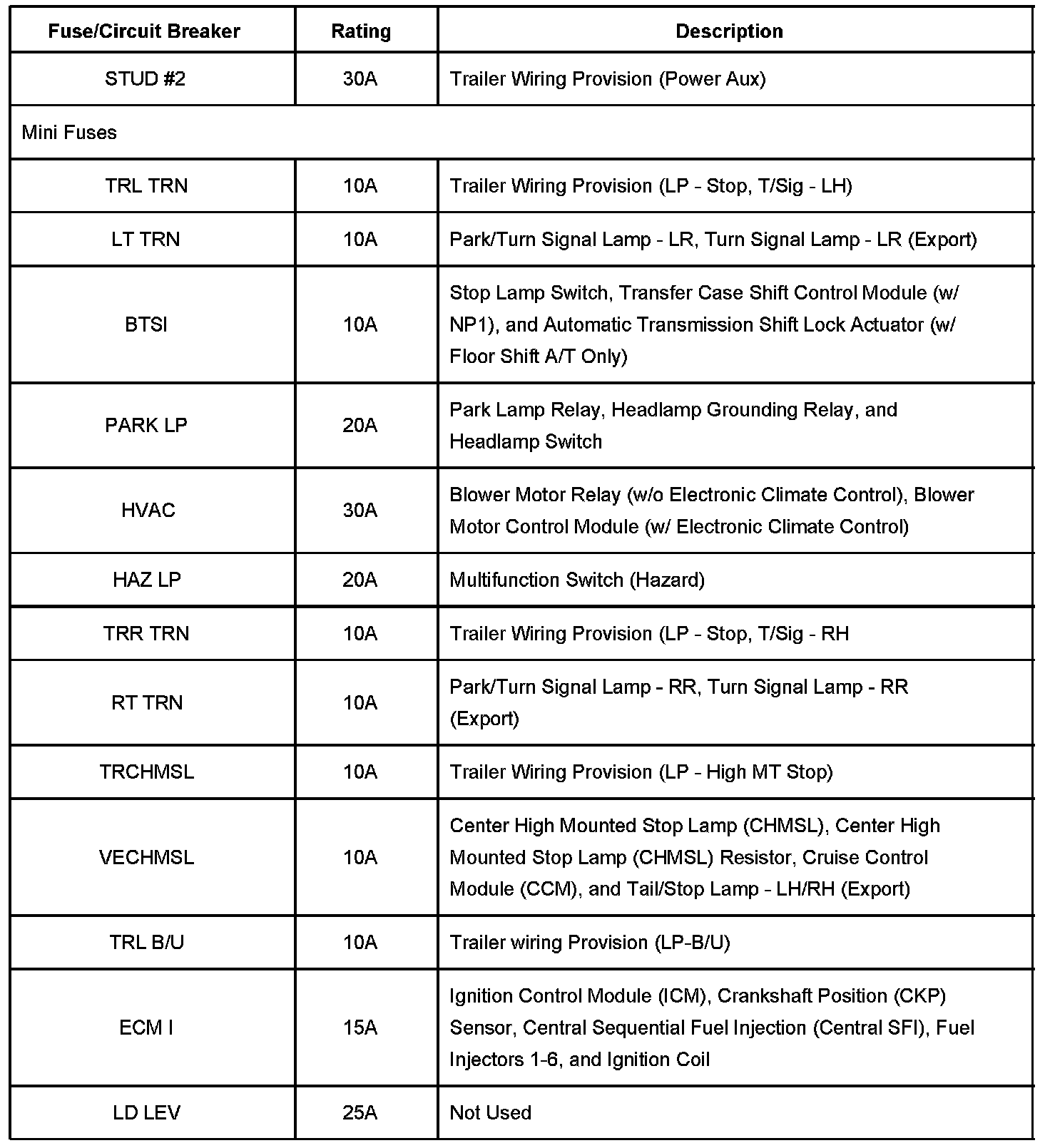

Application Table Part 2:

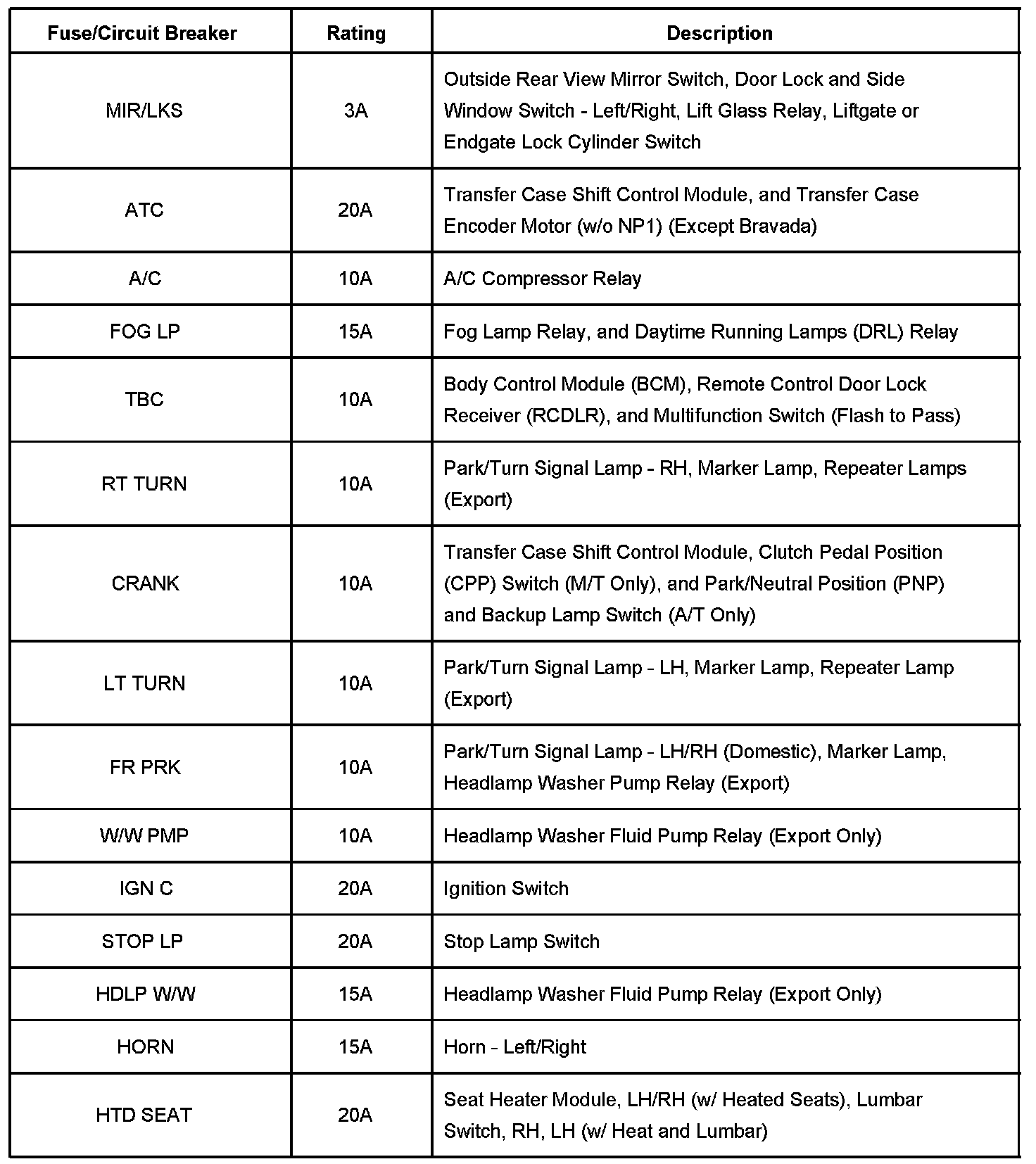

Application Table Part 3:




Application Table Part 4:




Application Table Part 5:
